ICP DAS USA I-7019R Quick Start Manual

8 channel universal analog /thermocouple input module
Hide thumbs Also See for I-7019R:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
I-7019R
8 Channel Universal Analog /
Thermocouple Input Module
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/i_7019r.html
http://www.icpdas-usa.com/dcon_utility_pro.html
1. Introduction
I-7019R provides cost-effective protection and conditioning for a wide
range of valuable industrial control signals and systems. I-7019R provides
4KV of ESD protection. The individual channels are configurable; the user
selects the type and range remotely by issuing commands from the host.
Fewer modules may be used for different applications. The user may
mount the modules on a DIN rail, panel or wall. Modules have a screw-
terminal block to connect to the signals. I-7019R comes with FREE EZ
Data Logger Software.

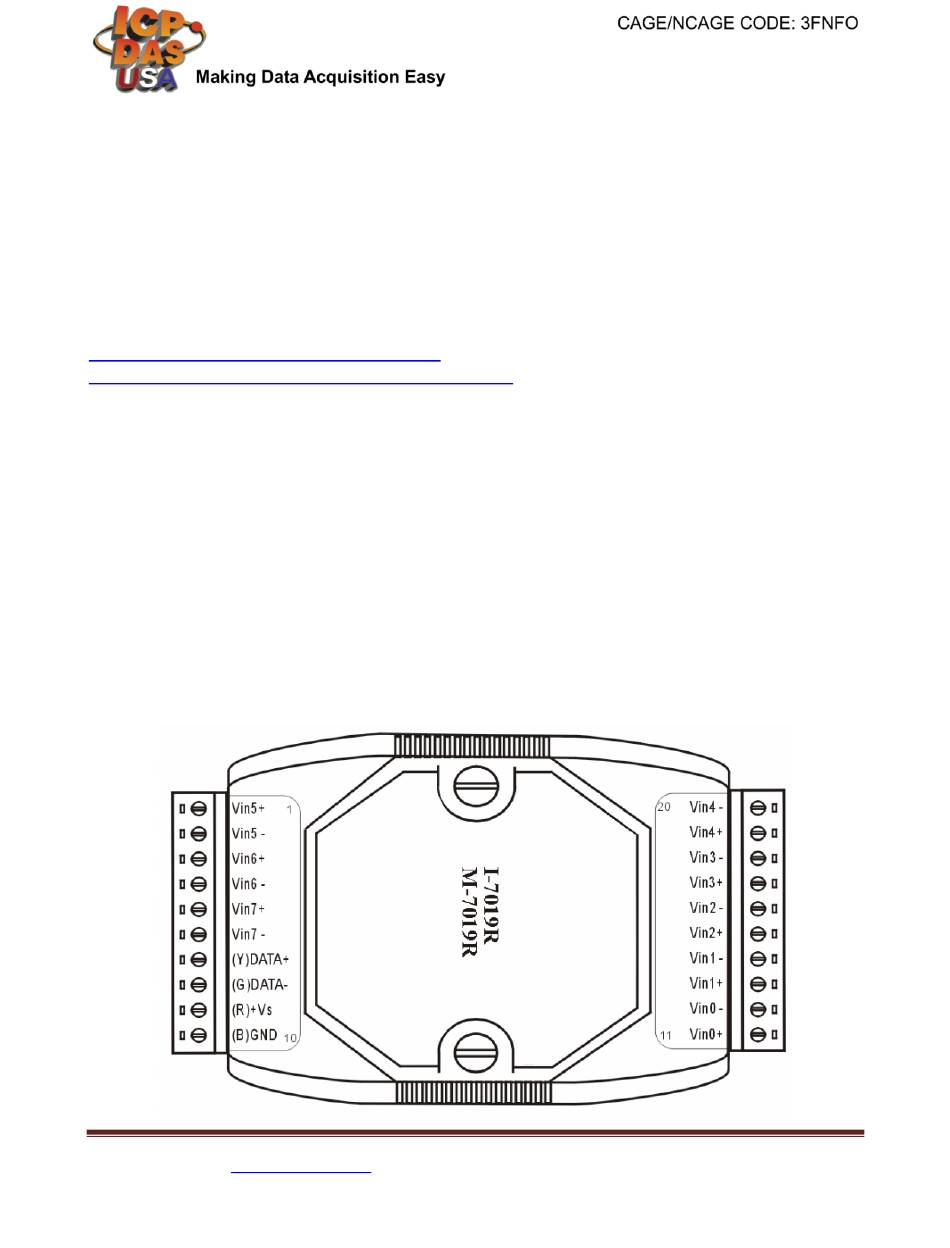

2. Terminal Assignment
I-7019R 8 Channel Universal Analog / Thermocouple Input Module - QuickStart (Feb/2016)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the I-7019R and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA I-7019R

Summary of Contents for ICP DAS USA I-7019R

  • Page 1 Fewer modules may be used for different applications. The user may mount the modules on a DIN rail, panel or wall. Modules have a screw- terminal block to connect to the signals. I-7019R comes with FREE EZ Data Logger Software.
  • Page 2 3. Block/ Wiring Diagram I-7019R 8 Channel Universal Analog / Thermocouple Input Module - QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 3 4. I-7019R Jumper setting I-7019R 8 Channel Universal Analog / Thermocouple Input Module - QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 4 I-7019R 8 Channel Universal Analog / Thermocouple Input Module - QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...

  • Page 5: Default Settings

    3. Connect the module to the power supply using the +Vs and GND terminals. Note that the voltage supplied should be in the range of +10 to +30V DC. I-7019R 8 Channel Universal Analog / Thermocouple Input Module - QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 6 The default settings for the module can be found in Section 3. Click OK after selecting the COM port setting. I-7019R 8 Channel Universal Analog / Thermocouple Input Module - QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 7 DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS and the others modules. 6. Configuration I/O module setting on PC I-7019R 8 Channel Universal Analog / Thermocouple Input Module - QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 8 $AA7CiRrr command must also be sent. Read data from the input channels: send either the #AA or #AAN command to the module. I-7019R 8 Channel Universal Analog / Thermocouple Input Module - QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 9 If user doesn’t know the command, user can select Address and ID, it will show some refer commands as below. User can select necessary command to test or debug modules. I-7019R 8 Channel Universal Analog / Thermocouple Input Module - QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
