- Page 1 RELEASED...

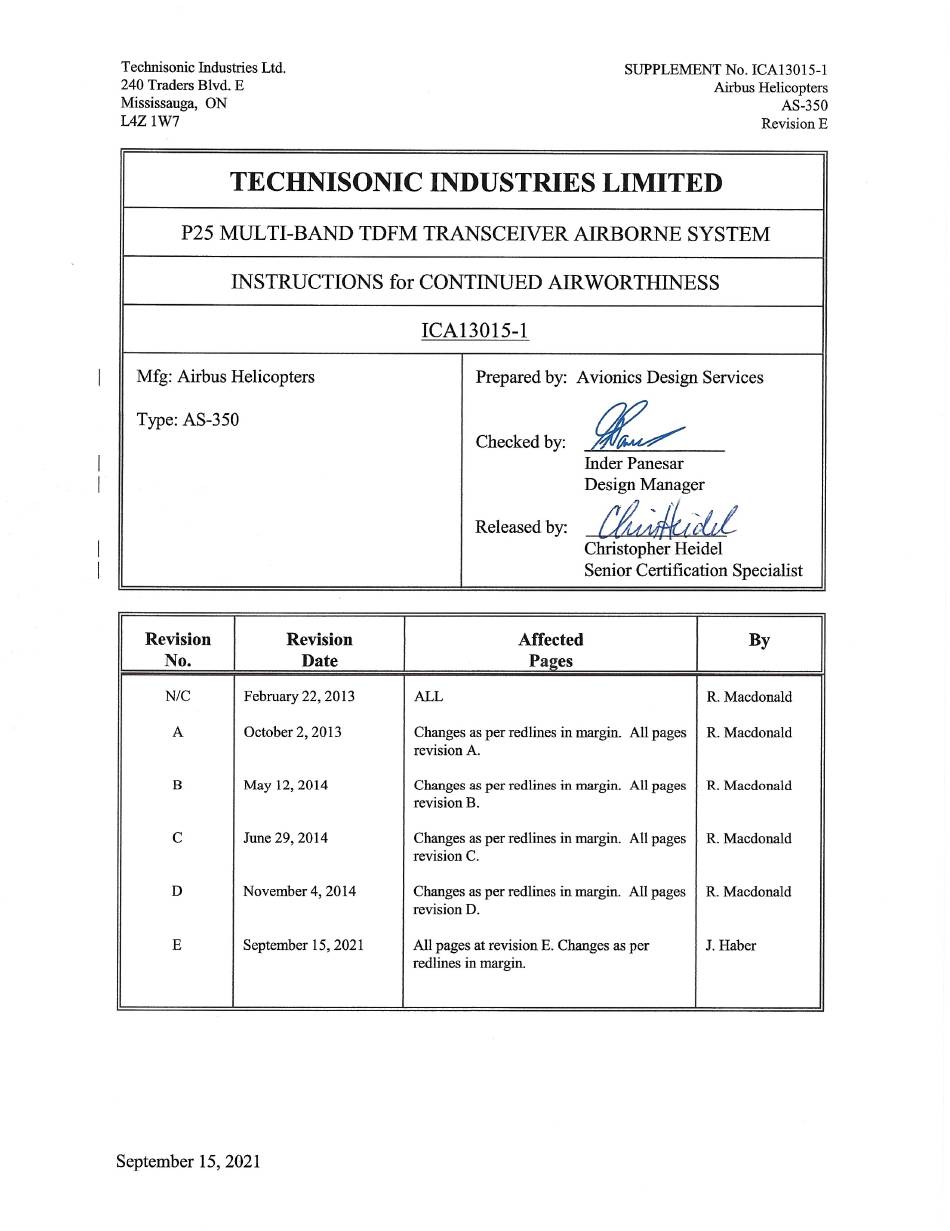

- Page 2 Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E LOG OF PAGE REVISIONS Chapter Sub-Chapter Page Revision Cover Page Log of Page Revisions Table of Contents 1-00-00 4-00-00 5-20-00 5-50-00 23.0...
-
Page 3: Table Of Contents
SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E TABLE OF CONTENTS CHAPTER 1.0 - INTRODUCTION .......... -
Page 4: Chapter 1.0 - Introduction
AS-350 L4Z 1W7 Revision E CHAPTER 1.0 - INTRODUCTION General The Technisonic Industries Limited Multi-band P25 Airborne transceiver system installation is defined by Avionics Design Services Master Drawing List MDL13015. The following equipment is installed as applicable: CHAPTER MAKE MODEL / UNIT... -
Page 5: Reference Data
Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E CHAPTER MAKE MODEL / UNIT LOCATION Comant Dual Band / Dual Port Antenna CI- 295-250 Industries Dual Band / Dual Port Antenna... -
Page 6: Ica Distribution
Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E ICA Distribution This document, and any revisions thereto, shall be distributed to authorized users of the applicable STC data. They will be distributed by courier, in electronic format or paper format. -
Page 7: Supplement Identities
Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E Supplement Identities: Chapter, Page, Paragraph Numbers The supplement format follows the general requirements of iSpec ATA-2200 with respect to Chapter and Title. However, since the extent of the supplemental information is relatively small in scope, the page numbering for each chapter is consecutive. -
Page 8: Chapter 4.0 - Airworthiness Limitations
Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E CHAPTER 4.0 - AIRWORTHINESS LIMITATIONS General No airworthiness limitations associated with this type design change. Canadian Approval The Airworthiness Limitations section is approved by the Minister of Transport, and specifies maintenance required by any applicable airworthiness or operating rule, unless an alternative program has been approved by the Minister. -
Page 9: Chapter 5.0 - Time Limits/Maintenance Checks
Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E CHAPTER 5.0 - TIME LIMITS/MAINTENANCE CHECKS 5-20-00: SCHEDULED CHECKS General Perform the following General Visual Inspections. The inspections are to be performed referencing the applicable wiring diagrams included in Appendix A. -
Page 10: 5-50-00: Unscheduled Checks
Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E CHAPTER 5.0 - TIME LIMITS/MAINTENANCE CHECKS 5-50-00: UNSCHEDULED CHECKS General Hard Landing Perform inspection, in accordance with Eurocopter AS350 Maintenance Manual, Chapter 5-53-00 - Inspection Following An Incident, Card 05.53.00.605. -
Page 11: Chapter 23.0 - Communications
Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E CHAPTER 23.0 - COMMUNICATIONS 23-10-00: TDFM TRANSCEIVER Description / Operation The TDFM-9000, TDFM-9100, TDFM-9200, or TDFM-9300 transceiver is installed in the instrument panel or pedestal. The RC-9000 remote control unit is installed as an option on secondary structure at a mission crew location. -
Page 12: Servicing
Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E 301. Servicing There are no servicing procedures associated with the components of this chapter. 401. Removal / Installation The components of this chapter are protected by the following fuses:... - Page 13 Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E B. RC-9000, or RC-9100 Remote Control Unit Removal a) Remove the above indicated fuses. b) Release six (four on RC-9100) Dzus fasteners from front of remote control unit.
-
Page 14: Adjustment / Test
Technisonic Industries Ltd. SUPPLEMENT No. ICA13015-1 240 Traders Blvd. E Airbus Helicopters Mississauga, ON AS-350 L4Z 1W7 Revision E 501. Adjustment / Test A. Function Test NOTE: Perform the following function test using the front panel of the TDFM-9000, TDFM-9100, TDFM-9200, or TDFM-9300 Transceiver. -
Page 15: Approved Repairs
Approved Repairs A. TDFM-9000, TDFM-9100, TDFM-9200, and TDFM-9300 Transceivers There are no approved field repairs for the transceiver. Failed units caused by defective parts or workmanship, should be returned to: Technisonic Industries Limited 240 Traders Blvd. E Mississauga, ON L4Z 1W7 [905] 890-2113 B. - Page 16 L4Z 1W7 Revision E APPENDIX A ITEM TITLE REV* WIRING DIAGRAM WD13004 ‘TIL FM TRANSCEIVER, EC AS-350' STRUCTURAL DIAGRAM 5004272 TECHNISONIC ANTENNA INSTALLATION - AS350 ENGINEERING ORDER EO13015-3 TECHNISONIC RC-9100 REMOTE CONTROL PANEL OPTION (AS-350) STRUCTURAL DIAGRAM, MD21068, TRI-BAND ANTENNA INSTL OPTION - AS350 * Or later approved revision.
