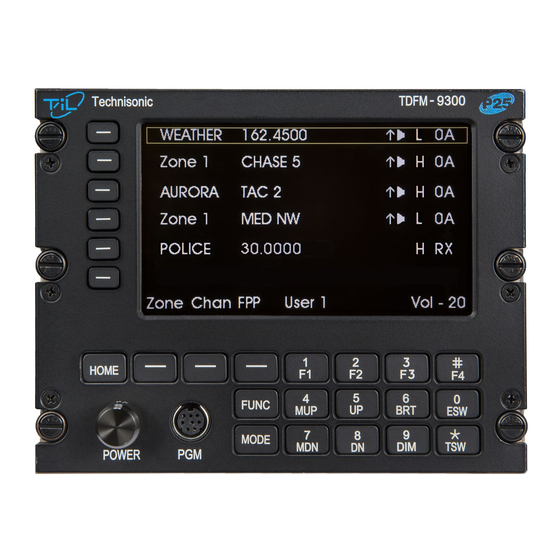

TDFM-9300
MULTIBAND P25 AIRBORNE TRANSCEIVER
Operating Instructions
TiL Document No. 13RE470
Rev. B
NOVEMBER 2013
Technisonic Industries Limited
240 Traders Boulevard, Mississauga, Ontario L4Z 1W7
Tel: (905) 890-2113 Fax: (905) 890-5338
www.til.ca
Copyright 2013 by Technisonic Industries Limited. All rights reserved.
Advertisement
Table of Contents
Related Manuals for Technisonic Industries Limited TDFM-9300
Summary of Contents for Technisonic Industries Limited TDFM-9300
-

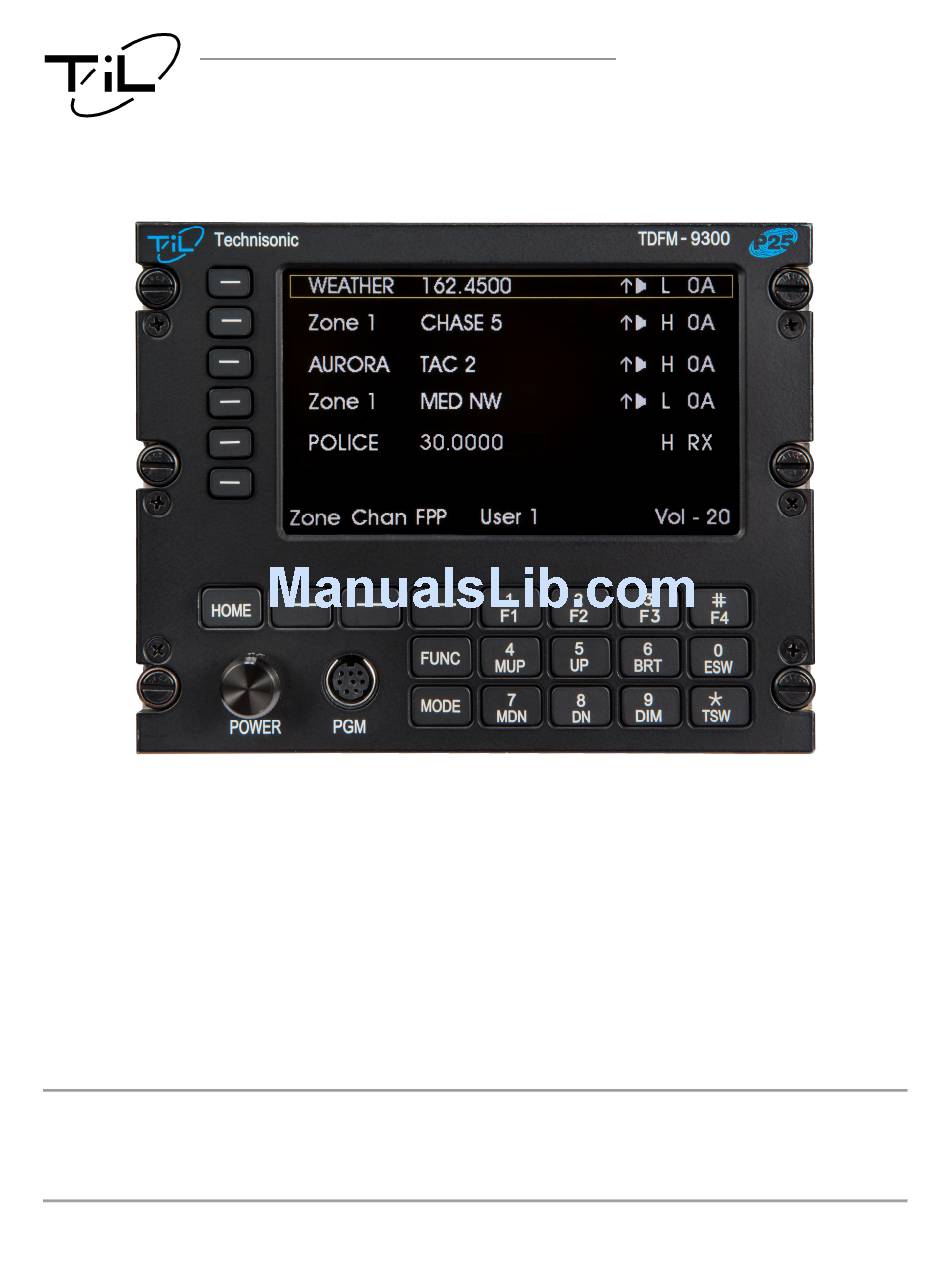

Page 1: Operating Instructions
MULTIBAND P25 AIRBORNE TRANSCEIVER Operating Instructions TiL Document No. 13RE470 Rev. B NOVEMBER 2013 Technisonic Industries Limited 240 Traders Boulevard, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 www.til.ca Copyright 2013 by Technisonic Industries Limited. All rights reserved. -
Page 2: Revision History
Front Panel Image changed Oct. 21, 2013 Front Panel Diagram changed Programming and Keyloading Cables corrected Updated the Part Number Nomenclature, Menu Nov. 07, 2013 Access Information, Keyloading Info, and added the MultiTDP Software TDFM-9300 Operating Instructions TiL 13RE470 Rev. B... - Page 3 Changes or modifications not expressly approved by Technisonic Industries could void the user’s authority to operate the equipment. WARRANTY INFORMATION The Model TDFM-9300 Transceiver is under warranty for one year from date of purchase. Failed units caused by defective parts or workmanship should be returned to: Technisonic Industries Limited...
- Page 4 STCs and letter of authorization for use. WARNING AND DISCLAIMER This manual is designed to provide information about the TDFM-9300. Every effort has been made to make this manual as complete and accurate as possible. TRADEMARK NOTICES TDFM-9300 Transceivers contain two-way radio protocols licensed from Motorola, Inc.
-
Page 5: Table Of Contents
GENERAL OPERATION ......................2-7 2.16 CUSTOMER PROGRAMMING SOFTWARE (APX CPS) ............2-8 2.17 CONFIGURATION MENU ......................2-10 2.18 KEYLOADING MODE ....................... 2-11 2.19 FRONT PANEL PROGRAMMING (FPP) MODE ..............2-11 2.20 FLASH UPGRADE MODE ....................... 2-14 TDFM-9300 Operating Instructions TiL 13RE470 Rev. B... - Page 6 TECHNISONIC INDUSTRIES LIMITED www.til.ca LIST OF FIGURES FIGURE TITLE PAGE Front Panel Controls – TDFM-9300 Transceiver ..............2-1 Programming Cable: P/N 127499 ..................... 2-9 Encryption Keyloading Cable: P/N 127500 ................2-9 LIST OF TABLES TABLE TITLE PAGE TDFM-9300 Series PL/MOT Codes ..................2-12 TDFM-9300 Series DPL Codes (All Bands) ................
-
Page 7: General Description
P25 9600 trunking Phase 1 and 2 may be combined with AES and/or DES-OFB encryption with OTAR in any of the available modules. In addition, the TDFM-9300 has one analog only RF module. The analog slot can support VHF FM low band (30 – 50 MHz) or VHF AM com (118 – 137 MHz). - Page 8 Project Number: P93XXX represents a 5 digit project number that identifies specific options that are contained in each module and describes the full TDFM-9300 configuration. All model variations are capable of supporting both 28 Volt and 5 Volt AC or DC back lighting. The units are shipped set to operate on 28 Volt back lighting.
-
Page 9: Technical Characteristics
12.5 kHz Channel Intermodulation * ** * Measured in digital mode per TIA / EIA IS 102.CAAA under nominal conditions. ** Measured in analog mode per TIA / EIA 603 under nominal conditions. TDFM-9300 Installation Instructions TiL 11RE442 Rev. B... -
Page 10: General
Third Order Intermodulation -70 dB Image Attenuation -80 dB FM Acceptance ± 6 kHz Hum and Noise Better than 45 dB Audio Distortion Less than 5% Antenna Conducted Emission Less than -70 dBm TDFM-9300 Installation Instructions TiL 11RE442 Rev. B... - Page 11 Harmonic Attenuation -60 dB below carrier level Signal to Noise Ratio -35 dB Audio Input 50 mV at 2.5 kHz into 200 ohm input circuit for 30% modulation (adjustable) Audio Distortion Less than 5% TDFM-9300 Installation Instructions TiL 11RE442 Rev. B...
- Page 12 TECHNISONIC INDUSTRIES LIMITED www.til.ca This page left intentionally blank TDFM-9300 Installation Instructions TiL 11RE442 Rev. B...
-
Page 13: Front Panel
5 modules; therefore, switching from band to band is performed at an audio panel such as the Technisonic A71X series. This allows for separate and simultaneous operation on each of the bands (just like having 5 separate radios). -
Page 14: Power Switch
To switch the transceiver on, press and hold the knob until the radio powers up. The display will show TECHNISONIC and the software version installed followed by the model number along with which RF modules are installed. The display will then show the normal display. To switch off the transceiver at any time, press and hold the knob for 2 seconds until the display shows OFF and then release. -
Page 15: Func Key
Pressing the NEXT soft key or the FUNC key again will bring up the second function menu. Technisonic TDFM-9300 Cross Band Repeat Configuration Simulcast Quick Channel Programming Simplex Repeat TDFM-9300 Operating Instructions TiL 13RE470 Rev. B... -
Page 16: F1 To F4 Keys
TECHNISONIC INDUSTRIES LIMITED www.til.ca Cross Band Repeat You can select any two bands to cross band repeat. The repeat function is semi-duplex. This means the TDFM-9300 will retransmit from one band to another in both directions but not simultaneously. Configuration Enters the configuration menu (see 2.18 configuration menu). - Page 17 TDFM-9300 radio. However, if custom key settings are chosen, it will not be possible for Technisonic to help the Pilot or other Radio User through operational difficulties. These questions will have to be referred to the Radio System Administrator responsible for customizing the settings.
-
Page 18: Mup(4) And Mdn(7) Keys (Memory Up And Down Keys)
TECHNISONIC INDUSTRIES LIMITED www.til.ca Modules 1 through 4 of the TDFM-9300 Transceiver are programmable by Motorola CPS™. The following settings may be programmed for each Conventional Channel in a module: Tx Frequency Zone Tx PL/DPL Code Channel Rx Frequency Name... -
Page 19: Esw(0) Key (Ergo Switch Key)
Switch on the transceiver by pressing the knob. Select the desired band by pressing one of the band select keys on the left of the display. Select the TDFM-9300 on the aircraft audio panel. Press the knob again so that CHAN shows up on the bottom right of the display. Rotate the knob until the desired channel or talk group is selected. -
Page 20: Customer Programming Software (Apx Cps)
A Programming cable “PC-9000” is required to connect the computer to the TDFM-9300. Bands 1 - 4 in the TDFM-9300 are considered an APX-7000 portable by the APX CPS™ software. To program a band in the transceiver, it must be selected by pressing the appropriate band select key before running the APX CPS™. - Page 21 TECHNISONIC INDUSTRIES LIMITED www.til.ca FIGURE 2.2: Programming cable: P/N 127499 FIGURE 2.3: Encryption Keyloading cable: P/N 127500 TDFM-9300 Operating Instructions TiL 13RE470 Rev. B...
-
Page 22: Configuration Menu
2.17 CONFIGURATION MENU: Some features of the TDFM-9300 transceiver can be configured to the user’s preference. To enter the configuration menu, press the FUNC button, then NEXT, and then select "Configuration" from the 2nd side button. Configuration Menu can also be accessed by turning the unit on while simultaneously pressing the F4, ESW, and TSW keys. -
Page 23: Keyloading Mode
2.18 KEYLOADING MODE If the TDFM-9300 is equipped with hardware encryption, then the Encryption keys will need to be loaded using a Motorola KVL 3000+® or KVL 4000 Keyloader and a KVL-9000 cable, (TIL P/N 127500). Modules in the TDFM-9300 can easily be keyloaded by simply selecting the band and plugging in the keyloader and cable into the programming connector on the front of the radio. - Page 24 FPP can only be used on a memory containing a conventional analog or P25 channel. P25 trunked or Motorola Trunking channels can only be programmed via APX CPS software. The following is a list of TDFM-9300 CTCSS/PL/MOT Codes: PL(Hz) MCODE...
- Page 25 TECHNISONIC INDUSTRIES LIMITED www.til.ca The following is a list of TDFM-9300 DCS/DPL CODES: TABLE 2.2 TDFM-9300 Series DPL Codes (All Bands) The following is a list of TDFM-9300 analog band CTCSS/PL TONES: TONE # PL (HZ) TONE # PL (HZ)
-
Page 26: Flash Upgrade Mode
Follow the instruction supplied with the flash upgrade kit for configuring and using the APX CPS. When flash upgrade is completed, press the EXIT soft key to reboot the TDFM-9300 to normal operation. For detailed instructions, refer to TIL document xxxxxx “FLASH UPGRADE PROCEDURE FOR TDFM-9300 SERIES RADIOS.”...
