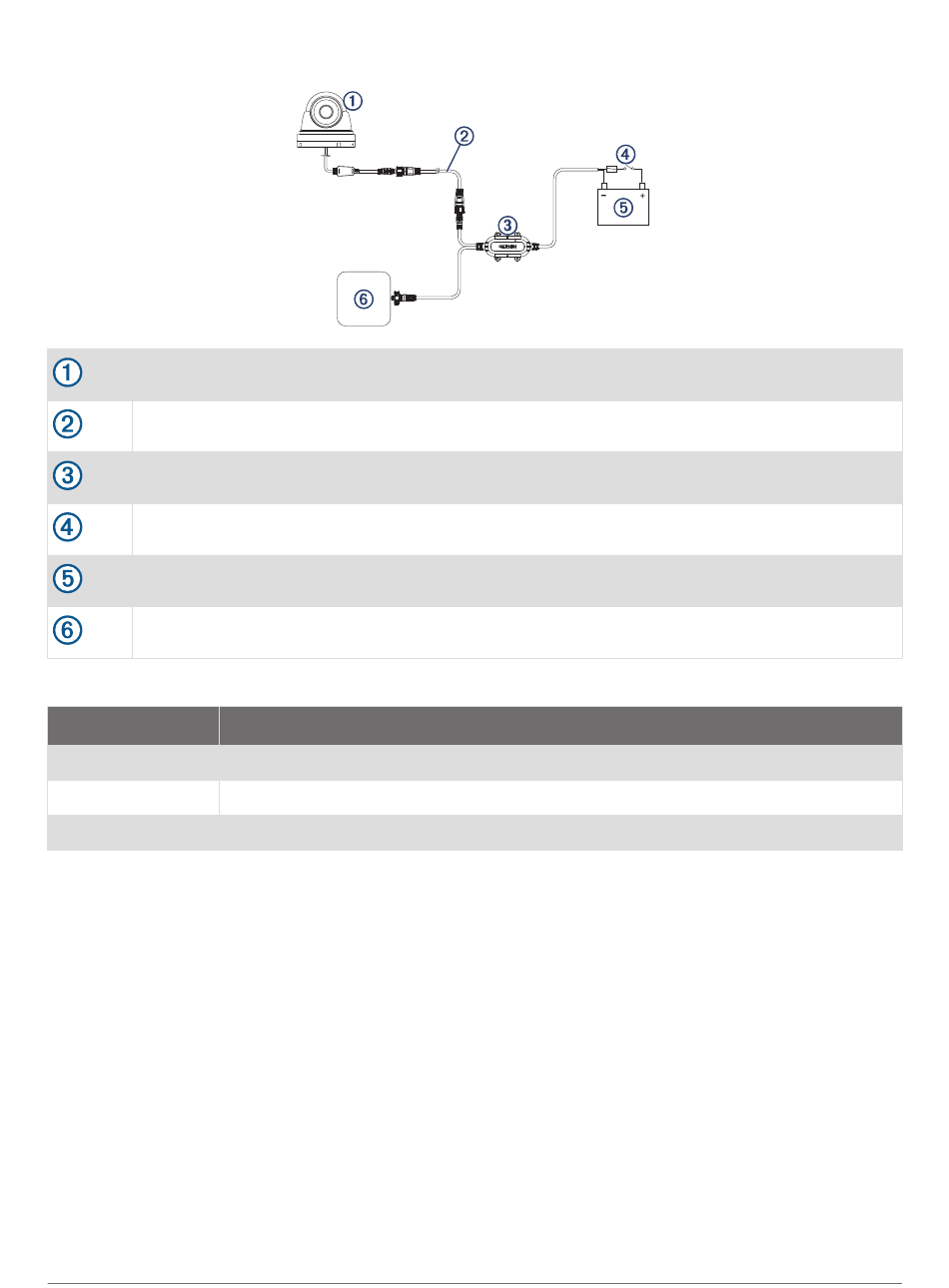

Connection Diagram with a Garmin Power Module
GC 200 marine IP camera
Garmin Marine Network cable small connector
Power module (010-12527-00, not included)
In-line switch (not included)
9 to 32 Vdc power source (not included)
Chartplotter (not included)
Camera Status LED
LED Activity
Status
Solid red
The camera is on.
Solid green
The camera is connected to the network and transmitting data.
Flashing green
The camera detects motion.
