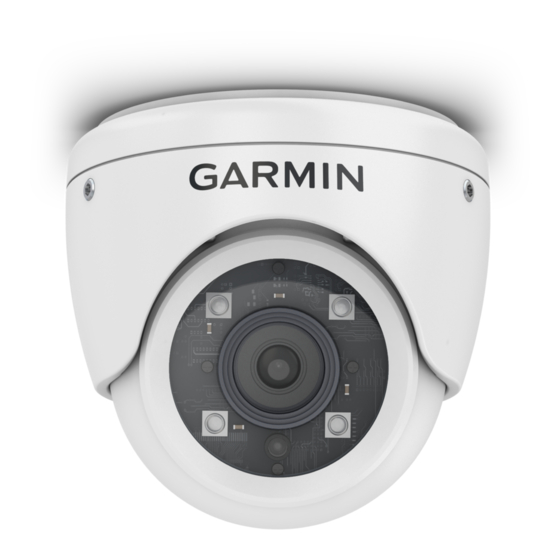

Garmin GC 200 Installation Instructions Manual

Garmin GC 200 Installation Instructions Manual

Ip marine camera

Advertisement

Mounting Considerations
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
You can mount the camera upside-down or sideways. You can reverse the camera image to use in rearview
mode. See your chartplotter owner's manual for instructions.
NOTE: You must update your chartplotter software to setup and view the camera feed on your chartplotter.
• You must mount the camera in a location where it is not submerged, does not present a hazard in doorways
or walkways, and cannot be damaged by docks, pilings, or other pieces of equipment.
• You should mount the camera in a location strong enough to support the weight of the device and where you
can remove the camera.
• You should mount the camera so the LED is visible and the cables can be connected easily.
• To avoid interference with a magnetic compass, do not mount the camera closer to a compass than the
compass-safe distance value listed in the product specifications.
• You should test the camera in the selected location before you permanently mount the camera.
• You can use the Garmin
single camera cable instead of separate power and ethernet cables. This is especially beneficial when the
camera is located far away from other electronics, such as near the bow or on a mast.
Tools Needed
1
• Drill and 2 mm (
/
in.) drill bit
16
• Pozidriv
screwdriver
®
August 2021
GC
200 IP MARINE CAMERA
INSTALLATION INSTRUCTIONS
Power Module to help make the installation easier. The Power Module uses a
®
WARNING
GUID-95567C20-B681-4E56-B4B1-71CF15B4972A v2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Garmin GC 200

  • Page 1 • You should test the camera in the selected location before you permanently mount the camera. • You can use the Garmin Power Module to help make the installation easier. The Power Module uses a ®...
  • Page 2: Mounting The Camera

    Mounting the Camera 1 Secure the template to the mounting location. 2 Using a 2 mm ( in.) drill bit, drill the pilot holes. 3 Using the included hex wrench, loosen the screw in the side of the camera base. 4 Remove the base from the camera body.
  • Page 3: Connection Considerations

    NOTICE To avoid permanently damaging the camera, do not connect the camera directly to a 24 Vdc system. You must use a Garmin Power Module when connecting to a 24 Vdc system. 1 A fast-acting fuse (required, not included) NOTICE You must connect the power wire through a 1 A fast-acting fuse (not included).
  • Page 4: Camera Status Led

    Connection Diagram with a Garmin Power Module GC 200 marine IP camera Garmin Marine Network cable small connector Power module (010-12527-00, not included) In-line switch (not included) 9 to 32 Vdc power source (not included) Chartplotter (not included) Camera Status LED...
  • Page 5: Specifications

    These trademarks may not be used without the express permission of Garmin. Pozidriv is a trademark of the American Screw Company. ® The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating.
  • Page 6 © 2021 Garmin Ltd. or its subsidiaries support.garmin.com...
