Mounting the Camera

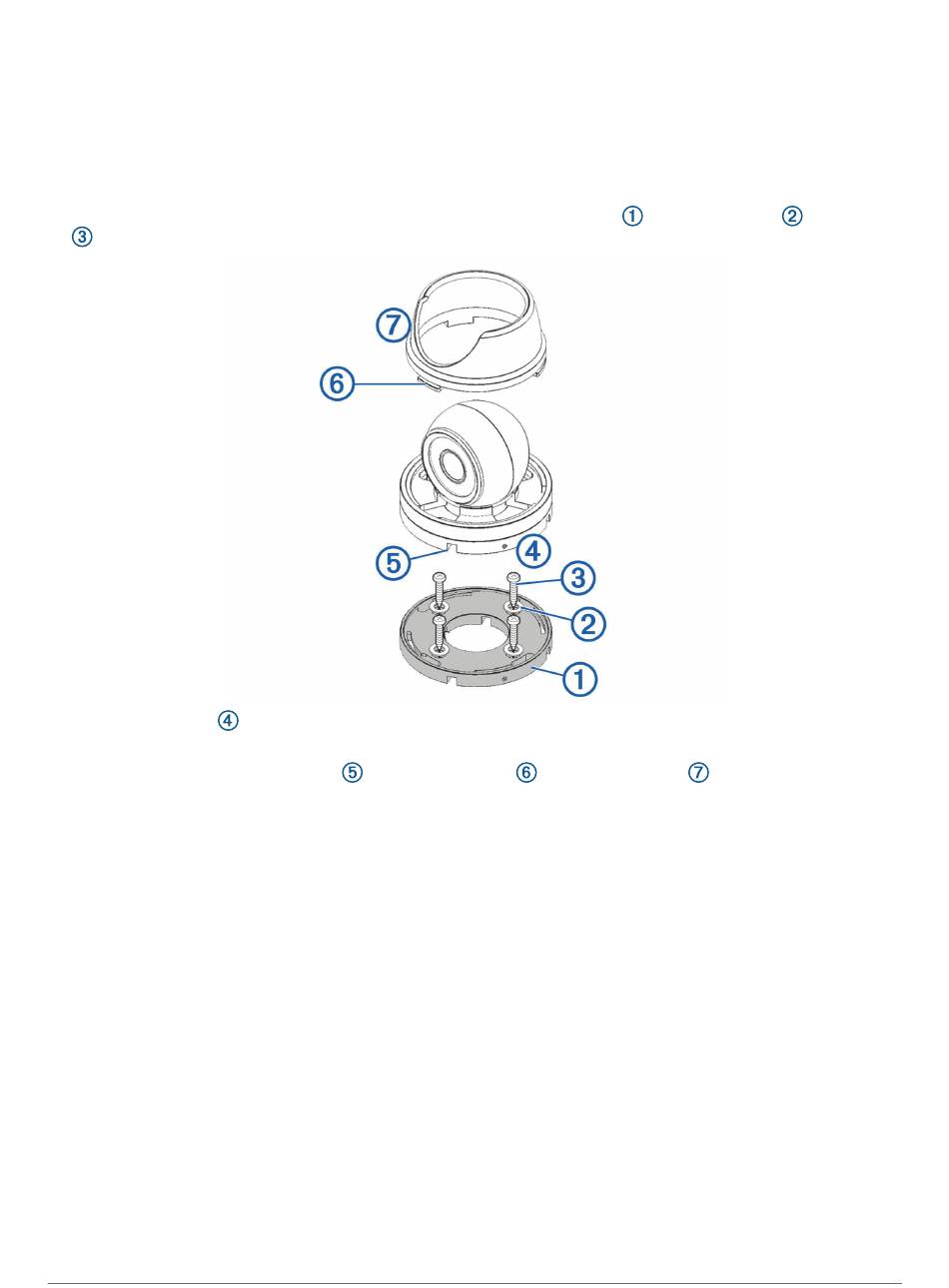

1 Secure the template to the mounting location.

2 Using a 2 mm (

in.) drill bit, drill the pilot holes.

3 Using the included hex wrench, loosen the screw in the side of the camera base.

4 Remove the base from the camera body.

5 Feed the camera cables through the camera base, or through one of the cable channels.

6 Align the camera base with the pilot holes, and secure the camera base

with the washers

and screws

7 Attach the camera

to the base, and tighten the screw in the camera base.

8 Connect the camera cables.

9 Align the slots on the camera base

with the collar lugs

, and turn the collar

until it locks.
