Connection Considerations

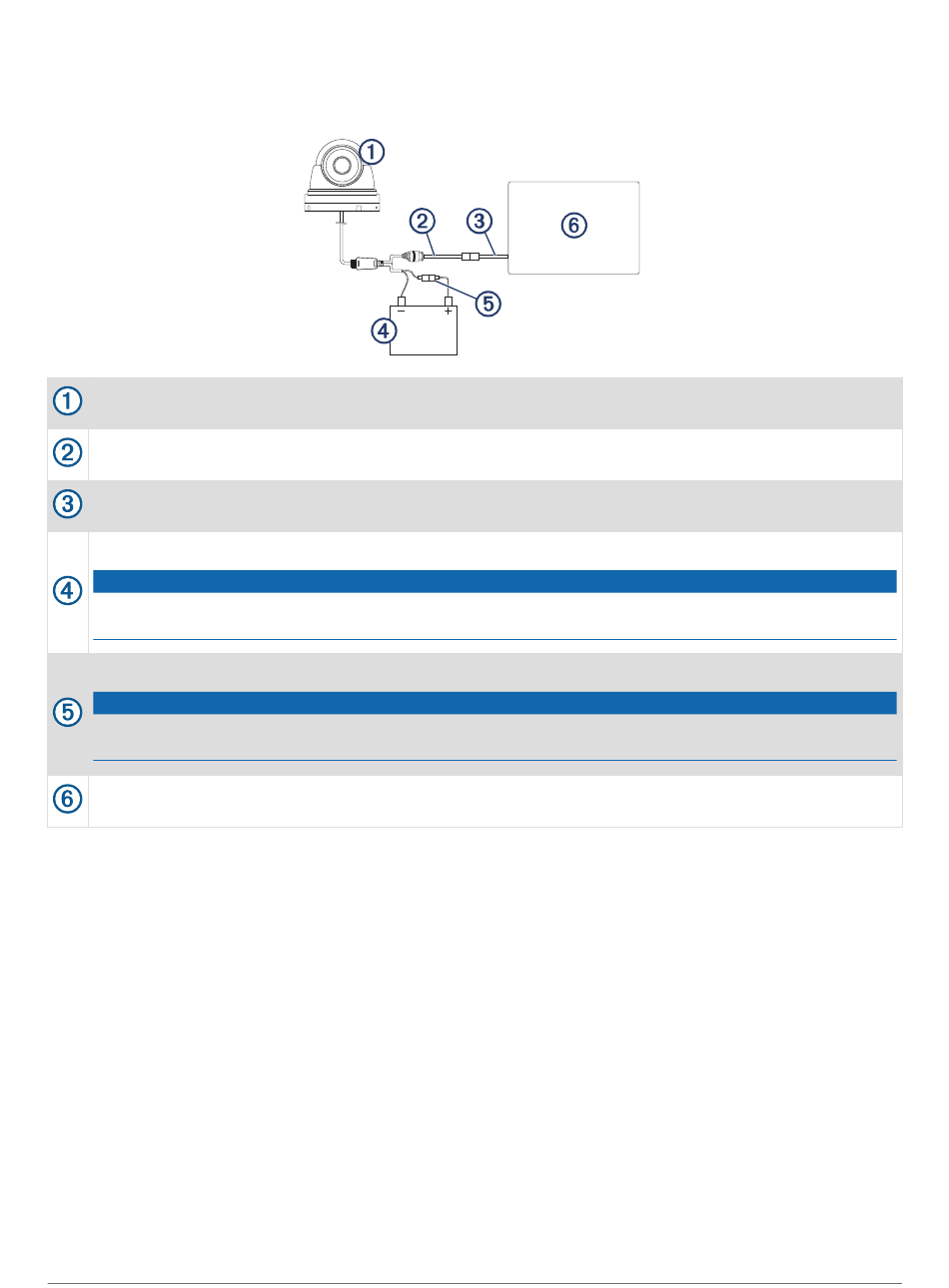

Connection Diagram with Direct Power

GC 200 marine IP camera

Garmin Marine Network cable small connector (included)

Garmin Marine Network Adapter Cable small to large (included)

9 to 18 Vdc power source (not included)

To avoid permanently damaging the camera, do not connect the camera directly to a 24 Vdc system.

You must use a Garmin Power Module when connecting to a 24 Vdc system.

1 A fast-acting fuse (required, not included)

You must connect the power wire through a 1 A fast-acting fuse (not included). Without a fuse, the

device can malfunction.

Garmin chartplotter (not included)

NOTICE
