DD+DIS064.02E
Edition 1, Revision 4
Controls, Connections and Setup Procedures

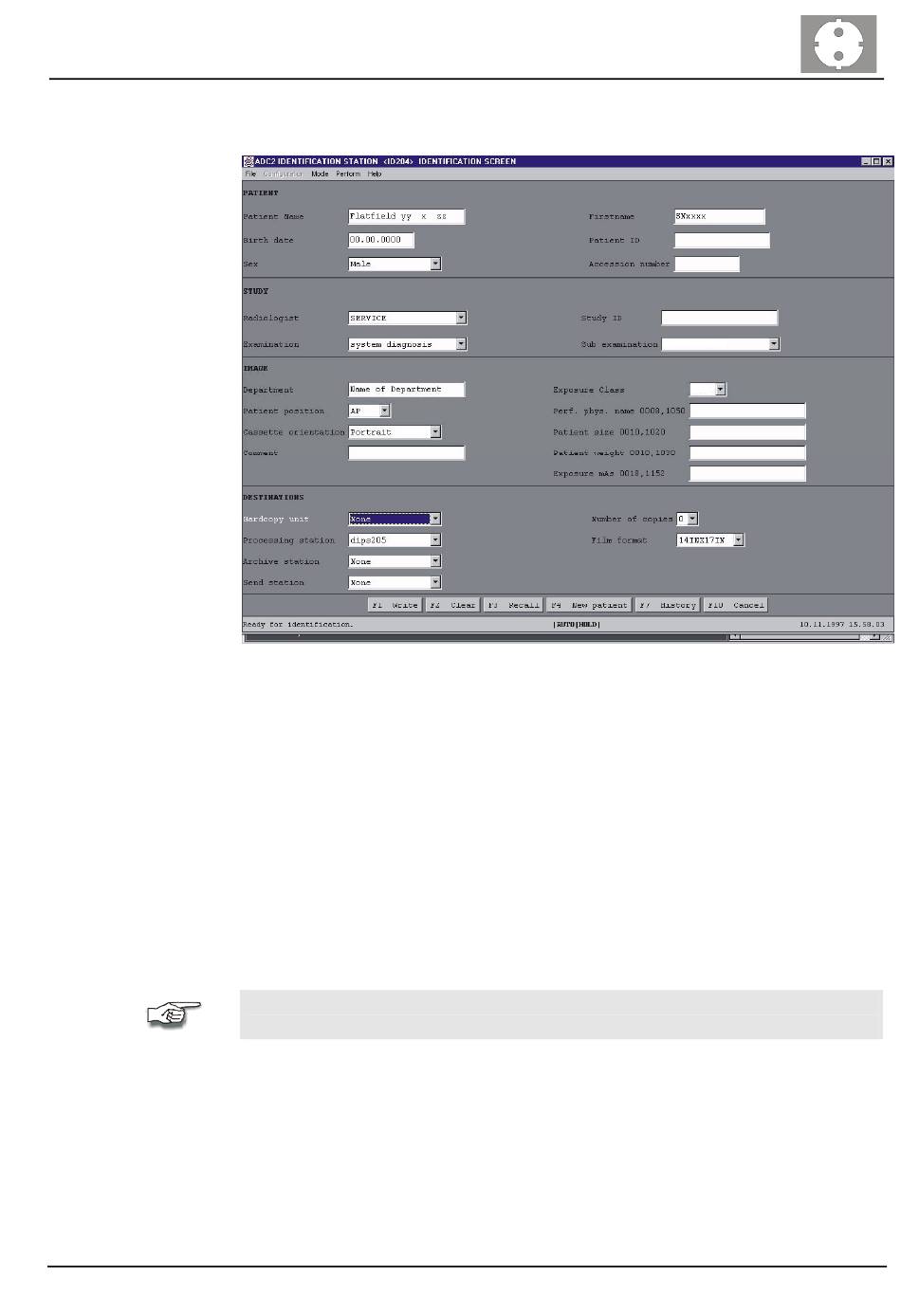

· Identify the cassette on the ID station as follows:
-select in the field Examination: <system diagnosis>
-select in the field Sub-examination:<IDP Testsheet>
-confirm the Exposure class: <100>
· Insert the cassette into the DIGITIZER. Print the image on a printer with a
window setting of 0.6 without changing the level setting via Processing
station
· Evaluate the developed images as follows.
Compare the prints of the samples with your test sheets on a lightbox.
The quality of your own testsheet has to reach at least the quality of the
samples.
After having finished the test, it is strongly recommended to delete the test
sheets on the hard disk of the Processing Station.
· Proceed according to the subsequent evaluation criteria:
ADC Compact Plus
(Type 5146)
Test sheet
100
Chapter 1 / 27
