Installation of Base Plate

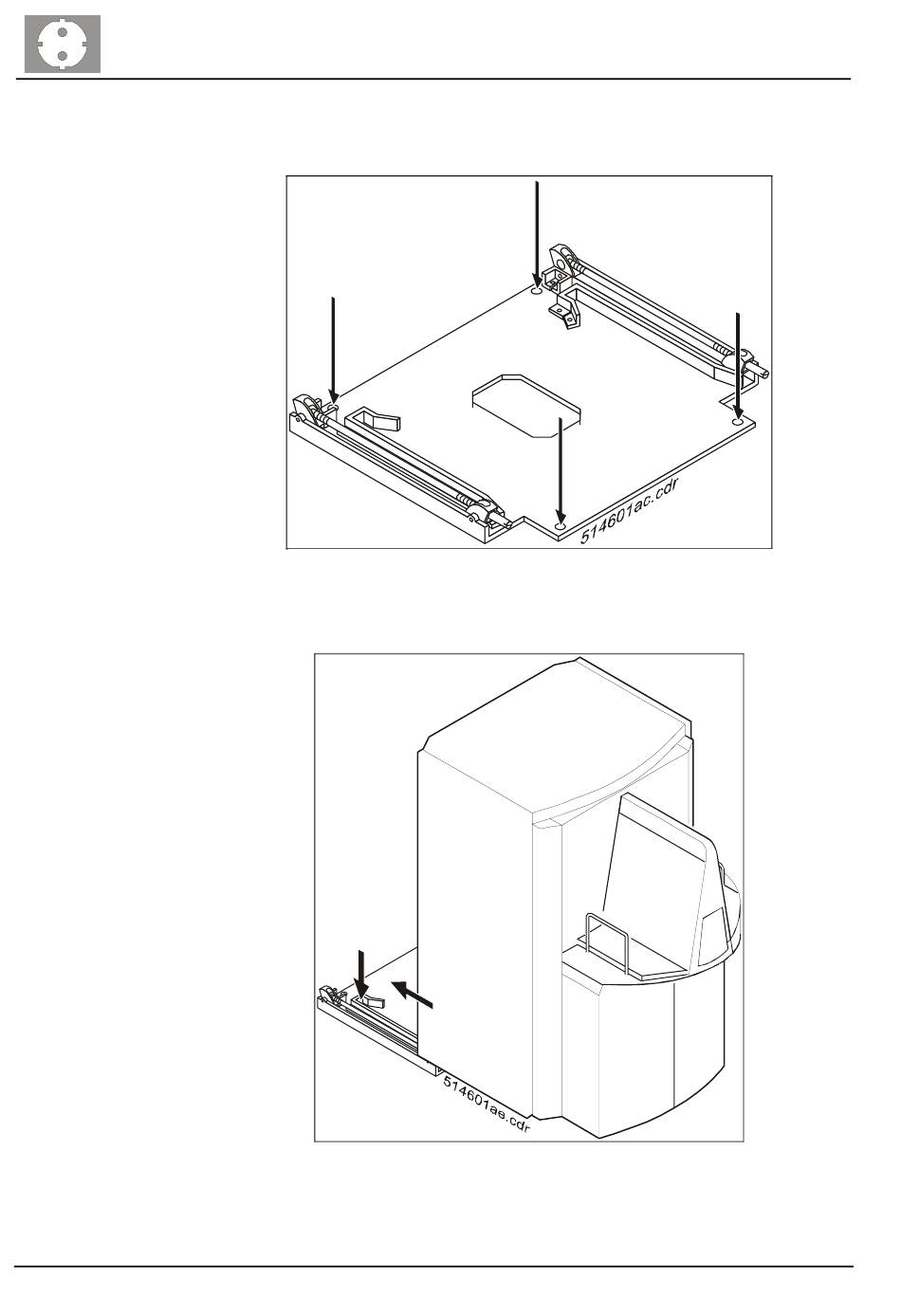

Figure 7
A: Mount the base plate with four screws on the floor (recommended, but not
mandatory), see arrows.
Figure 8
B: Move the digitizer onto the base plate. Take care that the rollers are guided
by the rail!
ADC Compact Plus
(Type 5146)
DD+DIS064.02E
Edition 1, Revision 4
