DD+DIS064.02E
5
5.1
5.2
5.2.1
5.2.2
Edition 1, Revision 4
Controls, Connections and Setup Procedures
Requirements for Installation
General
Preconditions
· finished preinstallation
· the digitizer is at its installation site
You have to distinguish between the integration into an independent, pure
ADC Network (1Digitizer, 1 Processing Station, 1 Preview/ID Station) and the
integration into an existing network. When integrating the digitizer into an
existing network, it is necessary to create a CPF– file beforehand (see
Chapter 11, Installation Planning, checklist). With a pure ADC Network, the
shipment configuration can be used.
Required Service Programs
The following Software has to be installed on:
- your Service PC or
- the PC of the ID / Preview -Station.
CCM-Tool
The latest version of the CCM - Tool can be downloaded from MedNet.
The CCM - Tool is needed to create and modify the configuration file (adc.cpf)
for the ADC Compact Plus and the other ADC System Components.
If there is already a previous version installed on your Service PC, please
remove the complete directory as well as the icons.

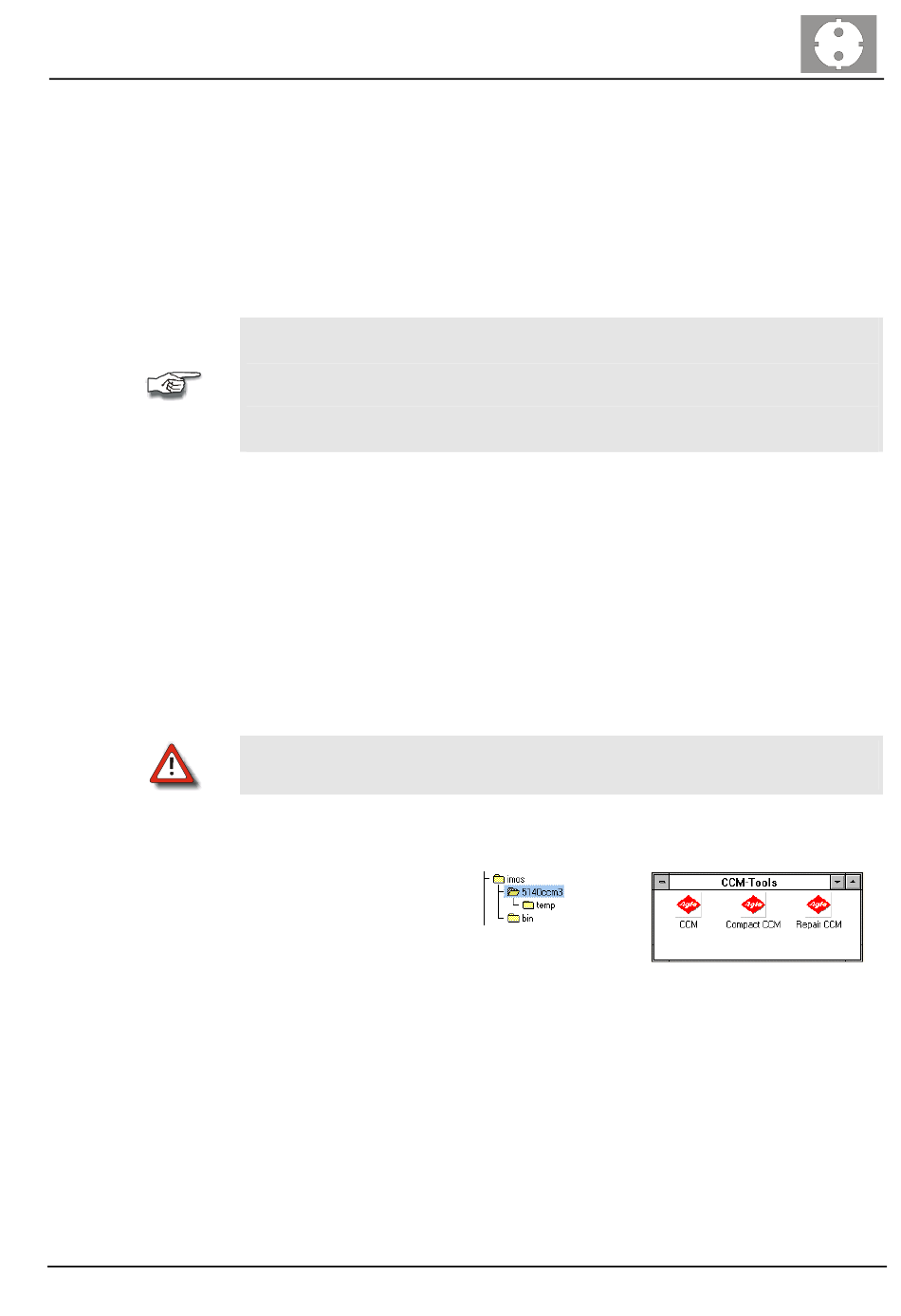

Installation:
·
install by executing "setup.exe"
The CCM Tool will be
installed in directory
"IMOS" or any
directory of your
choice.
Error Message Program
The "SHOW ERROR PROGRAM" with the "ERROR.MSG file" translates the
ADC Compact Plus error codes into clear text.
The "SHOW ERROR PROGRAM" is a part of IMOS, the "ERROR.MSG file" is
loaded in the Digitizer.
ADC Compact Plus
(Type 5146)
Chapter 1 / 19
