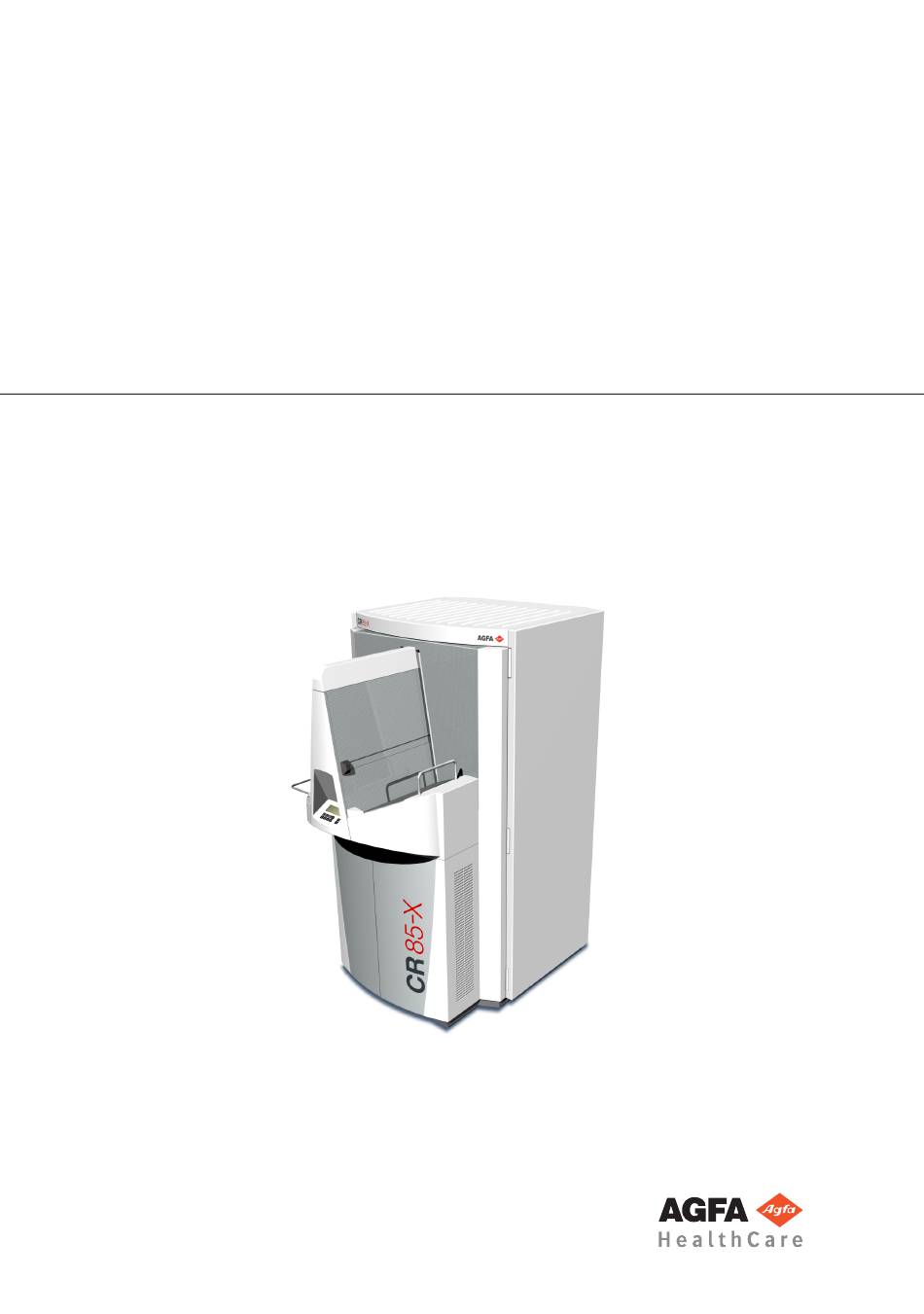

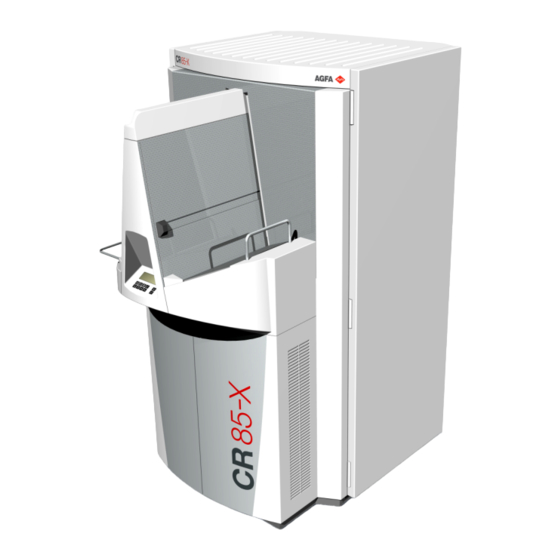

CR 85-X Digitizer
Reference manual
4451C EN 2013-04-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR 85-X and is the answer not in the manual?

Questions and answers

Related Manuals for AGFA CR 85-X

Summary of Contents for AGFA CR 85-X

  • Page 1 CR 85-X Digitizer Reference manual 4451C EN 2013-04-30...
  • Page 2 For more information on Agfa products and Agfa HealthCare products, please visit www.agfa.com. Agfa and the Agfa rhombus are trademarks of Agfa-Gevaert N.V., Belgium or its affiliates. CR 85-X is a trade- mark of Agfa HealthCare N.V., Belgium or one of its affiliates. All other trademarks are held by their respective owners and are used in an editorial fashion with no intention of infringement.

  • Page 3: Table Of Contents

    Re-erasing an image plate ................43 Chapter 3: Advanced operation (‘Key-operator mode’) ......47 Consulting the image transmission queue (‘Queue management’) ....48 Customizing the CR 85-X (‘Digitizer set-up’) ..........52 Setting the date and time ................58 Sending test images ..................59 Consulting information on the CR 85-X ............60...
  • Page 4 CR 85-X D IGITIZER Chapter 4: Troubleshooting ................85 General procedure in case of malfunction ...........86 Solving the ‘ERROR’ status ................87 Clearing cassette jams ..................89 Clearing image plate jams ................93 Appendix A: Equipment information sheet ..........97 Specifications ....................98 Appendix B: CR cassettes ................

  • Page 5: Chapter 1: Introducing The Cr 85-X

    Chapter Introducing the CR 85-X This chapter draws attention to important safety precautions and introduces the CR 85-X. CR 85-X intended use  CR 85-X intended user  CR 85-X features  Warnings, Cautions and Notes  Equipment Classification ...

  • Page 6: Cr 85-X Intended Use

    CR 85-X D IGITIZER CR 85-X intended use This device must only be used to scan exposed X-ray cassettes, containing an erasable image plate (IP). This device is part of a system, consisting of X-ray cassettes with erasable phosphor image plates, an identification station for the cassettes and a workstation where the resulting digital image information is further processed and routed.

  • Page 7: Cr 85-X Intended User

    CR 85-X D IGITIZER CR 85-X intended user This manual has been written for trained users of Agfa products and trained diagnostic X–Ray clinical personnel who have received proper training. Users are those persons who actually handle the equipment and those who have authority over the equipment.

  • Page 8: Cr 85-X Features

    The CR 85-X requires but little manual interaction. All you have to do, after exposure and identification of the cassette, is to place it in the input buffer of the CR 85-X.

  • Page 9: Warnings, Cautions And Notes

    Instruction : Follow the instruction literally to avoid the topic of warnings. Note: Notes provide advice and highlight unusual points. A note is not intended as an instruction. 4451C EN 2013-04-30 Introducing the CR 85-X...

  • Page 10: Equipment Classification

    This device is not suitable for use in the presence of a flam- thetics mable anesthetic mixture with air, or in presence of a flammable anesthetic mixture with oxygen or nitrous oxide. Continuous Opera- The unit is suitable to run continuously. tion Introducing the CR 85-X 4451C EN 2013-04-30...

  • Page 11: Training

    IGITIZER Training The user must have received adequate Agfa training on the safe and effective use of the product before attempting to work with it. Training requirements may vary from country to country. The user should ensure that training is received in accordance with local laws or regulations that have the force of law.

  • Page 12: Product Complaints

    Agfa. If the device malfunctions and may have caused or contributed to a serious injury of a patient, Agfa must be notified immediately by telephone, fax or written correspondence to the following address: Agfa Service Support - local support addresses and phone numbers listed on www.agfa.com...

  • Page 13: Safety Precautions

    As is the case for all technical devices, the CR 85-X must be operated, cared for and serviced correctly. • If you do not operate the CR 85-X correctly or if you do not have it serviced correctly, Agfa is not liable for resulting disturbances, damages or injuries. 4451C EN 2013-04-30...
  • Page 14 IGITIZER • When installing the CR 85-X, care must be taken to ensure that there is either a mains plug or an all-cable disconnecting device in the internal installation fitted near the CR 85-X and that it is easily accessible.
  • Page 15 Caution hot: Keep hands clear from the erasure unit. Supplementary protective earth connector: Provides a connection between the CR 85-X and the potential equalization busbar of the electrical system as found in medical environments. This plug should never be unplugged before the power is turned off and the power plug has been removed.
  • Page 16 Digitizer is connected to a 240 V/60 Hz source instead of a 120 V/60 Hz source. Type label Date of manufacture Manufacturer Serial number WEEE symbol, see section Environmental Protection Device contains a transmitter module Introducing the CR 85-X 4451C EN 2013-04-30...
  • Page 17 ‘Reading an image plate’ on page 38. At all times, keep your fingers clear of the input slot. As soon as the CR 85-X takes in the cassette, release it. Safety instructions for laser products The digitizer is a Class 1 Laser Product. It uses one laser diode of a 80 mW type, classification class IIIb, wavelength 640-670 nm.
  • Page 18 QUAND CAPOT OUVERT ÉVITER WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN! DE S´EXPOSER AU RAYÓN! WARNING: User interventions other than those described in this manual can be hazardous with regard to laser radiation. Introducing the CR 85-X 4451C EN 2013-04-30...

  • Page 19: Safety Compliance

    CR 85-X D IGITIZER Safety compliance The CR 85-X complies with: • general safety standards: IEC 60601-1: 2005, EN 60601-1: 2006, EN 60601-1:1990+A1:1993+A2:1995, IEC 60601-1:1988+A1:1991+A2:1995, IEC 60601-1-1 / EN 60601-1-1, EN 60601-1-2, UL 60601-1; • laser safety standards: EN 60825, DHHS/FDA 21 CFR, Parts 1040.10 and 1040.11, ANSI Z 136-1980.

  • Page 20: Operating Modes

    • Re-erasing an image plate. A normal image plate is read automatically after it is placed in the CR 85-X input buffer; the other functions of the operator mode can be accessed via the keypad. All functions of the operator mode are described in Chapter 2, ‘Basic...

  • Page 21: Maintenance

    Regular preventive maintenance needs to be done once per 6 months or after 25000 cycles (whatever comes first). You cannot perform this maintenance yourself. It has to be done by an Agfa certified field service engineer. Not performing the regular maintenance by appropriately certified people can have impact on warranty commitments.

  • Page 22: Cleaning And Disinfection

    Make sure no liquid gets in the digitizer. Note: Do not open the digitizer for cleaning. No components inside the digitizer require cleaning by the user. Plug the power plug into the socket. Switch on the UPS, if installed. Introducing the CR 85-X 4451C EN 2013-04-30...

  • Page 23: Patient Data Security

    It is the responsibility of the hospital to ensure how types of access are identified, classified and reasons for access are justified. 4451C EN 2013-04-30 Introducing the CR 85-X...

  • Page 24: Environmental Protection

    For more detailed information about take-back and recycling of this product please contact your local Agfa service organization and/or Agfa dealer. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

  • Page 25: The User Interface

    Keypad with display Main switch Service connector The main components of the CR 85-X are: Cassette input buffer  The cassette input buffer accepts up to 10 cassettes - even of different sizes - for digitizing and up to 9 cassettes for erasure.
  • Page 26 Digitizer. The control panel The control panel of the CR 85-X consists of a backlit LCD display and 10 keys. As the handling of the cassettes is fully automated, normal operation is a zero- button operation. Only when you are performing special functions or in the event of problems (e.g.
  • Page 27 • To increment the number in a numeric entry field. • To move the cursor to the next entry field. Down key • To scroll downwards. • To decrement the number in a numeric entry field. 4451C EN 2013-04-30 Introducing the CR 85-X...
  • Page 28 • To toggle between values in a field. The display The CR 85-X control panel has a backlit LCD display with 8 lines of 40 characters each. Its lay-out depends on the operating mode. In operator mode, the display has dedicated areas for specific information: ...
  • Page 29 Type of message Extra comment or action to take System status: • READY: The CR 85-X is ready for operation. • BUSY: The CR 85-X is busy with scanning or erasing. • ERROR: An error has occurred. Refer to Chapter 4, ‘Troubleshooting’.
  • Page 30 Install Save configuration Fast preview SERVICE XXXXX Key-operator functions Active keys Service code The status indicator The light at the top of the CR 85-X indicates the status of the CR 85-X. Constant/ Color Status Action Flashing Constant Ready. Proceed.
  • Page 31 The CR 85-X gives status information via beeps. The length of the beep indicates the response of the system to a key command. • A short beep means that CR 85-X has accepted the key command and is starting the operation. •...

  • Page 32: Switching On The Cr 85-X

    IGITIZER Switching on the CR 85-X Before switching on Make sure that the following conditions are met before you switch the CR 85-X • A service technician has appropriately connected the CR 85-X and has carried out a performance test.
  • Page 33 During this stage, the status indicator is red and flashing. If the CR 85-X has completed the self-test successfully, the CR 85-X enters the operator mode and displays the main operator screen: READY CR 85-X The status indicator is constant green.

  • Page 34: Switching Off The Cr 85-X

    Switching off the CR 85-X Before switching off Check that the CR 85-X is not scanning an image plate. If the CR 85-X is scanning an image plate, the status indicator at the top of the machine is green and flashing.

  • Page 35: Resetting The Digitizer

    CR 85-X D IGITIZER Resetting the Digitizer In exceptional circumstances you may be prompted to reset the CR 85-X, either by a message on the keypad or as part of a troubleshooting procedure in this manual. Caution: Never reset the Digitizer to solve a plate or cassette jam. If you would do so, the plate inside the Digitizer might get damaged.
  • Page 36 CR 85-X D IGITIZER Introducing the CR 85-X 4451C EN 2013-04-30...

  • Page 37: Chapter 2: Basic Operation ('Operator Mode')

    Chapter Basic operation (‘Operator mode’) This chapter provides basic information on how to digitize image plates under normal conditions and in emergency situations. It also treats how to erase an image plate to prevent ghost images caused by previous exposures or by scattered radiation.

  • Page 38: Reading An Image Plate

    Status field CR 85-X • the status indicator at the top of the CR 85-X must be constant or flashing green. Note: The CR 85-X is operational if the status field equals ‘READY’, even if status messages of the destination are shown (e.g. ‘VIPS not ready’).
  • Page 39 If fast preview is enabled, the CR 85-X transmits the digital image data in blocks of typical 100 lines to the preview station.

  • Page 40: Reading An Emergency Image Plate

    Status field CR 85-X • the status indicator at the top of the CR 85-X must be constant or flashing green. Note: The CR 85-X is operational if the status field equals ‘READY’, even if status messages of the destination are shown (e.g. ‘VIPS not ready’).
  • Page 41 Emergency key, the CR 85-X will quit the emergency function and return to the operator main screen. If fast preview is enabled, the CR 85-X transmits the digital image data in blocks of typical 100 lines to the preview station.
  • Page 42 CR 85-X D IGITIZER Note: If a ‘WARNING’ or ‘LOCKED’ message is displayed during the Emergency procedure, the CR 85-X will not quit the Emergency mode. Refer Chapter 4, ‘Troubleshooting’. Remove the cassette from the output buffer. Basic operation (‘Operator mode’)

  • Page 43: Re-Erasing An Image Plate

    CR 85-X must display the operator screen with ‘Ready’ or ‘Busy’ status. Status READY CR 85-X • the status indicator at the top of the CR 85-X must be constant or flashing green. 4451C EN 2013-04-30 Basic operation (‘Operator mode’)
  • Page 44 After a cassette has been erased, the # digit on the display decreases. While erasing, the CR 85-X will still display the above screen and the status indicator will be green flashing. When the CR 85-X has erased the image plate, it displays the operator main screen.
  • Page 45 Enter number of cassettes to erase: # Put cassette(s) in input buffer or press to quit. When the CR 85-X has erased the image plate, it displays the operator main screen. Remove the cassette(s) from the output buffer. 4451C EN 2013-04-30...
  • Page 46 Status CR 85-X • the status indicator at the top of the CR 85-X must be constant or flashing green. Place the cassettes in the input buffer. The CR 85-X will automatically erase the image plates. The display will read:...

  • Page 47: Chapter 3: Advanced Operation ('Key-Operator Mode')

    Chapter Advanced operation (‘Key-operator mode’) This chapter covers the following topics: Consulting the image transmission queue (‘Queue management’)  Customizing the CR 85-X (‘Digitizer set-up’)  Setting the date and time  Sending test images  Consulting information on the CR 85-X ...

  • Page 48: Consulting The Image Transmission Queue ('Queue Management')

    System info : select Install Save configuration Fast preview SERVICE XXXXX The CR 85-X will display a list of installed image processing stations and the number of images sent to each: Number of images Name of image processing station [PPname1] QUEUE...
  • Page 49 CR 85-X D IGITIZER Select the image processing station of your choice via the Up and Down keys and confirm. The CR 85-X will display the list of images sent to the image processing station and their status ‘S’: Miller QUEUE...
  • Page 50 QUEUE Johnson MANAGEMENT Waterson : quit Palin : ok : select SERVICE XXXXX Press the Erase key. The CR 85-X will display: WARNING QUEUE MANAGEMENT Delete the selected : quit image from queue? : ok : select Palin SERVICE XXXXX Note: You can only erase images with status ‘Q’...
  • Page 51 CR 85-X D IGITIZER To erase the image, press the Confirm key. To cancel erasing, press the Escape key. After the image has been erased, the Queue management screen is displayed again: Johnson QUEUE Waterson MANAGEMENT Palin : quit : ok...

  • Page 52: Customizing The Cr 85-X ('Digitizer Set-Up')

    : select [PPname2] : change Scan mode: standard Acoustic signal: enabled SERVICE XXXXX Note: If you do not press a key within 1 minute, the CR 85-X will exit the key- operator mode. Advanced operation (‘Key-operator mode’) 4451C EN 2013-04-30...
  • Page 53 CR 85-X D IGITIZER Select the Image transmission field via the Up and Down keys. Enable or disable the image transmission via the Left and Right keys. Confirm your choice. The operator main screen is displayed. 4451C EN 2013-04-30 Advanced operation (‘Key-operator mode’)
  • Page 54 Acoustic signal: enabled SERVICE XXXXX Note: If you do not press a key within 1 minute, the CR 85-X will exit the key- operator mode. Select the Source rerouting field via the Up and Down keys. Select the image processing station from which you want to redirect the images via the Left and Right keys.
  • Page 55 CR 85-X D IGITIZER Select the image processing station to which you want to redirect the images via the Left and Right keys. Confirm your choice. The operator main screen is displayed. 4451C EN 2013-04-30 Advanced operation (‘Key-operator mode’)
  • Page 56 Acoustic signal: enabled SERVICE XXXXX Note: If you do not press a key within 1 minute, the CR 85-X will exit the key- operator mode. Select the Scan mode field via the Up and Down keys. Select the standard (2µs) scan mode, or the fast (1µs) scan mode via the Left and Right keys.
  • Page 57 SERVICE XXXXX Note: If you do not press a key within 1 minute, the CR 85-X will exit the key- operator mode. Select the Audio signal field via the Up and Down keys. Enable or disable the audio signals via the Left and Right keys.

  • Page 58: Setting The Date And Time

    : ok : tab : inc. dec. SERVICE XXXXX Note: If you do not press a key within 1 minute, the CR 85-X will exit the key- operator mode. Set the date and time: • Use the Left and Right keys to select the digit you want to change (‘tab’);...

  • Page 59: Sending Test Images

    : change SERVICE XXXXX Note: If you do not press a key within 1 minute, the CR 85-X will exit the key- operator mode. Select the image processing station to which you want to send the test image via the Left and Right keys.

  • Page 60: Consulting Information On The Cr 85-X

    Send test image : ok System info : select Install Save configuration Fast preview SERVICE XXXXX The CR 85-X will display the System info menu: Device info SYSTEM INFO Network info : quit : ok : select SERVICE XXXXX Advanced operation (‘Key-operator mode’)
  • Page 61 Software Software version of CR 85-X Total cycles Total number of image plates which the CR 85-X has treated Date Time and date indication of CR 85-X clock To return to the key-operator main menu, press the Escape key twice.
  • Page 62 : quit : ok : select SERVICE XXXXX In the System info menu, select ‘Network info’ via the Up and Down keys and confirm. The CR 85-X will display the Network info menu, e.g.: Hostname: COMPP1 NETWORK INFO IP-addr: 192.9.200.201...
  • Page 63 CR 85-X D IGITIZER The Network info menu provides the following information: Hostname Name of host computer to which CR 85-X is connected IP-address IP address of the CR 85-X To return to the key-operator main menu, press the Escape key twice.

  • Page 64: Installing A New Software Version

    To install a new software version: Check that the CR 85-X is not scanning an image plate. If the CR 85-X is scanning an image plate, the status indicator at the top of the machine is green and flashing. In the key-operator main menu, select ‘Install’ via the Up and Down keys and confirm.
  • Page 65 Make sure you open the left front door first. When you open the left front door, the power supply of all critical components is switched off automatically. MUSICA Insert the first floppy with the new CR 85-X software in the disk drive. MUSICA 4451C EN 2013-04-30...
  • Page 66 SERVICE XXXXX INSTALL SOFTWARE Please wait . . . copying files to E:\temp..SERVICE XXXXX If the CR 85-X displays the screen below, insert the second software floppy: INSTALL SOFTWARE Please insert the : quit XXXX = software version floppy ACP_XXXX_2...
  • Page 67 : ok Press to reset now SERVICE XXXXX 10 To make the new software operational, press the Confirm key. The CR 85-X will restart automatically. After 3 minutes it will display: New software detected. INSTALL You should refresh your SOFTWARE backup now.
  • Page 68 13 Remove the floppy from the disk drive and label it with the data from the screen. 14 Store the CR 85-X software floppies and the backup floppy in the storage box. 15 Close the front doors. The CR 85-X will restart automatically.

  • Page 69: Installing A New Language

    To install new languages: Check that the CR 85-X is not scanning an image plate. If the CR 85-X is scanning an image plate, the status indicator at the top of the machine is green and flashing. In the key-operator main menu, select ‘Install’ via the Up and Down keys and confirm.
  • Page 70 CR 85-X D IGITIZER The CR 85-X will display the Install language menu: INSTALL Please open the machine front LANGUAGE and insert the : quit language floppy ACPLXXXX : ok and press SERVICE XXXXX Open the left front door of the Digitizer.
  • Page 71 CR 85-X D IGITIZER Press the Confirm key. The CR 85-X will display: INSTALL LANGUAGE copying . . . A:<file name> C:<file name> SERVICE XXXXX Language successfully INSTALL loaded LANGUAGE Please remove the floppy and press : ok SERVICE XXXXX Remove the floppy from the disk drive and press the Confirm key.
  • Page 72 CR 85-X D IGITIZER The CR 85-X will display: Select from list: INSTALL Dutch LANGUAGE English : quit French : ok German : select Italian Japanese Spanish SERVICE XXXXX Select the desired language from the list via the Up and Down keys and confirm your choice.
  • Page 73 SERVICE XXXXX 13 Remove the floppy from the disk drive and label it with the data from the screen. 14 Store the CR 85-X language floppy and the backup floppy in the storage box. 15 Close the front doors. The CR 85-X will restart automatically.

  • Page 74: Installing New Customer Parameters

    To install new customer parameters: Check that the CR 85-X is not scanning an image plate. If the CR 85-X is scanning an image plate, the status indicator at the top of the machine is green and flashing. In the key-operator main menu, select ‘Install’ via the Up and Down keys and confirm.
  • Page 75 Software INSTALL Language Configuration : quit : ok : select SERVICE XXXXX The CR 85-X will display the Install configuration menu: INSTALL Please open the machine CONFIGURATION front, insert the : cancel CPF- floppy in the : ok diskette drive and...
  • Page 76 CR 85-X D IGITIZER Insert the floppy with the new CPF-files in the disk drive. MUSICA Press the Confirm key. The CR 85-X will display: INSTALL CONFIGURATION copying <file name> SERVICE XXXXX INSTALL CONFIGURATION Please remove the floppy : cancel...
  • Page 77 SERVICE XXXXX Press the Confirm key to activate the new CPF. Note: If the CR 85-X displays the screen below, the image queue is not empty, and therefore you cannot change the IP address of the CR 85-X. Image queue not empty!
  • Page 78 CR 85-X D IGITIZER • To change the IP address of the CR 85-X, select an IP address and the corresponding name via the Up and Down keys and confirm. The CR 85-X will display: INSTALL CONFIGURATION Initializing new station name . . .
  • Page 79 14 Remove the floppy from the disk drive and label it with the data from the screen. 15 Store the floppy with the CPF-files of the CR 85-X and the backup floppy in the storage box. 16 Close the front doors.

  • Page 80: Saving The Configuration Data On A Diskette (Backup)

    To make a backup: Check that the CR 85-X is not scanning an image plate. If the CR 85-X is scanning an image plate, the status indicator at the top of the machine is green and flashing. In the key-operator main menu, select ‘Save configuration’ via the Up and Down keys and confirm.
  • Page 81 CR 85-X D IGITIZER Open the left front door of the Digitizer. Make sure you open the left front door first. When you open the left front door, the power supply of all critical components is switched off automatically. MUSICA Insert the backup floppy onto which you want to store the configuration data.
  • Page 82 Remove the floppy from the disk drive and label it with the data from the screen. Store the backup floppy in the storage box. Close the doors. The CR 85-X will restart automatically. After start-up, the operator main screen will be displayed. Advanced operation (‘Key-operator mode’)

  • Page 83: Enabling/Disabling Fast Preview

    For more information, contact your local service organization. To enable or disable fast preview: Check that the CR 85-X is not scanning an image plate. In the key-operator main menu, select ‘Fast preview’ via the Up and Down keys. Queue management...
  • Page 84 CR 85-X D IGITIZER Enable or disable fast preview via the Left and Right keys. Confirm your choice. The operator main screen is displayed. Advanced operation (‘Key-operator mode’) 4451C EN 2013-04-30...

  • Page 85: Chapter 4: Troubleshooting

    Chapter Troubleshooting This chapter covers the following topics: General procedure in case of malfunction  Solving the ‘ERROR’ status  Clearing cassette jams  Clearing image plate jams ...

  • Page 86: General Procedure In Case Of Malfunction

    CR 85-X D IGITIZER General procedure in case of malfunction In exceptional situations the CR 85-X display provides comprehensive information concerning errors and ways of correcting them. The Digitizer status changes from ‘READY’ to one of the following: Status Message...

  • Page 87: Solving The 'Error' Status

    The error field reads ‘SERVICE XXXXX’. Solving ‘SERVICE XXXXX’ errors If the error field reads ’: ‘SERVICE XXXXX Reset the CR 85-X. Refer to ‘Resetting the Digitizer’ on page 35. If the message persists, contact your local service organization and communicate the error number.
  • Page 88 CR 85-X D IGITIZER Solving ‘ERROR XXXXX’ errors If the error field reads ’: ‘ERROR XXXXX Check the instructions on the screen. Check whether the display shows the following pictograph: Cassette position Plate position If the above pictograph is displayed, a cassette or an image plate is jammed inside the Digitizer.

  • Page 89: Clearing Cassette Jams

    IGITIZER Clearing cassette jams A cassette can get jammed when the CR 85-X takes in a cassette or when it returns a cassette to the output buffer. If this is the case, you see part of the cassette either in the input buffer or in the output buffer.
  • Page 90 CR 85-X D IGITIZER Open the left front door of the Digitizer. Make sure you open the left front door first. When you open the left front door, the power supply of all critical components is switched off automatically. MUSICA Lift the bottom door bolt and open the right front door.
  • Page 91 CR 85-X D IGITIZER Gently remove the jammed cassette. If the cassette is jammed in the output slot, the cassette might be hard to reach. In this case, continue with steps to 7. If the cassette is jammed in the output slot and is hard to reach, swivel the cassette unit anti-clockwise.
  • Page 92 CR 85-X D IGITIZER Close the front doors. The CR 85-X will restart automatically. After start-up, the operator main screen is displayed. Troubleshooting 4451C EN 2013-04-30...

  • Page 93: Clearing Image Plate Jams

    IGITIZER Clearing image plate jams The CR 85-X always reads and digitizes the plate first, then erases it and feeds it to the output buffer. If a plate jam occurs before the plate is scanned, there is a fair chance that you can recover the image by putting the image plate back into the cassette and digitizing it again.
  • Page 94 CR 85-X D IGITIZER To clear an image plate jam: Remove the cassette. Refer to ‘Clearing cassette jams’ on page 89. Check whether the image plate is jammed in the pre-scan or in the post-scan unit. Refer to the diagram above.
  • Page 95 If it is still not possible to remove the image plate, do not dismantle the unit any further. Contact your local service organization. Close the front doors. The CR 85-X will restart automatically. After start-up, the operator main screen is displayed. 4451C EN 2013-04-30...
  • Page 96 CR 85-X D IGITIZER Troubleshooting 4451C EN 2013-04-30...

  • Page 97: Appendix A: Equipment Information Sheet

    Appendix Equipment information sheet...

  • Page 98: Specifications

    CR 85-X D IGITIZER Specifications Product description Type of product Digitizer Commercial name CR 85-X Model number 5148/100 Original seller/manufacturer Agfa HealthCare N.V. Labelling 93/42 EEC ‘Medical Device Directive’ CE/TÜV (Europe), EN 60601-1:2006 US: UL certified, UL 60601-1 cNRTLus CAN: CSA 22.2 No. 601.1 M90 Dimensions •...
  • Page 99 Agfa 7 years instructions) Preventive maintenance Preventive maintenance frequency. Once per 6 months or 25000 cycles, Needs to be done by an Agfa certified field whatever comes first service engineer 4451C EN 2013-04-30 Equipment information sheet...
  • Page 100 CR 85-X D IGITIZER Grayscale resolution Data acquisition 12 bits/pixel Output to processor 12 bits/pixel Environmental conditions (during storage) Note: Climate conditions for storage are in accordance with EN60721-3-1 class 1K4. Room temperature between -20 °C and 55 °C Relative humidity...
  • Page 101 CR 85-X D IGITIZER Spatial resolution HR: High resolution; SR: Standard resolution 35 x 43 cm (14 x 17”) HR 10 pixels/mm 35 x 43 cm (14 x 17”) SR 6,7 pixels/mm 21 x 43 cm HR 10 pixels/mm 35 x 35 cm (14 x 14”) HR 10 pixels/mm 35 x 35 cm (14 x 14”) SR...
  • Page 102 CR 85-X D IGITIZER Scan area (scan width x scan length) HR: High resolution; SR: Standard resolution 35 x 43 cm (14 x 17”) HR & SR 348 x 424 mm 21 x 43 cm HR 202 x 424 mm 35 x 35 cm (14 x 14”) HR &...

  • Page 103: Appendix B: Cr Cassettes

    Appendix CR cassettes...

  • Page 104: Safety Precautions

    CR 85-X D IGITIZER Safety precautions Observe great care whenever removing the image plate from the CR cassette. Refer to the cleaning procedure described further on in this manual. WARNING: Make sure that the automatic exposure control device is placed above the cassette, to prevent patients from receiving an overdose of X-rays.

  • Page 105: Description Of The Cr Cassette

    Embedded memory The main difference lies in the RF-tag memory chip that is permanently mounted in the cassette. Using the Agfa ID Software you can enter patient demographics and examination data into the memory chip. The identification of this data is performed by no-touch radiofrequency tagging via a built-in antenna card in the CR cassette.
  • Page 106 CR 85-X D IGITIZER Image plate Another difference between a CR cassette and a conventional cassette is the X- ray sensitive element (image receptor). The latter is no longer a film, but an image plate that can be re-used thousands of times.

  • Page 107: Cleaning The Image Plate

    CR plate does not end up in a cassette initialized for another code. In case of doubt, you should re-initialize the cassette using the initialization code on the CR plate. Use only AGFA CR Phosphor Plate Cleaner and a soft lint-free cellulose cloth to clean the plate. Caution: Do not use the AGFA CR phosphor plate cleaner to clean the CR MM3.0 Mammo image plates with a batch code starting with the letter “B”...

  • Page 108: Cleaning The Cassettes

    CR 85-X D IGITIZER Cleaning the cassettes Clean the cassette thoroughly. Use a dry cloth or blow away possible dust with compressed air. (DO NOT USE A SCREEN CLEANER TO CLEAN THE INSIDE OF THE CASSETTE.) CR cassettes 4451C EN 2013-04-30...

  • Page 109: Technical Specifications Of The Cassettes

    CR 85-X D IGITIZER Technical specifications of the cassettes Sizes 35 x 43 cm (14 x 17"),  35 x 35 cm (14 x 14"),  24 x 30 cm,  18 x 24 cm,  8 x 10", ...
  • Page 110 CR 85-X D IGITIZER Weight 35 x 43 cm typical 1.6 kg  Material Body ABS (Acrylonitryl Butadiene Styrene)  Corners Polyurethane Rubber (PUR)  Hinge Polypropylene (PP)  Inner lining Makrolon  Identification Memory chip (RF-tag card) embedded in the cassette ...

  • Page 111: Technical Specifications Of The Image Plates

    Thanks to the red-shift of the stimulation spectrum, maximum stimulability is assured at 633 nm, the wavelength of the stimulating laser. The Agfa phosphor has excellent dark decay characteristics. Two hours after exposure, approximately 80% of the energy stored upon exposure is still available.
  • Page 112 CR 85-X D IGITIZER CR cassettes 4451C EN 2013-04-30...

  • Page 113: Appendix C: Remarks For Hf-Emission And Immunity

    Appendix Remarks for HF-emission and immunity...
  • Page 114 CR 85-X D IGITIZER Remarks for HF-emission and immunity The device has been tested for a normal hospital environment as described below. The user of the device should ensure that it is used in such an environment. Nevertheless the HF-emission and immunity can be influenced by connected data cables depending on length and the manner of installation.
  • Page 115 CR 85-X D IGITIZER This device is intended for operation in the electromagnetic environment given below. The user of the device should ensure that it is used in such an environment. Resistance to IEC 60601 Level of Electromagnetic Jamming Test...
  • Page 116 CR 85-X D IGITIZER This device is intended for operation in the electromagnetic environment given below. The user of the device should ensure that it is used in such an environment. Tests of Resistance IEC 60601 Level of Electromagnetic to Disruption...
  • Page 117 CR 85-X D IGITIZER The device uses a short range device class 1 (7 dBµA/m at 10 m) with ISM-Band 13.56 MHz). • REMARK 1: The higher value will apply at 80 MHz and 800 MHz. • REMARK 2: These Guidelines may not apply to all situations. The dispersion of electromagnetic waves is influenced by absorption and reflections from buildings, objects and people.
  • Page 118 CR 85-X D IGITIZER This device is intended for operation in an electromagnetic environment in which the radiated high frequency disturbance variables are monitored. The user of the device can help to prevent electromagnetic disruptions by maintaining the minimum distances between portable and mobile high frequency...
  • Page 119 CR 85-X D IGITIZER 4451C EN 2013-04-30 Remarks for HF-emission and immunity...
  • Page 120 0413 Printed in Belgium Published by Agfa HealthCare N.V., B-2640 Mortsel-Belgium 4451C EN 2013-04-30...
