Controls, Connections and Setup Procedures
Chapter 1 / 8

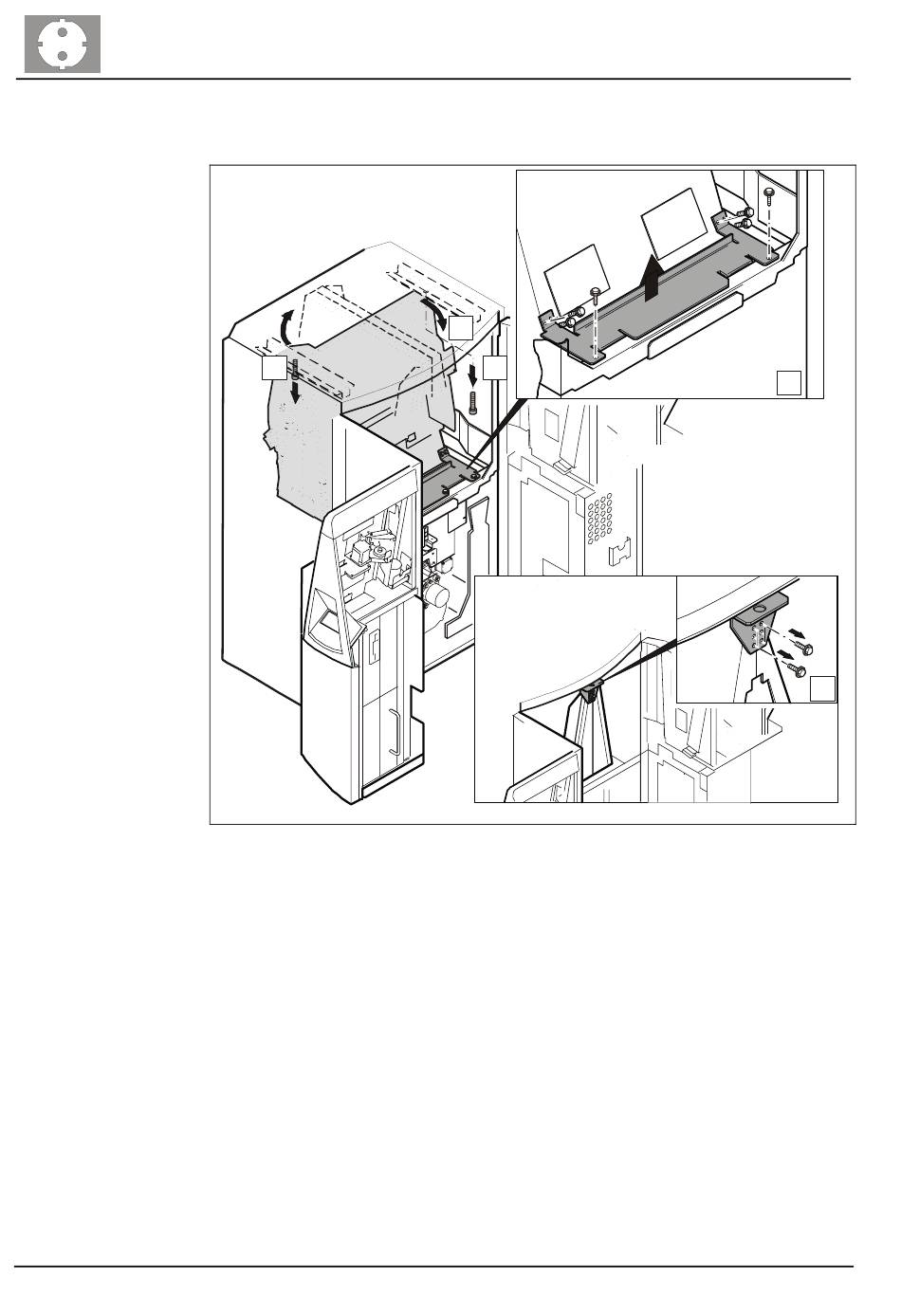

Removing shipping brackets of cassette unit
B
8mm
Figure 2
A:
Remove the metal plate (6 screws, 7mm socket wrench)
B:
Unscrew the cassette unit from the frame (2 screws, 8mm allen key)
C:
Turn the cassette units through 90°
D:
Remove the two metal brackets (6 screws on the front and rear side of
the cassette units, 7mm socket wrench)
ADC Compact Plus
C
B
(Type 5146)
DD+DIS064.02E
7mm
A
7mm
D
514601EC.CDR
Edition 1, Revision 4
