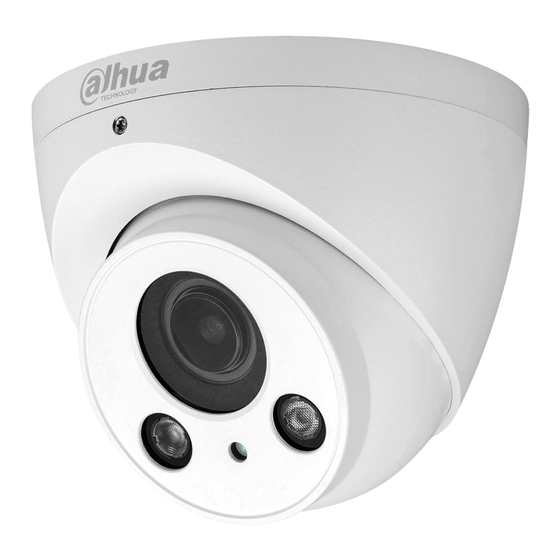

- Page 1 IR Eyeball Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.1...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the functions, installation and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result in death or serious injury. - Page 3 Quick Start Guide format) cannot be opened. All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners. Please visit our website, contact the supplier or customer service if there is any problem ...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings Electrical safety All installation and operation should conform to your local electrical safety codes. The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited Power Source requirement according to IEC60950-1. - Page 5 Quick Start Guide It is recommended connect the grounding hole to the ground to enhance the reliability of the device. Do not touch the image sensor directly (CMOS). Dust and dirt could be removed with air blower, or you can wipe the lens gently with soft cloth that moistened with alcohol. Device body can be cleaned with soft dry cloth, which can also be used to remove stubborn ...
-
Page 6: Table Of Contents
Quick Start Guide Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Introduction ..............................1 2 Network Configuration ..........................2 Initializing Device ..................................2 Modifying Device IP Address ..............................3 Logging in to Web Interface ..............................4 3 Installation .............................. -
Page 7: Introduction
Quick Start Guide Introduction Cable type might vary with different devices, and the actual product shall prevail. Please waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For detailed operation, see the FAQ manual. Cable list For more information about cable ports, see Table 1-1. -
Page 8: Network Configuration
Quick Start Guide Network Configuration Device initialization and IP setting can be finished with the "ConfigTool" or in web interface. For more information, see the WEB operation manual. Device initialization is available on select models, and it is required at first use and after device is ... -
Page 9: Modifying Device Ip Address
Quick Start Guide The Device initialization interface is displayed. Select the devices that need initialization, and then click initialize. The password setting interface is displayed. See Figure 2-2. Password setting interface Set and confirm the password of the devices, and then enter a valid email address. Click Next. -
Page 10: Logging In To Web Interface
Quick Start Guide Select the devices which IP addresses need to be modified, and then click Modify IP. The Modify IP Address interface is displayed. See Figure 2-3. Modify IP Address interface Select Static mode and enter start IP, subnet mask and gateway. IP addresses of multiple devices will be set to the same if you select Same IP. - Page 11 Quick Start Guide Main interface...
-
Page 12: Installation
Quick Start Guide Installation Packing List The tools required for the installation including electric drill are not provided in the packing. The operation manual and related tool are contained in the disk or the QR code, and the actual packing shall prevail. -
Page 13: Installing Device
Quick Start Guide Model B (Unit: mm [in]) Installing Device 3.3.1 Installation Method Installation Type Ceiling-mounted Indoor Hang-mounted... -
Page 14: Installing Sd Card (Optional)
Quick Start Guide Wall-mounted Pole-mounted 3.3.2 Installing SD Card (Optional) SD card slot is available on select models. Please disconnect the power from the device before installing the SD card. Press the reset button for 10 seconds to reset the device. ... - Page 15 Quick Start Guide Cable going through the mounting surface...
-
Page 16: Installing Waterproof Connector
Quick Start Guide Cable going through the side cable tray 3.3.4 Installing Waterproof Connector This part is only needed when a waterproof connector comes with the device and the device is used outdoors. -
Page 17: Adjusting Angle
Quick Start Guide 3.3.5 Adjusting Angle... - Page 18 Quick Start Guide...
