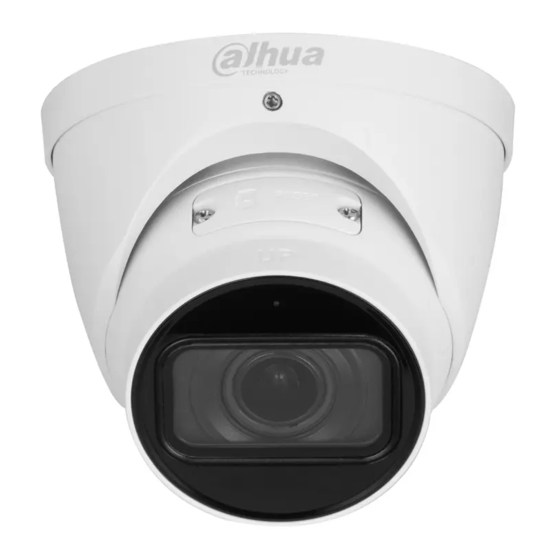

Dahua Technology IPC-HDW5842T-ZE Operation Manual

Network camera web 3.0

page of 473

/ 473
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

Network Camera Web 3.0

Operation Manual

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

V2.1.5

Table of Contents

Chapters

Table of Contents

Summary of Contents for Dahua Technology IPC-HDW5842T-ZE

Page 1 Network Camera Web 3.0 Operation Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V2.1.5...
Page 2 Operation Manual Foreword General This manual introduces the functions, configuration, general operation, and system maintenance of network camera. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
Page 3 Operation Manual Version Revision Content Release Time ● Modify "5.1.1.7 Warning Light Linkage". ● Add "4.6.12 5G". July 2020 V2.0.7 ● Modify "4.7.3.2 Local". ● Added "4.5.2.3.11 Configuring GPS Position". July 2020 V2.0.6 ● Updated "5.2 Setting Smart Track". ● Updated "4.5.1.1.8 Illuminator". June 2020 ●...
Page 4 Operation Manual ● The manual will be updated according to the latest laws and regulations of related jurisdictions. For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version.
Page 5 Operation Manual Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it. Transportation Requirements ● Transport the device under allowed humidity and temperature conditions. ●...
Page 6 Operation Manual against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. ● Ground the function earthing portion of the device to improve its reliability (certain models are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing.
Page 7 Operation Manual ● Use the accessories suggested by the manufacturer. Installation and maintenance must be performed by qualified professionals. ● Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the lens. When it is necessary to clean the device, slightly wet a soft cloth with alcohol, and gently wipe away the dirt.
Page 8: Table Of Contents
Operation Manual Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................IV 1 Overview ........................................1 1.1 Introduction ....................................1 1.2 Network Connection ................................1 1.3 Function ......................................1 1.3.1 Basic Function .................................. 1 1.3.2 Intelligent Function ............................... 2 2 Configuration Flow ....................................
Page 9 Operation Manual 4.3.3 Calling PTZ ..................................32 4.3.3.1 PTZ Control ................................32 4.3.3.2 PTZ Function ................................ 34 4.4 Playback ....................................... 34 4.4.1 Playback Interface ................................ 35 4.4.2 Playing back Video or Picture ..........................37 4.4.3 Clipping Video ................................39 4.4.4 Downloading Video or Picture ..........................40 4.4.4.1 Downloading a Single File ..........................
Page 10 Operation Manual 4.5.2.3.6 Configuring Picture Overlay ......................65 4.5.2.3.7 Configuring Custom Overlay ......................66 4.5.2.3.8 Configuring OSD Info ..........................67 4.5.2.3.9 Configuring Counting ........................... 68 4.5.2.3.10 Configuring Structured Statistics ....................68 4.5.2.3.11 Configuring GPS Position ......................... 69 4.5.2.3.12 Configuring Ranging .......................... 69 4.5.2.3.13 Configuring ANPR ..........................
Page 11 Operation Manual 4.7.3.1 Path ................................... 96 4.7.3.2 Local ..................................97 4.7.3.3 FTP ..................................... 98 4.7.3.4 NAS ..................................100 4.8 System ......................................101 4.8.1 General .................................... 101 4.8.2 Date & Time ................................... 102 4.8.3 Account ................................... 103 4.8.3.1 Adding a User ..............................103 4.8.3.2 Adding User Group ............................
Page 12 Operation Manual 5.1.2.2 Subscribing Alarm Information ....................... 131 5.2 Setting Smart Track ................................132 5.2.1 Setting Calibration Parameters for Smart Track ..................132 5.2.2 Enabling Alarm Track ............................... 134 5.3 Setting Panoramic Calibration ............................135 5.4 Setting Video Detection ..............................137 5.4.1 Setting Motion Detection ............................
Page 13 Operation Manual 5.12.1 People Counting ..............................174 5.12.2 Calibration Configuration ........................... 178 5.12.3 Queuing ..................................179 5.12.4 Viewing People Counting Diagram ........................ 181 5.12.5 Viewing People Counting Report ........................182 5.13 Setting Heat Map ................................184 5.13.1 Heat Map ..................................184 5.13.2 Viewing Heat Map Report ...........................
Page 14 Operation Manual 6.4.1 Import/Export ................................213 6.4.2 Default ..................................... 213 6.5 Upgrade ..................................... 214 6.6 Information ....................................214 6.6.1 Version .................................... 215 6.6.2 Log ..................................... 215 6.6.3 Remote Log ................................... 216 6.6.4 Online User ..................................216 Appendix 1 Cybersecurity Recommendations ........................218 XIII...
Page 15: Overview
Operation Manual 1 Overview 1.1 Introduction IP camera (Internet Protocol camera), is a type of digital video camera that receives control data and sends image data through internet. They are commonly used for surveillance, requiring no local recording device, but only a local area network. IP camera is divided into single-channel camera and multi-channel camera according to the channel quantity.
Page 16: Intelligent Function
Operation Manual ● Record abnormality of monitoring image for subsequent view and processing. ● Configure coding parameters, and adjust live view image. Record ● Auto record as schedule. ● Play back recorded video and picture as needed. ● Download recorded video and picture. ●...
Page 17 Operation Manual Crowd Map ● View crowd distribution in real time for the timely arm to avoid accidents like stampede. ● When an alarm is triggered, the system performs linkages such as recording, alarm output, sending email, PTZ operation, and snapshot. Face Detection ●...
Page 18 Operation Manual Alarm Setting ● The alarm is triggered when an external alarm input device inputs alarm. ● When an alarm is triggered, the system performs linkages such as recording, alarm output, sending email, PTZ operation, and snapshot. Abnormality ● SD card error, network disconnection, illegal access, voltage detection and security exception. ●...
Page 19: Configuration Flow
Operation Manual 2 Configuration Flow For the device configuration flow, see Figure 2-1. For details, see Table 2-1. Configure the device according to the actual situation. Figure 2-1 Configuration flow Table 2-1 Description of flow Configuration Description Reference Open IE browser and enter IP address to log in to the web Login "4.1 Login"...
Page 20: Device Initialization
Operation Manual 3 Device Initialization Device initialization is required for the first use. This manual is based on the operation on the web interface. You can also initialize device through ConfigTool, NVR, or platform devices. ● To ensure the device safety, keep the password properly after initialization and change the password regularly.
Page 21 Operation Manual Figure 3-2 End-user license agreement Step 4 Select the I have read and agree to all terms checkbox, and then click Next. Figure 3-3 Easy4ip Step 5 You can register the camera to Easy4ip, select the checkbox as needed, and then click Next.
Page 22 Operation Manual Figure 3-4 Online upgrade Step 6 Select the upgrading method as needed. If you select Auto-check for updates, the system checks new version once a day automatically. There will be system notice on Upgrade interface and Version interface if any new version is available.
Page 23: Basic Configuration
Operation Manual 4 Basic Configuration The chapter introduces the basic configuration, including login, live view, PTZ operation, playback, camera configuration, network configuration, storage configuration and system configuration. 4.1 Login This section introduces how to log in to and log out of the web interface. This section takes IE Explorer 9 as an example.
Page 24: Live
Operation Manual Figure 4-2 Live Related Operations ● Live: Click Live, and you can view the real-time monitoring image. ● Playback: Click Playback, and you can play back or download recorded video or image files. ● Setting: Click Setting, and you can configure the basic and intelligent functions of the camera. ●...
Page 25: Encode Bar
Operation Manual Figure 4-3 Live Table 4-1 Description of function bar Function Description Encode bar Sets stream type and protocol. Live view Displays the real-time monitoring image. Live view function bar Functions and operations in live viewing. Window adjustment bar Adjustment operations in live viewing.
Page 26 Operation Manual Table 4-2 Description of live view function bar Icon Function Description Manually position the tracking speed dome to the selected location of corresponding panoramic camera. Click the icon and click or select randomly on the image of panoramic camera channel, the tracking speed dome will automatically position the selected location.
Page 27 Operation Manual Icon Function Description Click the icon, and select an area on the live image, the camera will automatically count the Vehicle Density number of the vehicles in the selected area, and display the number on the Live interface. Displays alarm output state.
Page 28: Window Adjustment Bar
Operation Manual Icon Function Description Click the icon to record video, and it will be saved to the configured storage path. Record About viewing or configuring storage path, see "4.5.2.5 Path". Click the icon, the AF Peak (focus eigenvalue) and AF Max (max focus eigenvalue) are displayed on the video image.
Page 29 Operation Manual Table 4-3 Description of adjustment bar Icon Function Description Click the icon, and then the Image Adjustment interface is displayed at the right side of the Live interface. You can adjust brightness, contrast, hue, and saturation. The adjustment is only available on the web interface, and it does not adjust the camera parameters.
Page 30 Operation Manual Icon Function Description Click the icon to select the fluency from Realtime, Fluency and Normal. ● Realtime: Guarantees the real-time display of the image. When the bandwidth is not enough, the image might not be smooth. Fluency ● Fluency: Guarantees the fluency of the image.
Page 31: Zoom And Focus
Operation Manual Icon Function Description When viewing the multi-channel image, you can select display layout.For Multi- Sensor Panoramic + PTZ Camera: ● The live interface will show Panorama 1 and Panorama 2 by default if you choose dual-channel mode. Window Layout ●...
Page 32: Fisheye
Operation Manual Table 4-4 Description of zoom and focus Parameter Description Changes the focal length of the camera to zoom in or out the image. 1. Set the Speed value. The Speed is the adjustment range in one Zoom click. The larger the value is, the more the image would zoom in or out in one click.
Page 33 Operation Manual Figure 4-6 Fisheye Table 4-5 Description of fisheye configuration Parameter Description Installation mode Includes ceiling mount, wall mount, and ground mount. The display mode of the current image. There are different display modes for each installation mode. ● Ceiling: 1P+1, 2P, 1+2, 1+3, 1+4, 1P+6, 1+8. ●...
Page 34 Operation Manual Parameter Description Two associated 180° rectangular image screens, and at any time, the two screens form a 360° panoramic image. It is also called dual- panoramic image. You can move the start point (left and right) on the two rectangular panoramic image screens, and the two screens link each other.
Page 35 Operation Manual Parameter Description 180° rectangular panoramic image screen + three independent sub-screens. ● You can zoom or drag the image in all the 1P+3 screens. ● You can drag the image in all the screens (upper and lower) to adjust the vertical view.
Page 36: Ptz Operation
Operation Manual Parameter Description ● You can drag the image in upper/lower/left/right direction. Press I to display the panorama, and press O to return Asteroid to the original size. ● Press the left mouse-button to slide down to display the image on the plane surface. ●...
Page 37: Tour
Operation Manual Figure 4-8 Preset Step 2 Set the speed, and click to adjust the parameters of direction, zoom, focus and iris, to move the camera to the position you need. Click Add to add the current position to be a preset, and the preset is displayed in preset Step 3 list.
Page 38: Scan
Operation Manual Figure 4-9 Tour Step 2 Click Add① to add tour. Double-click the tour name to edit the name. Step 3 Click Add② to add preset. Double-click the duration to set the duration. Step 4 Select the tour mode. ●...
Page 39: Pattern
Operation Manual Figure 4-10 Scan Step 2 Select the scan number, and set the speed. Step 3 Click Setup to set left limit and right limit. 1) Click Set Left Limit to set the current position to be the left limit. 2) Click Set Right Limit to set the current position to be the right limit.
Page 40: Pan
Operation Manual Figure 4-11 Pattern Step 2 Select the pattern number. Click Setup, and then click Start Rec. Adjust the parameters of direction, zoom, focus and Step 3 iris according to the actual situation. Step 4 Click Stop Rec to stop recording. Step 5 Click Start to start patterning.
Page 41: Ptz Speed
Operation Manual Click Stop to stop rotation. 4.3.2.6 PTZ Speed PTZ speed means the rotation speed of the PTZ camera during touring, pattern, or auto tracking. Step 1 Select Setting > PTZ settings > Function > PTZ Speed. Figure 4-13 PTZ speed Step 2 Select the PTZ speed: Low, Middle, and High.
Page 42: Powerup
Operation Manual Figure 4-14 Idle motion Step 2 Select the Enable check box to enable the idle motion function. Step 3 Select the idle motion and set the idle time. You need to select the corresponding number for some selected idle motions, such as Preset001.
Page 43: Ptz Limit
Operation Manual Step 3 Select the power up motion. When you select Auto, the system will perform the last motion that is executed for more than 20 s before power-off. Step 4 Click OK. 4.3.2.9 PTZ Limit After setting PTZ limit, the camera can only rotate within the configured area. Select Setting >...
Page 44: Ptz Restart
Operation Manual Figure 4-17 Time task Step 2 Select the Enable check box to enable time task function. Step 3 Select the time task number. Step 4 Select the time task action. You need to select the corresponding action number for some selected time task actions. Step 5 Set the auto home time in AutoHome.
Page 45: Default
Operation Manual Figure 4-18 PTZ restart Step 2 Click PTZ Restart to restart PTZ. 4.3.2.12 Default Be careful when doing this operation. It will restore the camera to default configuration, and result in data loss. Select Setting > PTZ settings > Function > Default. Step 1...
Page 46: Calling Ptz
Operation Manual Figure 4-19 Default Step 2 Click Default and the PTZ function is restored to default. 4.3.3 Calling PTZ on Live interface, and the PTZ configuration panel is displayed. You can control PTZ and Click call PTZ function. 4.3.3.1 PTZ Control You can rotate device, zoom image, and adjust iris through PTZ control or virtual joystick.
Page 47 Operation Manual Figure 4-20 PTZ control Figure 4-21 Joystick ● : Rotate PTZ direction through direction button. PTZ supports eight directions: left/right/up/down/upper left/upper right/bottom left/bottom right. Click , and draw a box in the image, PTZ will rotate, focus and quickly position the defined scene. ●...
Page 48: Ptz Function
Operation Manual 4.3.3.2 PTZ Function Select the PTZ function from the drop-down list to call the corresponding functions, including Scan, Preset, Tour, Pattern, Pan, Go to, Assistant and Light Wiper. See Figure 4-22. For details, see Table 4-6. Before calling PTZ function, see "4.3.2 Configuring PTZ Function" to configure PTZ function. ●...
Page 49: Playback Interface
Operation Manual ● Before playing back video, configure record time range, record storage method, record schedule and record control. For details, see "5.1.1.2.1 Setting Record Plan". ● Before playing back picture, configure snapshot time range, snapshot storage method, snapshot plan. For details, see"5.1.1.3.1 Setting Snapshot Plan". 4.4.1 Playback Interface Click the Playback tab, and the Playback interface is displayed.
Page 50 Operation Manual Table 4-7 Playback interface description Function Description Click , you can select display mode according to the installation mode during playback. Fisheye This function is only available on fisheye cameras. Click , intelligent rules and object detection box are displayed. It is enabled by default.
Page 51: Playing Back Video Or Picture
Operation Manual Function Description ● : You can zoom in or out video image of the selected area through two operations. Assistant ● : Click the icon to capture one picture of the current video, and it will be saved to the configured storage path. You can select the file type, data source, and Playback video record date.
Page 52 Operation Manual playback file list, such as Motion Detection, Video Tamper and Scene Changing. Figure 4-27 Specific event types Step 3 Select the month and year of the video that you want to play. Those dates with blue color indicate there were videos recorded in those days. Step 4 Play video.
Page 53: Clipping Video
Operation Manual Figure 4-29 Playback file list 4.4.3 Clipping Video Step 1 Click , the video files of the selected date are listed. Select dav or mp4 in Download Format. Step 2 Step 3 Click on the progress bar to select the start time of the target video, and then click See Figure 4-30.
Page 54: Downloading Video Or Picture
Operation Manual The system will prompt that it cannot play back and download at the same time. Click OK. Step 6 The playback stops and the clipped file is saved in the configured storage path. For the configuration of storage path, see "4.5.2.5 Path". 4.4.4 Downloading Video or Picture Download video or picture to a defined path.
Page 55: Camera
Operation Manual Step 2 Select the record type, set the start time and end time, and then click Search. The searched files are listed. Step 3 Select the files to be downloaded, select dav or mp4 from the Format drop-down list, and then set the storage path.
Page 56: Picture
Operation Manual Figure 4-32 Camera conditions Figure 4-33 Camera conditions (PTZ camera) 4.5.1.1.2 Picture You can configure picture parameters as needed. Step 1 Select Setting > Camera > Conditions > Conditions > Picture.
Page 57 Operation Manual Figure 4-34 Picture Step 2 Configure picture parameters. Table 4-8 Description of picture parameters Parameter Description Select the picture style from soft, standard and vivid. ● Soft: Default image style, displays the actual color of the image. ● Standard: The hue of the image is weaker than the actual one, and Style contrast is smaller.
Page 58: Exposure
Operation Manual Parameter Description Changes the display direction of the picture, see the options below. ● 0°: Normal display. ● 90°: The picture rotates 90° clockwise. ● 180°: The picture rotates 90° counterclockwise. Flip ● 270°: The picture flips upside down. For some models, please set the resolution to be 1080p or lower when using 90°...
Page 59 Operation Manual Table 4-9 Description of exposure parameters Parameter Description You can select from 50 Hz, 60 Hz and Outdoor. ● 50 Hz: When the electric supply is 50 Hz, the system adjusts the exposure according to ambient light automatically to ensure that there is no stripe appears.
Page 60: Backlight
Operation Manual Parameter Description When selecting Gain Priority or Manual in Mode, you can set shutter Gain range. With minimum illumination, the camera increases Gain automatically to get clearer images. When selecting Aperture Priority in Mode, you can set iris range. Iris This configuration is available only when the camera is equipped with auto-iris lens.
Page 61 Operation Manual Backlight mode Description Enable BLC, the camera can get clearer image of the dark areas on the target when shooting against light. You can select Default mode or Customized mode. ● When in Default mode, the system adjusts exposure according to ambient lighting condition automatically to ensure the clarity of the darkest area.
Page 62: Day & Night
Operation Manual Table 4-11 Description of WB parameters WB mode Description The system compensates WB according to color temperature to ensure Auto color precision. The system auto compensates WB to environments without artificial Natural light to ensure color precision. The system compensates WB to outdoor night scene to ensure color Street Lamp precision.
Page 63: Zoom And Focus
Operation Manual Table 4-12 Description of day and night parameters Parameter Description You can select device display mode from Color, Auto, and B/W. Day & Night configuration is independent from profile management configuration. Mode ● Color: The system displays color image. ●...
Page 64: Illuminator
Operation Manual Parameter Description Adjusts zoom speed. The higher the value is, the higher the speed will Zoom Speed Sets focus mode. ● Auto: When image moves or object changes in the scene, the camera will focus automatically. ● Semi Auto: Click corresponding to Focus or Zoom, Mode the camera will focus.
Page 65: Defog
Operation Manual Table 4-14 Description of illuminator parameters Illuminator Description Set Fill Light for sound and siren cameras. ● IR Mode: Enable the IR illuminator, and the white light is disabled. ● White Light: Enable the white light, and the IR illuminator is disabled.
Page 66: Fisheye
Operation Manual image clarity. Select Setting > Camera > Conditions > Conditions > Defog. Step 1 Figure 4-41 Defog Step 2 Configure defog parameters. Table 4-15 Description of defog parameters Defog Description Configure function intensity and atmospheric light mode manually, and Manual then the system adjusts image clarity accordingly.
Page 67: Image Correction
Operation Manual Table 4-16 Description of fisheye parameters Parameter Description Install Mode You can select Ceiling, Wall, or Ground. ● 1O: The original image before correction. ● 1P: 360°rectangular panoramic image. ● 2P: When the install mode is Ceiling or Ground, you can set this mode.
Page 68: Splicing Mode
Operation Manual 4.5.1.1.12 Splicing Mode Select the splicing mode to splice several images of different lens to a panoramic image. You can select Merged Splicing or Splicing for Mode. Figure 4-44 Splicing mode 4.5.1.2 Profile Management The surveillance system works in different ways as profile configured in different time. Select Setting >...
Page 69: Zoom And Focus
Operation Manual Figure 4-46 Full time ● When Profile Management is set as Schedule, you can drag the slide block to set certain time as Day or Night. For example, set 8:00–18:00 as day, and 0:00–8:00 and 18:00–24:00 as night. Figure 4-47 Schedule ●...
Page 70: Setting Video Parameters
Operation Manual camera from taking a clear picture, otherwise, the splicing might fail. Select Setting > Camera > Conditions > Splicing. Step 1 Figure 4-49 Splicing Step 2 Select the lenses that need to be spliced. When splicing the image through selecting lenses, you need to select the continuous splicing screens.
Page 71 Operation Manual Figure 4-50 Video Step 2 Configure video parameters. Table 4-17 Description of video parameters Parameter Description Select the Enable check box to enable sub stream. It is enabled by default. Enable ● You can enable multiple sub streams simultaneously. ●...
Page 72 Operation Manual Parameter Description Select the encoding strategy as needed. ● General: Disable smart codec. ● Smart Codec: Enable smart codec to improve video compressibility and save storage space. It is applicable to static scenes. ● AI Code: When the bandwidth and storage space are restricted, the camera will select the encoding strategy with lower bit rate to save storage space.
Page 73: Snapshot
Operation Manual Parameter Description The most suitable bit rate value range recommended to user according Reference Bit Rate to the defined resolution and frame rate. This parameter can be configured only when the Bit Rate Type is set as VBR. Max Bit Rate You can select the value of the Max Bit Rate according to the Reference Bit Rate value.
Page 74: Overlay
Operation Manual Figure 4-51 Snapshot Step 2 Configure snapshot parameters. Table 4-18 Description of snapshot parameter Parameter Description You can select General and Event. ● General: The system takes snapshot as scheduled. For details, see "4.7.2 Setting Schedule". Snapshot Type ●...
Page 75 Operation Manual Figure 4-52 Privacy masking (1) Figure 4-53 Privacy masking (PTZ dome) Step 2 Configure privacy masking. ● PTZ dome 1. Select the SN. 2. Adjust the live image to the proper location through PTZ, select the color, and then click Draw.
Page 76 Operation Manual ● Other cameras 1. Select Enable, and then drag the block to the area that you need to cover. ◇ You can drag 4 rectangles at most. ◇ Click Remove All to delete all the area boxes; select one box, and then click Delete or right-click to delete it.
Page 77: Configuring Channel Title
Operation Manual 4.5.2.3.2 Configuring Channel Title You can enable this function when you need to display channel title in the video image. Step 1 Select Setting > Camera > Video > Overlay > Channel Title. Figure 4-55 Channel title Step 2 Select the Enable check box, enter the channel title, and then select the text align.
Page 78: Configuring Text Overlay
Operation Manual Figure 4-56 Time title Select the Enable check box. Step 2 Step 3 Select the Week Display check box. Step 4 Move the time box to the position that you want in the image. Click Save. Step 5 4.5.2.3.4 Configuring Text Overlay You can enable this function if you need to display text in the video image.
Page 79: Configuring Font Attribute
Operation Manual is displayed in the video image. Click to expand the text overlay, and you can expand 9 lines at most. Step 3 Move the text box to the position that you want in the image. Step 4 Click Save. 4.5.2.3.5 Configuring Font Attribute You can enable this function if you need to adjust the font size in the video image.
Page 80: Configuring Custom Overlay
Operation Manual Figure 4-59 Picture overlay Step 2 Select the Enable check box, click Upload Picture, and then select the picture to be overlaid. The picture is displayed on the video image. Step 3 Move the overlaid picture to the position that you want in the image. Step 4 Click Save.
Page 81: Configuring Osd Info
Operation Manual 4.5.2.3.8 Configuring OSD Info You can enable this function if you want to display the information of preset, PTZ coordinates, zoom, tour and location on the video image. Only tracking speed dome supports OSD info function. Step 1 Select Setting >...
Page 82: Configuring Counting
Operation Manual 4.5.2.3.9 Configuring Counting The image displays statistics of the enter number and leave number. When the overlay function is enabled during intelligent rules configuration, this function is enabled simultaneously. Step 1 Select Setting > Camera > Video > Overlay > Counting. Figure 4-62 Counting Step 2 Select the Enable check box, and then configure counting method and alignment.
Page 83: Configuring Gps Position
Operation Manual Step 4 Click Save. 4.5.2.3.11 Configuring GPS Position The image displays GPS position. When the overlay function enabled during intelligent rules configuration, this function is enabled simultaneously. Select Setting > Camera > Video > Overlay > GDP Position. Step 1 Figure 4-64 GDP position Select the Enable check box, and then select the Mode to Auto or Manual.
Page 84: Configuring Anpr
Operation Manual Figure 4-65 Ranging Step 2 Select the Enable check box, and then set the installation height and time display. Time display: The display time of the ranging information on live image. Step 3 Click Save. 4.5.2.3.13 Configuring ANPR The image displays ANPR statistics information.
Page 85: Configuring Face Statistics
Operation Manual 4.5.2.3.14 Configuring Face Statistics The image displays face statistics information. When the overlay function enabled during intelligent rules configuration, this function is enabled simultaneously. Step 1 Select Setting > Camera > Video > Overlay > Face Statistics. Figure 4-67 Face statistics Select the Enable check box, and select text align.
Page 86: Path
Operation Manual Figure 4-68 ROI Select the Enable check box, draw the area on the image, and then configure the image Step 2 quality of ROI. ● You can draw four area boxes at most. ● The higher the image quality value is, the better the quality will be. ●...
Page 87: Audio
Operation Manual Table 4-20 Description of path Parameter Description The snapshot of live interface. The default path is Live Snapshot C:\Users\admin\WebDownload\LiveSnapsh The recorded video of live interface. Live Record The default path is C:\Users\admin\WebDownload\LiveRecord. The snapshot of playback interface. The default path is Playback Snapshot C:\Users\admin\WebDownload\PlaybackSn Admin in the path refers to...
Page 88: Configuring Alarm Audio
Operation Manual Figure 4-70 Audio Select the Enable check box in Main Stream or Sub Stream. Step 2 For the camera with multiple channels, select the channel number. Please carefully activate the audio acquisition function according to the actual requirements of the application scenario. Step 3 Configure audio parameters.
Page 89: Network
Operation Manual ● Click to download the audio to local storage. Step 1 Select Setting > Camera > Audio > Alarm Audio. Figure 4-71 Alarm audio Step 2 Click Add Audio File. Figure 4-72 Add audio file Step 3 Configure the audio file. ●...
Page 90 Operation Manual Figure 4-73 TCP/IP Step 2 Configure TCP/IP parameters. Table 4-22 Description of TCP/IP parameters Parameter Description Host Name Enter the host name, and the maximum length is 15 characters. Select the Ethernet card that need to be configured, and the default Ethernet Card one is Wire.
Page 91 Operation Manual Parameter Description ● IPv6 does not have subnet mask. Default Gateway ● The default gateway must be in the same network segment with the IP address. Preferred DNS IP address of the preferred DNS. Alternate DNS IP address of the alternate DNS. Select the check box, get the camera MAC address, and then you can modify and configure the device IP address with ARP/ping command.
Page 92: Port
Operation Manual 4.6.2 Port Configure the port numbers and the maximum number of users (includes web, platform client, and mobile phone client) that can connect to the device simultaneously. Step 1 Select Setting > Network > Port. Figure 4-74 Port Step 2 Configure port parameters.
Page 93: Pppoe
Operation Manual Parameter Description ● Real time streaming protocol port, and the value is 554 by default. If you play live view with QuickTime, VLC or Blackberry smart phone, the following URL format is available. ● When the URL format requiring RTSP, you need to specify channel number and bit stream type in the URL, and also user name and password if needed.
Page 94: Ddns
Operation Manual ● You have gotten the account and password from Internet Service Provider. Procedure Select Setting > Network > PPPoE. Step 1 Figure 4-75 PPPoE Step 2 Select the Enable check box, and then enter user name and password. ●...
Page 95: Smtp (Email)
Operation Manual Figure 4-76 DDNS Step 2 Select Type, and configure the parameters as needed. Table 4-24 Description of DDNS parameters Parameter Description Type The name and web address of the DDNS service provider, see the matching relationship below: ● CN99 DDNS web address: www.3322.org Web Address ●...
Page 96 Operation Manual Figure 4-77 SMTP (Email) Step 2 Configure SMTP (Email) parameters. Table 4-25 Description of SMTP (Email) parameters Parameter Description SMTP Server SMTP server address The port number of the SMTP Port server. For details, see Table 4-26. Username The account of SMTP server.
Page 97 Operation Manual Parameter Description The system sends test mail to check if the connection is successfully Health Mail configured. Select Health Mail and configure the Update Period, and then the system sends test mail as the set interval. For the configuration of major mailboxes, see Table 4-26. Table 4-26 Description of major mailbox configuration Mailbox SMTP server...
Page 98: Upnp
Operation Manual Mailbox SMTP server Authentication Port Description ● You need to enable SMTP service in your mailbox. ● The authentication code is required; the email password is not applicable. Authentication code: the code you receive when enabling SMTP service. ●...
Page 99: Snmp
Operation Manual Figure 4-78 UPnP Step 2 Select the Enable check box, and there are two mapping modes: Custom and Default. ● Select Custom, click and then you can modify external port as needed. ● Select Default, and then the system finishes mapping with unoccupied port automatically, and you cannot modify mapping relation.
Page 100 Operation Manual Figure 4-79 SNMP (1) Figure 4-80 SNMP (2) Step 2 Select SNMP version to enable SNMP. ● Select V1, and the system can only process information of V1 version. ● Select V2, and the system can only process information of V2 version. ●...
Page 101 Operation Manual password and authentication type. It requires corresponding user name, password and authentication type to visit your device from the server. Using V1 and V2 might cause data leakage, and V3 is recommended. In Trap Address, enter the IP address of the PC that has MIB Builder and MG-SOFT MIB Browser installed, and leave other parameters to the default.
Page 102: Bonjour
Operation Manual configuration information, video channel amount, audio channel amount, and software version. Use PC with Windows OS and disable SNMP Trap service. The MG-SOFT MIB Browser will display prompt when alarm is triggered. 4.6.8 Bonjour Enable this function, and the OS and clients that support Bonjour would find the camera automatically.
Page 103 Operation Manual Figure 4-82 Multicast Step 2 Select the Enable check box, and enter IP address and port number. Table 4-28 Description of multicast parameters Parameter Description The multicast IP address of Main Stream/Sub Stream is 224.1.2.4 Multicast Address by default, and the range is 224.0.0.0–239.255.255.255. The multicast port of corresponding stream: Main Stream: 40000;...
Page 104: Qos
Operation Manual 4.6.11 QoS You can solve problems such as network delay and congestion with this function. It helps to assure bandwidth, reduce transmission delay, packet loss rate, and delay jitter to improve experience. 0–63 means 64 degrees of priority; 0 for the lowest and 63 the highest. Step 1 Select Setting >...
Page 105 Operation Manual Figure 4-85 Dialing setting Table 4-31 Dialing setting parameters Parameter Description Wireless Net Type Select the wireless net type according to the carrier. Acquired from the carrier. Authentication Mode Select the authentication mode according to different carrier. The number is different according to different carrier, and it Dial-up Number can be acquired from carrier.
Page 106: Mobile Setting
Operation Manual 4.6.12.2 Mobile Setting Configure the mobile phone, and all alarm messages support sending message the configured receiver. After receiving a message, the receiver can active the camera and connect it to 5G network through message or call. ● Message send: Set the receiver's phone number, and when an alarm is triggered, the system will send message to the receiver.
Page 107: Onvif
Operation Manual mobile phone client. Select Setting > Network > Access Platform > P2P. Step 1 Figure 4-87 P2P ● When P2P is enabled, remote management on device is supported. ● When P2P is enabled and the device accesses to the network, the status shows online. The information of the IP address, MAC address, device name, and device SN will be collected.
Page 108: Rtmp
Operation Manual Figure 4-88 ONVIF Step 2 Select On in Authentication. Step 3 Click Save. 4.6.13.3 RTMP Through RTMP, you can access the third-party platform (such as Ali and YouTube) to realize video live view. ● RTMP can be configured by admin only. ●...
Page 109: Storage
Operation Manual Parameter Description Includes Non-custom and Custom. ● Non-custom: Enter the server IP and domain name. Address Type ● Custom: Enter the path allocated by the server. IP Address When selecting Non-custom, you need to enter server IP address and port.
Page 110: Setting Destination
Operation Manual Figure 4-90 Holiday schedule Step 2 Select Record or Snapshot. Step 3 Select the days you need to set as holiday. Those days with yellow color indicates that they were set as holidays. When holiday schedule setting is not the same as the general setting, holiday schedule setting is prior to the general setting.
Page 111: Local
Operation Manual Figure 4-91 Path Step 2 Select the storage method that you need for the recorded videos and snapshots of different types. Table 4-33 Description of path parameters Parameter Description Event Type Select from Scheduled, Motion Detection and Alarm. Local Save in the internal SD card.
Page 112: Ftp
Operation Manual Figure 4-92 Local 4.7.3.3 FTP FTP can be enabled only when it was selected as a destination path. When the network does not work, you can save all the files to the internal SD card for emergency. Step 1 Select Setting >...
Page 113 Operation Manual Figure 4-94 Picture name settings Table 4-34 Description of FTP parameters Parameter Description Server Address The IP address of the FTP server. Port The port number of the FTP server. Username The user name to log in to the FTP server. Password The password to log in to the FTP server.
Page 114: Nas
Operation Manual Parameter Description Click Setting to set picture name. ● Date&Time is required, and it is selected by default. ● Select the other fields of the name, and the corresponding instruction will be displayed on the screen. ● Double-click the symbols under Separator, you can customize the separator.
Page 115: System
Operation Manual Parameter Description name and password. Enter them as needed. Password Remote Directory The destination path in the NAS server. Step 4 Click Save. 4.8 System This section introduces system configurations, including general, date & time, account, safety, PTZ settings, default, import/export, remote, auto maintain and upgrade.
Page 116: Date & Time
Operation Manual Step 3 Click Save. 4.8.2 Date & Time You can configure date and time format, time zone, current time, DST (Daylight Saving Time) or NTP server. Step 1 Select Setting > System > General > Date & Time. Figure 4-97 Date and time Step 2 Configure date and time parameters.
Page 117: Account
Operation Manual Parameter Description Enable DST as needed. Select the check box, and configure start time and end time of DST with Date or Week. Select the check box, and then NTP (network time protocol) is enabled, NTP Server the system then syncs time with the internet server in real time. Time Zone You can also enter the IP address, time zone, port, and interval of a PC Port...
Page 118 Operation Manual Figure 4-98 Username Step 2 Click Add User. Figure 4-99 Add user (operation permission)
Page 119 Operation Manual Figure 4-100 Add user (restricted login) Step 3 Configure user parameters. Table 4-38 Description of user parameters (1) Parameter Description User’s unique identification. You cannot use existed user Username name. Password Enter password and confirm it again. The password must consist of 8 to 32 non-blank characters and contain at least two types of characters among upper Confirm Password case, lower case, number, and special character (excluding...
Page 120 Operation Manual Parameter Description Set the PC address that allows the defined user to log in to the camera and the validity period and time range. You can log in to web with the defined IP in the defined time range of validity period.
Page 121 Operation Manual Figure 4-101 Change password through old password (login with non-admin account) ◇ Admin Account: Change the password through entering the admin password, and then the new password for the non-admin account to be changed. Figure 4-102 Change password through admin password (login with admin account) ●...
Page 122: Adding User Group
Operation Manual Admin account cannot be deleted. ● View the authorities If the current account has with the permission of user management, click to view the login authorities of other accounts. If not, you can only view the login authorities of the current account.
Page 123 Operation Manual Figure 4-104 Add group Step 3 Enter the group name and memo, and then select group authorities. The default authorities of Admin group includes live, playback, storage, file backup, user, system, system info, manual control, maintenance, peripheral, PTZ, security, network, event and AV parameters;...
Page 124: Onvif User
Operation Manual Group Authority Admin User Functions External light, wiper and Peripheral serial port settings. Camera property settings, AV Parameter audio and video settings and more. Preset settings, tour settings and more. HTTPS settings, RTSP over Security TLS settings and more. Automatic maintenance Maintenance settings and more.
Page 125 Operation Manual Figure 4-106 Add user Step 3 Configure user parameters. Table 4-40 Description of user parameters Parameter Description Username User’s unique identification. You cannot use existed user name. Password Enter password and confirm it again. The password must consist of 8 to 32 non-blank characters and contain at least two types of characters among upper case, lower case, Confirm Password number, and special character (excluding ' "...
Page 126 Operation Manual Figure 4-107 Change password through old password (login with non-admin account) ◇ Admin Account: Change the password through entering the admin password, and then the new password for the non-admin account to be changed. Figure 4-108 Change password through admin password (login with admin account) ●...
Page 127: Safety
Operation Manual Admin account cannot be deleted. ● View the authorities If the current account has the permission of user management, click to view the login authorities of other accounts. If not, you can only view the login authorities of the current account.
Page 128: Https
Operation Manual Function Description Enable this function, and then other devices can access through CGI Service this service. Enable this function, and then other devices can access through Onvif Service this service. Enable this function, and then other devices can access through Genetec Service this service.
Page 129 Operation Manual Figure 4-111 HTTPS dialog box ● For uploading the authenticated certificate, click Browse to select the certificate and certificate key, click Upload to upload them, and then skip to Step5. Step 3 Enter the required information and then click Create. The entered IP or Domain name must be the same as the IP or domain name of the device.
Page 130 Operation Manual Figure 4-113 File download Step 7 Click Open. Figure 4-114 Certificate information Step 8 Click Install Certificate.
Page 131 Operation Manual Figure 4-115 Certificate import wizard (1) Step 9 Click Next. Figure 4-116 Certificate store Step 10 Select the storage location and click Next.
Page 132: Firewall
Operation Manual Figure 4-117 Certificate import wizard (2) Step 11 Click Finish and a dialog box showing The import was successful pops up. Figure 4-118 Import succeeds 4.8.4.3 Firewall Configure Network Access, PING prohibited and Prevent Semijoin to enhance network and data security.
Page 133 Operation Manual ● You cannot set allowlist or blocklist for port MAC addresses. ● When the IP addresses of the camera and your PC are in the same LAN, MAC verification takes effect. ● When you access the camera through internet, the camera verifies the MAC address according to the router MAC.
Page 134: Peripheral
Operation Manual Table 4-42 Description of adding IP/MAC parameters Parameter Description Select IP address, IP segment, MAC address or all IP addresses. ● IP address: Select IP version and enter the IP address of the host to be added. ● IP segment: Select IP version and enter the start address and end Rule Type address of the segment to be added.
Page 135: External Light
Operation Manual Table 4-43 Description of serial port settings parameters Parameter Description The corresponding device address. It is 1 by default. Address Make sure that the address is the device address; otherwise you cannot control the device. Baud Rate Select the baud rate for the camera. It is 9600 by default. Date Bit It is 8 by default.
Page 136: Wiper
Operation Manual Table 4-44 Description of external light parameters Parameter Description ● Off: Turn off the external light. ● Manual: Set the light brightness manually. Work Mode ● Auto: The camera turns on or turns off the light according to the light time and photoresister automatically.
Page 137 Operation Manual Parameter Description Select the Time Wash check box and set the time, and then the wiper Time Wash will work as the set time. Click Once, and the wiper works once. It can be used to check whether the wiper can work normally. Step 3 Click Save.
Page 138: Event
Operation Manual 5 Event This chapter introduces intelligent event settings, including smart track, panoramic calibration, video detection, audio detection, smart plan, IVS, face detection, face recognition, people counting, heat map, video Metadata, alarm, and abnormality. 5.1 Setting Alarm Linkage 5.1.1 Alarm Linkage When configuring alarm events, select alarm linkages (such as record, snapshot).
Page 139: Setting Period
Operation Manual 5.1.1.1 Setting Period Set arming periods. The system only performs corresponding linkage action in the configured period. Step 1 Click Setting next to Period. Figure 5-2 Period Step 2 Set arming periods. Alarms will be triggered in the time period in green on the timeline. ●...
Page 140: Setting Record Plan
Operation Manual 5.1.1.2.1 Setting Record Plan After the corresponding alarm type (Normal, Motion, and Alarm) is enabled, the record channel links recording. Step 1 Select Setting > Storage > Schedule > Record. Figure 5-3 Record Step 2 Set record plan. Green represents normal record plan (such as timing recording);...
Page 141: Setting Record Control
Operation Manual 5.1.1.2.2 Setting Record Control Set parameters such as pack duration, pre-event record, disk full, record mode, and record stream. Make sure that the SD card is authenticated before recording if you use Dahua smart card. For details, see "4.5.2.5 Path". Select Setting >...
Page 142: Snapshot Linkage
Operation Manual Figure 5-6 Record linkage 5.1.1.3 Snapshot Linkage After snapshot linkage is configured, the system can automatically alarm and take snapshots when an alarm is triggered. After Motion is enabled in Snapshot, the system takes snapshots when an alarm is triggered. For querying and setting snapshot storage location, see "4.5.2.5 Path".
Page 143: Setting Snapshot Linkage
Operation Manual Figure 5-8 Setting (snapshot time period) 2. Select a day, and the alarm type next to a period. Then set the period. ◇ Select All or check boxes of some days to set the time period of multiple days at one time.
Page 144: Ptz Linkage
Operation Manual Figure 5-11 Email linkage 5.1.1.6 PTZ Linkage When an alarm is triggered, the system links PTZ to do some operations. For example, the system links PTZ to rotate to the preset X. Figure 5-12 PTZ linkage 5.1.1.7 Warning Light Linkage When an alarm is triggered, the system can automatically enable the warning light.
Page 145: Subscribing Alarm
Operation Manual 5.1.2 Subscribing Alarm 5.1.2.1 About Alarm Types For alarm types and preparations of alarm events, see Table 5-2. Table 5-2 Description of alarm types Alarm Type Description Preparation Motion detection is enabled. For The alarm is triggered when Motion Detection details, see "5.4.1 Setting Motion moving object is detected.
Page 146: Setting Smart Track
Operation Manual Functions of different devices might vary. Step 1 Click the Alarm tab. Figure 5-15 Alarm (subscription) Select Alarm Type according to the actual need. Step 2 ● Select Prompt. The system prompts and records alarm information according to actual conditions.
Page 147 Operation Manual ● Auto calibration Select Auto in Calibration Mode, and then click Start Calibration. Figure 5-16 Auto calibration ● Manual calibration Select Manual in Calibration Mode, select the channel that you need, and then add calibration point for it in the live image. Figure 5-17 Manual calibration (1)
Page 148: Enabling Alarm Track
Operation Manual Figure 5-18 Manual calibration (2) 1) Adjust the speed dome lens and turn it to the same view as the chosen lens, and then click The calibration boxes are displayed in both images. 2) Pair each box in the two images, and keep the paired boxes at the same spot of the live view.
Page 149: Setting Panoramic Calibration
Operation Manual Figure 5-19 Alarm track Select the Enable check box to enable track linkage. Step 2 After enabling the function, manual positioning, manual tacking and auto tracking take effect. Step 3 Set parameters. Table 5-3 Description of alarm track parameters Parameter Description Select On, and the speed dome automatically links to a corresponding...
Page 150 Operation Manual when the effect is not good with default setting. Before manually calibrating a channel, clear all default calibration parameters. Channel 1 is a PTZ camera. You should calibrate the scene coordinates of Channel 1 and other channels. Take Channel 2 as an example. Step 1 Select Setting >...
Page 151: Setting Video Detection
Operation Manual the image. This can ensure the edges can be accurately distinguished by the camera. After the calibration record is saved, the calibration box is displayed in yellow. Repeat 1) to 2) to add at least 4 pairs of calibration points to each calibration picture. Step 3 Click Save.
Page 152 Operation Manual Figure 5-22 Motion detection Step 2 Select the Enable check box to enable motion detection function. Step 3 Set the area for motion detection. 1) Click Setup next to Area.
Page 153: Setting Video Tampering
Operation Manual Figure 5-23 Area 2) Select a color and set the region name. Select an effective area for Motion Detection in the image and set Sensitivity and Threshold. ● Select a color on to set different detection parameters for each region. ●...
Page 154: Setting Scene Changing
Operation Manual function is available on some select models. Figure 5-24 Video tampering Table 5-4 Description of video temper parameter Parameter Description Tamper Area When the percentage of the tampered image and the duration exceed the configured values, an alarm will be triggered. Duration The tamper area is 30% and the duration is 5 s by default.
Page 155: Setting Smart Motion Detection
Operation Manual Figure 5-25 Scene changing Step 2 Set arming periods and alarm linkage action. For details, see "5.1.1 Alarm Linkage". Step 3 Click Save. 5.5 Setting Smart Motion Detection The system performs alarm linkage when human, non-motorized vehicle, or motor vehicle appear on the image and its moving speed reaches the preset sensitivity.
Page 156: Setting Audio Detection
Operation Manual Figure 5-26 Smart motion detection Step 2 Select the Enable check box to enable the smart motion detection function. Step 3 Set effective object and sensitivity. ● Effective object: Includes Human and Motor vehicle. When you select Human, the camera will detect human and non-motorized vehicle.
Page 157 Operation Manual Figure 5-27 Audio detection Step 2 Set parameters. ● Input abnormal: Select the Enable Input Abnormal check box, and the alarm is triggered when the system detects abnormal sound input. ● Intensity change: Select the Enable Intensity Change check box and then set Sensitivity and Threshold.
Page 158: Setting Smart Plan
Operation Manual threshold for noisy environment. ◇ The red line in the waveform indicates audio detection is triggered, and the green one indicates no audio detection. Adjust sensitivity and threshold according to the waveform. Step 3 Set arming periods and alarm linkage action. Click Save.
Page 159: Schedule
Operation Manual 1. Select a preset point from the Add Plan the interface. The smart plan for the point is displayed. 2. Click the corresponding icon to enable a smart function. The selected smart function is highlighted. Click it again to cancel the selection. Step 3 Click Save.
Page 160 Operation Manual Figure 5-29 Add plan (1) Figure 5-30 Add plan (2) Step 4 Configure the time settings. 1. Click Settings. 2. Configure the period. In the Smart Plan list, select the type as needed. 3. Click Save. 4. (Optional) Repeat step 1-4 to add more plans for different time. ●...
Page 161: Setting Ivs
Operation Manual Figure 5-32 Time settings (2) Step 5 Click Save. Schedule function is only available on single-channel cameras. 5.8 Setting IVS This section introduces scene selection requirements, rule configuration, and global configuration for IVS (intelligent video surveillance). Basic requirements on scene selection are as follows. ●...
Page 162 Operation Manual corresponding actual distance. Applicable Scene ● Medium or distant view with installation height of more than three meters. Scenes with parallel view or ceiling-mounted are not supported. ● Calibrate horizontal plane, not vertical walls or sloping surfaces. ● This function is not applicable to scenes with distorted view, such as the distorted views captured by super wide-angle or fisheye camera.
Page 163: Rule Configuration
Operation Manual Table 5-6 Description of global setup (IVS) parameters Parameter Description Anti-Disturb Enable A reserved function. Adjust the filter sensitivity. With higher value, it is easier to Sensitivity trigger an alarm when low-contrast object and small object are captured, and the false detection rate is higher. Tracking Overlap Rate Valid Tracking Distance Reserved functions.
Page 164 Operation Manual Rule Description Applicable Scene Scenes with sparse targets and without obvious and frequent light change. Simple scene in the detection area is recommended. ● Missed alarms might increase in the scenes with dense targets, When an object is abandoned in the Abandoned object detection area over the set time, the frequent occlusion, and...
Page 165 Operation Manual Rule Description Applicable Scene Scenes with medium or long distance, such as outdoor When the crowd gathers or the crowd plaza, government entrance, Crowd gathering density is large, the system performs station entrance and exit. It is alarm linkages. not suitable for short-distance view analysis.
Page 166 Operation Manual Table 5-8 Description of IVS analysis Rule Description Tripwire Draw a detection line. Intrusion Draw a detection area. ● During the detection of abandoned object, the alarm is also Abandoned object triggered if pedestrian or vehicle stays for a long time. If the Missing object abandoned object is smaller than pedestrian and vehicle, set Fast moving...
Page 167: Setting Crowd Map
Operation Manual Parameter Description triggered, the camera automatically tracks the person or object that triggers the alarm. Tracking time is the duration that the camera automatically tracks the object. Before enabling this function, you need to enable or disable the Track Time Alarm Track function under Smart Track as needed.
Page 168: Rule Configuration
Operation Manual Determine corresponding relationship between 2D image captured by the camera and 3D actual object according to one horizontal ruler and three vertical rulers calibrated by the user and the corresponding actual distance. Notes When drawing calibration ruler, keep the ruler length consistent with the actual length of the object. Procedure 1.
Page 169 Operation Manual Figure 5-36 Crowd map Select the Enable check box, and then the crowd map function is enabled. Step 2 Click Draw Detection Area to draw global area for detecting crowd distribution in the Step 3 image. After drawing a global area, you can draw multiple local statistical areas in the global area as needed.
Page 170 Operation Manual Parameter Description Select the Smart Track check box, and when alarm is triggered by the panoramic camera, the speed dome automatically turns to the position where alarm is triggered. The tracking time is "idle time + five seconds." For the details of idle time configuration, see "5.2.2 Enabling Alarm Track"...
Page 171: Setting Face Recognition
Operation Manual 5.10 Setting Face Recognition When a face is detected or recognized in the detection area, the system performs alarm linkage and supports searching face detection and recognition results. ● Face Detection: When a face is detected in the area, the system performs alarm linkage, such as recording and sending emails.
Page 172 Operation Manual Figure 5-40 Face detection Step 2 Select the Enable check box to enable the face detection function. Step 3 (Optional) Click Draw next to Detect Region to draw a face detection area in the image. Step 4 (Optional) Click Draw next to Exclude Region to draw a non-face detection area in the Detect Region.
Page 173: Setting Face Database
Operation Manual Parameter Description Set a range for snapping face image, including face picture, one-inch picture, and custom. When selecting Custom, click Setting, configure the parameters on the prompt interface, and then click OK. ● Customized width: Set snapshot width; enter the times of the original face width.
Page 174: Creating Face Database
Operation Manual detected. Face database configuration includes creating face database, adding face picture, and face modeling. 5.10.2.1 Creating Face Database Face database includes face picture, face data and other information. It also provides comparison data for the captured face pictures. Step 1 Select Setting >...
Page 175: Adding Face Picture
Operation Manual Figure 5-43 Face database successfully added Step 5 Set parameters. Table 5-12 Description of face database parameters Parameter Description Select the Deploy check box, and the face database deployment is Deploy enabled. The captured face picture is compared to the armed face database.
Page 176 Operation Manual Figure 5-44 Face database configuration Step 3 Click Registration. Figure 5-45 Registration (1) Step 4 Click Upload Picture, select a face picture to be uploaded, and then click Open. You can manually select the area for a face. After uploading picture, box select a face and click OK.
Page 177 Operation Manual Figure 5-46 Registration (2) Step 5 Enter the information about face picture according to the actual situation. Step 6 Click Add to task list. Step 7 Click , and then click OK. The Task List interface is displayed. See Figure 5-47. Click Remove All to remove all tasks by one click.
Page 178: Batch Importing
Operation Manual Parameter Error Description No face in the picture or the face is not clear. Change the picture. Multiple faces in the picture. Change the picture. Fails to decode the picture. Change the picture. The picture is not suitable to be imported to the face database.
Page 179: Managing Face Picture
Operation Manual Figure 5-48 Batch add Step 4 Click to select file path. Figure 5-49 Batch import Step 5 Click Browse. The interface shows import process. After finishing the import, the interface shown as Figure 5-50 is displayed. Figure 5-50 Imported successfully 5.10.2.3 Managing Face Picture Add face pictures to face database, and then manage and maintain face pictures to ensure correct information.
Page 180: Modifying Face Information
Operation Manual 5.10.2.3.1 Modifying Face Information Go to the Face Database Config interface, set filtering condition as needed, and click Step 1 Search. The search result is displayed. Step 2 Select the row where the face picture or the personnel information is located, and then click Figure 5-51 Face information modification Modify face information according to the actual need.
Page 181 Operation Manual intelligent detections can be realized. ● The more the selected face pictures are, the longer time the face modeling takes. Please wait patiently. ● During modeling, some intelligent detection functions (such as face recognition) are not available temporarily, and will be available after modeling. Step 1 Select Setting >...
Page 182: Setting Face Recognition Alarm Linkage
Operation Manual Figure 5-54 Failed modeling Click Search, and the face details are displayed. Click to view the face picture in list format. See Figure 5-55. Click to view the face picture in thumbnail format. See Figure 5-56. ◇ When the modeling status is Valid in the list or is displayed on the left corner of the thumbnail, it means the modeling succeeded.
Page 183: Viewing Face Recognition Result
Operation Manual Figure 5-57 Alarm (face recognition) Step 2 Select a face database and an alarm rule. ● Face recognition succeeded: When the detected face matches that in the face database, the device links alarm out. ● Face recognition failed: When the detected face fails to match that in the face database, the device links alarm out.
Page 184: Viewing Result By Search Function
Operation Manual 5.10.4.2 Viewing Result by Search Function View face recognition or face snapshot result. Take face recognition search as an example. Prerequisites You have installed a SD card in the camera. Procedure Step 1 Select Setting > Event > Face Recognition > Search. Figure 5-59 Face recognition search Step 2 Select Face Recognition for Type, enter the start time and the end time, and then click...
Page 185: Setting Face Detection
Operation Manual Figure 5-61 MoreInfo (face recognition) 5.11 Setting Face Detection When a face is detected in the detection area, the system performs an alarm linkage. Prerequisites Select Setting > Event > Smart Plan, and then enable Face Detection. Procedure Step 1 Select Setting >...
Page 186 Operation Manual Figure 5-62 Face detection Step 2 Select the Enable check box to enable the face detection function. (Optional) Click Draw next to Detect Region to draw a face detection area in the image. Step 3 Step 4 (Optional) Click Draw next to Exclude Region, and then draw an area excluding face detection in the image.
Page 187 Operation Manual Parameter Description Set a range for snapping face image, including face picture, one-inch picture, and custom. When selecting Custom, click Setting, configure the parameters on the prompt interface, and then click OK. ● Customized width: Set snapshot width; enter the times of the original face width.
Page 188: Setting People Counting
Operation Manual The face detection result is displayed on the live interface. ● The face pictures captured in real time and their attribute information is displayed. ● Click a face picture in the display area, and the details are displayed. Figure 5-63 Face detection result 5.12 Setting People Counting People counting (including enter number, leave number and strand number in area), calibration...
Page 189 Operation Manual Figure 5-64 People counting...
Page 190 Operation Manual Figure 5-65 In area No. Step 2 Click to add the people counting function. Step 3 Double-click the name to modify the rule name. Select People Counting or In Area No. ● People Counting: The system counts the people entering and leaving the detection area.
Page 191 Operation Manual Table 5-16 Description of people counting parameters Parameter Description Select the OSD check box or select the Enter No. or Leave No. check box under OSD to display the people counting data in the image. Click Clear to clear the count. Set the viewing angle of the image as Inclined or Vertical.
Page 192: Calibration Configuration
Operation Manual Figure 5-66 Counting result 5.12.2 Calibration Configuration After configuring the rule for people counting, set the installation height and angle of the camera through calibration configuration. Prerequisites You have set at least one rule in Setting > Event > People counting > People Counting. Procedure Step 1 Select Setting >...
Page 193: Queuing
Operation Manual Step 2 Click Clear to clear the default calibration box. Click Ground to draw a rectangular box in the image. Step 3 Ground should be on the same plane and as big as possible for calibration. Step 4 Click Save, and then the camera calculates its height above the ground and the angle it forms with the ground.
Page 194 Operation Manual You can add 4 rules at most. Step 3 Double-click the name to modify the rule name. Click Draw Rule to draw a detection area in the image, and right-click to complete the drawing. Step 4 Set parameters. Table 5-17 Description of people queuing Parameter Description...
Page 195: Viewing People Counting Diagram
Operation Manual Figure 5-69 Queuing result 5.12.4 Viewing People Counting Diagram You can search and export the heat map and tracking map according to the set searching criteria. This function is available on some fisheye cameras. Step 1 Select Setting > Event > People Counting > Diagram. Figure 5-70 Diagram Select the Enable check box to enable diagram function.
Page 196: Viewing People Counting Report
Operation Manual diagram during the set period. Step 3 Set the searching criteria. Table 5-18 Description of searching criteria Parameter Description Select the report type from the following two types: ● Heat Map: Density statistics of moving object, the color range is from blue to red, blue means the minimum heat value and red Report Type means the maximum heat value.
Page 197 Operation Manual Figure 5-72 People counting report Step 2 Set search conditions. Table 5-19 Description of people counting report parameters Parameter Description Select the rule of the report from In Area No and Queuing. Rule The statistical type of people counting report. ●...
Page 198: Setting Heat Map
Operation Manual 5.13 Setting Heat Map Make statistics on the cumulative density of object movement and view heat map in report. 5.13.1 Heat Map Detect the distribution of dynamically moving objects in the target area within a certain period and displays the distribution on a heat map.
Page 199: Setting Vehicle Density
Operation Manual Figure 5-74 Heat map report Step 2 Set the start time and end time. Only some devices support heat map sequence numbers. Click Search to complete the report. Step 3 Click Export to export the statistical report. 5.14 Setting Vehicle Density Configure the rules for traffic congestion and parking upper limit, and view the counting data on the Live interface.
Page 200 Operation Manual Figure 5-75 Vehicle density (traffic congestion) Figure 5-76 Vehicle density (parking upper limit) Step 2 Click to add the vehicle density function. Step 3 Double-click the name to modify the rule name. Select Traffic Congestion or Parking Upper Limit.
Page 201 Operation Manual ● Traffic Congestion: The system counts the vehicles in the detection area. When the counted vehicle number and the continuous congestion time exceed the configured values, an alarm is triggered and the system performs an alarm linkage. ● Parking Upper Limit: The system counts the vehicles in the detection area. When the counted vehicle number exceeds the configured value, an alarm triggered and the system performs an alarm linkage.
Page 202: Setting Stereo Analysis
Operation Manual Figure 5-77 Traffic congestion Figure 5-78 Parking upper limit 5.15 Setting Stereo Analysis Stereo analysis includes rule configuration and calibration configuration. 5.15.1 Setting Rules for Stereo Analysis The rules for stereo analysis include Activation Analysis, Back Detection, Fall Detection, Walking Detection, Blackboard Writing Detection, Violence Detection, People No.
Page 203 Operation Manual Table 5-21 Description of stereo analysis function Rule Function Applicable Scene Working with a recording & broadcasting server, the camera monitors the target's positions in Activation Analysis Classrooms the front of the classroom and analyzes the data, and then generates a report.
Page 204 Operation Manual Rule Function Applicable Scene When a recording & broadcasting server is used, the camera that monitors the front of a classroom needs to be configured this function. With this function, the Classrooms teacher's actions can be traced and enlarged.
Page 205 Operation Manual Figure 5-79 Fall detection Step 3 (Optional) Click Clear to delete the default rule box, and then click Draw Rule to draw a detection area in the image. ● When configuring People No. Error for a recording & broadcasting device, draw the front of a classroom as the detection area.
Page 206 Operation Manual Parameter Description and alarm type. Alarm type includes Greater than, Equal to, Less than, and Unequal to. Alarm Type When the real-time number of people in the detection area is greater than, equal to, less than, or unequal to Alarm People Amount, the alarm is triggered.
Page 207: Calibration Configuration
Operation Manual event. For details, see "5.1.2 Subscribing Alarm". 5.15.2 Calibration Configuration After configuring the rule for stereo analysis, set the installation height and angle of the camera through calibration configuration. There are two calibration modes: Calibration mode 1: Directly enter the installation height and angle according to the actual conditions;...
Page 208: Viewing Report
Operation Manual Zoom configuration is only available on recording & broadcasting devices. Procedure Select Setting > Event > Stereo Analysis > Zoom Configuration. Step 1 Step 2 Configure the zoom. ● Method 1: Click Calibration Area, and then draw a rectangular box in the image, which is size of the enlarged image of sub stream 1.
Page 209: Setting Anpr
Operation Manual You can search for reports within the time range of 30 minutes–24 hours. Step 3 Set the number of screen sections. We recommend splitting the window into 2 ⁿ windows. Step 4 Click Search. Figure 5-82 Report 5.16 Setting ANPR Extract information of motor vehicles and display related attributes on the live interface.
Page 210 Operation Manual Figure 5-83 Scene set (ANPR) Step 2 Click Draw to draw a detect region and an exclude region in the image. ● Detect region: The region that needs to be detected. ● Exclude region: The region that does not need to be detected. Click Modify to modify the drawn region.
Page 211: Setting Picture Overlay
Operation Manual ● Click the picture in the display area, and the detailed information is displayed. Figure 5-84 ANPR result 5.16.2 Setting Picture Overlay Set overlay of motor vehicle. Step 1 Select Setting > Event > ANPR > Picture. Figure 5-85 Picture Step 2 Select Motor Vehicle from the Type drop-down list.
Page 212: Viewing Anpr Report
Operation Manual 5.16.3 Viewing ANPR Report Generate data of ANPR in report form. Step 1 Select Setting > Event > ANPR > Report. Figure 5-86 Report Step 2 Select the report type, start time, end time, and other parameters. Step 3 Click Search.
Page 213 Operation Manual vehicles. Select Setting > Event > Smart Plan, and then enable Video Metadata. Take setting of the People Detection rules as an example. Step 1 Select Setting > Event > Video Metadata > Scene Set. Figure 5-88 Scene set (video metadata) Step 2 Click , and double-click the name to modify the rule name, and select People in Rule...
Page 214 Operation Manual Parameter Description Select the Non-motor Vehicle Flow Statistics check box to Non-motor Vehicle Flow Statistics count the number of non-motor vehicles in the detection area. Select the OSD check box, and the numbers of motor vehicles, non-motor vehicles and people in the detection area are displayed.
Page 215: Setting Picture Information
Operation Manual Figure 5-89 Video metadata result 5.17.2 Setting Picture Information Set overlay of motor vehicle, non-motor vehicle and people and the box position. This section takes the configuration of motor vehicle overlay as an example. Select Setting > Event > Video Metadata > Picture. Step 1 Figure 5-90 Picture (video metadata) Step 2...
Page 216: Viewing Video Metadata Report
Operation Manual 5.17.3 Viewing Video Metadata Report Generate data of video metadata recognition in report form. Step 1 Select Setting > Event > Video Metadata > Report. The Report interface is displayed. Step 2 Select the report type, start time, end time, and other parameters. Step 3 Click Search to complete the report.
Page 217: Relay-In (2)
Operation Manual Figure 5-92 Alarm linkage Step 2 Select the Enable check box to enable the alarm linkage function. Step 3 Select a relay-in port and a sensor type. ● Sensor Type: NO or NC. ● Anti-Dither: Only record one alarm event during the anti-dither period. Step 4 Set arming periods and alarm linkage action.
Page 218: Setting Abnormality
Operation Manual Figure 5-94 Arming/Disarming The arming/disarming check box is selected by default. Do not cancel the selection; otherwise the configuration is invalid. Step 4 Select the sensor type from NO and NC.. Click Save. Step 5 5.19 Setting Abnormality Abnormality includes SD card, network, illegal access, voltage detection, and security exception.
Page 219: Setting Network
Operation Manual Figure 5-95 SD card Step 2 Select the event type from the Event Type drop-down list, and then select the Enable check box to enable the SD card detection function. When setting Capacity Warning as Event Type, set Capacity Limit. When the remaining space of SD card is less than this value, the alarm is triggered.
Page 220: Setting Illegal Access
Operation Manual Step 3 Set alarm linkage actions. For details, see "5.1.1 Alarm Linkage". Click Save. Step 4 5.19.3 Setting Illegal Access When you enter a wrong login password more than the set times, the system performs alarm linkage. Step 1 Select Setting >...
Page 221: Setting Security Exception
Operation Manual Figure 5-98 Voltage detection Step 2 Select the Enable check box to enable the voltage detection function. Select Overlay, and the alarm icon is displayed by overlapping when the alarm is triggered. indicates undervoltage and indicates overvoltage. Step 3 Set alarm linkage actions.
Page 222: Setting Disarming
Operation Manual Table 5-25 Security exception description Parameter Description Monitors the programs that run in trusted environment to detect whether there are program running without trusted Trusted environment detected signature. program Select it to prevent the program with trojan and virus. The account tries to login during the period that does not allow user to log in.
Page 223 Operation Manual Figure 5-100 Disarming Step 2 Select the Enable check box to disarm. Step 3 (Optional) Select the Enable check box next to Disarm by Period to enable the Disarm by Period function, and then you can disarm by period. For setting disarm period, see "5.1.1.1 Setting Period".
Page 224: Maintenance
Operation Manual 6 Maintenance 6.1 Requirements To make sure the system runs normally, maintain it as the following requirements: ● Check surveillance images regularly. ● Clear regularly user and user group information that are not frequently used. ● Modify the password every three months. For details, see "4.8.3 Account". ●...
Page 225 Operation Manual the entered email address which can be used to reset the password. Prerequisites You have enabled password reset service. For details, see "4.8.4.1 System Service". Procedure Step 1 Open IE browser, enter the IP address of the device in the address bar and press Enter. Figure 6-2 Login Step 2 Click Forgot password?
Page 226 Operation Manual Figure 6-4 Reset the password (1) Step 4 Reset the password. Step 5 Scan the QR code, and there will be a security code sent to the email address you entered. Enter the security code as instructed. ● Please use the security code within 24 hours after you receive it. Otherwise, it will become invalid.
Page 227: Backup And Default
Operation Manual Step 8 Click Save. 6.4 Backup and Default 6.4.1 Import/Export ● Export the system configuration file to back up the system configuration. ● Import system configuration file to make quick configuration or recover system configuration. Step 1 Select Setting > System > Import/Export. Figure 6-6 Import/Export Step 2 Click Import or Export.
Page 228: Upgrade
Operation Manual 6.5 Upgrade Upgrading to the latest system can perfect camera functions and improve stability. If wrong upgrade file has been used, restart the device; otherwise some functions might not work properly. Select Setting > System > Upgrade. Step 1 Figure 6-8 Upgrade Step 2 Select upgrading method according to the actual needs.
Page 229: Version
Operation Manual 6.6.1 Version You can view device information such as hardware, system version, and web version. Select Setting > Information > Version to view the version information. 6.6.2 Log You can view and back up logs. Step 1 Select Setting > Information > Log. Figure 6-9 Log Step 2 Configure Start Time and End Time, and then select the log type.
Page 230: Remote Log
Operation Manual Information area. ● Click Backup, and then you can back up all found logs to local PC. Figure 6-10 Log (details) 6.6.3 Remote Log Configure remote log, and you can get the related log by accessing the set address. Step 1 Select Setting >...
Page 231 Operation Manual Select Setting > Information > Online User. Figure 6-12 Online user...
Page 232: Appendix 1 Cybersecurity Recommendations
Operation Manual Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks.
Page 233 Operation Manual 5. Change Default HTTP and Other Service Ports We suggest you to change default HTTP and other service ports into any set of numbers between 1024–65535, reducing the risk of outsiders being able to guess which ports you are using. 6.
Page 234 Operation Manual ● Establish the 802.1x access authentication system to reduce the risk of unauthorized access to private networks. ● Enable IP/MAC address filtering function to limit the range of hosts allowed to access the device. More information Please visit Dahua official website security emergency response center for security announcements and the latest security recommendations.
Page 235 Operation Manual...
Page 236 Network Camera Web 5.0 Operation Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.5...
Page 237 Operation Manual Foreword General This manual introduces the functions, configuration, general operation, and system maintenance of network camera. Read carefully before using the platform, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided,...
Page 238 Operation Manual Privacy Protection Notice As the device user or data controller, you might collect the personal data of others such as their face, fingerprints, and license plate number. You need to be in compliance with your local privacy protection laws and regulations to protect the legitimate rights and interests of other people by implementing measures which include but are not limited: Providing clear and visible identification to inform people of the existence of the surveillance area and provide required contact information.
Page 239 Operation Manual Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with the guidelines when using it. Transportation Requirements ●...
Page 240 Operation Manual against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. ● Ground the function earthing portion of the device to improve its reliability (certain models are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing.
Page 241 Operation Manual ● Use the accessories suggested by the manufacturer. Installation and maintenance must be performed by qualified professionals. ● Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the lens. When it is necessary to clean the device, slightly wet a soft cloth with alcohol, and gently wipe away the dirt.
Page 242 Operation Manual Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................III 1 Overview ........................................1 1.1 Introduction ....................................1 1.2 Network Connection ................................1 1.3 Functions ....................................... 1 1.3.1 Basic Functions ................................1 1.3.2 AI Functions ..................................2 2 Configuration Flow ....................................
Page 243 Operation Manual 6.2.2.2.4 Configuring Location ..........................31 6.2.2.2.5 Configuring Font Properties ......................32 6.2.2.2.6 Configuring Picture Overlay ......................33 6.2.2.2.7 Configuring Custom Title ........................33 6.2.2.2.8 Configuring Target Statistics ......................34 6.2.2.2.9 Configuring ANPR ........................... 34 6.2.2.2.10 Configuring Face Detection ......................35 6.2.2.2.11 Configuring Face Recognition .......................
Page 244 Operation Manual 6.5.1.2 Alarm Linkage ..............................62 6.5.1.2.1 Adding Schedule ............................. 62 6.5.1.2.2 Record Linkage ............................63 6.5.1.2.3 Snapshot Linkage ........................... 64 6.5.1.2.4 Alarm-out Linkage ..........................64 6.5.1.2.5 Email Linkage ............................64 6.5.1.3 Subscribing Alarm ............................. 65 6.5.1.3.1 Alarm Types ............................... 65 6.5.1.3.2 Subscribing Alarm Information .......................
Page 245 Operation Manual 6.7.4.4 Default ..................................86 6.7.5 Upgrade ..................................... 86 6.8 System Information ................................87 6.8.1 Version ....................................87 6.8.2 Online User ..................................87 6.9 Setting Log ....................................87 6.9.1 Log ......................................87 6.9.2 Remote Log ..................................88 7 Live ..........................................90 7.1 Live Page ......................................
Page 246 Operation Manual 8.4.1 Global Configuration ............................... 123 8.4.2 Rule Configuration ..............................124 8.5 Setting Vehicle Density ..............................128 8.6 Setting Parking Space ................................ 130 8.6.1 Rule Configuration ..............................130 8.6.1.1 For Parking Space Detection Fisheye WizMind Network Camera .......... 130 8.6.1.2 For Other Cameras ............................
Page 247 Operation Manual 9.3.3 Anti-DoS Attack ................................165 9.4 CA Certificate ..................................165 9.4.1 Installing Device Certificate ..........................165 9.4.1.1 Creating Certificate ............................165 9.4.1.2 Applying for and Importing CA Certificate ..................166 9.4.1.3 Installing Existing Certificate ........................167 9.4.2 Installing Trusted CA Certificate ........................168 9.5 A/V Encryption ..................................
Page 248 Operation Manual 12.1.7 ANPR ....................................197 12.2 Searching for Face Picture ............................. 198 12.3 Auto Upload ..................................199 Appendix 1 Cybersecurity Recommendations ........................204...
Page 249: Introduction
Operation Manual 1 Overview 1.1 Introduction IP camera (Internet Protocol camera), is a type of digital video camera that receives control data and sends image data through internet. They are commonly used for surveillance, requiring no local recording device, but only a local area network. IP camera is divided into single-channel camera and multi-channel camera according to the channel quantity.
Page 250: Ai Functions
Operation Manual ● Record abnormality of monitoring image for subsequent view and processing. ● Configure coding parameters, and adjust live view image. Alarm ● Set alarm prompt mode and tone according to alarm type. ● View alarm prompt message. Exception ●...
Page 251 Operation Manual Face Detection ● Detects face and display the related attributes on the live page. ● When an alarm is triggered, the system performs linkages such as recording, alarm output, sending email, PTZ operation, and snapshot. Face Recognition ● Displays the recognition result on the live view page ●...
Page 252 Operation Manual ● When an alarm is triggered, the system links alarm output and snapshot. Parking Space ● Supports planned parking space and open parking space. ● When an alarm is triggered, the system performs linkages such as recording, alarm output, sending email, and snapshot.
Page 253: Configuration Flow
Operation Manual 2 Configuration Flow For the device configuration flow, see Figure 2-1. For details, see Table 2-1. Configure the device according to the actual situation. Figure 2-1 Configuration flow Table 2-1 Description of flow Configuration Description Reference Open IE browser and enter IP address to log in to the web page, Login "4 Login"...
Page 254: Device Initialization
Operation Manual 3 Device Initialization Device initialization is required for the first-time use. This manual is based on the operation on the web page. You can also initialize device through ConfigTool, NVR, or platform devices. ● To ensure the device safety, keep the password properly after initialization and change the password regularly.
Page 255 Operation Manual Figure 3-2 Time zone setting Figure 3-3 Disclaimer Step 3 Select the I have read and agree to the terms of the Software License Agreement and Privacy Policy checkbox, and then click Next.
Page 256 Operation Manual Figure 3-4 Time zone setting Configure the time parameters, and then click Next. Step 4 Figure 3-5 Password setting...
Page 257 Operation Manual Step 5 Set the password for admin account. Table 3-1 Description of password configuration Parameter Description Username The default username is admin. Password The password must consist of 8 to 32 non-blank characters and contain at least two types of characters among upper case, lower case, number, and special character (excluding ' "...
Page 258: Login
Operation Manual 4 Login 4.1 Device Login This section introduces how to log in to the web page. This section takes Chrome as an example. ● You need to initialize the camera before logging in to the web page. For details, see "3 Device Initialization".
Page 259: Resetting Password
Operation Manual Figure 4-2 Live page 4.2 Resetting Password When you need to reset the password for the admin account, there will be a security code sent to the entered email address which can be used to reset the password. Prerequisites You have enabled password resetting service.
Page 260 Operation Manual Step 2 Click Forget password?, and you can reset the password through the email address that is set during the initialization. Figure 4-4 Login...
Page 261: Home Page
Operation Manual 5 Home Page Click at the upper-left corner of the page to display the home page. Figure 5-1 Home page ● Live: View the real-time monitoring image. ● AI: Configure AI functions of the camera. ● Camera: Configure camera parameters, including image parameters, encoder parameters, and audio parameters.
Page 262: Setting
Operation Manual 6 Setting This section introduces the basic setting of the camera, including the configuration of Local, Camera, Network, Event, Storage, System, System Information and Log. For Camera, Event and System, you can go to the configuration page through two methods. This section takes method 1 as an example.
Page 263: Camera
Operation Manual Table 6-1 Description of local parameter Parameter Description You can select the network transmission protocol as needed, and the options are TCP, UDP and Multicast. Protocol Before selecting Multicast, make sure that you have set the Multicast parameters. The recorded video of live page.
Page 264 Operation Manual Select the working mode as needed. ● Self-adaptive: The camera will adjust the image according to the environment. Figure 6-2 Page layout (self-adaptive) ● Customized scene: You can select the profile as needed. Select the profile in Time Plan Setting and drag the slide block to set certain time as the selected profile.
Page 265: Ai Ssa
Operation Manual Figure 6-4 Page layout (day/night switch) 6.2.1.2 AI SSA By enabling AI SSA (AI Scene Self-adaptation), the camera could detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Page 266: Exposure
Operation Manual Table 6-2 Description of picture parameters Parameter Description Select the picture style from soft, standard and vivid. ● Soft: Default image style, displays the actual color of the image. ● Standard: The hue of the image is weaker than the actual one, and Style contrast is smaller.
Page 267 Operation Manual Figure 6-6 Exposure Step 2 Configure exposure parameters. Table 6-3 Description of exposure parameters Parameter Description You can select from 50 Hz, 60 Hz and Outdoor. ● 50 Hz: When the electric supply is 50 Hz, the system adjusts the exposure according to ambient light automatically to ensure that no stripe appears.
Page 268: Backlight
Operation Manual Parameter Description Exposure Sets the value, and it ranges from 0 to 50. The higher the value is, the Compensation brighter the image will be. Set the effective exposure time. The smaller the value, the shorter the Shutter exposure time will be.
Page 269 Operation Manual Table 6-4 Description of backlight parameters Backlight mode Description Enable BLC, the camera can get clearer image of the dark areas on the target when shooting against light. You can enable or disable Customized mode. ● When you enable Customized mode, the system auto adjusts exposure only to the set area according to ambient lighting condition to ensure the image of the set area at ideal brightness.
Page 270: Day/Night
Operation Manual Table 6-5 Description of WB parameters WB Mode Description The system compensates WB according to color temperature to Auto ensure color precision. The system auto compensates WB to environments without artificial Natural light to ensure color precision. The system compensates WB to outdoor night scene to ensure color Street Lamp precision.
Page 271: Illuminator
Operation Manual Table 6-6 Description of day and night parameters Parameter Description You can select device display mode from Color, Auto, and B/W. Day/Night configuration is independent from profile management configuration. Mode ● Color: The system displays color image. ● Auto: The system switches between color and black-and-white display according to the actual condition.
Page 272: Defog
Operation Manual Table 6-7 Description of illuminator parameters Parameter Description Set Fill Light for sound and siren cameras. ● IR Mode: Enable the IR illuminator, and the white light is disabled. When an alarm is triggered, the system will link white light. Fill Light ●...
Page 273: Afsa
Operation Manual Figure 6-11 Light Step 2 Configure defog parameters. Table 6-8 Description of defog parameters Defog Description Configure function intensity and atmospheric light mode manually, and Manual then the system adjusts image clarity accordingly. Atmospheric light mode can be adjusted automatically or manually. Auto The system adjusts image clarity according to the actual condition.
Page 274: Fisheye
Operation Manual 6.2.1.11 Fisheye Select installation mode and record mode according to the actual installation scene. When the camera accesses the platform with corrective stream, the platform displays the corrective image. This function is only available on fisheye device. Procedure Step 1 Select >...
Page 275: Encode
Operation Manual Click Default, and the device is restored to default configuration. Click Refresh to view the latest configuration. 6.2.2.1 Encode Configure video stream parameters, such as compression, resolution, frame rate, bit rate type, bit rate, I frame interval, SVC, and watermark. Procedure >...
Page 276 Operation Manual Parameter Description Select encode mode. ● H.264: Main profile encode mode. Compared with H.264B, it requires smaller bandwidth. ● H.264H: High profile encode mode. Compared with H.264, it requires smaller bandwidth. ● H.264B: Baseline profile encode mode. It requires smaller Compression bandwidth.
Page 277: Overlay
Operation Manual Parameter Description This parameter can be configured only when the Bit Rate Type is set as CBR. Bit Rate Select bit rate value in the list according to actual condition. The number of P frames between two I frames, and the I Frame Interval range changes as FPS changes.
Page 278: Configuring Channel Title
Operation Manual Figure 6-15 Privacy masking Step 2 Configure privacy masking. 1) Click next to Enable. 2) Click Add, and then drag the block to the area that you need to cover. 3) Adjust the size of the rectangle to protect the privacy. 4) Click Apply.
Page 279: Configuring Time Title
Operation Manual Figure 6-16 Channel title Step 2 Click next to Enable, enter the channel title, and select the text alignment. Click to add the channel title, and you can add 1 line at most. Step 3 Move the title box to the position that you want in the image. Step 4 Click Apply.
Page 280: Configuring Font Properties
Operation Manual Text overlay and picture overlay cannot work at the same time, and the IPC that connects to mobile NVR with private protocol would display GPS information as priority. Procedure Step 1 Select > Camera > Encode > Overlay > Location. Figure 6-18 Location Step 2 Click...
Page 281: Configuring Picture Overlay
Operation Manual 6.2.2.2.6 Configuring Picture Overlay You can enable this function if you need to display picture information on the video image. Text overlay and picture overlay cannot work at the same time. Procedure Step 1 Select > Camera > Encode > Overlay > Picture Overlay. Figure 6-20 Picture overlay next to Enable, click Upload, and then select the picture to be overlaid.
Page 282: Configuring Target Statistics
Operation Manual Click to add the text overlay, and you can add 1 line at most. Step 3 Move the custom box to the position that you want in the image. Step 4 Click Apply. 6.2.2.2.8 Configuring Target Statistics After configuring the target statistics, the number of target statistics will be displayed on the image. Procedure >...
Page 283: Configuring Face Detection
Operation Manual Figure 6-23 ANPR Select the Enable check box, select the statistics type, and then select text alignment. Step 2 Click Reset to clear the statistics data. Step 3 Move the ANPR box to the position that you want in the image. Click Apply.
Page 284: Configuring Face Recognition
Operation Manual Click Reset to clear the statistics data. Step 3 Move the statistics box to the position that you want in the image. Click Apply. Step 4 The information will be displayed on the image after the face detection function is enabled.
Page 285: Configure Face&Body Counting
Operation Manual Figure 6-26 Face statistics Step 2 Click next to Enable, and select the text alignment. Click Reset to clear the statistics data. Step 3 Move the statistics box to the position that you want in the image. Click Apply. Step 4 6.2.2.2.13 Configure Face&Body Counting After enabling this function, face&body counting information will be displayed on the image.
Page 286: Configuring Parking Space
Operation Manual Click Reset to clear the statistics data. Step 3 Move the face&body counting box to the position that you want in the image. Click Apply. Step 4 6.2.2.2.14 Configuring Parking Space After enabling this function, parking space information will be displayed on the image. When the overlay function is enabled during intelligent rules configuration, this function is enabled simultaneously.
Page 287: Splicing
Operation Manual Figure 6-29 ROI Step 2 Click next to Enable, draw an area on the image, and then configure the image quality of ROI. ● The higher the image quality value is, the better the quality will be. ● Click Clear to delete all the area boxes; select one box, and then click to delete it.
Page 288: Audio
Operation Manual splicing; the 6-sensor device supports 2 to 6 lenses splicing; the 8-sensor device supports 2-8 lenses splicing. Step 3 Click Start. The system starts to splice the image. ● Some cameras restart automatically after splicing is complete, you can view the results of the splicing in the Live window.
Page 289: Setting Alarm Tone
Operation Manual Table 6-11 Description of audio parameters Parameter Description You can select audio Encode Mode from PCM, G.711A, G.711Mu, G.726, AAC, G.723. Compression The configured audio encode mode applies to both audio and intercom. The default value is recommended. Sampling number per second.
Page 290: Network
Operation Manual Upload. ● The camera supports recording audio file in .pcm format only. Recording is only supported by select models. ● You can upload audio files in .pcm, .wav2, .mp3, or .aac format. Figure 6-33 Add alarm tone Step 4 Select the file that you need.
Page 291 Operation Manual Figure 6-34 TCP/IP Step 2 Configure TCP/IP parameters. Table 6-12 Description of TCP/IP parameters Parameter Description Host Name Enter the host name, and the maximum length is 15 characters.
Page 292 Operation Manual Parameter Description Click to enable ARP/Ping to set IP address service. Get the camera MAC address, and then you can change and configure the device IP address with ARP/ping command. This is enabled by default. During restart, you will have no more than 2 minutes to configure the device IP address by a ping packet with certain length, the server will be turned off in 2 minutes, or it will be turned off immediately after the IP address is successfully configured.
Page 293: Port
Operation Manual Parameter Description IP Address When you select Static in Mode, enter the IP address and subnet mask that you need. Subnet Mask ● IPv6 does not have subnet mask. Default Gateway ● The default gateway must be in the same network segment with the IP address.
Page 294 Operation Manual Table 6-13 Description of port parameters Parameter Description The max number of users (web client, platform client or mobile Max Connection phone client) that can connect to the device simultaneously. The value is 10 by default. TCP Port Transmission control protocol port.
Page 295: Pppoe
Operation Manual 6.3.3 PPPoE Point-to-Point Protocol over Ethernet, is one of the protocols that device uses to connect to the internet. Get the PPPoE username and password from the internet service provider, and then set up network connection through PPPoE, the camera will acquire a WAN dynamic IP address. Prerequisites ●...
Page 296: Email
Operation Manual the connected devices in your account. Figure 6-37 DDNS Step 2 Click to enable the function. Step 3 Configure DDNS parameters. Table 6-14 Description of DDNS parameters Parameter Description Type The name and web address of the DDNS service provider, see the matching relationship below: ●...
Page 297 Operation Manual Step 1 Select > Network > Email. Figure 6-38 Email Step 2 Click to enable the function. Step 3 Configure email parameters. Table 6-15 Description of email parameters Parameter Description SMTP Server SMTP server address The port number of the SMTP Port server.
Page 298: Upnp
Operation Manual Parameter Description ● Receiver’s email address. Supports 3 addresses at most. ● After entering the receiver's email address, the Test button is Receiver display. Click Test to test whether the emails can be sent and received successfully. The system sends test mail to check if the connection is successfully Health Mail configured.
Page 299: Snmp
Operation Manual Figure 6-39 UPnP Step 2 Click next to Enable, and there are two mapping modes: Custom and Default. ● Select Custom, click and then you can change external port as needed. ● Select Default, and then the system finishes mapping with unoccupied port automatically, and you cannot edit mapping relation.
Page 300 Operation Manual Figure 6-40 SNMP (1) Figure 6-41 SNMP (2) Step 2 Select SNMP version to enable SNMP. ● Select V1, and the system can only process information of V1 version. ● Select V2, and the system can only process information of V2 version. ●...
Page 301 Operation Manual authentication type to visit your device from the server. Using V1 and V2 might cause data leakage, and V3 is recommended. Step 3 In Trap Address, enter the IP address of the PC that has MIB Builder and MG-SOFT MIB Browser installed, and leave other parameters to the default.
Page 302: Bonjour
Operation Manual Use PC with Windows and disable SNMP Trap service. The MG-SOFT MIB Browser will display prompt when alarm is triggered. 6.3.8 Bonjour Enable this function, and the OS and clients that support Bonjour would find the camera automatically. You can have quick visit to the camera with Safari browser. Bonjour is enabled by default.
Page 303: Register
Operation Manual Figure 6-43 Multicast Step 2 Click , and enter IP address and port number. Table 6-18 Description of multicast parameters Parameter Description The multicast IP address of Main Stream/Sub Stream is 224.1.2.4 Multicast Address by default, and the range is 224.0.0.0–239.255.255.255. The multicast port of corresponding stream: Main Stream: 40000;...
Page 304: Qos
Operation Manual Parameter Description Port The port for registration. Sub-Device ID The custom ID for the camera. Step 3 Click Apply. 6.3.11 QoS You can solve problems such as network delay and congestion with this function. It helps to assure bandwidth, reduce transmission delay, packet loss rate, and delay jitter to improve experience.
Page 305: Onvif
Operation Manual Figure 6-46 P2P ● When P2P is enabled, remote management on device is supported. ● When P2P is enabled and the device accesses to the network, the status shows online. The information of the IP address, MAC address, device name, and device SN will be collected.
Page 306: Rtmp
Operation Manual 6.3.12.3 RTMP Through RTMP, you can access a third-party platform (such as Ali and YouTube) to realize video live view. ● RTMP can be configured by admin only. ● RTMP supports the H.264, H.264 B and H.264H video formats, and the AAC audio format only. Procedure Step 1 Select...
Page 307: Basic Service
Operation Manual 6.3.13 Basic Service Configure the IP hosts (devices with IP address) that are allowed to visit the device. Only the hosts in the trusted sites list can log in to the web page. This is to enhance network and data security. Procedure Step 1 Select...
Page 308: Eptz
Operation Manual 6.4 EPTZ EPTZ function can simultaneously zoom in and track multiple humans and vehicles that trigger alarms. It provides rich details and a panoramic view at the same time. This function is only available on select devices. Procedure Step 1 Select >...
Page 309: Event
Operation Manual stop tracking object A after 60 seconds. ● Continue till object disappears: The camera will stop tracking when the detected object disappears in the image. Step 4 Click Apply. 6.5 Event 6.5.1 Setting Alarm Linkage 6.5.1.1 Setting Alarm-in When an alarm is triggered by the device connected to the alarm-in port, the system performs the defined alarm linkage.
Page 310: Alarm Linkage
Operation Manual ● Sensor Type: NO or NC. ● Anti-Dither: Only record one alarm event during the anti-dither period. Step 4 Select the schedule and arming periods and alarm linkage action. If the schedules cannot meet the scene requirement, you can click Add Schedule to add new schedule. For details, see "6.5.1.2.1 Adding Schedule".
Page 311: Record Linkage
Operation Manual Figure 6-53 Schedule Step 2 Press and drag the left mouse button on the timeline to set arming periods. Alarms will be triggered in the period in green on the timeline. ● Click Copy next to a day, and select the days that you want to copy to in the prompt page, you can copy the configuration to the selected days.
Page 312: Snapshot Linkage
Operation Manual ends. Figure 6-54 Record linkage 6.5.1.2.3 Snapshot Linkage After snapshot linkage is configured, the system can automatically alarm and take snapshots when an alarm is triggered. Prerequisites After the corresponding alarm type (Normal, Motion, or Alarm) is enabled, the snapshot channel links capturing picture.
Page 313: Subscribing Alarm
Operation Manual 6.5.1.3 Subscribing Alarm 6.5.1.3.1 Alarm Types Table 6-24 Description of alarm types Alarm Type Description Preparation Motion detection is enabled. For The alarm is triggered when Motion Detection details, see "6.5.3.1 Setting Motion moving object is detected. Detection". The alarm is triggered when the The SD card no space function is Disk Full...
Page 314: Setting Exception
Operation Manual Step 1 Click at the right-upper corner of the main page. Figure 6-58 Alarm (subscription) Step 2 Click next to Enable Alarm. Step 3 Select alarm type according to the actual need. For details, see "6.5.1.3.2 Subscribing Alarm Information".
Page 315: Setting Sd Card Exception
Operation Manual 6.5.2.1 Setting SD Card Exception In case of SD card exception, the system performs alarm linkage. The event types include No SD Card, Low SD Card Space, and SD Card Error. Functions might vary with different models. Procedure Step 1 Select >...
Page 316: Setting Voltage Detection
Operation Manual Figure 6-60 Network exception Step 2 Click to enable the network detection function. Step 3 Set alarm linkage actions. For details, see "6.5.1.2 Alarm Linkage". Step 4 Click Apply. 6.5.2.3 Setting Voltage Detection When the input voltage is higher than or lower than the rated value of the device, the system performs alarm linkage.
Page 317: Setting Video Detection
Operation Manual Figure 6-61 Voltage detection Step 2 Click to enable the voltage detection function. When enabling Overlay, the alarm icon is displayed by overlapping when the alarm is triggered. Step 3 Set alarm linkage actions. For details, see "6.5.1.2 Alarm Linkage". Step 4 Click Apply.
Page 318 Operation Manual Figure 6-62 Motion detection Step 2 Click to enable the motion detection function. Step 3 Set the area for motion detection. 1) Click Setting next to Area. Figure 6-63 Area 2) Select a color and set the region name. Select an effective area for motion detection in the image and set Sensitivity and Threshold.
Page 319: Setting Video Tampering
Operation Manual the green one indicates that there is no motion detection. Adjust sensitivity and threshold according to the waveform. 3) Click OK. Step 4 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage". If the exiting schedules cannot meet the scene requirement, you can click Add Schedule to add a new schedule.
Page 320: Setting Scene Changing
Operation Manual Table 6-25 Description of video temper parameter Parameter Description Covered Area When the percentage of the tampered image and the duration exceed the configured values, an alarm will be triggered. Duration Anti-Dither Only record one alarm event during the anti-dither period. Step 3 Set arming periods and alarm linkage action.
Page 321: Storage
Operation Manual Figure 6-66 Audio detection Step 2 Set parameters. ● Input abnormal: Click next to Audio Abnormal, and the alarm is triggered when the system detects abnormal sound input. ● Intensity change: Click next to Intensity Change, and then set Sensitivity and Threshold.
Page 322: System
Operation Manual hot swap and format SD card. Functions might vary with different models. Select > Storage. ● Click Read-Only, and then the SD card is set to read only. ● Click Read & Write, and then the SD card is set to read & write. ●...
Page 323: Date & Time
Operation Manual Table 6-26 Description of general parameters Parameter Description Name Enter the device name. Video Standard Select video standard from PAL and NTSC. Step 3 Click Apply. 6.7.1.2 Date & Time You can configure date and time format, time zone, current time, DST (Daylight Saving Time) or NTP server.
Page 324: Account
Operation Manual Parameter Description ● Manually Setting: Configure the parameters manually. ● NTP: When selecting NTP, the system then syncs time with the Time internet server in real time. You can also enter the IP address, time zone, port, and interval of a PC which installed NTP server to use NTP.
Page 325 Operation Manual Figure 6-70 User Step 2 Click Add. Figure 6-71 Add user (system)
Page 326 Operation Manual Figure 6-72 Add user (restricted login) Step 3 Configure user parameters. Table 6-28 Description of user parameters Parameter Description Username User’s unique identification. You cannot use existed username. Password Enter password and confirm it again. The password must consist of 8 to 32 non-blank characters and contain at least two types of characters among upper case, lower case, Confirm Password number, and special character (excluding ' "...
Page 327: Resetting Password
Operation Manual Parameter Description Set the PC address that allows the defined user to log in to the camera and the validity period and time range. You can log in to the web page with the defined IP in the defined time range of validity period. ●...
Page 328: Adding User Group
Operation Manual Step 2 Click next to Enable in Password Reset. If the function is not enabled, you can only reset the password by resetting the camera. Step 3 Enter the reserved email address. Step 4 Click Apply. 6.7.2.2 Adding User Group You have two groups named admin and user by default, and you can add new group, delete added group or edit group authority and memo.
Page 329: Onvif User
Operation Manual The admin group and user group cannot be deleted. 6.7.2.3 ONVIF User You can add, delete ONVIF user, and change their passwords. Procedure > System > Account > ONVIF User. Step 1 Select Figure 6-76 ONVIF user Click Add. Step 2 Figure 6-77 Add ONVIF user Step 3...
Page 330: Peripheral Management
Operation Manual For admin account, you can only change the password. ● Click to delete the added users. The admin account cannot be deleted. 6.7.3 Peripheral Management 6.7.3.1 Configuring Serial Port Set the serial port of the external device. Procedure >...
Page 331: Configuring External Light
Operation Manual 6.7.3.2 Configuring External Light You need to configure external light mode when the external light is used. Prerequisites ● Connect external light with RS-485 port. ● You have configured serial port parameters. For details, see "6.7.3.1 Configuring Serial Port". Procedure Step 1 >...
Page 332: Configuring Wiper
Operation Manual 6.7.3.3 Configuring Wiper Procedure Step 1 Select > > System > Peripheral > Wiper. Step 2 Configure working mode of wipers. Figure 6-80 Wiper Table 6-32 Wiper parameter description Parameter Description The interval between stop mode and start mode. For example, set the time Interval to 10 s, and the wiper will work every 10 s.
Page 333: Maintenance
Operation Manual 6.7.4.2 Maintenance You can restart the system manually, and set the time of auto reboot and auto deleting old files. This function is disabled by default. Procedure Step 1 Select > System > Manager > Maintenance. Figure 6-81 Maintenance Step 2 Configure auto maintain parameters.
Page 334: Default
Operation Manual Figure 6-82 Import/Export Step 2 Import or export the file. ● Import: Select local configuration file, and click Import File to import the local system configuration file to the system. ● Export: Click Export Configuration file to export the system configuration file to local storage.
Page 335: System Information
Operation Manual Procedure Step 1 Select > System > Upgrade. Figure 6-84 Upgrade Step 2 Click Browse, and then upload upgrade file. The upgrade file should be a .bin file. Step 3 Click Update. 6.8 System Information You can view the information, including version, log and online user, and back up or clear log. 6.8.1 Version Select >...
Page 336: Remote Log
Operation Manual mode. ● Event (records events such as video detection, smart plan, alarm and abnormality): includes event start and event end. ● Record: Includes file access, file access error, and file search. ● Account: Includes login, logout, adding user, deleting user, editing user, adding group, deleting group, and editing group.
Page 337 Operation Manual Figure 6-86 Remote log...
Page 338: Live
Operation Manual 7 Live This chapter introduces the layout of the page and function configuration. 7.1 Live Page Log in and click the Live tab. Pages might vary with different models. Figure 7-1 Live (single channel) Figure 7-2 Live (multiple channels)
Page 339: Setting Encode
Operation Manual Figure 7-3 Live (EPTZ) Table 7-1 Description of function bar Function Description You can select the display mode from General Mode, Display mode Face Mode, Metadata Mode, ANPR and Face & Body Detection. For details, see "7.5 Display Mode". Displays all channels.
Page 340: Live View Function Bar
Operation Manual means the current stream is sub stream 1. 7.3 Live View Function Bar For the live view function bar, see Table 7-2. Table 7-2 Description of live view function bar Icon Function Description Display the status of alarm sound. Force Alarm Click the icon to enable or disable the alarm sound forcibly.
Page 341: Window Adjustment Bar
Operation Manual Icon Function Description Click the icon, the AF Peak (focus eigenvalue) and AF Max (max focus eigenvalue) are displayed on the video image. ● AF Peak: The eigenvalue of image definition, it displays during focus. ● AF Max: The best eigenvalue of image definition. Aux Focus ●...
Page 342: Zoom And Focus
Operation Manual Icon Function Description Click the icon and select Enable. The Crowd Crowd Distribution Map page is displayed. For details, Distribution Map see "8.1 Setting Crowd Distribution Map". Click the icon and select Enable. When moving the mouse printer to the center of live page, a floating box is displayed.
Page 343: Image Adjustment
Operation Manual Table 7-4 Description of zoom and focus parameter Parameter Description Changes the focal length of the camera to zoom in or out the image. 1. Set the speed value. The Zoom Speed is the adjustment range in Zoom Speed one click.
Page 344: Fisheye
Operation Manual Figure 7-6 Image adjustment ● (Brightness adjustment): Adjusts the overall image brightness, and changes the value when the image is too bright or too dark. The bright and dark areas will have equal changes. ● (Contrast adjustment): Changes the value when the image brightness is proper but contrast is not enough.
Page 345 Operation Manual Figure 7-8 Fisheye-wall mount Figure 7-9 Fisheye-ground mount Figure 7-10 Fisheye-VR mode Table 7-5 Description of fisheye configuration Parameter Description Installation mode Includes ceiling mount, wall mount, and ground mount. The display model of the current image. There are different display modes for each installation mode.
Page 346 Operation Manual Parameter Description Two associated 180° rectangular image screens; at any time, the two screens form a 360° panoramic image. It is also called dual- panoramic image. You can move the start point (left and right) on the two rectangular panoramic image screens, and the two screens link each other.
Page 347 Operation Manual Parameter Description 180° rectangular panoramic image screen + three independent sub-screens. ● You can zoom or drag the image in all the 1P+3 screens. ● You can drag the image in all the screens (upper and lower) to adjust the vertical view.
Page 348: Display Mode
Operation Manual Parameter Description ● You can drag the image in upper/lower/left/right direction. Press I to display the panorama, and press O to return Asteroid to the original size. ● Press the left mouse-button to slide down to display the image on the plane surface. ●...
Page 349 Operation Manual Figure 7-12 Metadata mode ● Select Parking Space Detection from the display mode drop-down list. Make sure that you have enabled parking space detection function. Figure 7-13 Parking space detection Table 7-6 Description of layout (face mode and metadata mode) Function Description Displays the real-time monitoring image.
Page 350 Operation Manual Function Description Displays the captured images. ● Click a snapshot in the area, and the details of the snapshot are displayed. ● Click to set the attributes displayed. Captured image This attribute is not available for parking space mode.
Page 351: Setting Crowd Distribution Map
Operation Manual 8 AI 8.1 Setting Crowd Distribution Map You can view crowd distribution on the map in real time for timely arming, to prevent stampede and other accidents. 8.1.1 Global Configuration Set the calibration parameters of panoramic cameras. Calibration Purpose Determine corresponding relationship between 2D image captured by the camera and 3D actual object according to one horizontal ruler and three vertical rulers calibrated by the user and the corresponding actual distance.
Page 352: Rule Configuration
Operation Manual 6. Click Apply. 8.1.2 Rule Configuration When the number of people or the crowd density in the detection area exceeds the configured threshold, the system performs alarm linkages. Prerequisites ● Select AI > Smart Plan, and enable Crowd Distribution Map. ●...
Page 353: Setting Face Recognition
Operation Manual Table 8-1 Description of crowd map parameters Parameter Description Global next to Global and set the crowd density threshold. The Click system detects crowd distribution in the global area. When the crowd density exceeds the configured threshold, the system performs alarm Crowd Density linkages.
Page 354: Enabling Face Recognition
Operation Manual Figure 8-5 Face recognition flowchart 8.2.1 Enabling Face Recognition When a face is recognized in the detection area, the system performs alarm linkage. Procedure Select AI > Smart Plan. Step 1 Step 2 Click next to Face Recognition to enable face recognition of the corresponding channel, and then click Next.
Page 355 Operation Manual ● Counting Mode: You can do precise face counting with two default function databases (all people database and exclude people database). The faces detected by the camera will be uploaded to the all people database automatically; the face in the exclude people database will not be counted.
Page 356 Operation Manual Parameter Description Set a range for the captured face image, including face, one-inch picture, and custom. When selecting Custom, click , configure the parameters on the prompt page, and then click Apply. ● Customized width: Set snapshot width; enter the times of the original face width.
Page 357: Setting Face Database
Operation Manual 8.2.2 Setting Face Database By setting face database, the face database information can be used to compare with the face detected. Face database configuration includes creating face database, adding face picture, and face modeling. 8.2.2.1 Creating Face Database Face database includes face picture, face data and other information.
Page 358 Operation Manual Figure 8-8 Add face database Step 7 Click OK. ● General mode: You can add 5 databases at most as needed. Figure 8-9 Face database successfully added (general mode) ● Counting mode: Except two default function databases (all people database and exclude people database), you can add 5 databases at most.
Page 359: Adding Face Picture
Operation Manual 8.2.2.2 Adding Face Picture Add face picture to the created face database. Single adding and batch importing are supported. Requirements on face pictures. ● A single face picture size is 50K–150K in JPEG format. The resolution is less than 1080p. ●...
Page 360 Operation Manual Figure 8-11 Register Step 4 Enter the information about face picture according to the actual situation. Step 5 Click Add to task list. Step 6 Click , and then click Operation. ● If the operation is successful, the system prompts that stored successfully, modeled successfully.
Page 361: Batch Importing
Operation Manual Parameter Error Description Multiple faces in the picture. Change the picture. Failed to decode the picture. Change the picture. The picture is not suitable to be imported to the face database. Change the picture. The database error. Restart the camera and model faces again.
Page 362: Managing Face Picture
Operation Manual Figure 8-12 Task list Step 4 Click Import to import the face pictures. After the importing is completed, the result will be displayed. ● If the picture is imported successfully, click Next to do modeling operation. ● If the picture importing failed, click Query to view the details of the pictures and error code.
Page 363: Deleting Face Picture
Operation Manual Figure 8-13 Face information modification Step 5 Click , and then click Operation. 8.2.2.3.2 Deleting Face Picture On the Face Database Config page, click next to the face database to be configured. Click Query, set the search criteria as needed, click Search, select the face information that needs to be deleted and delete it.
Page 364: Face Modeling
Operation Manual 8.2.2.4 Face Modeling Face modeling extracts face picture information and imports the information to a database to establish relevant face feature models. Through this function, the face recognition and other intelligent detections can be realized. ● The more the selected face pictures are, the longer time the face modeling takes. Please wait patiently.
Page 365 Operation Manual Step 1 On the Face Database Config page, click next to the face database to be configured. Step 2 Arm face database. next to Arm to enable the face database arming. 1) Click The snapshot will be compared to the pictures in the armed face database. 2) Set the similarity.
Page 366 Operation Manual Figure 8-16 Arm alarm (all people) Figure 8-17 Arm alarm (exclude people) Step 3 Set arming periods. Step 4 Click next to Local to enable local alarm output. Table 8-5 Local alarm output Parameter Description For the device with multiple alarm-out channels, select the channels Alarm-out Port as needed.
Page 367: Viewing Face Recognition Result
Operation Manual Parameter Description ● All: No matter the comparison result of the detected face and that in the face database, the camera links alarm out. ● General: The camera links alarm out when the detected face matches that in the face database, the camera links alarm out. Alarm Mode ●...
Page 368: Setting Face Detection
Operation Manual Figure 8-18 Face recognition result 8.3 Setting Face Detection When a face is detected in the detection area, the system performs an alarm linkage. Procedure Select AI > Smart Plan. Step 1 Step 2 Click next to Face Detection to enable face detection of the corresponding channel, and then click Next.
Page 369 Operation Manual area, and filter targets in the image. ● Click to draw a face detection area in the image. The detection area is the whole image by default. ● Click to draw an exclusion area for face detection in the image. ●...
Page 370: Setting Ivs
Operation Manual Parameter Description ● Snapshot Angle Filter: Set snapshot angle to be filtered during the face detection. ● Snapshot Sensitivity: Set snapshot sensitivity during the face Advanced detection. It is easier to detect face with higher sensitivity. ● Optimized Time: Set a period to capture the clearest picture after the camera detects face.
Page 371: Global Configuration
Operation Manual ● The target should occupy no more than 10% of the whole image. ● The target size in the image should be no more than 10 × 10 pixels. The size of abandoned object in the image should be no less than 15 × 15 pixels (CIF image). The target height and width should no more than a third of the image height and width.
Page 372: Rule Configuration
Operation Manual Procedure 1. Select AI > Smart Plan. next to IVS to enable IVS of the corresponding channel, and then click Next. 2. Click 3. Click the Global Config tab. Figure 8-21 Global configuration of IVS 4. Set calibration area and ruler. a.
Page 373 Operation Manual Table 8-7 Description of IVS functions Rule Description Applicable Scene When the target crosses tripwire from the defined motion direction, an Tripwire alarm is triggered, and then the Scenes with sparse targets system performs configured alarm and no occlusion among linkages.
Page 374 Operation Manual Rule Description Applicable Scene When the target stays over the configured time, an alarm is triggered, Road monitoring and traffic Parking detection and then the system performs management. configured alarm linkages. Scenes with medium or long When the crowd gathers or the crowd distance, such as outdoor density is large, an alarm is triggered, plaza, government entrance,...
Page 375 Operation Manual Rule Description Intrusion Draw a detection area. ● During the detection of abandoned object, the alarm is also Abandoned object triggered if pedestrian or vehicle stays for a long time. If the Missing object abandoned object is smaller than pedestrian and vehicle, set Fast moving the target size to filter pedestrian and vehicle or properly Parking detection...
Page 376: Setting Vehicle Density
Operation Manual Parameter Description ● For fast moving, sensitivity is related to the triggering speed. Lower sensitivity requires faster moving speed to trigger the Sensitivity alarm. ● For crowd gathering, sensitivity is related to the alarm triggering time. It is easier to trigger the alarm with higher sensitivity. Step 8 Set arming periods and alarm linkage action.
Page 377 Operation Manual Figure 8-24 Vehicle density (traffic congestion) Figure 8-25 Vehicle density (parking upper limit) Step 5 Set parameters. Table 8-10 Description of parameters Parameter Description When the alarm is triggered and this state lasts for repetitive alarm time, the alarm will be triggered again.
Page 378: Setting Parking Space
Operation Manual Parameter Description When the alarm is triggered and this state lasts for repetitive alarm time, the alarm will be triggered again. Repeat Alarm Time 0 means Repeat Alarm function disabled. Enable upper limit vehicle quantity alarm Parking Upper Limit to set the upper threshold and duration of vehicles in the area.
Page 379 Operation Manual Click Redraw Rule to redraw the detection area as needed. ● Auto drawing: Select the number from the drop-down list and then click Draw. The added rules will be displayed in the list. Click the text box under Name to edit the rule name.
Page 380: For Other Cameras
Operation Manual Table 8-11 Description of parking space parameters Parameter Description Configure the status light for when parking space is available and Parking Space Status the parking lot is full. The colors available for both status are: None, red, yellow, green, blue, cyan, pink and white. Overlay the target box on the captured pictures to mark the change of parking space.
Page 381 Operation Manual Figure 8-28 Rule configuration (1) ◇ If you select open parking space, the rectangle area will not be divided. Figure 8-29 Rule configuration (2) ● Click to draw a parking space detection area in the image. The detection area is the whole image by default.
Page 382 Operation Manual parking spaces). When there is a car parked in the parking space, a red dot is drawn. And a parking space without a car is drawn a green dot. Figure 8-30 Planned parking space Table 8-12 Description of planned parking space parameters Parameter Description Name...
Page 383 Operation Manual It is used for parking management of open parking lots in a large area. When there is a car parked in the parking space, a red dot is drawn. And a parking space without a car will not show any dot. Figure 8-31 Open parking space parameters Table 8-13 Description of open parking space parameters Parameter...
Page 384: Global Configuration
Operation Manual 8.6.2 Global Configuration Procedure Step 1 (Optional) Set OSD information. Click OSD Info, and the Overlay page is displayed, and then enable the Parking Space function. The statistical result is displayed on the Live page For details, see "6.2.2.2.14 Configuring Parking Space".
Page 385 Operation Manual Figure 8-32 Global configuration of video metadata Table 8-14 Description of scene set parameters (video metadata) Parameter Description Enable this function, and the faces and bodies will be blurred by Privacy Protection mosaic or color blocks when they are detected. Overlay target box on the captured pictures to mark the target position.
Page 386: Rule Configuration
Operation Manual Parameter Description Enable Face Exposure to make face clearer by adjusting lens Face Exposure aperture and shutter. Target Face Brightness Set the face target brightness, and it is 50 by default. Set the face exposure interval detection time to prevent image Face Exposure Interval flickering caused by constant adjustment of face exposure.
Page 387 Operation Manual Figure 8-34 Picture (non-motor vehicle) 3) Click Apply. Step 6 (Optional) Click the icons at the right side of the image to filter targets in the image. ● Click to draw rule line in the image. When targets pass the tripwire along the configured direction line, they will be counted.
Page 388: Viewing Video Metadata Report
Operation Manual Parameter Description ● Optimized: Capture the pictures until the vehicle disappears from the image, and report the clearest picture. ● Tripwire: Capture the pictures when the vehicle triggers tripwire as the configured direction. Snapshot Mode 1. Select Tripwire. 2.
Page 389: People Counting
Operation Manual 8.8.1 People Counting The system counts the people entering and leaving the detection area. When the number of counted people exceeds the configured value, an alarm is triggered and the system performs an alarm linkage. Background Information There are two types of people counting rules. ●...
Page 390 Operation Manual Figure 8-37 People counting (1) ● Area people counting Click , and drag the any corner of the box to adjust the size of the area, and press the right mouse button and move the box to adjust the position. Figure 8-38 People counting (2) Step 6 Set parameters.
Page 391: Queuing
Operation Manual Step 7 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage". Click + Event Linkage to set the linkage action. Click Apply. Step 8 To view alarm information on the alarm subscription tab, you need to subscribe relevant alarm event.
Page 392 Operation Manual ● For the models that support multiple counting rules, different detection areas can be overlapped. It supports at most 4 queuing rules. Figure 8-40 Add rule Step 5 Draw a detection area in the image. Click to draw the detection area, and press the right mouse button to complete the drawing.
Page 393: Global Configuration
Operation Manual Figure 8-42 Queuing result 8.8.3 Global Configuration Set the sensitivity of each people counting rule. Procedure Step 1 Select AI > Smart Plan Step 2 Click next to People Counting, and then click Next. Step 3 Click the Global Config tab. Step 4 Set the sensitivity.
Page 394: Face & Body Detection
Operation Manual Step 5 Click Apply. 8.9 Face & Body Detection After enabling this function, the camera detects faces and human body separately, and then correlates the face and the body. When selecting compliant mode, the camera can detect attributes including face masks, helmets, glasses, safety vests, top color, and bottom color, and determine whether PPE requirements are met.
Page 395: Rule Configuration
Operation Manual Parameter Description Set a range for matting face image, including face, one-inch Face Cutout photo, and custom. Select from Face First or Human Body First. Detection Priority ● Real-time: Capture the image when the camera detects a face. ●...
Page 396 Operation Manual Figure 8-45 Rule configuration next to Enable to enable the face detection function. Step 4 Click Step 5 (Optional) Click other icons at the right side of the image to draw detection area, exclusion area, and filter targets in the image. ●...
Page 397: Setting Heat Map
Operation Manual ◇ Mismatch Attributes Alarm: When the target's properties are not compliant with the configured properties, an alarm will be triggered, and the system performs an alarm linkage. Step 8 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage". Step 9 Click Apply.
Page 398: Lane Configuration
Operation Manual 8.11.1 Lane Configuration Configure lane configuration including detection area, lane line, detection line and lane direction. Procedure Select AI > Smart Plan. Step 1 Step 2 Click next to ANPR, and then click Next. Step 3 Click the Lane Config tab. Step 4 Click and draw the detection area.
Page 399: Rule Configuration
Operation Manual ● Click OSD Info, and the Overlay page is displayed, and then enable the Parking Space function. The statistical result is displayed on the Live page. For details, see "6.2.2.2.9 Configuring ANPR". Step 10 Click Apply. 8.11.2 Rule Configuration When a motor vehicle trigger the lane line associated, the system performs the defined alarm linkage.
Page 400: Picture
Operation Manual Figure 8-49 Rule configuration (2) Step 5 Select time plan and click + Event Linkage. ● If the added time plan cannot meet your requirements, click Add Schedule to add an arming schedule. For details, see "6.5.1.2.1 Adding Schedule". ●...
Page 401: Allowlist
Operation Manual Step 2 Click next to ANPR, and then click Next. Step 3 Click the Picture tab. Step 4 Click + OSD Option to select the type of overlay information that needs to capture. You can adjust the position of the information displayed. Figure 8-50 Picture Step 5 Select the overlay images upload type(s).
Page 402 Operation Manual 2. Set plate information. Figure 8-52 Add allowlist plate Table 8-19 Description of parameters Parameter Description Plate No. Enter the complete plate number. Set the validity of allowlist for the plate number. After this time range, Start Time/End Time the vehicle will not be detected even within allowlist.
Page 403 Operation Manual Figure 8-53 Encryption settings (1) 4. Add the license plate information according to the sample of the exported file, and then save the table. Figure 8-54 Template 5. Click Import to upload allowlist table. ◇ If the table is encrypted, you need to enter the password when uploading. ◇...
Page 404: Blocklist
Operation Manual ◇ Export the file in .csv format if not encrypted, and you can edit the file. Figure 8-56 Encryption settings (2) ◇ Export the file in .backup format if encrypted, and you cannot edit the file. Figure 8-57 Encryption settings (3) 8.11.5 Blocklist After enabling blocklist, an alarm will be triggered when a plate number in blocklist is detected.
Page 405: Setting Panoramic Linkage
Operation Manual 8.12 Setting Panoramic Linkage 8.12.1 Enabling Linkage Track Linkage Track is not enabled by default. Please enable it when necessary. Procedure Select AI > Panoramic Linkage > Linkage Track. Step 1 next to Enable to enable Linkage Track. Step 2 Click Figure 8-58 Linkage track...
Page 406: Configuring Calibration Parameter
Operation Manual 8.12.2 Configuring Calibration Parameter Auto calibration mode is available on select models. Procedure Select AI > Panoramic Linkage > Main/Sub Calibration. Step 1 Step 2 Configure calibration parameters. ● Auto calibration Select Auto in Type, and then click Start Calibration. Figure 8-59 Auto calibration ●...
Page 407 Operation Manual Step 3 Click Apply.
Page 408: Security
Operation Manual 9 Security 9.1 Security Status Detect the user and service, and scan the security modules to check the security status of the camera, so that when abnormality appears, you can process it timely. ● User and service detection: Detect login authentication, user status, and configuration security to check whether the current configuration conforms to recommendation.
Page 409: System Service
Operation Manual Figure 9-2 Security Status 9.2 System Service 9.2.1 802.1x Cameras can connect to LAN after passing 802.1x authentication. Procedure Step 1 Select Security > System Service > 802.1x. Step 2 Select the NIC name as needed, and click to enable it.
Page 410: Https
Operation Manual to guarantee the security and integrity of the data. 1. Select TLS as the authentication mode. 2. Enter the username. 3. Click next to CA certificate, and select the trusted CA certificate in list. If there is no certificate in the list, click Certificate Management at the left navigation bar.
Page 411: Attack Defense
Operation Manual Figure 9-5 HTTPS Click Apply. Step 4 9.3 Attack Defense 9.3.1 Firewall Configure firewall to limit access to the camera. Procedure Select Security > Attack Defense > Firewall. Step 1 Step 2 Click to enable the firewall function. Figure 9-6 Firewall Step 3 Select the mode: Allowlist and Blocklist.
Page 412: Account Lockout
Operation Manual Figure 9-7 Firewall Click Apply. Step 5 Related Operations ● Click to edit the host information. ● Click to delete the host information. 9.3.2 Account Lockout If you consecutively enter a wrong password more than the configured value, the account will be locked.
Page 413: Anti-Dos Attack
Operation Manual Step 3 Click Apply. 9.3.3 Anti-DoS Attack You can enable SYN Flood Attack Defense and ICMP Flood Attack Defense to defend the device against Dos attack. Procedure Select Security > Attack Defense > Anti-DoS Attack. Step 1 Select SYN Flood Attack Defense or ICMP Flood Attack Defense to defend the device Step 2 against Dos attack.
Page 414: Applying For And Importing Ca Certificate
Operation Manual Figure 9-10 Certificate information (1) Step 5 Click Create and install certificate. After the certificate is created successfully, you can view the created certificate on the Device Certificate page. Related Operations ● Click Enter Edit Mode, you can edit the custom name of the certificate. ●...
Page 415: Installing Existing Certificate
Operation Manual Figure 9-11 Certificate information (2) Step 5 Click Create and Download. Save the request file to your PC. Step 6 Apply the CA certificate from the third-party certificate authority. Step 7 Import the signed CA certificate. 1) Save the CA certificate to the PC. 2) Do Step1 to Step3, and click Browse to select the signed CE certificate.
Page 416: Installing Trusted Ca Certificate
Operation Manual Figure 9-12 Certificate and private key Click Import and Install. Step 5 After the certificate is created successfully, you can view the created certificate on the Device Certificate page. Related Operations ● Click Enter Edit Mode, you can edit the custom name of the certificate. ●...
Page 417: A/V Encryption
Operation Manual ● Click to download the certificate. ● Click to delete the certificate. 9.5 A/V Encryption The device supports audio and video encryption during data transmission. You are recommended to enable A/V Encryption function. There might be safety risk if this function is disabled.
Page 418: Security Warning
Operation Manual Area Parameter Description Enables RTSP stream encryption by using TLS. Enable There might be safety risk if this service is disabled. RTSP over TLS Select a device certificate for RTSP Select a device certificate over TLS. For details about certificate Certificate Management management, see "9.4.1 Installing Device Certificate".
Page 419: Record
Operation Manual 10 Record This section introduces the functions and operations of video playback. 10.1 Playback 10.1.1 Playing Back Video This section introduces the operation of video playback. Prerequisites ● This function is available on the camera with SD card. ●...
Page 420 Operation Manual Figure 10-2 Video playback Table 10-1 Description of video playback page Function Description Displays all searched recorded video files. Click any files to play back it. Recorded video list Click Back at the upper-left corner to go to the Search Video page.
Page 421: Clipping Video
Operation Manual Function Description Controls playback. ● : Click the icon to play back the previous recorded video in the recorded video list. ● : Click the icon to slow down the playback. ● : Click the icon to stop playing back recorded videos.
Page 422: Downloading Video
Operation Manual Step 4 Select the download format and storage path. Figure 10-4 Clipping video Step 5 Click Start Download. The playback stops and the clipped file is saved in the configured storage path. For details of storage path, see "6.1 Local". 10.1.3 Downloading Video Download videos to a defined path.
Page 423: Setting Record Control
Operation Manual Figure 10-6 Downloading video Step 6 Click Start Download. The downloaded files are saved in the configured storage path. For details of storage path, see "6.1 Local". 10.2 Setting Record Control Set parameters such as pack duration, pre-event record, disk full, record mode, and record stream. Procedure Step 1 Click Record in the home page, and then click the Record Control tab.
Page 424: Setting Record Plan
Operation Manual Parameter Description The time to record the video in advance of a triggered alarm event. For example, if the pre-event record is set to be 5 s, the system saves the recorded video 5 s before the alarm is triggered. Pre-Record When an alarm or motion detection links recording, and the recording is not enabled, the system saves the video data within...
Page 425: Storage
Operation Manual plan (such as recording triggered by alarm-in). Select a record type, such as Normal, and directly press and drag the left mouse button to set the period for normal record on the timeline. ● Click Copy next to a day, and select the days that you want to copy to in the prompt page, you can copy the configuration to the selected days.
Page 426: Local Storage
Operation Manual Figure 10-10 Live Step 2 Select the storage method that you need for different types of recorded videos. Table 10-3 Description of storage parameters Parameter Description Select from Scheduled, Motion Detection and Alarm. Event Type Recording strategy when the disk is full. ●...
Page 427: Network Storage
Operation Manual Step 4 Click Apply. 10.4.2 Network Storage You can select from FTP and NAS. When the network does not work, you can save all the files to the internal SD card for emergency. 10.4.2.1 FTP Enable this function, and you can save all the files in the FTP server. Procedure Select Record >...
Page 428 Operation Manual Figure 10-12 FTP Step 5 Configure FTP parameters. Table 10-4 Description of FTP parameters Parameter Description Server IP The IP address of the FTP server. Port The port number of the FTP server. Username The username to log in to the FTP server. Password The password to log in to the FTP server.
Page 429: Nas
Operation Manual Parameter Description Click , and when the FTP server does not work, all the files are Urgently store to local saved to the internal SD card. Step 6 Click Save. Step 7 Click Test to test whether FTP function works normally. 10.4.2.2 NAS Enable this function, and you can save all the files in the NAS.
Page 430 Operation Manual Table 10-5 Description of NAS parameters Parameter Description Server IP The IP address of the NAS server. Storage Path The destination path in the NAS server. Username When selecting SMB protocol, you are required to enter username and password. Enter them as needed. Password Step 6 Click Apply.
Page 431: Picture
Operation Manual 11 Picture This section introduces the related functions and operations of picture playback. 11.1 Playback 11.1.1 Playing Back Picture This section introduces the operation of picture playback. Prerequisites ● This function is available on the camera with SD card. ●...
Page 432: Downloading Picture
Operation Manual Figure 11-2 Picture playback Table 11-1 Description of playback page Function Description Displays all searched snapshots. Click any files to play back Snapshot list Click Back at the upper-left corner to go to the Picture Query page. ● Click to display the previous snapshot in the snapshot list.
Page 433: Setting Snapshot Parameters
Operation Manual pictures. ● Select next to Select All to select all searched pictures. Figure 11-3 Selecting picture file Step 4 Click Download. Step 5 Select the download format and storage path. Figure 11-4 Downloading picture Click Start Download. Step 6 The downloaded pictures are saved in the configured storage path.
Page 434: Setting Snapshot Plan
Operation Manual Figure 11-5 Snapshot Table 11-2 Description of snapshot parameters Parameter Description You can select from Scheduled and Event. ● Scheduled: Capture images in configured period. ● Event: Capture images when configured event is triggered, such as Motion Detection, Video Tamper and Scene Changing. Type Make sure that you have enable the corresponding event detection and the snapshot function.
Page 435 Operation Manual uploaded to the defined server. Procedure On the web page, select Picture > Auto Upload. Step 1 Step 2 Enable the function. Step 3 Click Add, and then configure parameters of HTTP upload method. You can add two server information at most. Figure 11-6 Image Upload Table 11-3 Description of HTTP mode Parameter Parameter...
Page 436: Report
Operation Manual 12 Report 12.1 Viewing Report View the statistics results of AI functions in report form. Figure 12-1 Report ● The period for the report is the latest 24 hours by default. ● Click to customize the period for the report. ●...
Page 437: Video Metadata
Operation Manual Figure 12-2 Face Recognition report Related Operations ● Select the report form Click to display the report in line chart; click to display the report in bar chart. ● Select the statistics type on the upper-right corner The statistics result of unselected types will not be displayed. ●...
Page 438: People Counting
Operation Manual For multi-channel camera, select the channel first. Step 3 Select the tripwire direction. Step 4 Click Search. Figure 12-3 Video metadata report Related Operations ● Select the report form Click to display the report in line chart; click to display the report in bar chart.
Page 439 Operation Manual Table 12-1 Set search conditions Parameter Description Select the rule as needed, and then you need to select the statistics type Rule according to the select rule. The statistics type of the people counting report. ● People No.: Displays the report of the number of people that meet the configured condition.
Page 440 Operation Manual Figure 12-5 Area people counting (number of people) Figure 12-6 Area people counting (stay time)
Page 441: Crowd Distribution
Operation Manual Figure 12-7 Queuing Related Operations ● Select the report form Click to display the report in line chart; click to display the report in bar chart. ● Select the statistics type on the upper-right corner The statistics result of unselected types will not be displayed. ●...
Page 442: Vehicle Density
Operation Manual Figure 12-8 Crowd distribution map Related Operations ● Select statistics type Click and select the type needed. ● Export statistic report Select the exact format and click Export, the report will be saved to the storage path of your browser.
Page 443: Heat Map
Operation Manual Figure 12-9 Vehicle density map Related Operations ● Select statistics type Click to select the type as needed. ● Export statistic report Select the exact format and click Export, the report will be saved to the save path of your browser.
Page 444 Operation Manual Parameter Description Set the period for the report. Period for the report You can view the daily and weekly report, and you can also customize the period. Step 3 Click Search. Figure 12-10 Heat map (people No.) Figure 12-11 Heat map (time)
Page 445: Anpr
Operation Manual Figure 12-12 Track map Related Operations Click Export, and select the storage path for the exported report in .bmp format. 12.1.7 ANPR View the statistics result of ANPR in report form. Procedure Select Report > Report > ANPR. Step 1 Step 2 Set the period for the report.
Page 446: Searching For Face Picture
Operation Manual Figure 12-13 ANPR report Related Operations ● Select the report form Click to display the report in line chart; click to display the report in bar chart. ● Select the Display Value checkbox to display the value in the report ●...
Page 447: Auto Upload
Operation Manual Figure 12-14 Face report Step 4 Click the picture, and then you can view the details. 12.3 Auto Upload Select the upload mode, enable it, and configure the parameters. The camera will upload reports of AI functions to a defined server periodically. Background Information There are three upload methods: ●...
Page 448 Operation Manual Figure 12-15 HTTP upload method Table 12-3 Description of HTTP mode parameter Parameter Description Select the report period from the drop-down list. Report Period It is 1 hour by default, which indicates that upload the report every 1 hour.
Page 449 Operation Manual Figure 12-16 FTP upload method Table 12-4 Description of FTP mode parameter Parameter Description Select the report period from the drop-down list. Report Period It is 1 hour by default, which indicates that upload the report every 1 hour.
Page 450 Operation Manual Figure 12-17 Email upload method Table 12-5 Description of email mode parameter Parameter Description Select the report period from the drop-down list. Report Period It is 1 hour by default, which indicates that upload the report every 1 hour.
Page 451 Operation Manual Parameter Description Password See Table 12-6 for details. Sender Sender's email address. Select the encryption type from None, SSL (Secure Sockets Layer) and TLS (Transport Layer Security). Encryption Type See Table 12-6 for details. Email subject. You can enter up to 120 characters in Chinese, English, and Subject Arabic numerals.
Page 452: Appendix 1 Cybersecurity Recommendations
Operation Manual Appendix 1 Cybersecurity Recommendations Security Statement ● If you connect the product to the Internet, you need to bear the risks, including but not limited to the possibility of network attacks, hacker attacks, virus infections, etc., please strengthen the protection of the network, platform data and personal information, and take the necessary measures to ensure the cyber security of platform, including but not limited to use complex passwords, regularly change passwords, and timely update platform products to the latest...
Page 453 Operation Manual 2. Change Passwords Regularly We suggest that you change passwords regularly to reduce the risk of being guessed or cracked. 3. Turn On Account Lock Mechanism The account lock function is enabled by default at the factory, and it is recommended to keep it on to protect the security of your account.
Page 454 Operation Manual...
Page 455 Eyeball Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.2...
Page 456 Quick Start Guide Foreword General This manual introduces the functions, installation, and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, WARNING could result in slight or moderate injury.
Page 457 Quick Start Guide All the designs and software are subject to change without prior written notice. The product  updates might cause some differences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation. There still might be deviation in technical data, functions and operations description, or errors ...
Page 458 Quick Start Guide Important Safeguards and Warnings Electrical Safety All installation and operation should conform to your local electrical safety codes.  The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no  higher than PS2.
Page 459 Quick Start Guide Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower,  or you can wipe the lens gently with soft cloth that moistened with alcohol. You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with ...
Page 460 Quick Start Guide Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Introduction ..............................1 2 Network Configuration ..........................2 Initializing Device ..................................2 Changing Device IP Address ..............................4 Logging in to Web Page ................................5 3 Installation ..............................
Page 461: Introduction
Quick Start Guide Introduction Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see FAQ manual. Figure 1-1 Cables Table 1-1 Cable information Port Name Description Connects to network with network cable. ...
Page 462: Network Configuration
Quick Start Guide Network Configuration Device initialization and IP address setting can be finished with the ConfigTool or in web interface. For more information, see web operation manual. Device initialization is available on select models, and it is required at first use or after the device ...
Page 463 Quick Start Guide Enter username and the password when you want to change IP, configure the system,  update the device, restart the device, and more. Click OK. Step 5 Select one or several devices in uninitialized status, and then click Initialize. Step 6 Select the devices to be initialized, and then click Initialize.
Page 464: Changing Device Ip Address
Quick Start Guide Figure 2-3 Device initialization Select Easy4ip or select Auto-check for updates as needed. If neither, leave them Step 9 unselected. Click OK to initialize the device. Step 10 Click the success icon ( ) or the failure icon ( ) for the details. Click Finish.
Page 465: Logging In To Web Page
Quick Start Guide Figure 2-4 Change IP Address Select Static mode, and then enter start IP, subnet mask, and gateway. Step 3 IP addresses of multiple devices will be set to the same if you select the Same IP  checkbox.
Page 466: Installation
Quick Start Guide Installation Packing List The tool required for the installation such as electric drill is not provided in the packing.  The operation manual and related tool are contained in the disk or the QR code.  Figure 3-1 Packing list Dimension Figure 3-2...
Page 467: Installing Device
Quick Start Guide Installing Device 3.3.1 Installation Type Figure 3-3 Installation method 3.3.2 Detaching the Enclosure Figure 3-4 Detach the enclosure 3.3.3 Installing SD Card (Optional) SD card slot is available on select models.  Disconnect the power before installing or removing the SD card. ...
Page 468: Attaching Device
Quick Start Guide Figure 3-5 Install SD card 3.3.4 Attaching Device Make sure the mounting surface is strong enough to hold at least three times of the weight of the device and bracket. Figure 3-6 Cable going through the mounting surface...
Page 469: Installing Waterproof Connector (Optional)
Quick Start Guide Figure 3-7 Cable going through the side cable tray 3.3.5 Installing Waterproof Connector (Optional) This part is needed only when a waterproof connector comes with the device and the device is used outdoors.
Page 470: Adjusting Lens Angle
Quick Start Guide Figure 3-8 Install waterproof connector 3.3.6 Adjusting Lens Angle Figure 3-9 Adjust lens angle...
Page 471 Quick Start Guide...

Dahua Technology IPC-HDW5842T-ZE Operation Manual

Section 1

Section 2

Quick Links

Chapters

Related Manuals for Dahua Technology IPC-HDW5842T-ZE

Summary of Contents for Dahua Technology IPC-HDW5842T-ZE
