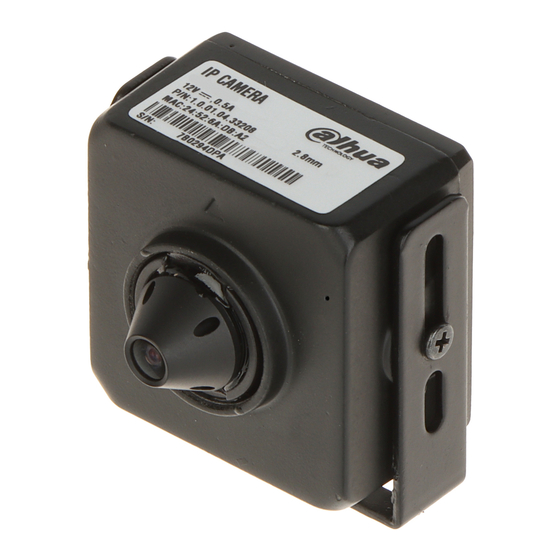

- Page 1 Pinhole Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.2...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the installation and operation of network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided,... - Page 3 Quick Start Guide our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version. All the designs and software are subject to change without prior written notice. Product updates ...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with the guidelines when using it. Transportation Requirements Transport the device under allowed humidity and temperature conditions. - Page 5 Quick Start Guide An emergency disconnect device must be installed during installation and wiring at a readily accessible location for emergency power cut-off. We recommend you use the device with a lightning protection device for stronger protection against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. Ground the function earthing portion of the device to improve its reliability (certain models ...
- Page 6 Quick Start Guide Maintenance Requirements Strictly follow the instructions to disassemble the device. Non-professionals dismantling the device can result in it leaking water or producing poor quality images. For a device that is required to be disassembled before use, make sure the seal ring is flat and in the seal groove when putting the cover back on.
-
Page 7: Table Of Contents
Quick Start Guide Table of Contents Foreword .................................... I Important Safeguards and Warnings ......................... III 1 Cable ....................................1 2 Network Configuration ............................... 2 Initializing Device ..................................2 Changing the Device IP Address ............................3 Logging in to Web Page ................................3 3 Installation .................................. -
Page 8: Cable
Quick Start Guide Cable Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see FAQ manual. Cables Table 1-1 Cable information Port Name Description Inputs 12 VDC power. Be sure to supply power as instructed in the manual. -
Page 9: Network Configuration
Quick Start Guide Network Configuration Device initialization and IP address setting can be finished with the ConfigTool or on web page. For more information, see Web Operation Manual. Device initialization is available on select models, and it is required for the first use or after the ... -
Page 10: Changing The Device Ip Address
Quick Start Guide Select Auto-check for updates as needed, and then click OK to initialize the device. If initialization failed, click to see more information. Click Finish. Changing the Device IP Address You can change the IP address of one or more devices at a time. This section is based on changing ... -
Page 11: Installation
Quick Start Guide Installation Packing List The tool required for the installation such as electric drill is not provided in the package. The operation manual and related tool are contained in the disk or the QR code. Packing list Dimensions Dimensions (mm [inch]) -
