Cable type might vary with different devices, and the actual product shall prevail.

 Please waterproof all the cable joints with insulating tape and waterproof tape to avoid short
circuit and water damage. For detailed operation, see the FAQ manual.
For more information about cable ports, see Table 1-1.
No. Port Name
1 Ethernet Port
2 DC 12V Power
Input
1

Introduction

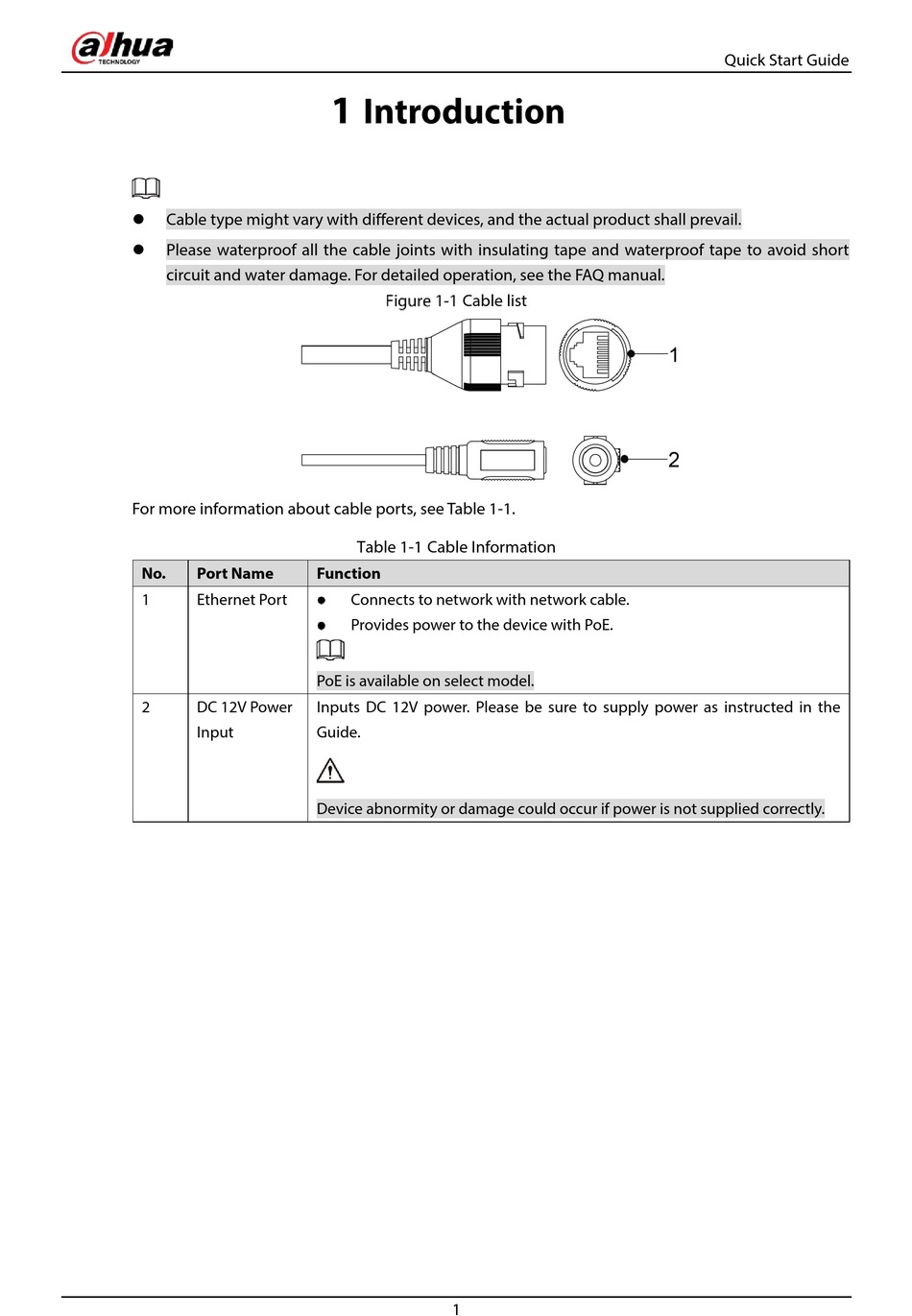

Cable list
Table 1-1 Cable Information
Function
Connects to network with network cable.
Provides power to the device with PoE.
PoE is available on select model.
Inputs DC 12V power. Please be sure to supply power as instructed in the
Guide.
Device abnormity or damage could occur if power is not supplied correctly.
1
