Making a multi-zone operation

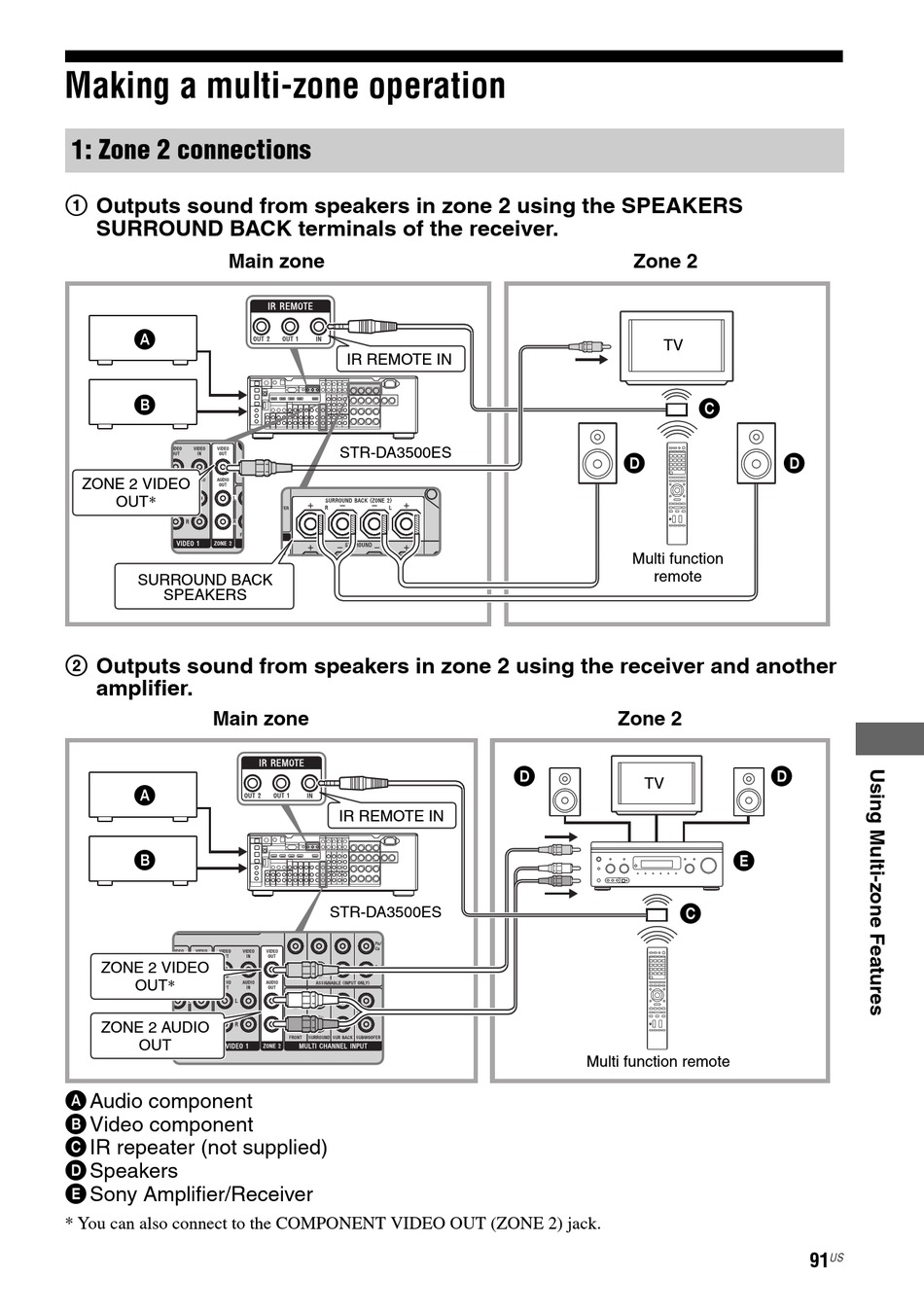

1: Zone 2 connections
1 Outputs sound from speakers in zone 2 using the SPEAKERS
SURROUND BACK terminals of the receiver.
Main zone
A
B
ZONE 2 VIDEO
OUT*
SURROUND BACK
SPEAKERS
2 Outputs sound from speakers in zone 2 using the receiver and another
amplifier.
Main zone
A
B
ZONE 2 VIDEO
OUT*
ZONE 2 AUDIO
OUT
A Audio component
B Video component
C IR repeater (not supplied)
D Speakers
E Sony Amplifier/Receiver
* You can also connect to the COMPONENT VIDEO OUT (ZONE 2) jack.
IR REMOTE IN
STR-DA3500ES
IR REMOTE IN
STR-DA3500ES
Zone 2
TV
D
Multi function
remote
Zone 2
D
TV
C
Multi function remote
C
D
D
E
US
