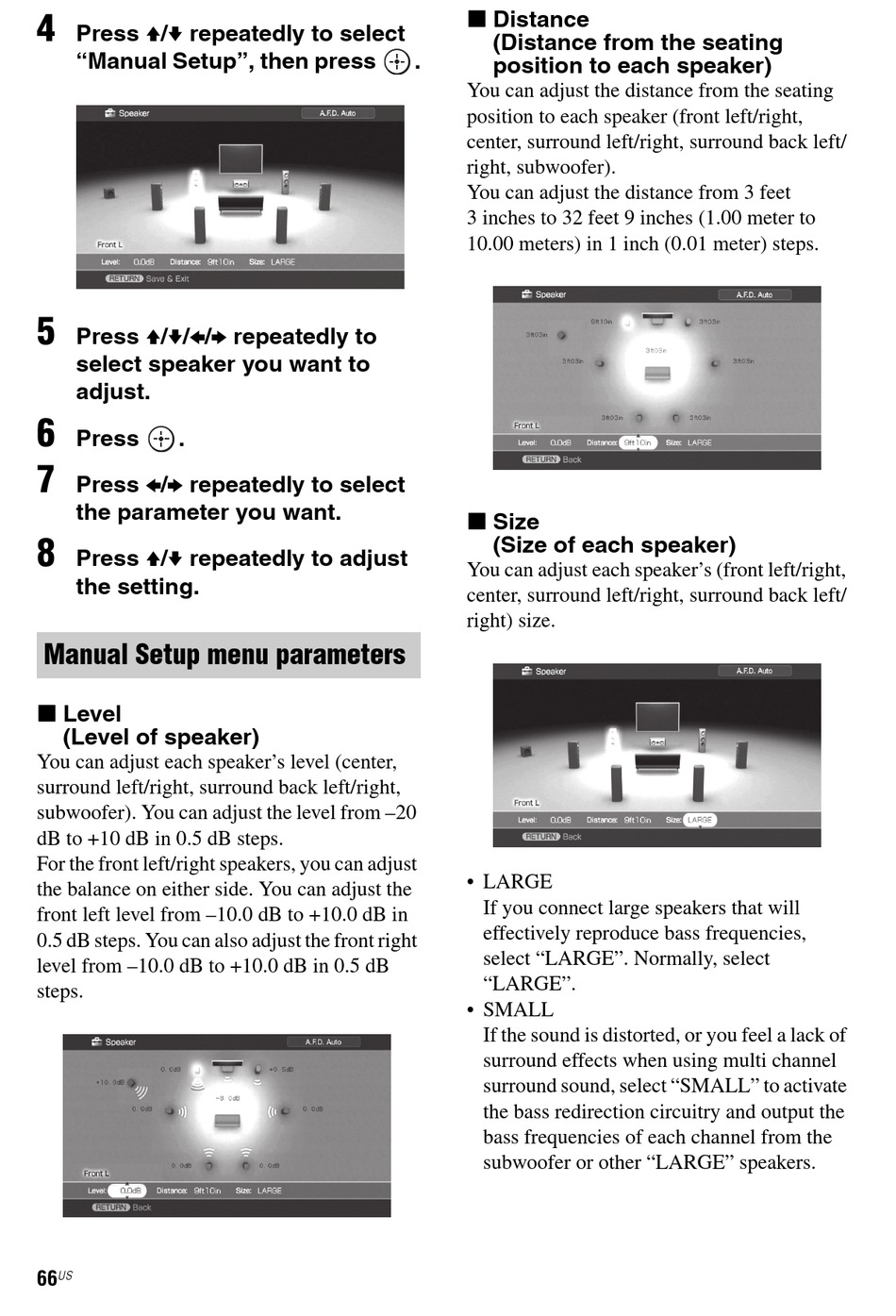

Sony STR-DA3500ES Operating Instructions Manual page 66

4
Press V/v repeatedly to select
"Manual Setup", then press
5
Press V/v/B/b repeatedly to
select speaker you want to
adjust.
6
Press .
7
Press B/b repeatedly to select
the parameter you want.
8
Press V/v repeatedly to adjust
the setting.
Manual Setup menu parameters
x Level
(Level of speaker)
You can adjust each speaker's level (center,
surround left/right, surround back left/right,
subwoofer). You can adjust the level from –20
dB to +10 dB in 0.5 dB steps.
For the front left/right speakers, you can adjust
the balance on either side. You can adjust the
front left level from –10.0 dB to +10.0 dB in
0.5 dB steps. You can also adjust the front right
level from –10.0 dB to +10.0 dB in 0.5 dB
steps.
US
66
x Distance
(Distance from the seating
.
position to each speaker)
You can adjust the distance from the seating
position to each speaker (front left/right,
center, surround left/right, surround back left/
right, subwoofer).
You can adjust the distance from 3 feet
3 inches to 32 feet 9 inches (1.00 meter to
10.00 meters) in 1 inch (0.01 meter) steps.
x Size
(Size of each speaker)
You can adjust each speaker's (front left/right,
center, surround left/right, surround back left/
right) size.
• LARGE
If you connect large speakers that will
effectively reproduce bass frequencies,
select "LARGE". Normally, select
"LARGE".
• SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select "SMALL" to activate
the bass redirection circuitry and output the
bass frequencies of each channel from the
subwoofer or other "LARGE" speakers.
