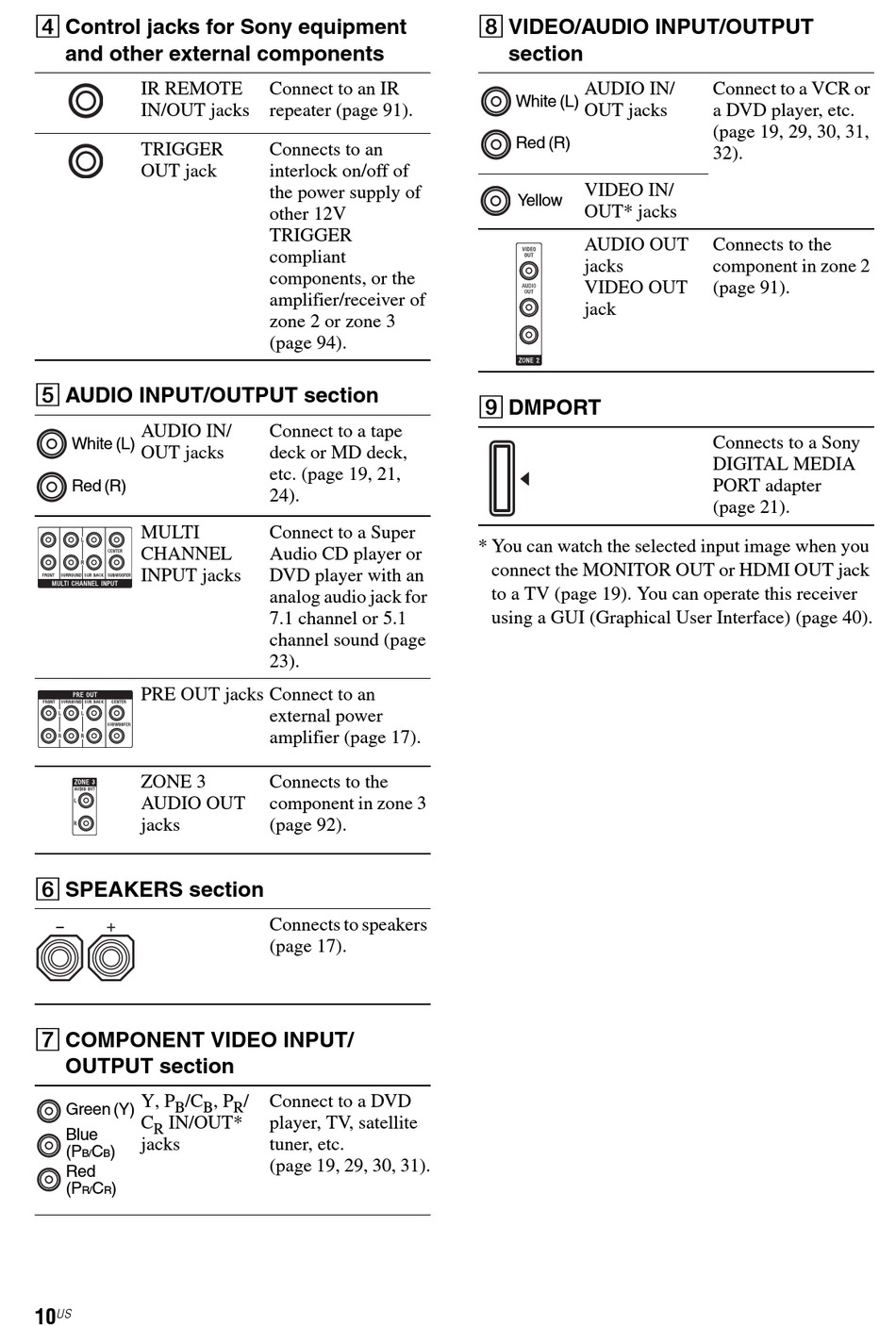

D Control jacks for Sony equipment
and other external components
IR REMOTE
IN/OUT jacks
TRIGGER
OUT jack
E AUDIO INPUT/OUTPUT section
AUDIO IN/
White (L)
OUT jacks
Red (R)
MULTI
CHANNEL
INPUT jacks
PRE OUT jacks Connect to an
ZONE 3
AUDIO OUT
jacks
F SPEAKERS section
G COMPONENT VIDEO INPUT/
OUTPUT section
Y, P
/C
B
B
Green (Y)
C
IN/OUT*
R
Blue
jacks
(P
C
)
B/
B
Red
(P
C
)
R/
R
US
10
Connect to an IR
repeater (page 91).
Connects to an
interlock on/off of
the power supply of
other 12V
TRIGGER
compliant
components, or the
amplifier/receiver of
zone 2 or zone 3
(page 94).
Connect to a tape
deck or MD deck,
etc. (page 19, 21,
24).
Connect to a Super
Audio CD player or
DVD player with an
analog audio jack for
7.1 channel or 5.1
channel sound (page
23).
external power
amplifier (page 17).
Connects to the
component in zone 3
(page 92).
Connects to speakers
(page 17).
, P
/
Connect to a DVD
R
player, TV, satellite
tuner, etc.
(page 19, 29, 30, 31).
H VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
White (L)
OUT jacks
Red (R)
VIDEO IN/
Yellow
OUT* jacks
AUDIO OUT
jacks
VIDEO OUT
jack
I DMPORT
* You can watch the selected input image when you
connect the MONITOR OUT or HDMI OUT jack
to a TV (page 19). You can operate this receiver
using a GUI (Graphical User Interface) (page 40).
Connect to a VCR or
a DVD player, etc.
(page 19, 29, 30, 31,
32).
Connects to the
component in zone 2
(page 91).
Connects to a Sony
DIGITAL MEDIA
PORT adapter
(page 21).
