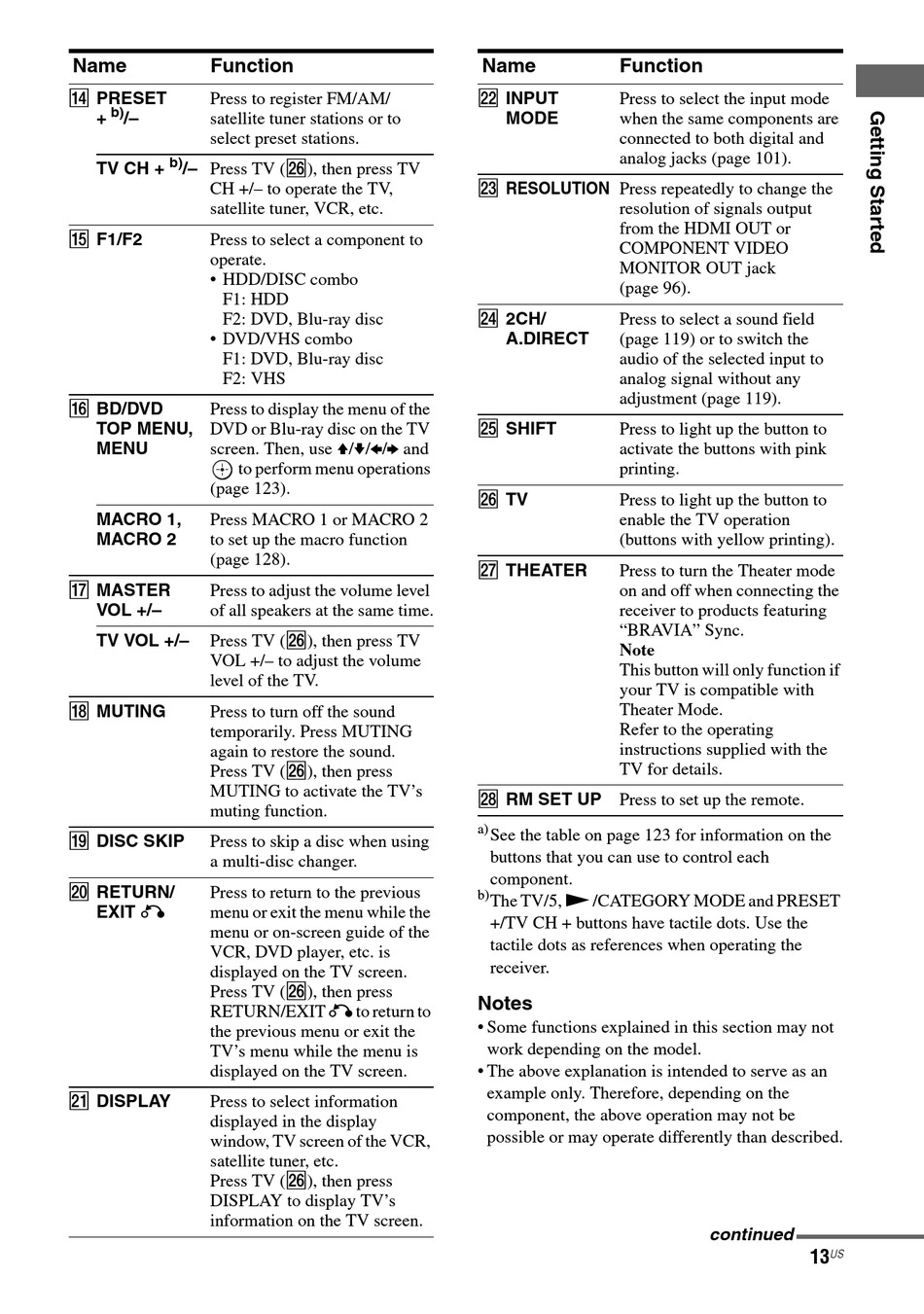

Sony STR-DA3500ES Operating Instructions Manual page 13

Name Function
N PRESET
Press to register FM/AM/
b)
+ /–
satellite tuner stations or to
select preset stations.
b)
TV CH + /– Press TV (Z), then press TV
CH +/– to operate the TV,
satellite tuner, VCR, etc.
O F1/F2
Press to select a component to
operate.
• HDD/DISC combo
F1: HDD
F2: DVD, Blu-ray disc
• DVD/VHS combo
F1: DVD, Blu-ray disc
F2: VHS
P BD/DVD
Press to display the menu of the
TOP MENU, DVD or Blu-ray disc on the TV
MENU screen. Then, use V/v/B/b and
to perform menu operations
(page 123).
MACRO 1, Press MACRO 1 or MACRO 2
MACRO 2
to set up the macro function
(page 128).
Q MASTER
Press to adjust the volume level
VOL +/– of all speakers at the same time.
TV VOL +/– Press TV (Z), then press TV
VOL +/– to adjust the volume
level of the TV.
R MUTING
Press to turn off the sound
temporarily. Press MUTING
again to restore the sound.
Press TV (Z), then press
MUTING to activate the TV's
muting function.
S DISC SKIP
Press to skip a disc when using
a multi-disc changer.
T RETURN/
Press to return to the previous
EXIT O
menu or exit the menu while the
menu or on-screen guide of the
VCR, DVD player, etc. is
displayed on the TV screen.
Press TV (Z), then press
RETURN/EXIT O to return to
the previous menu or exit the
TV's menu while the menu is
displayed on the TV screen.
U DISPLAY
Press to select information
displayed in the display
window, TV screen of the VCR,
satellite tuner, etc.
Press TV (Z), then press
DISPLAY to display TV's
information on the TV screen.
Name Function
V INPUT
Press to select the input mode
MODE
when the same components are
connected to both digital and
analog jacks (page 101).
W RESOLUTION Press repeatedly to change the
resolution of signals output
from the HDMI OUT or
COMPONENT VIDEO
MONITOR OUT jack
(page 96).
X 2CH/
Press to select a sound field
A.DIRECT (page 119) or to switch the
audio of the selected input to
analog signal without any
adjustment (page 119).
Y SHIFT
Press to light up the button to
activate the buttons with pink
printing.
Z TV
Press to light up the button to
enable the TV operation
(buttons with yellow printing).
wj THEATER Press to turn the Theater mode
on and off when connecting the
receiver to products featuring
"BRAVIA" Sync.
Note
This button will only function if
your TV is compatible with
Theater Mode.
Refer to the operating
instructions supplied with the
TV for details.
wk RM SET UP Press to set up the remote.
a)
See the table on page 123 for information on the
buttons that you can use to control each
component.
b)
The TV/5, N /CATEGORY MODE and PRESET
+/TV CH + buttons have tactile dots. Use the
tactile dots as references when operating the
receiver.
Notes
• Some functions explained in this section may not
work depending on the model.
• The above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
continued
US
13
