Connecting components with
analog video and audio jack

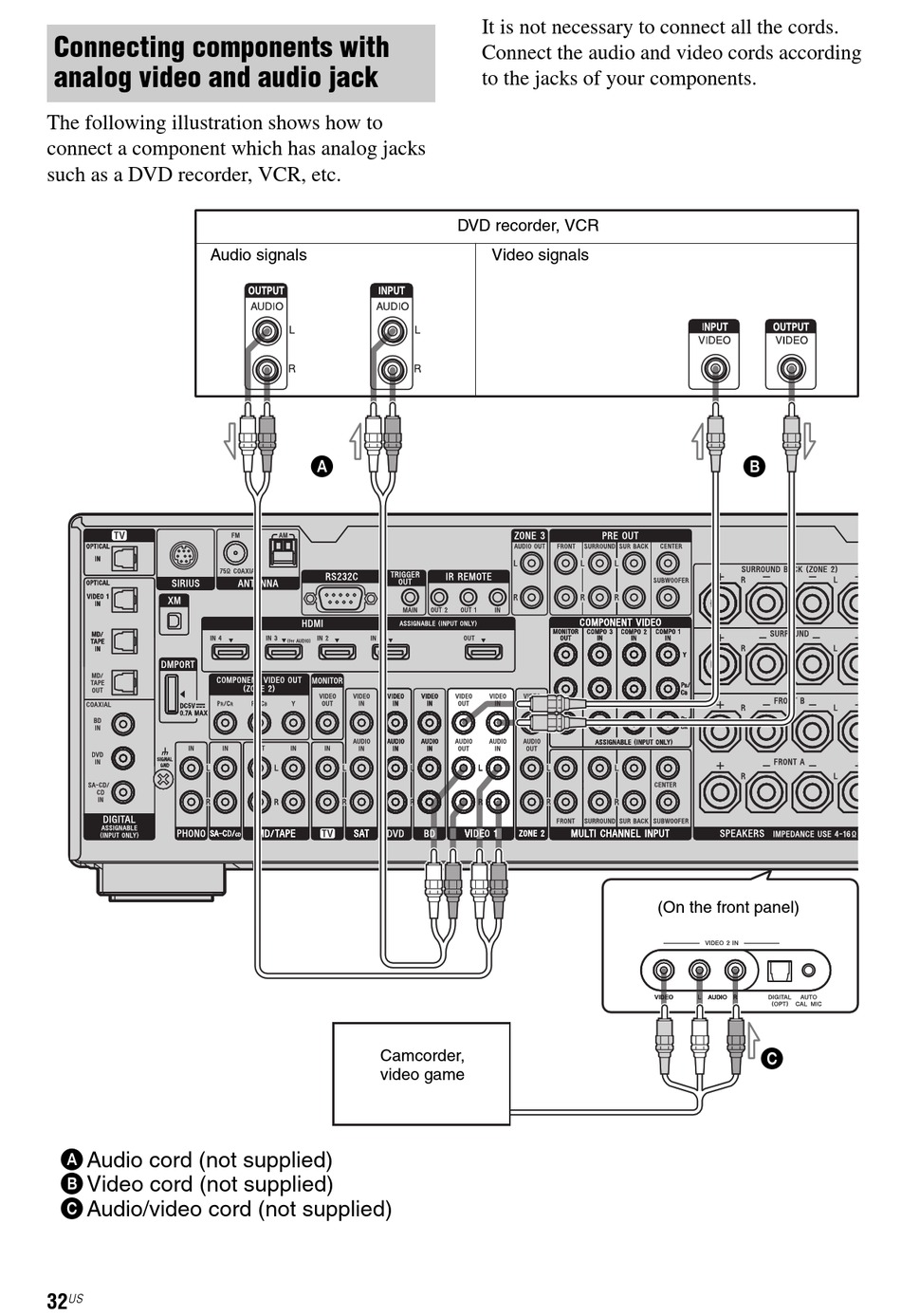

The following illustration shows how to
connect a component which has analog jacks
such as a DVD recorder, VCR, etc.
Audio signals
A Audio cord (not supplied)
B Video cord (not supplied)
C Audio/video cord (not supplied)
US
32

DVD recorder, VCR

A
Camcorder,
video game
It is not necessary to connect all the cords.
Connect the audio and video cords according
to the jacks of your components.
Video signals
B
(On the front panel)
C
