Technical specifications

General
Vibration monitoring:
Shock pulse monitoring:
Analog outputs (4):
Main relay (1):
Secondary relays (4):
Power supply:
Power consumption:
Operating temperature range:
Relative humidity:
Altitude:
Casing:
TNC connector:
Display screen:
Status display:

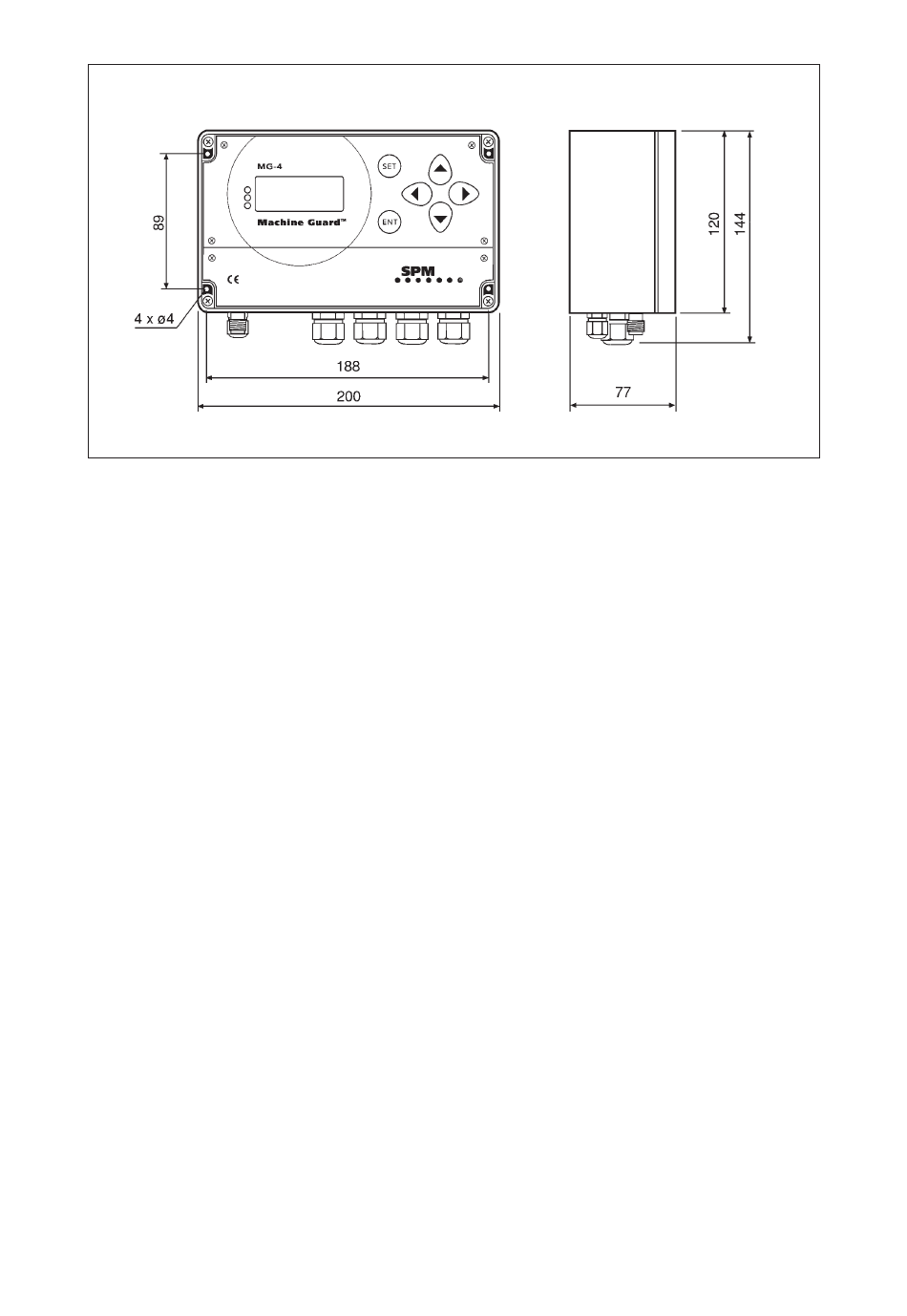

Dimensions:
Weight:
* Please note: The type of power supply is selected on ordering. It is factory set and cannot be
changed by the user. Please check the unit label for data.
SPM Instrument AB • Box 504 • SE-645 25 Strängnäs • Sweden
Tel +46 152 225 00 • Fax +46 152 15075 • info@spminstrument.se • www.spminstrument.com
Machine Guard MG4-REF11A
1 channel
1 channel
4 - 20 mA analog signal, selective range, no galvanic separation
250 V AC, 5A, 1250 VA
125 V AC, 1A, 60 VA / 150 V DC, 1A, 30 W
230 V AC, 115 V AC ±10% *
max. 6 VA
0 to 50 °C (32 to 122 °F)
max. 95%
up to 2000 m
polycarbonate/PVC, IP65
silver plated brass, 10 to 15 μ
LCD, 4 x 16 characters, back-lighted
green, yellow, red LED
200 x 144 x 77 mm
1140 g
Technical data are subject to change without notice.
