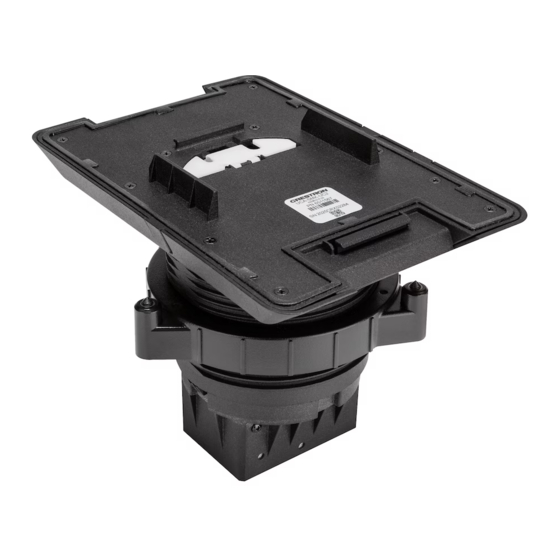

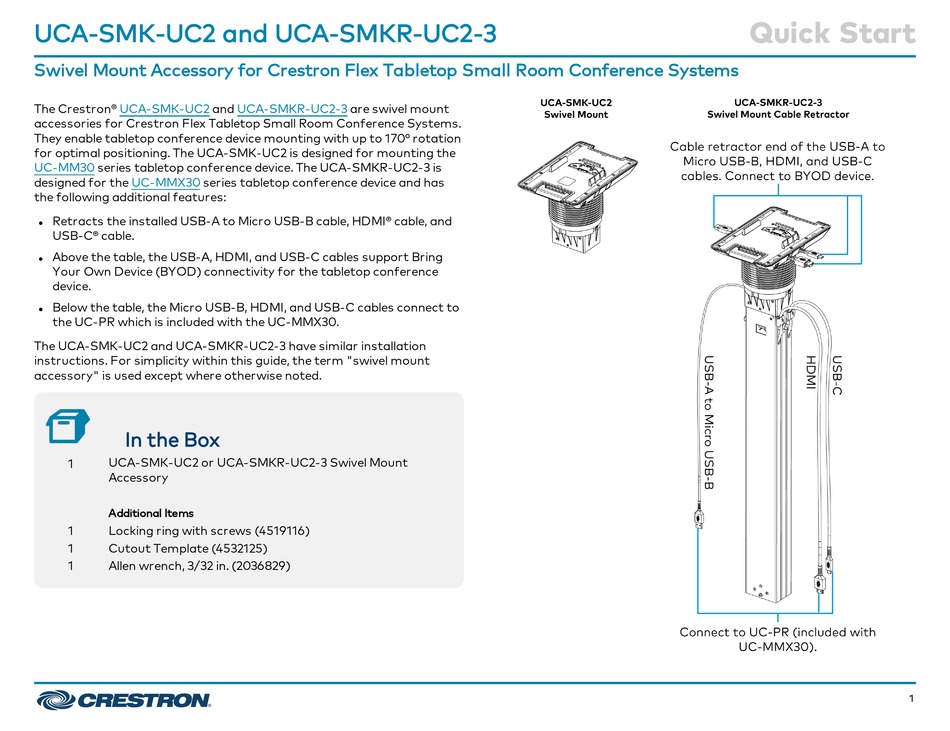

UCA-SMK-UC2 and UCA-SMKR-UC2-3
Swivel Mount Accessory for Crestron Flex Tabletop Small Room Conference Systems
The Crestron®
UCA-SMK-UC2
and
accessories for Crestron Flex Tabletop Small Room Conference Systems.
They enable tabletop conference device mounting with up to 170° rotation
for optimal positioning. The UCA-SMK-UC2 is designed for mounting the
UC-MM30 series tabletop conference device. The UCA-SMKR-UC2-3 is
designed for the
UC-MMX30
series tabletop conference device and has
the following additional features:
Retracts the installed USB-A to Micro USB-B cable, HDMI® cable, and
l
USB-C® cable.
Above the table, the USB-A, HDMI, and USB-C cables support Bring
l
Your Own Device (BYOD) connectivity for the tabletop conference
device.
Below the table, the Micro USB-B, HDMI, and USB-C cables connect to
l
the UC-PR which is included with the UC-MMX30.
The UCA-SMK-UC2 and UCA-SMKR-UC2-3 have similar installation
instructions. For simplicity within this guide, the term "swivel mount
accessory" is used except where otherwise noted.
In the Box
UCA-SMK-UC2 or UCA-SMKR-UC2-3 Swivel Mount
1
Accessory
Additional Items
1
Locking ring with screws (4519116)
1
Cutout Template (4532125)
1
Allen wrench, 3/32 in. (2036829)
UCA-SMKR-UC2-3
are swivel mount
Quick Start
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Crestron UCA-SMK-UC2
Summary of Contents for Crestron UCA-SMK-UC2
- Page 1 Quick Start UCA-SMK-UC2 and UCA-SMKR-UC2-3 Swivel Mount Accessory for Crestron Flex Tabletop Small Room Conference Systems The Crestron® UCA-SMK-UC2 UCA-SMKR-UC2-3 are swivel mount accessories for Crestron Flex Tabletop Small Room Conference Systems. They enable tabletop conference device mounting with up to 170° rotation for optimal positioning.
- Page 2 Quick Start UCA-SMK-UC2 and UCA-SMKR-UC2-3 Swivel Mount Accessory for Crestron Flex Tabletop Small Room Conference Systems UCA-SMKR-UC2-3 Install the Swivel Mount Accessory Install the swivel mount accessory on any flat, level surface with a thickness of 1/2 in. (13 mm) minimum to 1-1/4 in. (32 mm) maximum. The...
- Page 3 Quick Start UCA-SMK-UC2 and UCA-SMKR-UC2-3 Swivel Mount Accessory for Crestron Flex Tabletop Small Room Conference Systems Mount the Swivel Mount Accessory 5. Beneath the table, twist the included locking ring onto the body of the swivel mount accessory. When determining the mounting location, consider where users will be...
- Page 4 Quick Start UCA-SMK-UC2 and UCA-SMKR-UC2-3 Swivel Mount Accessory for Crestron Flex Tabletop Small Room Conference Systems 6. Secure the locking ring to the bottom of the table. Use a 3/32 in. Allen wrench (included) to tighten the three set screws included with the...
- Page 5 Quick Start UCA-SMK-UC2 and UCA-SMKR-UC2-3 Swivel Mount Accessory for Crestron Flex Tabletop Small Room Conference Systems 3. Use the optional cable clamp to hold the USB and LAN cables in place. Connect and Dock the Tabletop Conference Device Make the USB and LAN connections to the tabletop conference device before docking it to the swivel mount accessory, as the device blocks access to the cable cover pass-through holes.
-
Page 6: Quick Start
UCA-SMK-UC2 and UCA-SMKR-UC2-3 Quick Start Swivel Mount Accessory for Crestron Flex Tabletop Small Room Conference Systems Dock the Tabletop Conference Device Dock the tabletop conference device to the swivel mount accessory. 1. Position the tabletop conference device above the swivel mount surface. - Page 7 Quick Start UCA-SMK-UC2 and UCA-SMKR-UC2-3 Swivel Mount Accessory for Crestron Flex Tabletop Small Room Conference Systems Continue Connecting the Tabletop Device For details on the tabletop device connections, refer to the tabletop conference device Quick Start. Connect the USB and LAN cables to the source devices.
- Page 8 Swivel Mount Accessory for Crestron Flex Tabletop Small Room Conference Systems Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDMI the HDMI Visit the Product Page logo are either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries.
