5. CONTROL PORT OPERATION

The HTU-C M R provides a faceplate-mounted DB9
connector that supplies an RS-232 interface for
connection to a controlling terminal. The pinout of
the DB-9 is illustrated in Figure 7.
1
6
2
7
3
8
4
9
5

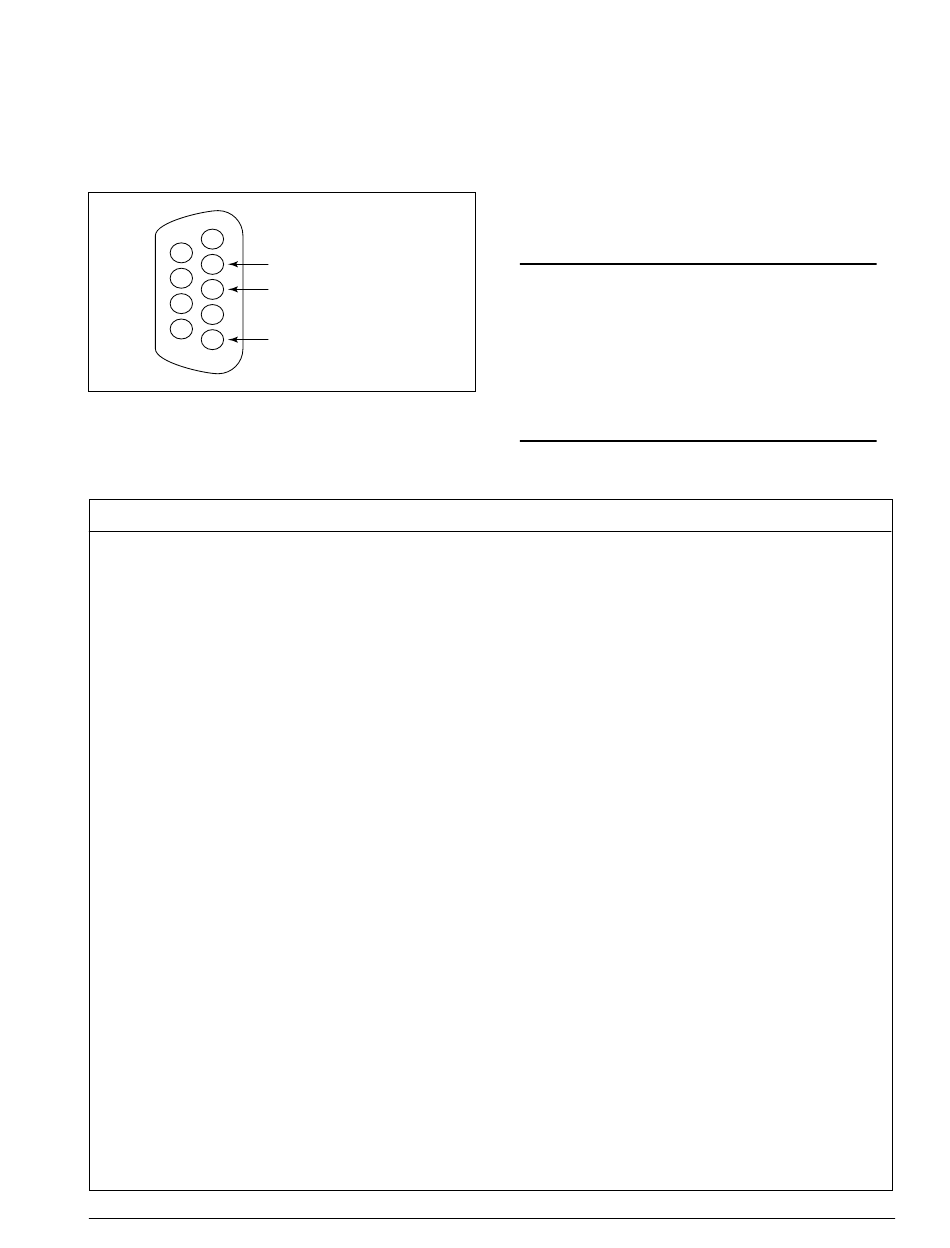

Figure 7. RS-232 (DB-9) Pin Assignments
Abbreviation
ES ...........................................
SES .........................................
UAS ........................................
SF ............................................
ESF .........................................
B8ZS .......................................
AMI ........................................
LBO ........................................
BPV ........................................
NIU .........................................
S/N ..........................................
15M ........................................
24H .........................................
61245001L6-5G
TXD (Transmit Data)
RXD (Receive Data)
SGN (Signal Ground)
Table 6. Screen Abbreviations
Definition
Errored Seconds
DSX/DS1
SF .......... Second in which a BPV or frame bit error occurs
ESF ....... Second in which a BPV or CRC error occurs
HDSL ............ Second in which a CRC error occurs
Severely Errored Seconds
DSX/DS1
SF .......... Second in which 1544 BPVs or 8 frame bit errors occurs
ESF ....... Second in which 1544 BPVs or 320 CRC errors occur
HDSL ............ Second in which 165 CRC errors occurs
Unavailable seconds
DSX/DS1 ...... Second in which there is a loss of signal or sync
HDSL ............ Second in which there is a loss of signal or sync
Superframe Format
Extended Superframe Format
Binary 8-Zero Substitution
Alternate Mark Inversion
Line Build-Out
Bipolar Violation
DSX/DS1 ...... Second in which a bipolar violation occurs
T1 Network Interface Unit
Serial Number
Fifteen-Minute Period
Twenty-Four-Hour Period
Section 61245001L6-5, Issue 7
The terminal interface operates at data rates from
1.2 kbps to 19.2 kbps. The asynchronous data
format is fixed at 8 data bits, no parity, and 1 stop
bit. The supported terminal type is VT100 or
compatible.
Operation
For abbreviations used in the screen diagrams, see
Table 6.
NOTE
If you are using a personal computer (PC) with
terminal emulation capability, be sure to
disable any power saving programs.
Otherwise, communication between the PC
and the HDSL unit may be disrupted, resulting
in misplaced characters or screen timeouts.
7
