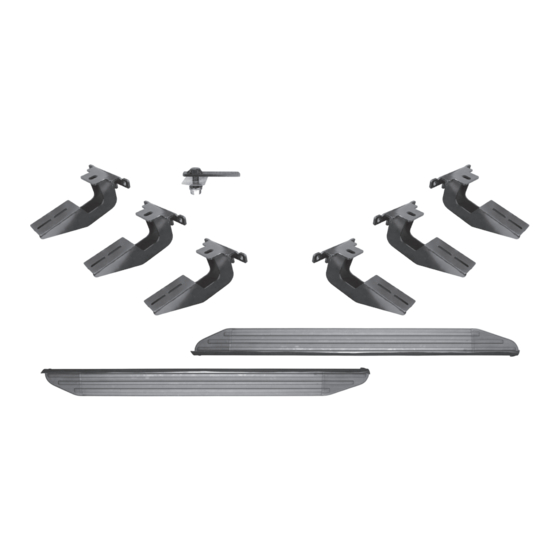

'11-15 Jeep Grand Cherokee Viewpoint Aluminum Running Board
Passenger/Right
Running Board
1. Driver/Left Running Board
2. Passenger/Right Running Board
3. Mounting Brackets
4. 12-1.75mm x 40mm Bolt Plates
5. 12mm Serrated Flange Nuts
6. 12mm x 25mm x 2.5mm Flat Washers
7. 12mm Plastic Retainers
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
(6) Mounting
Brackets

Components

(1)
(1)
(6)
(6)
(6)
(6)
(6)
OMIX-ADA
TECHNICAL SUPPORT
®
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Copyright © 2016 Omix-Ada
(6) 12mm x 40mm
Bolt Plates
8. 6mm "T" Bolts
9. 6-1mm x 25mm Hex Bolts
10. 6mm x 22mm x 2mm Large Flat Washers (24)
11. 6mm x 18mm x 1.6 Std. Flat Washers
12. 6mm Lock Washers
13. 6mm Hex Nuts
14. 6mm Lock Nuts
, Inc.
®
Page 1/4
Part #11594.02
