460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com
Components:

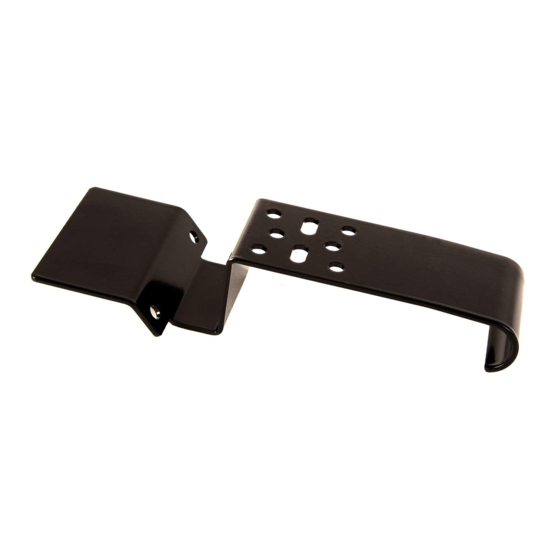

1. CB Mounting Bracket
2. M5 Well Nut
3. M5x20 Philips Head Machine Screw
4. M5x12 Philips Head Machine Screw
5. M5 Locking Hex Nut
Required Tools:
1. #2 Philips Head Driver
2. T-25 Torx Driver, or T-15
Torx Driver
1. Position sun visors against side windows. Remove
center portion of plastic windshield frame cover by
gently pulling down until the clips release.
2. For 2007-2010 model JK's: drill out rivets using
3/8" drill bit. Rivets will be replaced with Well Nuts.
3. For 2011+ model JK's: remove center footman
loop by removing (2) Torx Screws.
NOTICE
Be careful not to drill too deep, you may
damage other side of windshield frame.
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
07+ JK CB Mount
3. 3/8" Drill Bit
4. Drill
Read all instructions thoroughly before installation.
OMIX-ADA
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Copyright © 2013 Omix-Ada
(1)
(2)
(2)
(2)
(2)
TECHNICAL SUPPORT
®
, Inc.
®
Page 1/2
11503.95
Rev 09/2013
Advertisement
Table of Contents
Related Manuals for Rugged Ridge 11503.95
Summary of Contents for Rugged Ridge 11503.95
- Page 1 Page 1/2 11503.95 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com 07+ JK CB Mount Components: 1. CB Mounting Bracket 2. M5 Well Nut 3. M5x20 Philips Head Machine Screw 4. M5x12 Philips Head Machine Screw 5.
- Page 2 Page 2/2 11503.95 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com 07+ JK CB Mount 4. For 2007-2010 model JK’s: insert Well Nuts into newly drilled holes in sheet metal. If drilled holes are too large to snuggly fit Well Nuts, secure with small amount of super glue.
