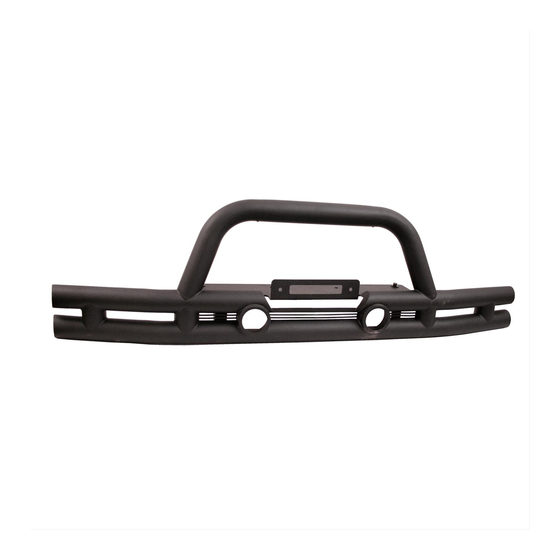

JK Wrangler Stubby Tube Front Bumper with Winch Plate
®
Contents:
1. Tube Bumper (1)
2. Winch Plate (1)
3. Nut Plate (2)
4. M10 Washer (2)
5. M10 Bolt (2)
6. M12 Lock Nut (8)
7. M12 Washer (8)
8. M3 Lock Nut (8)
1. Disconnect fog lights. Remove 4 nuts per frame horn that hold the original front bumper to the vehicle.
Remove original bumper.

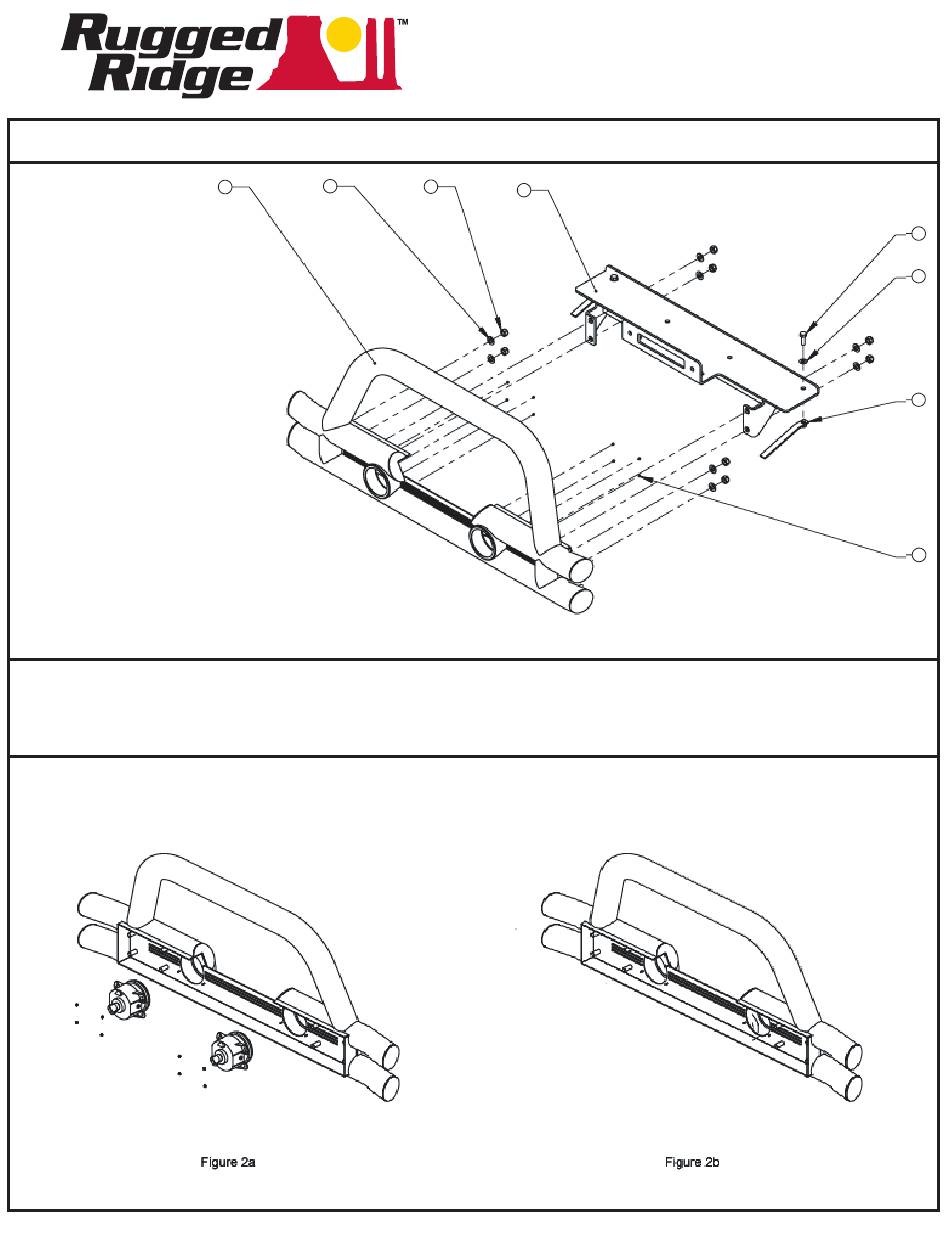

2. Install the original fog lights into the Center Section from the back (Figure 2a). Use the (8) M3 lock
nuts to secure them (Figure 2b).
1
7
6
2
Page 1 of 3
11561.12
5
4
3
8
