460 HORIZON DR. SUITE 100 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com
'11-16 Jeep Grand Cherokee Bonneville Running Boards
1. Running Boards
2. Mounting Brackets
3. 12-1.75mm x 40mm Bolt Plates
4. 12mm Serrated Flange Nuts
5. 12mm x 24mm x 2.5mm Flat Washers
6. 12mm Plastic Retainers
7. 6mm "T" Bolts
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
(6) 12mm x 40mm
Bolt Plates

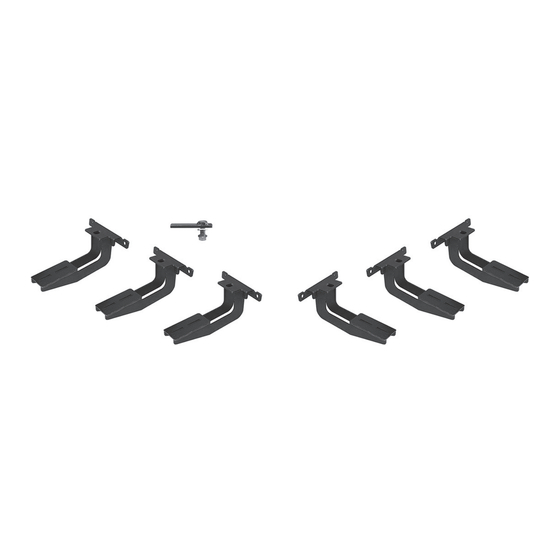

(6) Mounting Brackets
Components
2)
(6)
(6)
(6)
(6)
(6)
(12)
OMIX-ADA
TECHNICAL SUPPORT
®
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Copyright © 2016 Omix-Ada
8. 6-1mm x 25mm Hex Bolts
9. 6mm x 22mm x 2mm Large Flat Washers
10. 6mm x 18mm x 1.6mm Std. Flat Washers (12)
11. 6mm Lock Washers
12. 6mm Hex Nuts
13. 6mm Lock Nuts
, Inc.
®
Page 1/4
Part #11594.01
(12)
(24)
(12)
(12)
(12)
