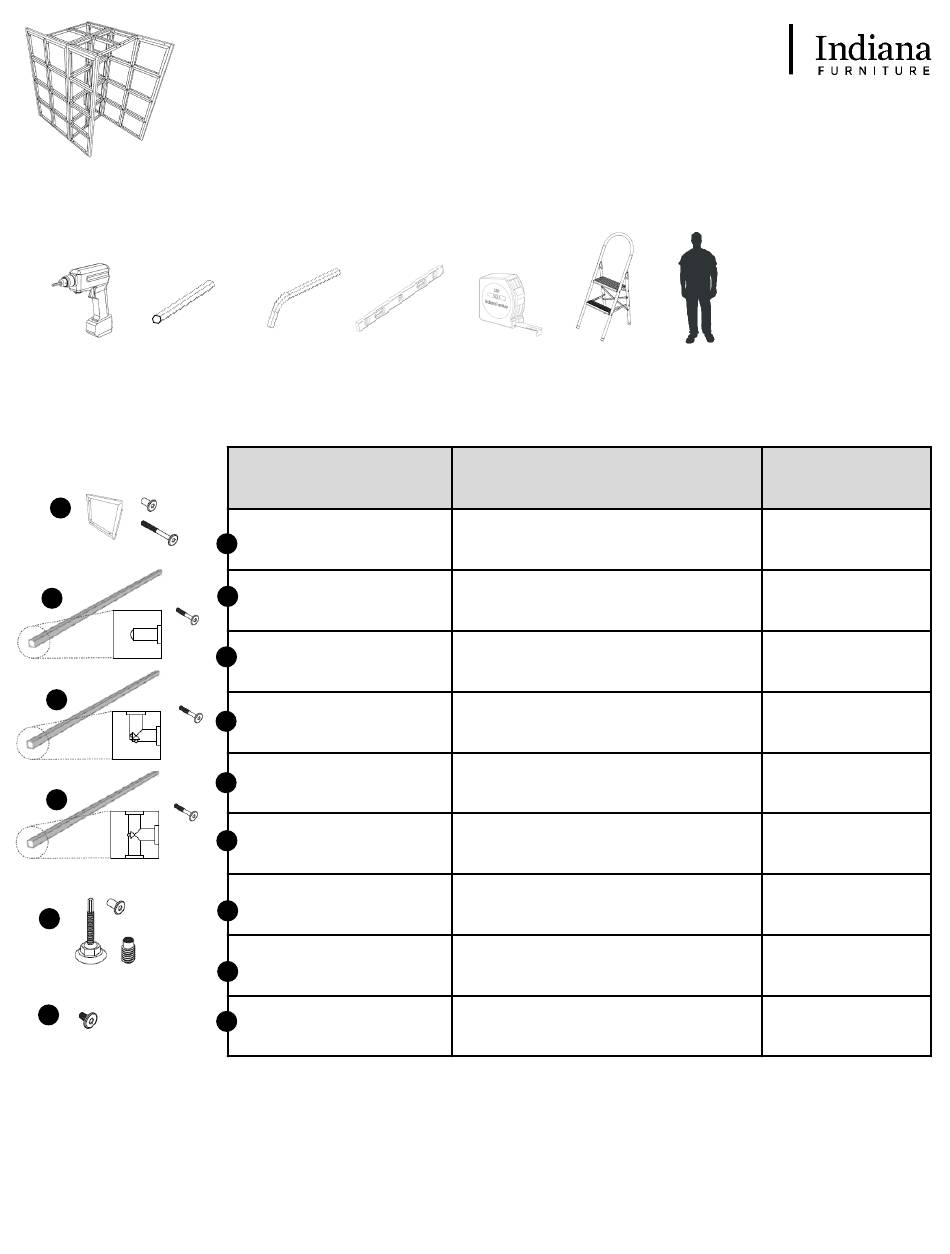

4x8x8
Tools Needed:
6mm Allen Key
Drill
Driver Bit
NOTE: Anchoring to floor or wall may require additional tools and hardware. See note at end of instructions.
Components:
A
B
C
D
E
F
17-10
Page 1 of 3
5mm & 4mm
Box Level
Allen Keys
Model
17-2424BL
A
B
17-17548EC
B
17-17597EC
C
17-17524CP
C
17-17548CP
D
17-17548TCB
17-17596TCB
D
17-LEVKIT
E
F
17-12MMBOLTKIT
Square One
Assembly Instructions
Ladder
Tape
Measure
Description
Single Block, 24"x24"
(4 Bolts & Nuts Included)
End Cap, 48"
End Cap, 97-3/4"
Corner Post, 24"
Corner Post, 48"
T-Connector Beam, 48"
T-Connector Beam, 96"
Leveler Kit, 2 Levelers
12mm Bolt Kit, qty 8
2 to 3
Installers
17-10
Quantity
36
2
(used horizontally)
4
(used vertically)
2
(used horizontally)
2
(used horizontally)
1
2
8
1
800.422.5727
www.IndianaFurniture.com
17-10
Advertisement
Related Manuals for Indiana Furniture Square One 17-10
Summary of Contents for Indiana Furniture Square One 17-10
- Page 1 Square One Assembly Instructions 4x8x8 17-10 Tools Needed: 6mm Allen Key Ladder 2 to 3 Drill 5mm & 4mm Box Level Tape Driver Bit Installers Allen Keys Measure NOTE: Anchoring to floor or wall may require additional tools and hardware. See note at end of instructions. Components: 17-10 Model...
- Page 2 Square One Assembly Instructions 4x8x8 17-10 80mm bolt Begin by building the configuration 1 block high. To establish the configuration footprint. 60mm bolt Align the holes in blocks and connect with 2, 80mm bolts and 2, 17mm nuts. Fasten the bolt and nut together but do not over tighten because you will want to align and firmly tighten upon final setup.
- Page 3 Additional support is required for configurations that are not free standing. Anchoring to the floor, wall, ceiling, and other furniture will require additional tools and hardware, not provided by Indiana Furniture. The installer is responsible for sourcing hardware and for the installation of support per building conditions.
