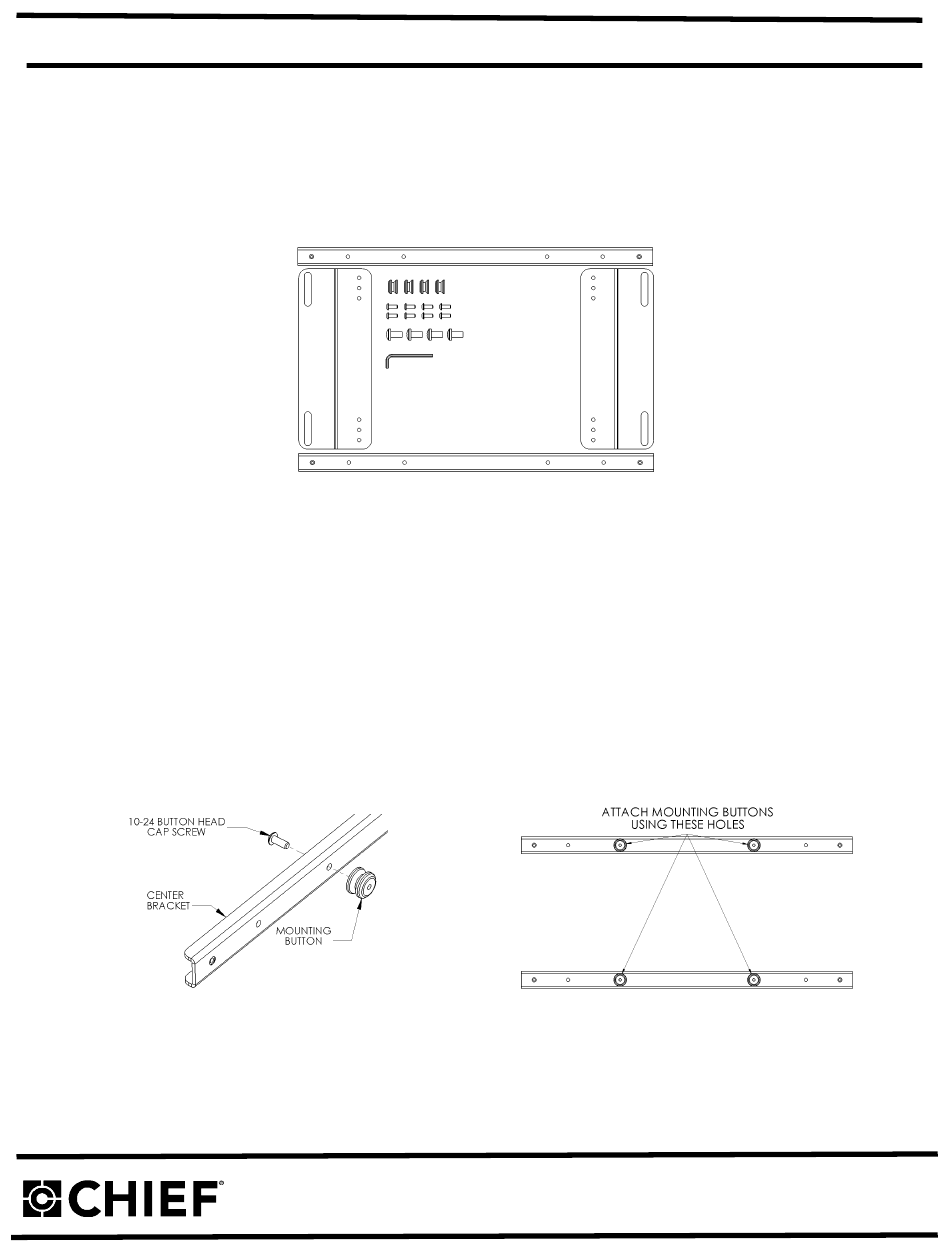

I N S T A L L A T I O N I N S T R U C T I O N S
DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(2) Interface Side Brackets
(4) Mounting Buttons – Tapped
(4) M8 x 16mm Phillips Head Screws
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
1. Chief Q-latch Button Installation
Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with
chamfered hole of mounting button (larger surface) facing bracket, to center brackets (four places) (see
Figure 2 & Figure3).
MSB-6602
DISPLAYS ARE EXTREMELY FRAGILE.
Figure 2
Chief Manufacturing, a division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
P: 800.582.6480 / 952.894.6280 F: 877.894.6918 / 952.894.6918

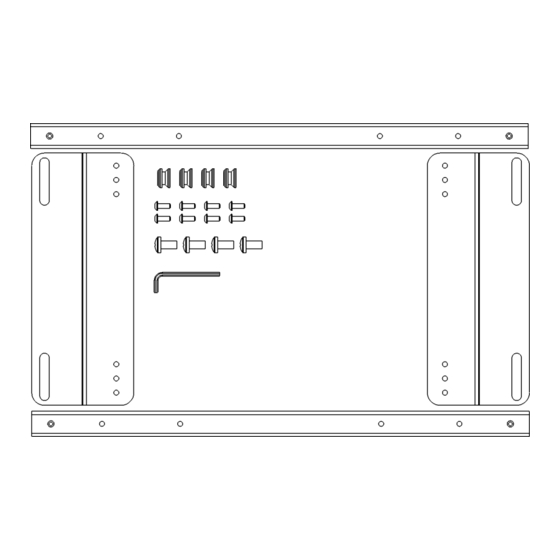

Figure 1
(2) Interface Center Brackets
(8) 10-24 x .500 Button Head Cap Screws
(1) 1/8" Allen Key
Figure 3
8840-000096 Rev01
©2008 Milestone AV Technologies
04/08
Advertisement
Table of Contents
Related Manuals for CHIEF MSB-6602
Summary of Contents for CHIEF MSB-6602
- Page 1 (larger surface) facing bracket, to center brackets (four places) (see Figure 2 & Figure3). Figure 2 Figure 3 8840-000096 Rev01 Chief Manufacturing, a division of Milestone AV Technologies 8401 Eagle Creek Parkway, Savage, MN 55378 ©2008 Milestone AV Technologies 04/08 P: 800.582.6480 / 952.894.6280 F: 877.894.6918 / 952.894.6918...
- Page 2 3. Bracket Installation: Place nylon spacers over mounting holes of screen and attach brackets to back of display using the M8 screws (see Figure 6 & Figure 7). Do not over tighten screws. Figure 6 Figure 7 4. Follow the Chief mount instruction manual for screen installation.
