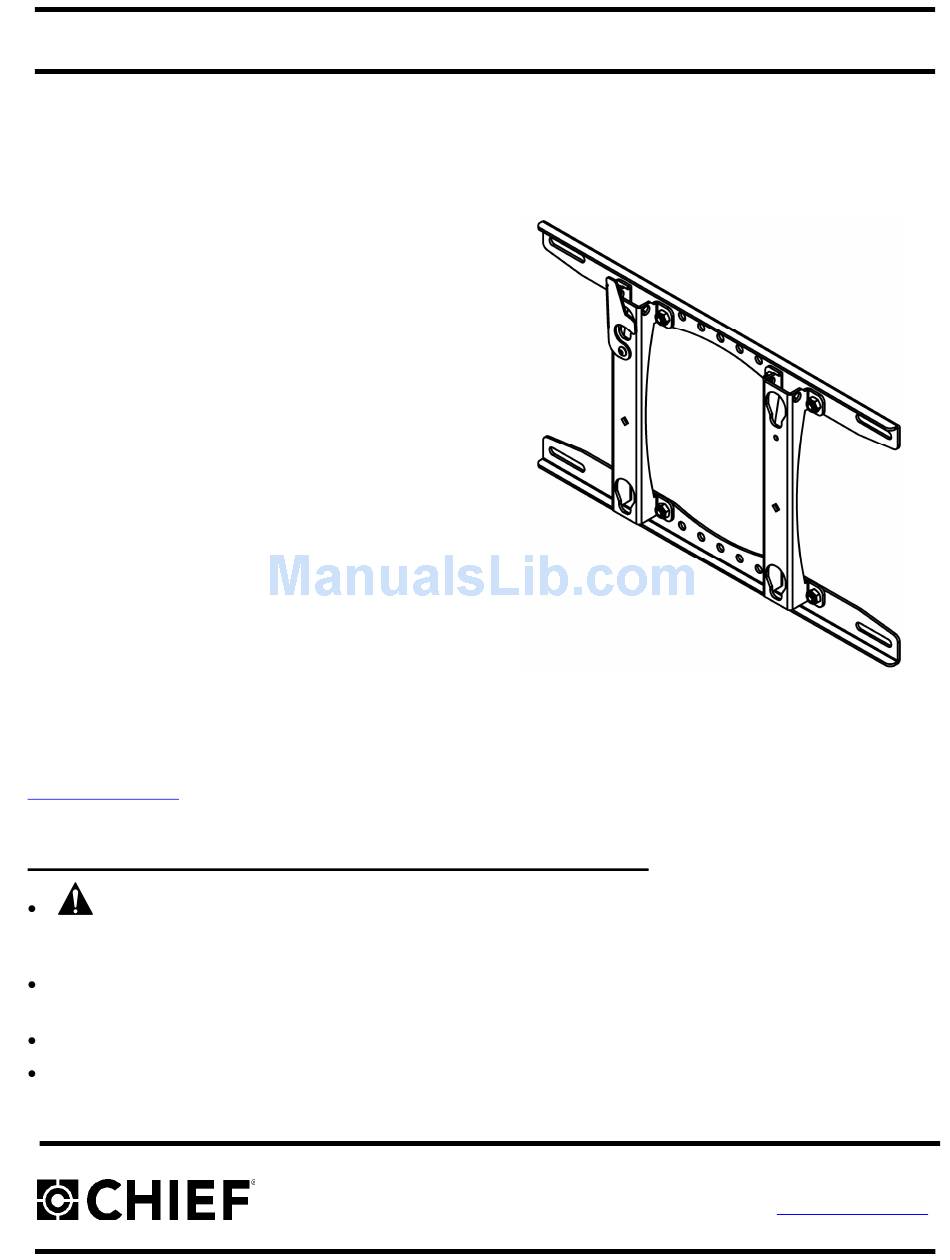

I N S T A L L A T I O N
MEDIUM FLAT PANEL DISPLAY STATIC MOUNT
The MSR Series static mount accommodates medium
flat panel displays weighing up to 125 lbs (57 kgs).
The teardrop holes in the mount allow for quick
connect/disconnect of the display, thus simplifying
installation and maintenance processes.
The top and bottom mounting brackets are adaptable to
single wood stud mounting or dual wood studs that are
16" on center.
After installing the display on the mount, the screen can
be locked in place using the convenient locking flag.
A padlock can be used on the latching flag for added
security.
The mount is concealed behind the display, making it a
low profile wall mount.
! IMPORTANT: If the installation of this product requires OSHPD seismic approval, refer to OSHPD pre-approval
documents and drawings before beginning installation. OSHPD documents and drawings are available at
www.chiefmfg.com, and located on the product information page for the mount.

BEFORE YOU BEGIN

CAUTION: To prevent damage to your monitor and MSR, which could affect or void the Factory
warranty, thoroughly study all instructions and illustrations before you begin to install the mount. Pay
particular attention to the Warnings and Cautions in this document.
The mount is designed to be installed using wall studs or supporting framework. The fasteners used to anchor the
mount must be capable of supporting five times the total weight of the equipment.
The maximum weight to be installed on the MSR Series static wall mount is 125 lbs (57 kg).
If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.
MSR Series
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE. 700
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
MSR Series
8840-000079 RevF
©2007 Chief Manufacturing
www.chiefmfg.com
10/07
