CHIEF MSB-6134 Installation Instructions

Lcd display mounting bracket
Hide thumbs
1
2

Advertisement

Table of Contents

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480.
(2) LCD Interface Side Brackets
(4) Mounting Buttons
(4) ¼-20 x .5" Button Head Cap Screws
(8) .50 x .194 x .50 Nylon Spacers
(1) 5/32" Allen Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
NOTE: If installing screen on a Chief J-series wall mount, proceed to Step 3 (J-Series VESA Interface Installation).
1. Chief Q-latch Button Installation (Used with MSR, MTR, MWH, MWR, MCS and MCD mounts): Using a
10-24 button head cap screw inserted from back side of bracket, secure mounting button, with chamfered hole of
mounting button (larger surface) facing bracket, to center brackets (four places) (see Figure 2 and Figure 3).
2. Proceed to Step 4 (Side Bracket Assembly).
8840-000008 REV. A
CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com

INSTALLATION INSTRUCTIONS

MSB-6134
LCD DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
LCD DISPLAYS ARE EXTREMELY FRAGILE.

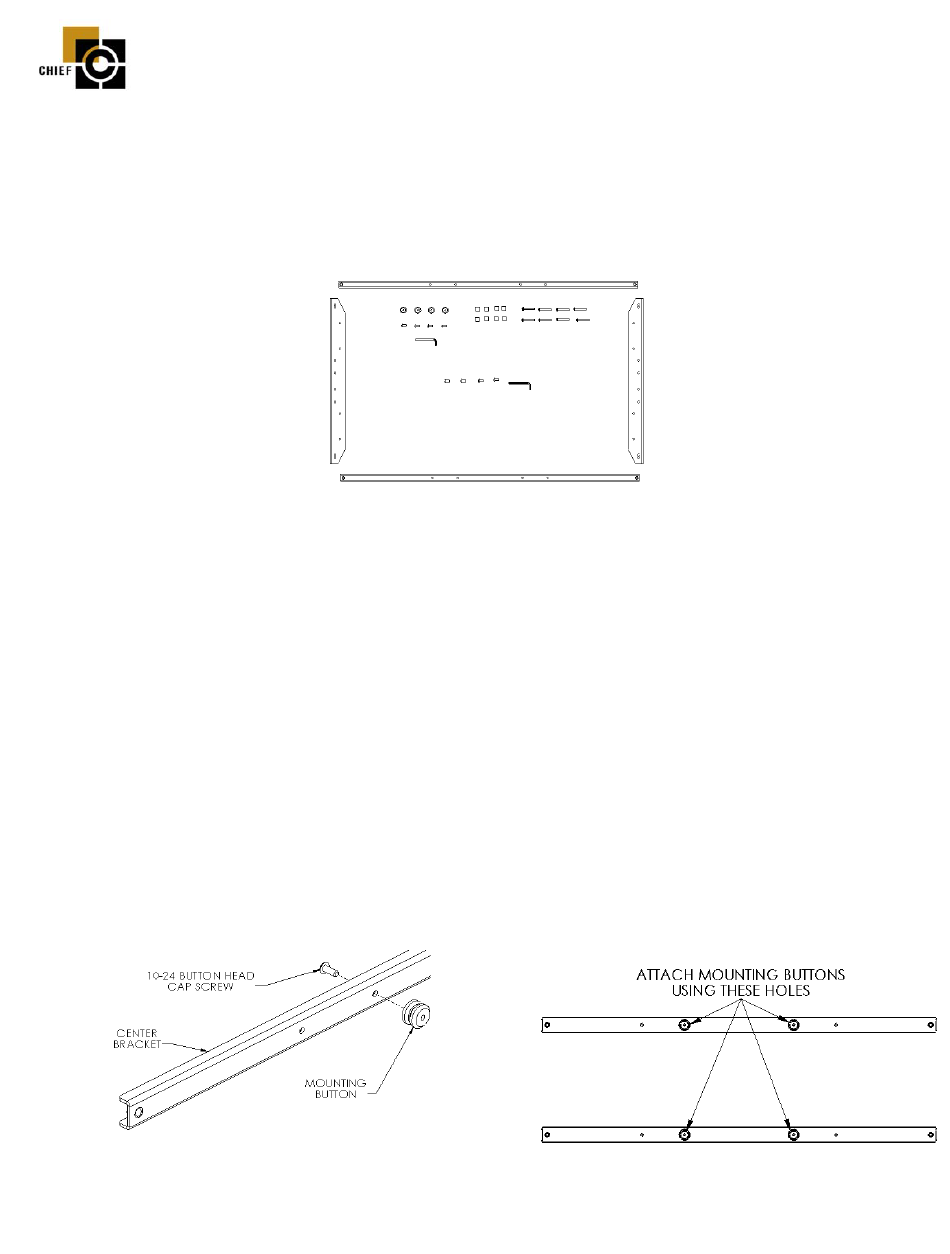

Figure 2
Figure 1
(2) LCD Interface Center Brackets
(4) 10-24 x .5" Button Head Cap Screws
(8) M5 x 35mm Phillips Head Cap Screws
(1) 1/8" Allen Key
Figure 3
10/14/05
