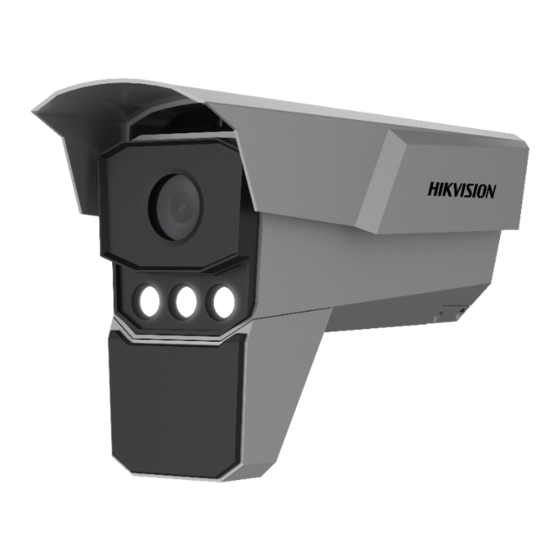

Radar-assisted smart monitoring camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Radar-Assisted Smart Monitoring Camera
User Manual

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION iDS-TCM403-ER/0832

Summary of Contents for HIKVISION iDS-TCM403-ER/0832

  • Page 1 Radar-Assisted Smart Monitoring Camera User Manual...
  • Page 2 With the philosophy of "Technology for the Good", Hikvision requests that every end user of video technology and video products shall comply with all the applicable laws and regulations, as well as ethical customs, aiming to jointly create a better community.
  • Page 3 Radar-Assisted Smart Monitoring Camera User Manual control, selecting a suitable network environment (the Internet or Intranet) where video products are connected, establishing and constantly optimizing network security. Video products have made great contributions to the improvement of social security around the ●...
  • Page 4 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 5 Radar-Assisted Smart Monitoring Camera User Manual DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 6 Radar-Assisted Smart Monitoring Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or...

  • Page 7: Table Of Contents

    Radar-Assisted Smart Monitoring Camera User Manual Contents Chapter 1 Activation and Login ....................1 1.1 Activation ..........................1 1.1.1 Default Information ...................... 1 1.1.2 Activate via SADP ......................1 1.1.3 Activate via Web Browser ..................... 2 1.2 Login ............................3 Chapter 2 Capture Configuration ....................
  • Page 8 Radar-Assisted Smart Monitoring Camera User Manual 4.2 View Real-Time Picture ......................24 4.3 View Real-Time Traffic Statistics ..................26 Chapter 5 Live View and Local Configuration ................27 5.1 Live View ..........................27 5.1.1 Start/Stop Live View ....................27 5.1.2 Select Image Display Mode ..................27 5.1.3 Select Window Division Mode ..................
  • Page 9 Radar-Assisted Smart Monitoring Camera User Manual 7.3 Set Record Schedule ......................42 Chapter 8 Encoding and Display ....................44 8.1 Set Video Encoding Parameters ................... 44 8.2 Set Image Parameters ......................45 8.3 Set ICR ..........................48 8.4 Set ROI ..........................48 8.5 Set Privacy Mask ........................
  • Page 10 Radar-Assisted Smart Monitoring Camera User Manual 12.7 Set Timeout Logout ......................68 12.8 Set Password Validity Period ....................68 Chapter 13 Maintenance ......................69 13.1 View Device Information ....................69 13.2 Log ............................. 69 13.2.1 Enable System Log Service ..................69 13.2.2 Search Log .........................

  • Page 11: Chapter 1 Activation And Login

    Get the SADP software from the supplied disk or the official website ( http:// ● www.hikvision.com/ ), and install it according to the prompts. The device and the computer that runs the SADP tool should belong to the same network ●...

  • Page 12: Activate Via Web Browser

    Radar-Assisted Smart Monitoring Camera User Manual Figure 1-1 Activate via SADP Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same network segment as your computer by either modifying the IP address manually or checking Enable DHCP (Dynamic Host Configuration Protocol).

  • Page 13: Login

    Radar-Assisted Smart Monitoring Camera User Manual Caution STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

  • Page 14: Chapter 2 Capture Configuration

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 2 Capture Configuration 2.1 Set Smart Monitoring Capture The smart monitoring mode supports capturing motor vehicles, non-motor vehicles, and pedestrians via video triggering. Steps 1. Go to Configuration → Capture → Application Mode . 2.
  • Page 15 Radar-Assisted Smart Monitoring Camera User Manual Motor Vehicle, Non-Motor Vehicle, and Pedestrian The motor vehicles, non-motor vehicles, and pedestrians in the scene will be recognized and captured. Motor Vehicle Only the motor vehicles in the scene will be recognized and captured. Capture Pictures The number of captured picture(s).
  • Page 16 Radar-Assisted Smart Monitoring Camera User Manual When the detected speed of the vehicle exceeds the value, the detection is regarded as abnormal, and a normal speed will be provided randomly. 6. Optional: Check the other lane(s) to copy the same settings. 7.

  • Page 17: Set Capture Parameters

    Radar-Assisted Smart Monitoring Camera User Manual 2.2 Set Capture Parameters 2.2.1 Set Captured Image Parameters Set the parameters of captured images to raise the image quality. Steps Note The function varies with different models. The actual device prevails. 1. Go to Configuration → Capture → Capture Images → Image Parameters . Figure 2-3 Set Captured Image Parameters 2.

  • Page 18: Set License Plate Recognition Parameters

    Radar-Assisted Smart Monitoring Camera User Manual Contrast Enhancement Level The higher the level is, the more the contrast is enhanced. Halo Suppression Level Halo suppression is to suppress the halo of the vehicle headlights. The higher the level is, the more the halo is suppressed. 2.2.2 Set License Plate Recognition Parameters When there are vehicles of different types passing from different directions, set the license plate recognition parameters.

  • Page 19: Set Picture Composition

    Radar-Assisted Smart Monitoring Camera User Manual Figure 2-5 Set Supplement Light Parameters 2. Select the I/O and set the supplement light parameters. I/O Output Mode Constant Light Mode The constant light supplements light for the scene. Duty Ratio It is the time occupation of the high level in a certain period. The higher the duty ratio, the brighter the solid light.

  • Page 20: Set Information Overlay

    Radar-Assisted Smart Monitoring Camera User Manual Figure 2-6 Set Picture Composition 2. Check Enable Composition. 3. Set composition types for different picture quantities. 4. Set other composition parameters. Close-up Zooming Ratio The higher the value is, the larger the close-up is. Close-up Picture No.
  • Page 21 Radar-Assisted Smart Monitoring Camera User Manual Steps Note The supported parameters vary with different models. The actual device prevails. 1. Go to Configuration → Capture → Capture Parameters → Text Overlay . 2. Select single picture channel. 3. Check Capture Picture Overlay. Figure 2-7 Set Single Picture Overlay 4.
  • Page 22 Radar-Assisted Smart Monitoring Camera User Manual Note The overlay information varies with different models. The actual device prevails. 6. Set the overlay information. Set Type You can edit the type. Set Overlay For some information types, you can edit the detailed information. Information Set Overlay Position If you check it, the current information will be displayed from a new...
  • Page 23 Radar-Assisted Smart Monitoring Camera User Manual Figure 2-8 Set Composite Picture Overlay 4. Set the font size, color, overlay position, etc. Percentage It is the percentage that the overlaid information occupies on the picture. For example, if you set the percentage to 50, the overlaid information in a row will occupy up to half of the image width, and the excess content will be overlaid from a new line.

  • Page 24: Set Body Picture Matting

    Radar-Assisted Smart Monitoring Camera User Manual Adjust overlay Click to adjust the display sequence of the overlay sequence information. 7. Click Save. 2.2.6 Set Body Picture Matting Set body picture matting first if you need to upload body and vehicle pictures to the platform. Steps Note The function varies with different models.

  • Page 25: Set Image Encoding Parameters

    Radar-Assisted Smart Monitoring Camera User Manual 2.2.8 Set Image Encoding Parameters If the captured pictures are not clear, set the resolution of the captured pictures and the picture size. Steps 1. Go to Configuration → Capture → Capture Parameters → Picture Encoding and Composition → Image Encoding .

  • Page 26: Chapter 3 Radar Detection

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 3 Radar Detection Radar is used to detect the target and link the capture. Set radar detection parameters before capturing vehicle pictures. Note The function varies with different models. The actual device prevails. 3.1 Set Detection Parameters Radar is used to detect the target and link the capture.
  • Page 27 Radar-Assisted Smart Monitoring Camera User Manual The current radar status. The radar can be normally used in normal status. If the radar is in upgrading status, do not reboot the device. Refresh the interface every one minute, and the status can be restored to normal. 3.
  • Page 28 Radar-Assisted Smart Monitoring Camera User Manual Debug Mode Enable the radar debug mode. In this mode, the vehicles outside the drawn area will be displayed, to make it convenient to debug the radar. Sensitivity The lower the sensitivity is, the more sensitive the detection will be. For the detection which is too sensitive (e.g., some fixed facilities, such as the bus station on the lane, are detected as vehicles), you can adjust the sensitivity higher.

  • Page 29: Set Radar Calibration

    Radar-Assisted Smart Monitoring Camera User Manual example, if the trigger distance is 28 m from the approaching direction, the initial position of the target should be approximately 35 m. The target track should correspond to the actual lane, or the lane No.
  • Page 30 Radar-Assisted Smart Monitoring Camera User Manual Figure 3-2 Manual Calibration 3. Draw the lane lines. 1) Select the lane sum. 2) Select the lane line No. 3) Click Draw Lane Line. The selected lane line will be displayed on the live view picture. 4) Drag the two end points of the line or drag the whole line to adjust its position according to the actual scene.

  • Page 31: Auto Calibration

    Radar-Assisted Smart Monitoring Camera User Manual Note The origin (0, 0) of the world coordinates locates in the middle of the whole lanes detected by the radar. You can refer to the top view of the diagram for the positions. 6.

  • Page 32: Gps Coordinate Calibration

    Radar-Assisted Smart Monitoring Camera User Manual 4) Drag the two end points of the line or drag the whole line to adjust its position according to the actual scene. 5) Repeat the steps above to draw more lane lines. 4. Click Start. The auto calibration starts, and you can view the calibration status and progress.

  • Page 33: Search Detected Vehicles

    Radar-Assisted Smart Monitoring Camera User Manual 4. Click OK. 3.3 Search Detected Vehicles You can search the radar detected vehicles and export the information. Steps 1. Click Radar. 2. View the vehicle information in the vehicle list. 3. Enter the vehicle No. in the text field, and press Enter to search the vehicle information. 4.

  • Page 34: Chapter 4 View Traffic Statistics

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 4 View Traffic Statistics 4.1 Search Picture You can search the captured pictures stored in the storage card and export the pictures you need. Before You Start Install the storage card, and ensure the storage status is normal. Steps 1.
  • Page 35 Radar-Assisted Smart Monitoring Camera User Manual Figure 4-1 Real-Time Picture 4. Optional: You can also do the following operations. Level 1 Arming can only connect one client or web. The uploaded pictures ● will not be stored in the storage card. The pictures in the storage card will be uploaded to the level 1 arming.

  • Page 36: View Real-Time Traffic Statistics

    Radar-Assisted Smart Monitoring Camera User Manual Click it to enable manual capture. Click it to set continuous capture parameters and the device will capture pictures according to the set interval. Capture Times: Up to five pictures can be captured per continuous capture. ●...

  • Page 37: Chapter 5 Live View And Local Configuration

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 5 Live View and Local Configuration 5.1 Live View 5.1.1 Start/Stop Live View Click to start live view. Click to stop live view. 5.1.2 Select Image Display Mode Click to select an image display mode. 5.1.3 Select Window Division Mode Click to select a window division mode.

  • Page 38: Start/Stop Two-Way Audio

    Radar-Assisted Smart Monitoring Camera User Manual Steps 1. Click to start live view. 2. Click to start recording. 3. Click to stop recording. 4. Optional: Click Configuration → Local → Record File Settings to view the saving path of record files.

  • Page 39: Enable Regional Focus

    Radar-Assisted Smart Monitoring Camera User Manual The area will be zoomed in. 4. Click any position of the image to restore to normal image. 5. Click to disable digital zoom. 5.1.10 Enable Regional Focus Steps Note The function varies with different models. The actual device prevails. 1.

  • Page 40: Ptz Operation

    Radar-Assisted Smart Monitoring Camera User Manual 5.2 PTZ Operation Click Live View. Click and click to show the PTZ control panel. Note The PTZ supports power-off memory. When the device is suddenly cut off power or restarted ● normally, it can automatically return to the position before the power cut or reboot. The PTZ function varies with different models.

  • Page 41: Local Configuration

    Radar-Assisted Smart Monitoring Camera User Manual Button Description Hold to increase the iris diameter when in a dark ● environment. Hold to decrease the iris diameter when in a bright ● environment. Lens Initialization It is applicable to devices with motorized lenses. You can use this function when overcoming image blurs caused by overtime zooming or focusing.
  • Page 42 Radar-Assisted Smart Monitoring Camera User Manual Figure 5-2 Local Configuration Protocol Type Select the network transmission protocol according to the actual needs. Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected. Provides real-time audio and video streams. HTTP Gets streams from the device by a third party client.
  • Page 43 Radar-Assisted Smart Monitoring Camera User Manual Select it to get the high-quality image when the network condition is good. Sub-Stream Select it to get the fluent image when the network condition is not good enough. Live View Performance Shortest Delay The video is real-time, but its fluency may be affected.
  • Page 44 Radar-Assisted Smart Monitoring Camera User Manual Save downloaded pictures to Set the saving path for the downloaded pictures. Save scene picture to Set the saving path of the captured pictures in Live View → Real-Time Capture . Save snapshots when playback to Set the saving path for the manually captured pictures in playback mode.

  • Page 45: Chapter 6 Playback

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 6 Playback You can search, play back, and download videos that stored on the storage card. Steps 1. Click Playback. 2. Select a channel. 3. Select a date. 4. Click Search. 5. Click to start playback.

  • Page 46: Chapter 7 Record And Capture

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 7 Record and Capture 7.1 Set Storage Path 7.1.1 Set Storage Card If you want to store the files to the storage card, make sure you insert and format the storage card in advance. Before You Start Insert the storage card to the device.
  • Page 47 Radar-Assisted Smart Monitoring Camera User Manual Before You Start Set the FTP server, and ensure the device can communicate normally with the server. Steps 1. Go to Configuration → Network → Data Connection → FTP . Figure 7-2 Set FTP 2.

  • Page 48: Set Sdk Listening

    Radar-Assisted Smart Monitoring Camera User Manual Upload the matted pictures of the target detection area to the FTP server. Upload Additional Information to FTP Add related information when uploading data to the FTP server. 6. Select Path/Picture Name Encoding Mode. GB2312 Chinese characters encoding.

  • Page 49: Set Arm Host

    Radar-Assisted Smart Monitoring Camera User Manual Uploads arming alarm images of the license plate. You can enable Upload Binary Image if you need to upload images which are full of black or white pixel points. Enable Output Binary Image in BMP Format if you want to output images in this format. Mixed Target Upload Protocol Uploads images of multiple targets such as humans and vehicles.

  • Page 50: Set Isapi Listening

    Radar-Assisted Smart Monitoring Camera User Manual Mixed Target Upload Protocol Uploads images of multiple targets such as humans and vehicles. You can enable the body property to recognize clothes, bags, and other properties. 3. Optional: If you want to save the alarm information and pictures to the cloud storage, click set Cloud Storage.

  • Page 51: Set Cloud Storage

    Radar-Assisted Smart Monitoring Camera User Manual 7.1.6 Set Cloud Storage Cloud storage is a kind of network storage. It can be used as the extended storage to save the captured pictures. Before You Start Arrange the cloud storage server. ● You have enabled level 1 arming in Live View →...

  • Page 52: Set Quota

    Radar-Assisted Smart Monitoring Camera User Manual 7.2 Set Quota Set the video and picture ratio in the storage. Before You Start Install the storage card. Steps 1. Go to Configuration → Storage → Storage Management → HDD Quota . Figure 7-7 Set Quota 2.
  • Page 53 Radar-Assisted Smart Monitoring Camera User Manual Figure 7-8 Set Record Schedule 4. Select Record Type. 5. Drag the cursor on the time bar to set a recording time. Note Up to 8 time periods can be set on a time bar. 6.

  • Page 54: Chapter 8 Encoding And Display

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 8 Encoding and Display 8.1 Set Video Encoding Parameters Set video encoding parameters to adjust the live view and recording effect. When the network signal is good and the speed is fast, you can set high resolution and bitrate to ●...

  • Page 55: Set Image Parameters

    Radar-Assisted Smart Monitoring Camera User Manual Scalable Video Coding (SVC) is an extension of the H.264/AVC and H.265 standard. Enable the function and the device will automatically extract frames from the original video when the network bandwidth is insufficient. Bitrate Type Select the bitrate type to constant or variable.
  • Page 56 Radar-Assisted Smart Monitoring Camera User Manual Figure 8-1 Set Image Parameters 2. Set the camera parameters. Note The supported parameters vary with different models. The actual device prevails. General Parameter Saturation It refers to the colorfulness of the image color. Sharpness It refers to the edge contrast of the image.
  • Page 57 Radar-Assisted Smart Monitoring Camera User Manual Enable defog to get a clear image in foggy days. Light Compensation on License Plate Check it. The plate brightness compensation can be realized, and various light supplement conditions can be adapted via setting license plate expectant brightness and supplement light correction coefficient.

  • Page 58: Set Icr

    Radar-Assisted Smart Monitoring Camera User Manual It increases the exposure time on a single frame, which makes a camera more sensitive to the light so it can produce images even in low lux conditions. Video Standard Select the video standard according to the actual power supply frequency. 3.

  • Page 59: Set Privacy Mask

    Radar-Assisted Smart Monitoring Camera User Manual Figure 8-2 Set ROI 2. Select Stream Type. 3. Set ROI region. 1) Check Enable. 2) Select Area Code. 3) Click Draw Area. 4) Drag the mouse on the live view image to draw a fixed area. 5) Select the fixed area that needs to be adjusted and drag the mouse to adjust its position.
  • Page 60 Radar-Assisted Smart Monitoring Camera User Manual Figure 8-3 Set Privacy Mask 2. Check Enable Privacy Mask. 3. Enable the privacy mask area(s). 1) Check Enable. 2) Select Area Code. 3) Select Type. 4. Draw the privacy mask area. 1) Click Draw Area. 2) In the live view image, drag the mouse to draw the privacy mask area of the selected area code.

  • Page 61: Set Osd

    Radar-Assisted Smart Monitoring Camera User Manual 5. Optional: Repeat step 3 and 4 to draw more privacy mask areas. Note Up to four privacy mask areas are supported. 6. Click Save. 8.6 Set OSD You can customize OSD information on the live view. Steps 1.
  • Page 62 Radar-Assisted Smart Monitoring Camera User Manual Note Up to 6 items of custom information can be added. 4. Set display properties (font, color, etc.). 5. Select Alignment. Note If you select Align Left or Align Right, set Min. Horizontal Margin and Min. Vertical Margin. 6.

  • Page 63: Chapter 9 Network Configuration

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 9 Network Configuration 9.1 Set IP Address IP address must be properly configured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting to each other.
  • Page 64 Radar-Assisted Smart Monitoring Camera User Manual Figure 9-1 Set IP Address 2. Set network parameters. NIC Type Select a NIC (Network Interface Card) type according to your network condition. IPv4 Two modes are available. DHCP The device automatically gets the IP parameters from the network if you check DHCP. The device IP address is changed after enabling the function.
  • Page 65 Radar-Assisted Smart Monitoring Camera User Manual Note The network that the device is connected to should support DHCP (Dynamic Host Configuration Protocol). Manual You can set the device IP parameters manually. Enter IPv4 Address, IPv4 Subnet Mask, and IPv4 Default Gateway. IPv6 Three IPv6 modes are available.

  • Page 66: Connect To Isup Platform

    Radar-Assisted Smart Monitoring Camera User Manual 9.2 Connect to ISUP Platform ISUP (EHome) is a platform access protocol. The device can be remotely accessed via this platform. Before You Start Create the device ID on ISUP platform. ● Ensure the device can communicate with the platform normally. ●...

  • Page 67: Set Ddns

    Radar-Assisted Smart Monitoring Camera User Manual Note When the registration status shows online, you can add or manage the device via the platform software. Refer to its corresponding manual for details. 9.3 Set DDNS You can use the Dynamic DNS (DDNS) for network access. The dynamic IP address of the device can be mapped to a domain name resolution server to realize the network access via domain name.

  • Page 68: Set Snmp

    Radar-Assisted Smart Monitoring Camera User Manual By Browsers Enter the domain name in the browser address bar to access the device. By Client Software Add domain name to the client software. Refer to the client software manual for specific adding methods. 9.4 Set SNMP You can set the SNMP network management protocol to get the alarm event and exception messages in network transmission.
  • Page 69 Radar-Assisted Smart Monitoring Camera User Manual Figure 9-4 Set Port HTTP Port It refers to the port through which the browser accesses the device. For example, when the HTTP Port is modified to 81, you need to enter http://192.168.1.64:81 in the browser for login. HTTPS Port Set the HTTPS for accessing the browser.

  • Page 70: Set Email

    Radar-Assisted Smart Monitoring Camera User Manual 9.6 Set Email When the email is enabled and set, the device will send an email notification to all designated receivers if an alarm event is detected. Before You Start Set the DNS server before using the email function. Go to Configuration → Network → Network Parameters →...
  • Page 71 Radar-Assisted Smart Monitoring Camera User Manual 3) Optional: If your email server requires authentication, check Authentication and enter your user name and password to log in to the server. 4) Enter the receiver's information, including the receiver's name and address. 5) Click Test to see if the function is well configured.

  • Page 72: Chapter 10 Serial Port Configuration

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 10 Serial Port Configuration 10.1 Set RS-485 Set RS-485 parameters if the device needs to be connected to other peripheral devices controlled by RS-485 serial port. Before You Start The corresponding device has been connected via the RS-485 serial port. Steps Note The number of available RS-485 serial port varies with different models.
  • Page 73 Radar-Assisted Smart Monitoring Camera User Manual Steps 1. Go to Configuration → System → System Settings → Serial Port → RS-232 . Figure 10-2 Set RS-232 2. Set Baud Rate, Data Bit, Stop Bit, etc. Note The parameters should be same with those of the connected device. 3.

  • Page 74: Chapter 11 Exception Alarm

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 11 Exception Alarm Set exception alarm when the network is disconnected, the IP address is conflicted, etc. Steps Note The supported exception types vary with different models. The actual device prevails. 1. Go to Configuration → Event → Alarm Linkage → Exception Event . 2.

  • Page 75: Chapter 12 Safety Management

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 12 Safety Management 12.1 Manage User The administrator can add, modify, or delete other accounts, and grant different permissions to different user levels. Steps 1. Go to Configuration → System → User Management → User List . 2.

  • Page 76: Enable User Lock

    Radar-Assisted Smart Monitoring Camera User Manual 3. Set Filtering Mode. Blocklist Mode The added IP addresses are not allowed to access the device. Allowlist Mode The added IP addresses are allowed to access the device. 4. Click Add, enter the IP address, and click OK. Note The IP address only refers to the IPv4 address.

  • Page 77: Install Authorized Certificate

    Radar-Assisted Smart Monitoring Camera User Manual 12.4.2 Install Authorized Certificate If the demand for external access security is high, you can create and install authorized certificate via HTTPS protocol to ensure the data transmission security. Steps 1. Go to Configuration → Network → Network Parameters → HTTPS . 2.

  • Page 78: Set Timeout Logout

    Radar-Assisted Smart Monitoring Camera User Manual 12.7 Set Timeout Logout You can improve network access security by setting timeout logout. Steps 1. Go to Configuration → System → Security → Security Service → Timeout Logout . 2. Enable timeout logout for static page. 3.

  • Page 79: Chapter 13 Maintenance

    Radar-Assisted Smart Monitoring Camera User Manual Chapter 13 Maintenance 13.1 View Device Information Basic Information and Algorithms Library Version Go to Configuration → System → System Settings → Basic Information to view the basic information and algorithms library version of the device. You can edit Device Name and Device No.

  • Page 80: Search Security Audit Log

    Radar-Assisted Smart Monitoring Camera User Manual 3. Click Search. The matched log files will be displayed on the log list. 4. Optional: Click Export to save the log files to your computer. 13.2.3 Search Security Audit Log You can search and analyze the security log files of the device so as to find out the illegal intrusion and troubleshoot the security events.

  • Page 81: Reboot

    Radar-Assisted Smart Monitoring Camera User Manual 13.4 Reboot When the device needs to be rebooted, reboot it via the software instead of cutting off the power directly. Steps 1. Go to Configuration → System → Maintenance → Upgrade & Maintenance → Device Maintenance .

  • Page 82: Set Dst

    Radar-Assisted Smart Monitoring Camera User Manual Manual Synchronization Select it to synchronize the device time with that of the computer. Set time manually, or check Sync. with computer time. Satellite Time Select it to synchronize the device time with that of the satellite. Set Interval. If the remote host has been set for the device, select it to synchronize time via the remote host.

  • Page 83: Set Image Format

    Radar-Assisted Smart Monitoring Camera User Manual Steps 1. Go to Configuration → Capture → Advanced → System Service . 2. Check the debug information according to your needs. Enable Algorithm POS Information Debug The algorithm POS information will be overlaid on the playback image when you play back the video with the dedicated tool.

  • Page 84: Import Configuration File

    Radar-Assisted Smart Monitoring Camera User Manual 13.10 Import Configuration File Import the configuration file of another device to the current device to set the same parameters. Before You Start Save the configuration file to the computer. Steps Caution Importing configuration file is only available to the devices of the same model and same version. 1.
  • Page 85 Radar-Assisted Smart Monitoring Camera User Manual 3. Select the saving path, and enter the file name. 4. Click Save.

  • Page 86: Appendix A. Communication Matrix And Device Command

    Radar-Assisted Smart Monitoring Camera User Manual Appendix A. Communication Matrix and Device Command Scan the QR code below to get the communication matrix of the device. Scan the QR code below to get the device command.
  • Page 87 UD28320B...

This manual is also suitable for:
