Elite Industries EL-469 Assembly Instructions

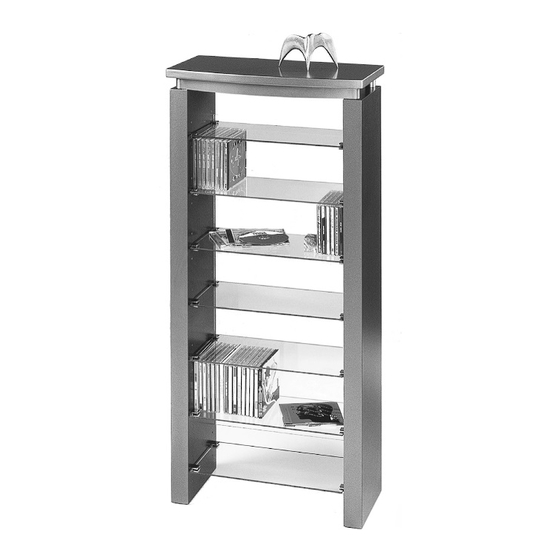

Fully Adjustable Media Storage Unit
EL-469 –
Genuine Natural Cherry Wood Veneer.
EL-479 –
Durable Metallic Grey Matte Lacquer.
7 adjustable shelves can house 252 CD's or 112 DVD's + 36 CD's combined.
Overall Dimensions: H - 44", W - 18 5/8", D - 10 1/8".
G
F
B
D
*IMPORTANT: Make sure shelf pin holes on Side Panels B & C face inside during assembly.
FRONT EDGES of Side Panels B & C do NOT have holes. Curved Molding (Front Metal
Molding - E) will be inserted into Front Edge of Side Panels B & C with metal tabs
facing the back of unit.
BACK EDGES of Side Panels B & C DO have holes for installation of Back Panel (H). Back
Metal Posts (F) with Pins (G) will be inserted into Top Back Edges of Side Panels B & C.
EL-469/EL-479 Hardware
J
Screw • 1/4" x 2-3/8" • 2 pcs.
K
Screw • 3/16" x 13/16" • 2 pcs.
L
Screw • 9/64" x 13/16" • 4 pcs.
M
Screw • 5/16" x 5/8" • 2 pcs.
FOR PARTS & CUSTOMER SERVICE. PLEASE CALL 1-800-ELITE-48
CUSTOMER SERVICE HOURS EASTERN TIME 8:45 AM - 4:45 PM M-F

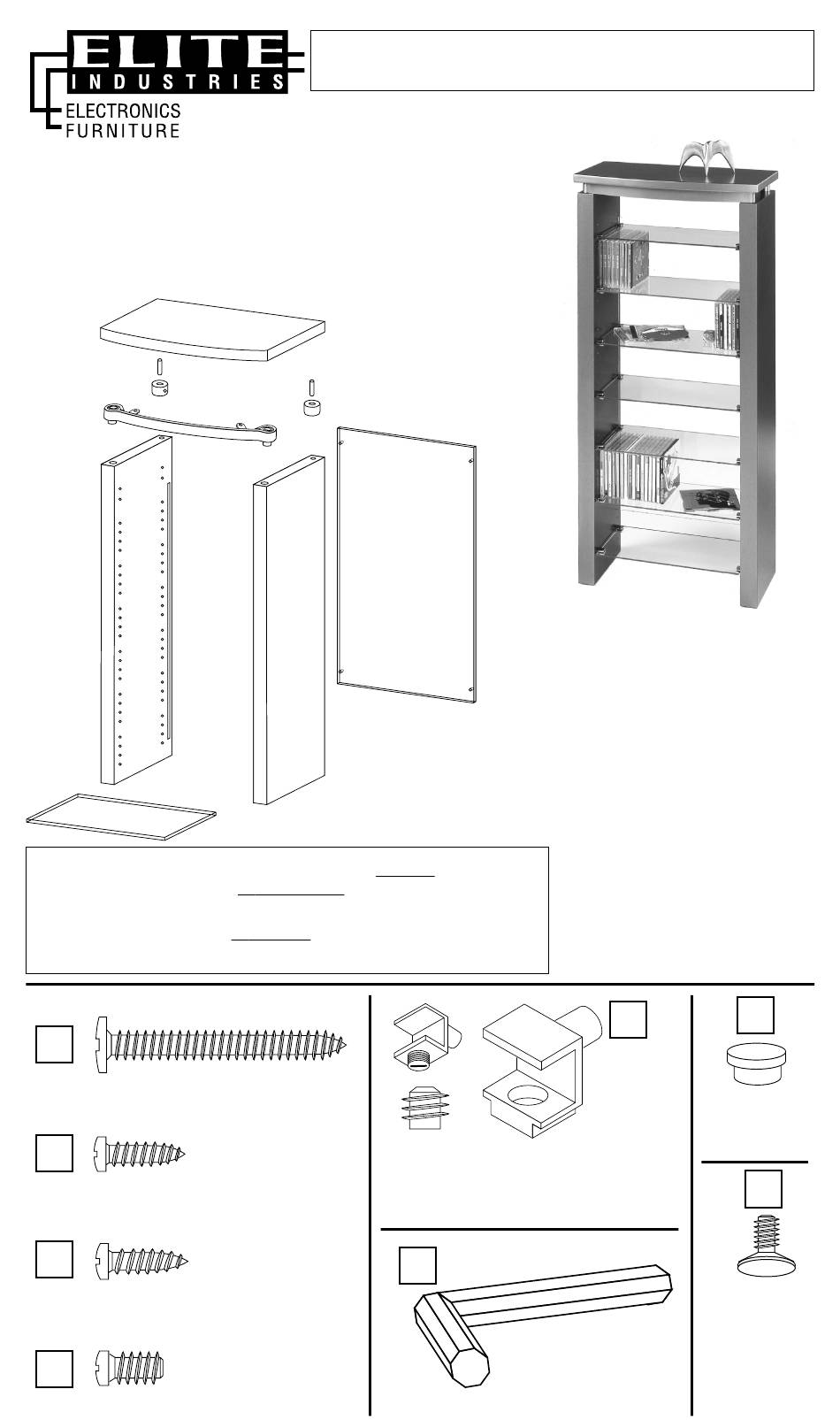

ASSEMBLY INSTRUCTIONS EL-469/EL-479
A
G
F
E
C
PLEASE DO NOT RETURN UNIT TO STORE
H
Thank you for purchasing this ELITE product.
You will need the following tools:
• Regular straight blade screw driver
• Phillips head screwdriver
• Rubber or padded hammer
In order to protect the finish, we recommend
working on a padded or carpeted surface.
Before discarding the box, be sure that no parts
are left inside.
PLEASE NOTE: The following letters correspond
to the sketches in this instruction booklet.
PLASTIC SCREWS MUST BE INSTALLED
INTO THE SHELF PINS
O
Hex Key
for securing
Back Post & Pins
1 piece
A. Top Panel (1)
B. Left Side Panel (1)*
C. Right Side Panel (1)*
D. Glass Shelf (7-identical)
E. Front Metal Top Molding (1)
F. Back Metal Post (2)
G. Back Post Pins (2)
H. Back Panel (acrylic) (1)
N
Shelf Pins
(28 pcs.)
Plastic Covers
and
Plastic Screws for "L" Screws
(28 pcs.)
Floor Levellers
INSTALLED
T
4 pcs.
U
Adjustable
4 pcs.
ALREADY
FACTORY
