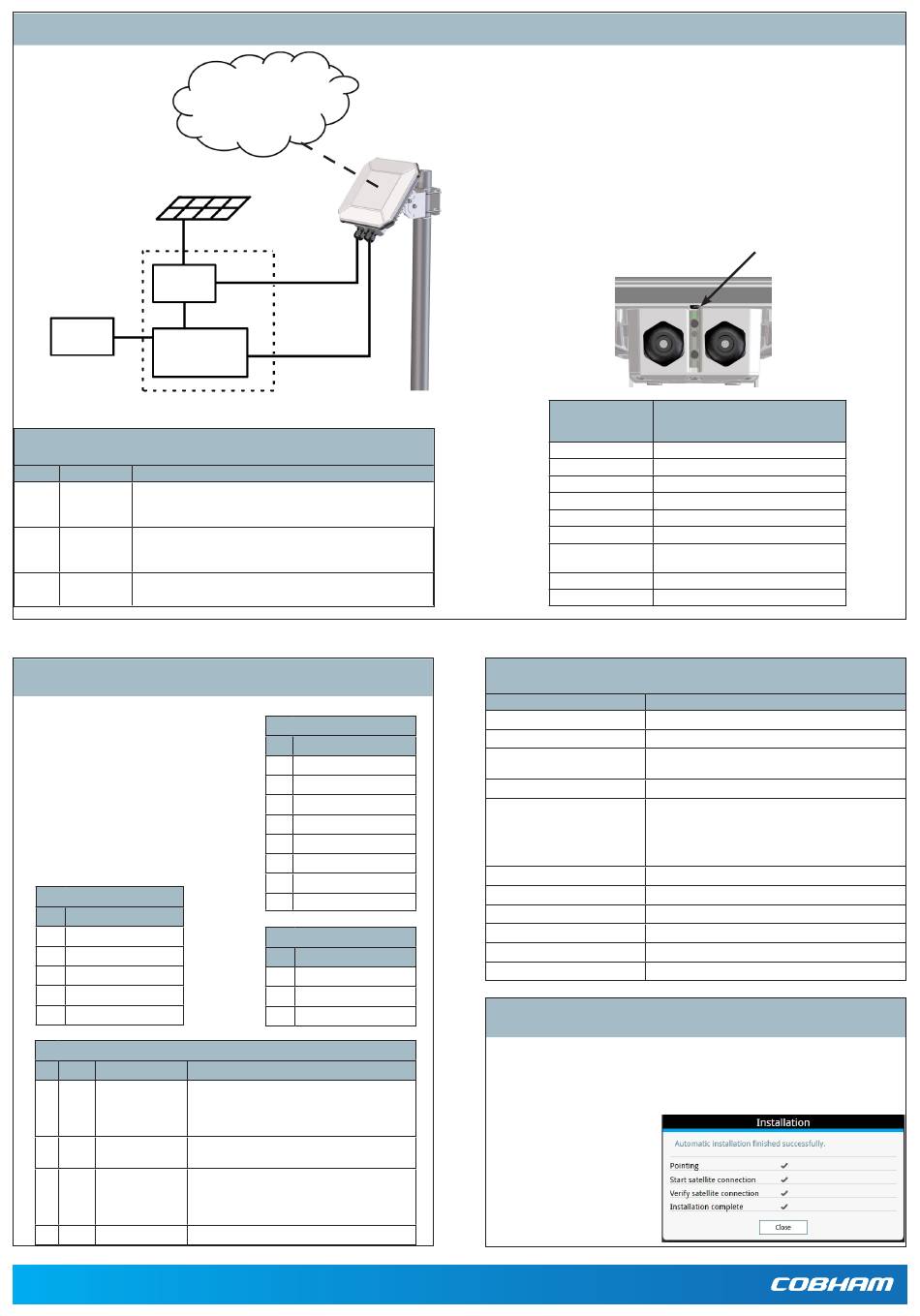

COBHAM EXPLORER 540 Installation Manual page 2

System Configuration - Example
Solar panel
Battery
Probe
M2M indoor
equipment
Note: This drawing is just an example. Your configuration may use other types of equipment.
Cable requirements
Number Cable Requirements
1 DC Power 1.5 mm 2 / 15 AWG copper wire, UV resistant, Temperature rating: 105°C/
cable 221°F, Max. cable length: 12 m/ 39 ft at 12 V operation, 200 m/ 656 ft at
24 V operation.
2 LAN cable Cable: Ethernet Min. Cat 5 Solid copper wire, STP. Max. length: 100 m/
328 ft, Temperature rating: 95°C/ 203°F.
PoE source according to PoE+ IEEE 802.3at type 2 class 4.
3 I/O cables 0,2 mm to 0,5 mm
2
Use shielded cable on input if not actively driven high/low.
Connectors and pin allocation
IMPORTANT: You must use either X1 or X2 for
LAN, not both!
The EXPLORER 540 has the following connectors/
terminals:
• X1: LAN/PoE, Spring-loaded terminals
• X2: LAN/PoE, RJ-45 connector
• X3: SIM card
• X4: DC input, Screw terminals
• X5: I/O, Spring-loaded terminals
• X6: USB, micro B connector
• X7: Chassis GND, Screw terminal
USB connector (X6)
Pin Signal
1 +5V
2 Dm
3 Dp
4 ID
5 GND
I/O connector (X5)
Pin Signal Details Specifications
1 GPI Power control input Max. 32 VDC, High: 1.3-32 VDC, Low: 0-1.2 VDC
Configurable in web interface:
Request wake up or Power save on/off and
Active high or low
2 GPO Terminal ready Open collector max 400 mA, 10.5-32 VDC
output Configurable in web interface: Active high or low
3 GPIO General purpose Input: Max. 32 VDC, High: 1.3-32 VDC, Low: 0-1.2 VDC
input/ output Output: Open collector max 400 mA, 10.5-32 VDC
Configurable in web interface: Input or output and
Active high or low
4 GND Ground N/A
98-148231-F
www.cobham.com/satcom
Internet
BGAN M2M service
via satellite
Indoor equipment
DC
Ethernet
(26 AWG til 20 AWG), output up to 2A.
2
LAN/PoE connector (X1 or X2)
Pin Signal
1 TXp (PoE+)
2 TXm (PoE+)
3 RXp (PoE-)
4 POE+
5 POE+
6 RXm (PoE-)
7 POE-
8 POE-
DC power connector (X4)
Pin Signal
1 DCIN+
2 DCIN-
3 GND
C1D2:
This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D
OR non-hazardous locations only.
This equipment must be installed using wiring methods as required for Class I,
Division 2 as per the NEC and/or CEC.
WARNING – EXPLOSION HAZARD – Do not connect or disconnect
equipment unless power has been removed or the area is known to be non-
hazardous.
AVERTISSEMENT – RISQUE D'EXPLOSION – Ne pas brancher ou
débrancher un équipement sauf si le courant a été coupé ou la zone est
réputée non dangereuse.
Note: After completion of the installation
process the LED will only be lit for a short pe-
riod at power-up and then be off until a new
installation process is started.
LED status before
completion of the Description
installation process
Off Light indicator has been disabled or Power off
Green flashing rapidly Starting up
Yellow flashing BGAN pointing
Green flashing Verifying network connectivity
Green constant Ready
Yellow flashing rapidly Closing down
Yellow constant Warning (user recoverable).
See web interface for the warning text.
Red constant Error. See the web interface.
Blue flashing Uploading software to the terminal
Technical specifications
Item Specification
Dimensions 202 x 202 x 65 mm/ 8.0 x 8.0 x 2.5 inches
Weight 1.6 kg / 3.5 lbs (excl. cellular modem)
Power supply PoE 42.5 to 57 VDC According to: PoE+ IEEE 802.3at type 2 class 4
Power supply DC 10.5 to 32 VDC
Transient overvoltage Overvoltage category II
Power consumption (typical) Power save (Wake on GPIO/ timer): 0.1 W@12 VDC/ 2.4 W PoE
Power save (Wake on LAN): 0.9 W@12 VDC/ 2.3 W PoE
Idle: 2.3 W@12 VDC/ 3.5 W PoE
Transmitting: 19 W (20 W when in Cellular preferred mode, up
to 23 W if using 2G network)
IP grade IP66
Operating temperature -40 to +55°C/-40 to +131°F
Environment condition Outdoor mounting and use in harsh environment
Max. altitude for Hazardous locations 2000 m/ 6561 ft
Relative humidity 95% humidity non-condensing at 40°C/ 104°F
Pollution degree Pollution degree 2
Verifying and troubleshooting the installation
If the LED turns steady yellow, it means the installation failed, e.g. because the terminal was
unable to detect a stable BGAN signal or veriify the network connection.
If you connect a computer locally to the terminal, you can use the built-in web interface to follow
the progress on screen during installation, and to see warning messages if the installation failed.
1. Connect your computer to the LAN interface of EXPLORER 540.
2. Open your browser on the con-
nected computer.
3. Power up the terminal.
4. Access the web interface
at the local IP address (de-
fault192.168.0.1).
5. Enter the user name: user and
password: <serial number of the
terminal>.
Light indicator (LED)
