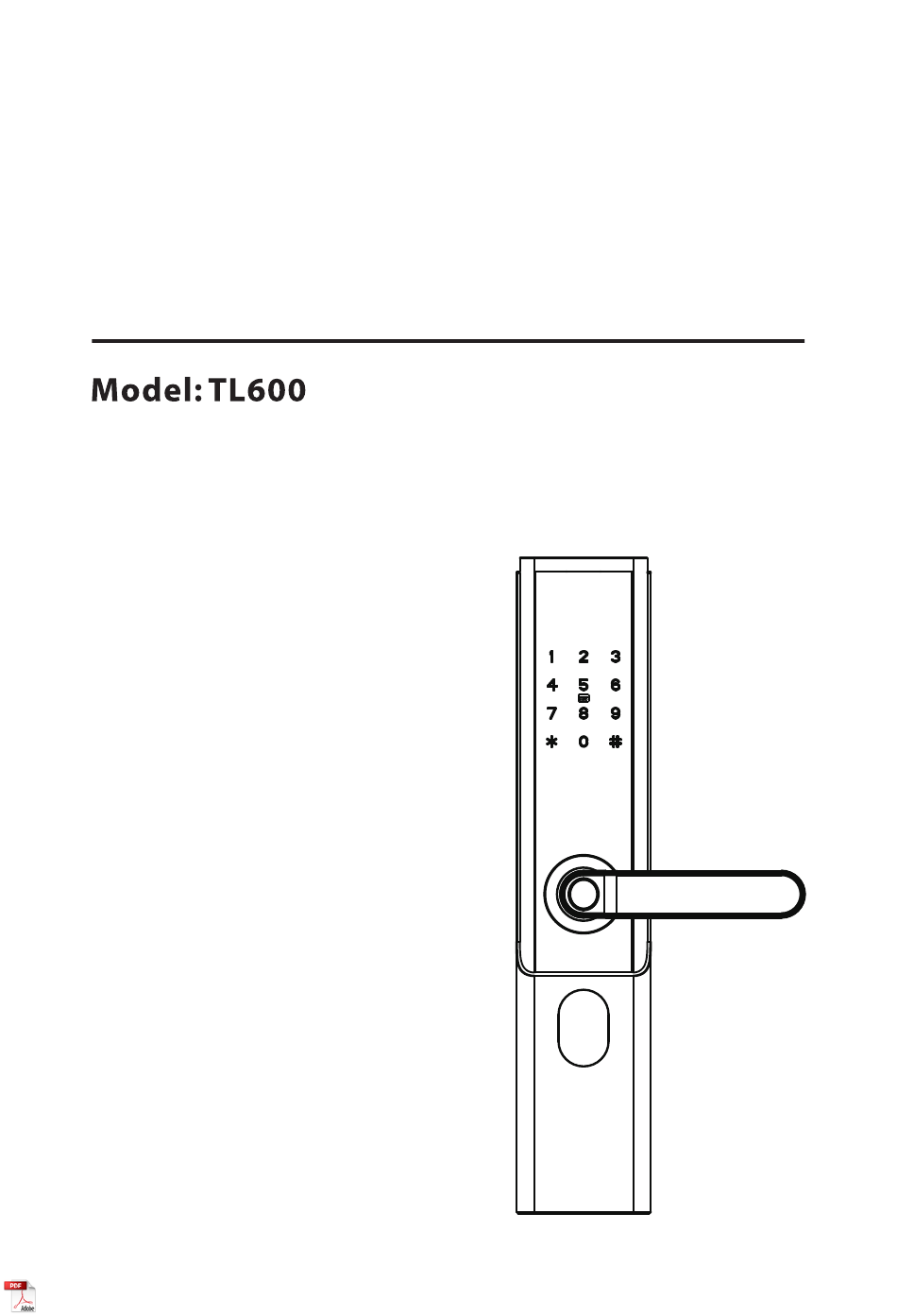

- Page 1 Installation Guide Version: 2.0...
-
Page 2: Table Of Contents
Important Notes Please read this Installation Guide carefully and contact the Customer Care Service if you have any questions about the installation. To avoid any future service charges that can arise as a result of incorrect installation, it is recommended that installation can be performed by a professional technician prevent any potential service charges that can occur due to incorrect installation. -
Page 3: What's In The Box
What's in the Box Mortise Outdoor Unit Indoor Unit Strike Plate Stud and Box Spindle C Keys Cylinder Spindle A Spindle B Plug Screw A Screw B Screw C Screw D Metal Pin Cards Door Thickness Screw 45 to 50 mm Screw A 51 to 60 mm Screw B... -
Page 4: Installation Diagram
Installation Diagram Door Outdoor Unit Stud Metal Pin Indoor Unit Keys Battery (not included) Spindle A/B Stud Screw C Mortise Cylinder Battery Cover Spindle C Screw B Metal Pin Screw A Screw D Plug Strike Plate and Box Installation Procedure Door Properties Measure the Door Thickness Measure the thickness of the door and select the appropriate Spindle length. - Page 5 Mortise StrikePlate StrikePlate Mortise Left Inward Right Inward Mortise StrikePlate StrikePlate Mortise Left Outward Right Outward User Location Adjust the Direction of Latch (if needed) Push the reverse block in upward direction. Push the bolt of the latch into the mortise. Rotate the latch bolt to 180°...
-
Page 6: Drill Holes On The Door
Drill Holes on the Door Place the installation template at the desired handle height. Mark the holes to be drilled and drill the marked locations. Center line of handle Desired handle height Install Mortise and Cylinder Put the Mortise into the hole that was drilled, and secure the Mortise with Screw A. Insert the Cylinder into the Mortise (note the front sides and back sides) and secure it with Screw B. -
Page 7: Install Spindle And Studs
Install Spindle and Studs Insert the Spindle A/B into the clutch and insert the Metal Pin from the bottom of the clutch, force the pin apart and bend it to hold the Spindle A/B. Then, install the studs. Stud Metal Pin Install the Outdoor Unit Pass the outdoor unit cable through the top of the cable hole. -
Page 8: Install Indoor Unit
Install Indoor Unit Insert the Metal pin on Spindle C. Connect the cable to the Indoor Unit port. Place the Indoor Unit appropriately on the Mounting Plate. Then use Screw C & Screw D to protect the Indoor Unit. Metal Pin Screw C Screw D... -
Page 9: Install Batteries And Cover
Install Batteries and Cover Insert four Alkaline AA batteries and cover them with the battery cover, and insert the Plug. Install Strike Plate and Box Make sure that the Strike Box is aligned with the latch bolt. Then, use the installation template to drill the holes. -
Page 10: Physical Test
Physical Test double locking knob. Test the lock by rotating the handle and the Note: The front handle can be rotated even when the door is closed, but the door remains unlocked. When the Security knob is turned on, the door remains unlocked even if the handle is rotated from indoor. - Page 11 User Manual Version: 2.0...
- Page 12 Important Notes TL600 is an intelligent Smart Lock. If the lock is not installed properly, it may affect the lifetime of the lock. We suggest to install the lock after furnishing. Please prefer a professional technician to install the lock as per our installation standard.
-
Page 13: Product Overview
Product Overview Battery Cover Keypad & Card Reset Button Detection Area Battery Compartments Fingerprint Sensor Handle Handle Security Knob Mechanical Key Hole Emergence Power Interface Double Locking Knob Definitions User Roles: The lock can be handled by two user roles namely Administrator and User. The Administrator has the privilege to access the menu and open the door. -
Page 14: How To Use
Emergency Charging: The bottom of the outdoor unit is provided with a Micro-USB interface. Use a power bank to charge the lock when it is out of power. Emergency Mechanical Key: The mechanical key is used to open the door when the lock has electronic malfunction. -
Page 15: Programming The Features Through Menu Mode
Programming the Features through Menu Mode Touch the keypad to activate the lock. Press the # key thrice to access the menu. Verify the administrator's identity with his/her fingerprint or card, or by entering the password then press the # key to confirm. Enter the digit corresponding to the function to be performed by following the audio guide. -
Page 16: Quick Start
Note: The registered password can be of 6 to 12 digits. The currently logged-in administrator cannot delete his/her admin data. Please ignore Hotpot config and OTA function. Quick Start Attention: If the verification is failed for five times, the lock will generate an alarm. Unlock the Door with Fingerprint Press the registered Rotate the handle... -
Page 17: How To Connect Zsmart App
How to connect ZSmart APP? Step 1: Download the ZSmart App and register your Account Search the ZSmart App in Apple App Open the ZSmart App and log in with Store or Google Play Store or scan the QR your account. If you do not have an Code to download the App to your account, create an account with your mobile phone /Tablet. - Page 18 Step 3: Add the Wi-Fi Details Select the desired Wi-Fi and enter the Password. Then tap the “Confirm” button. Note: The smart lock only works on 2.4GHz Wi-Fi networks. Step 4: Open Lock Smart Con g Mode Access the lock’s menu, press >> 4 >> 4 >> 1 to open smart config mode. Step 5: Setup Completion Once you see the message “Added successfully”...
- Page 19 Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
