Summary of Contents for ZKTeco TL700

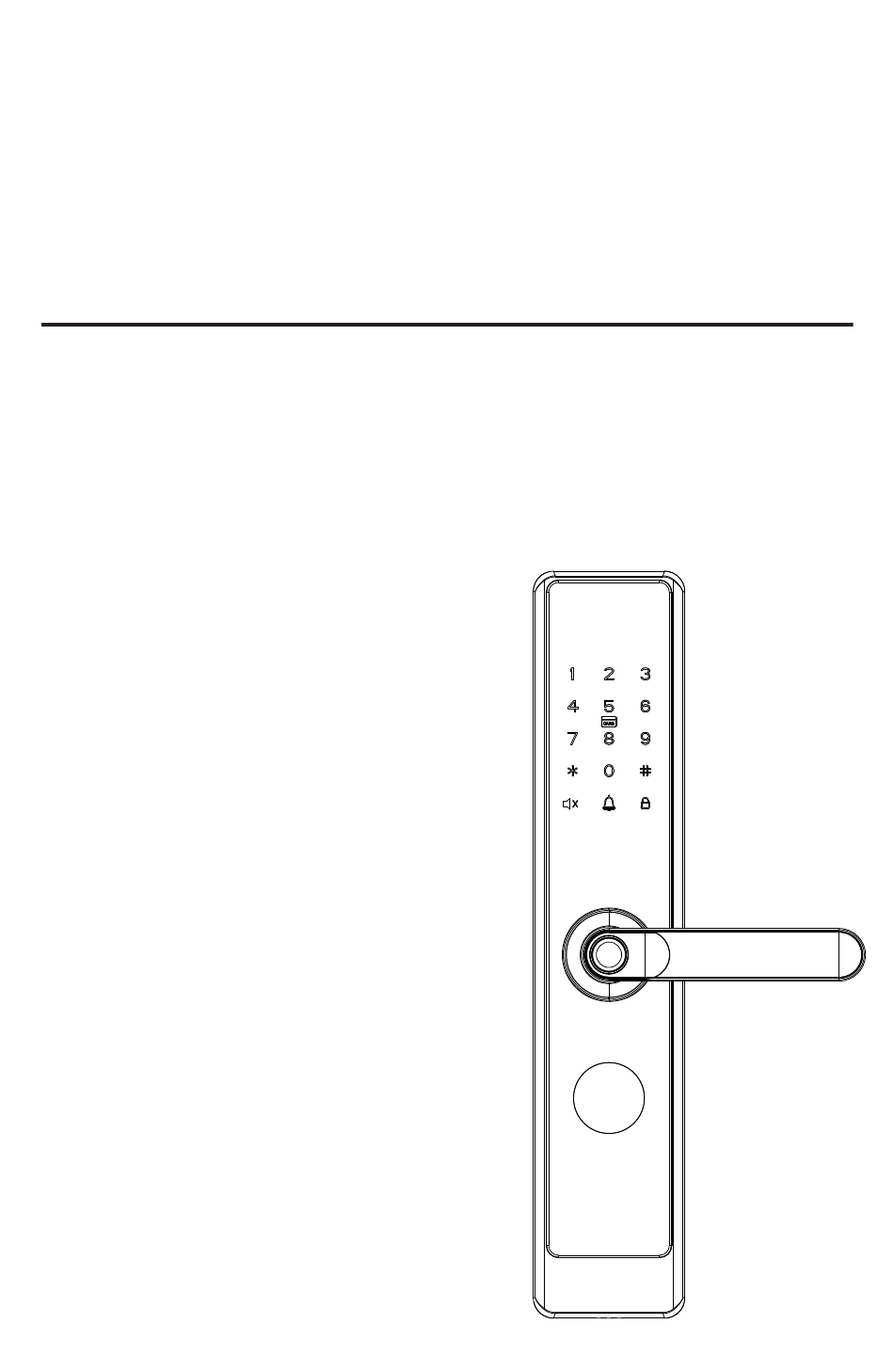

- Page 1 Installation Guide Model: TL700 Version: 1.0...
-
Page 2: Table Of Contents
Important Notes Please read this Installation Guide carefully and contact the Customer Care Service if you have any questions about the installation. To avoid any future service charges that can arise as a result of incorrect installation, it is recommended that installation can be performed by a professional technician to prevent any potential service charges that can occur due to incorrect installation. -
Page 3: What's In The Box
What's in the Box Mortise Outdoor Unit Indoor Unit Strike Plate and Box 70mm 60mm Keys Cylinder Spindle A Spindle B Stud 45mm Plug Screw A Screw B Screw C Metal Pin Cards Note: The spindles and screws are designed to fit doors with a thickness of 45mm to 60mm, and one of screws C need to be cut, how to cut it just like the below diagram. -
Page 4: Installation Diagram
Installation Diagram... -
Page 5: Installation Procedure
Installation Procedure Door Properties Measure the Door Thickness Measure the thickness of the door and cut the Spindle and Screws to proper length. For further details, please refer the table on Page 1. Check the Door Opening Direction The position of the handle is determined by the opening direction of the door. Below is the graphical representation of the door opening direction in reference to your position outside the room. -
Page 6: Drill Holes On The Door
Change the Handle Direction (if needed) Remove the directional screw of the handle, rotate the handles of the outdoor and indoor units to 180 degrees in the left or right direction, depending on the door. Secure the handle again with the directional screw. Note: Before changing direction, please make sure the Security Knob is at the right side. -
Page 7: Install Mortise And Cylinder
Install Mortise and Cylinder Put the Mortise into the hole that was drilled and secure the Mortise with Screw A. Insert the Cylinder into the Mortise (the front sides and back sides) and secure it with Screw B. Screw A Screw B Outdoor Outdoor... -
Page 8: Install The Outdoor Unit
Install the Outdoor Unit Pass the outdoor unit cable through the top of the cable hole. Pass the Spindle A through the hole of the clutch and the outdoor unit must be close to the entrance. Install Indoor Unit Insert the Metal pin on Spindle B, and uninstall the battery cover. Connect the cable to the Indoor Unit port. -
Page 9: Install Strike Plate And Box
Screw C Install Strike Plate and Box Make sure that the Strike Box is aligned with the latch bolt. Then, use the installation template to drill the holes. Align the Strike Plate and Box with the holes drilled and protect them with Screw A. Screw A... -
Page 10: Physical Test
Physical Test double locking knob. Test the lock by rotating the handle and the Note: The front handle can be rotated even when the door is closed, but the door remains unlocked. When the Security knob is turned on, the door remains unlocked even if the handle is rotated from indoor. - Page 11 User Manual Important Notes TL700 is an intelligent Smart Lock. If the lock is not installed properly, it may affect the lifetime of the lock. We suggest you to install the lock after furnishing. Please prefer a professional technician to install the lock as per our installation standard.
-
Page 12: Product Overview
Product Overview Definitions User Roles: The lock can be handled by two user roles namely Administrator and User. The Administrator has the privilege to access the menu and open the door. The user has the privilege to only open the door. Note: Each user can register ten fingerprints, one password, and one card. -
Page 13: How To Use
Emergency Charging: The bottom of the outdoor unit is provided with a Micro-USB interface. Use a power bank to charge the lock when it is out of power. Emergency Mechanical Key: The mechanical key is used to open the door when the lock has electronic malfunction. -
Page 14: Programming The Features Through Menu Mode
Programming the Features through Menu Mode Touch the keypad to activate the lock. Press * + # key to access the menu. Verify the administrator's identity with his/her fingerprint or card, or by entering the password then press the # key to confirm. Enter the digit corresponding to the function to be performed by following the audio guide. -
Page 15: Quick Start
Note: The registered password can be of 6 to 12 digits. The currently logged-in administrator cannot delete his/her admin data. Quick Start Attention: If the verification is failed for five times, the lock will generate an alarm. Unlock the Door with Fingerprint Press the registered Rotate the handle fingerprint on the... - Page 16 Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
