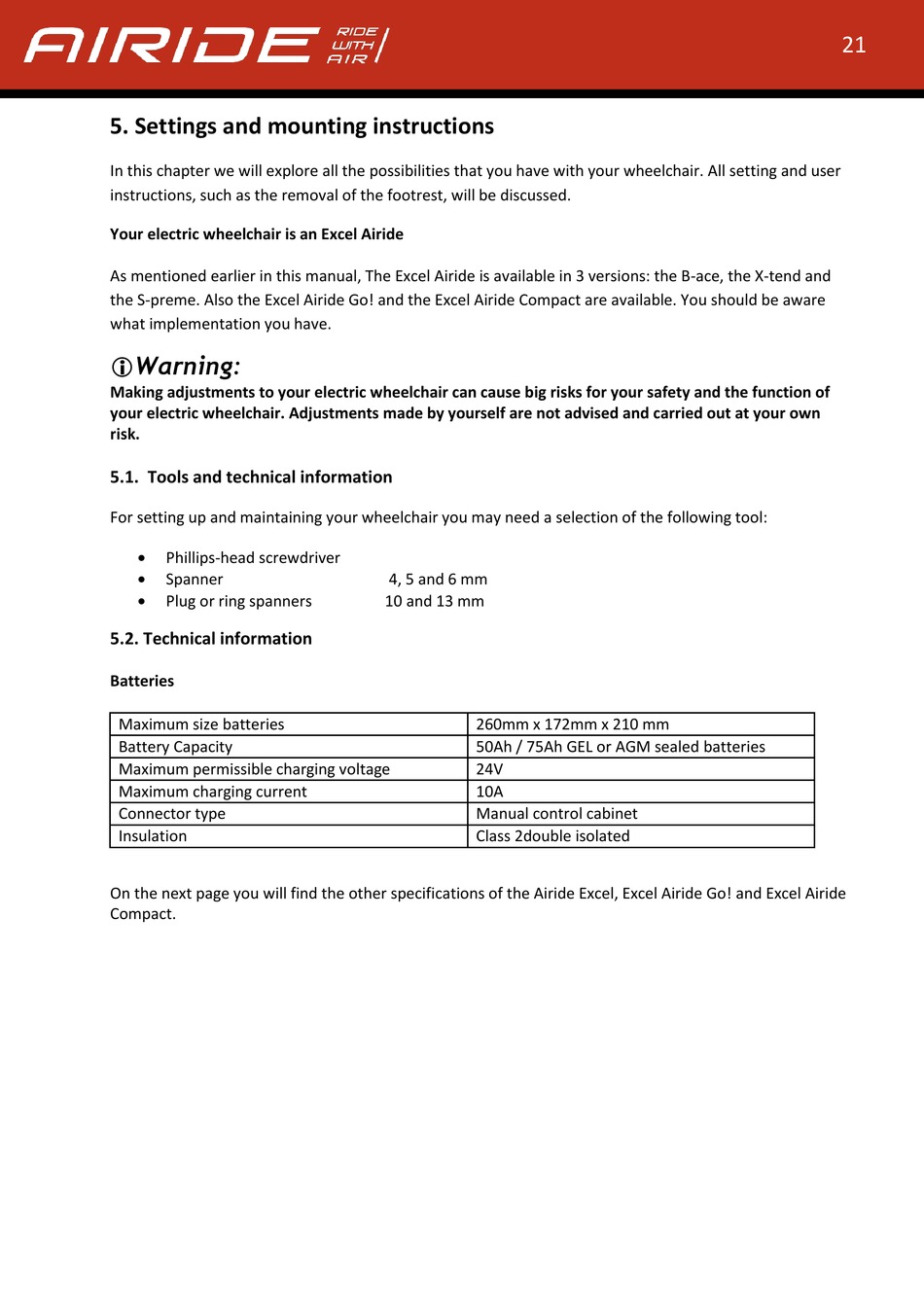

5. Settings and mounting instructions

In this chapter we will explore all the possibilities that you have with your wheelchair. All setting and user
instructions, such as the removal of the footrest, will be discussed.
Your electric wheelchair is an Excel Airide
As mentioned earlier in this manual, The Excel Airide is available in 3 versions: the B-ace, the X-tend and
the S-preme. Also the Excel Airide Go! and the Excel Airide Compact are available. You should be aware
what implementation you have.
Warning:
Making adjustments to your electric wheelchair can cause big risks for your safety and the function of
your electric wheelchair. Adjustments made by yourself are not advised and carried out at your own
risk.

5.1. Tools and technical information

For setting up and maintaining your wheelchair you may need a selection of the following tool:

Phillips-head screwdriver

Spanner

Plug or ring spanners

5.2. Technical information

Batteries
Maximum size batteries
Battery Capacity
Maximum permissible charging voltage
Maximum charging current
Connector type
Insulation
On the next page you will find the other specifications of the Airide Excel, Excel Airide Go! and Excel Airide
Compact.
4, 5 and 6 mm
10 and 13 mm
260mm x 172mm x 210 mm
50Ah / 75Ah GEL or AGM sealed batteries
24V
10A
Manual control cabinet
Class 2double isolated
21
