EPOYNT
User Guide
USA
1804 Owen Court,
Suite 104, Mansfield,
TX 76063
Tel: +1 817 533-8130
sales-us@poynting.tech
Version 3.0
Europe
Kronstadler Straße 4,
81677 München
Germany
Tel: +49 89 2080 265 38
Mob.: +49 176 529 733 50
sales-europe@poynting.tech

Advertisement

loading
Need help?

Need help?

Do you have a question about the EPOYNT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Poynting EPOYNT

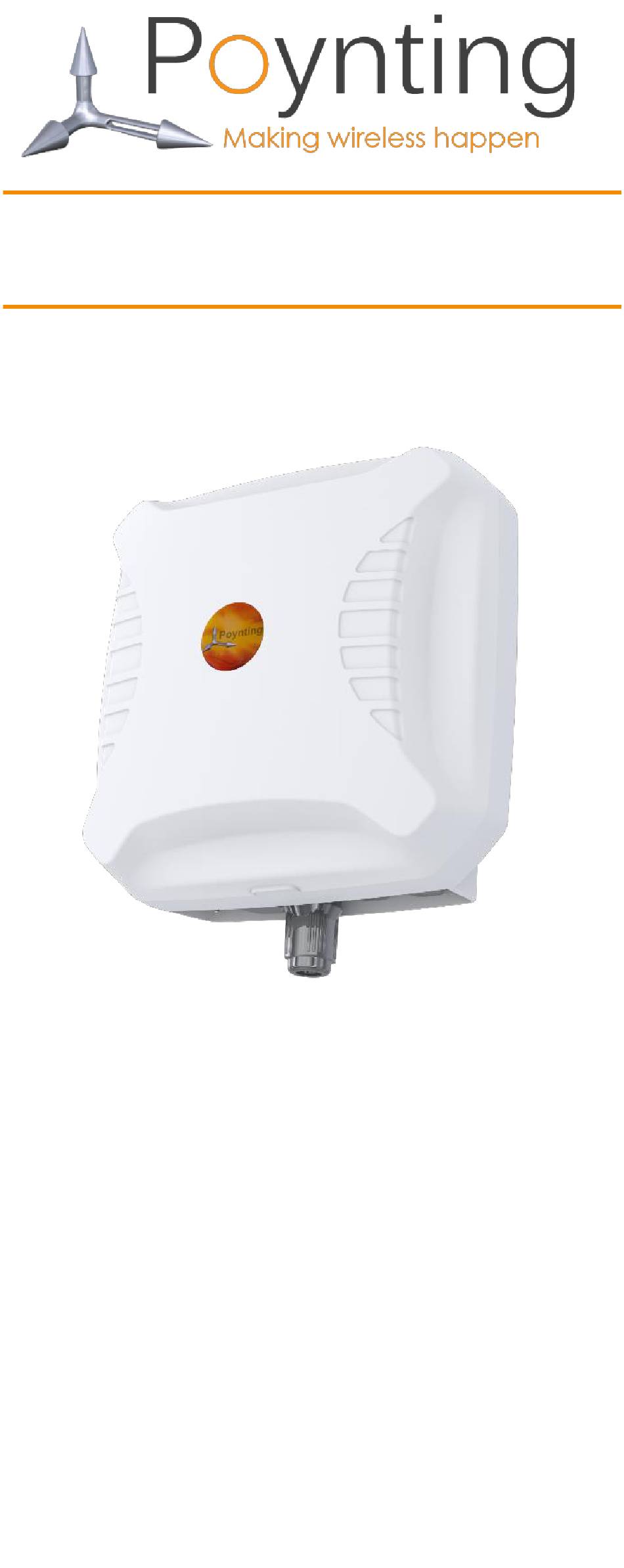

  • Page 1 EPOYNT User Guide South Africa Europe Unit 4, N1 Industrial Park 1804 Owen Court, Kronstadler Straße 4, Landmarks Ave Suite 104, Mansfield, 81677 München Samrand, 0157 Germany TX 76063 South Africa Tel: +49 89 2080 265 38 Tel: +1 817 533-8130 Tel: +27 12 657 0050 Mob.: +49 176 529 733 50...
  • Page 2 UG-EPNT-CPE...
  • Page 3 Packing Check List Setting up the CPE CPE Mounting Configurations 15 CPE Mounting Precautions Cable Routing Safety Basic Troubleshooting Note: Please ensure that you are using the latest version of this User Guide, which can be downloaded from www.poynting.tech Version 3.0...
  • Page 4 1. Packing Check List Item Description Quantity EPOYNT-CPE Only Wall Knock-in Screws Pipe Clamp Suckers Sucker Mounting Pins PCB Mounting Screws 4 PCB Spacers Spanner Ethernet Gland UG-EPNT-CPE...
  • Page 5 Appearance of components CPE Unit Wall Knock-in Screw Pipe Clamp Suckers Sucker Mounting Pins Version 3.0...
  • Page 6 PCB Mounting Screws PCB Spacers Spanner Ethernet Gland UG-EPNT-CPE...
  • Page 7 Gland Optional SIM Knock-out Port Ports Available (ADPT-10) Version 3.0...
  • Page 8 2. Setting up the CPE Install router into the CPE Step 1 • Carefully unscrew the fasteners at the back cover of the CPE using a Phillips screwdriver. UG-EPNT-CPE...
  • Page 9 CPE and align the holes to those of your router using the template below. b) Option 2: Download backplate template from www.poynting.tech to create an adapter plate which interfaces between the provided holes and your router. c) Option 3: Drill and use self-tapping screws on the backplate to mount your router.
  • Page 10 limited to the backplate which is used for mounting the router. • Secure the router onto the CPE using the provided spacers and screws. • Disassemble the Ethernet gland on the PoE port of the CPE and pass an Ethernet cable through it, with the over-nut first, then the rubber gasket and finally the contracting gland as shown below.
  • Page 11 • Connect the Ethernet cable from the CPE's Ethernet gland to the router's Ethernet port. • Carefully insert the SIM card(s) into the router or into optional CPE SIM extender(s) (ADPT-10). See step 2 below. • Connect the CPE's antenna ports to the respective connectors on the router (LTE and/or Wi-Fi) using a suitable fly lead available at a cost.
  • Page 12 • Connect another grounding cable (not provided) to the external screw and the other end to an existing earthing connection or earth spike. • A 20mm knock-out is provided behind the gland seal for an additional gland to be added (not provided), should required additional cables.
  • Page 13 Inserting SIM card(s) Step 2 Note: Make sure the CPE is turned OFF before you insert or remove your SIM card(s). Method 1: Insert your SIM card(s) into the router as per the supplier recommendation. An example is shown below. Method 2: Insert your SIM card(s) into optional (ADAPT-10) SIM extender slot(s)as shown...
  • Page 14 Powering your CPE Step 3 Method 1: Using a PoE Adapter • Connect the other end of the PoE Ethernet cable to the port labelled "PoE" on the PoE adapter. • Connect another network cable to the port labelled “LAN” on the PoE adapter and connect the other end of the cable to a computer or to a WAN/LAN port of an access point or...
  • Page 15 3. CPE Mounting Configurations Tools which may be required 6mm Masonry drill bit Impact drilling machine Screwdriver- cross slot/Philips & flat Hammer Version 3.0...
  • Page 16 Wall Mounting • Select a suitable place for mounting the CPE. • Use a 6mm masonry drill bit to drill four holes into the wall. See the dimensions below. • Insert the four knock-in screws to mount the CPE to the wall. •...
  • Page 17 Window Mounting Select a suitable place for mounting • the CPE. • Clean the selected area to remove dirt. • Place each of the four suckers through the holes in the bracket. • Insert the sucker mounting pins into the holes at the back of the suckers. •...
  • Page 18 Pole Mounting • Lay the CPE out at the installation site and assemble the CPE on the ground. • Place the pipe clamps through the bracket as shown below. • Place the pipe clamps around the pole and tighten the screw on the pipe clamps until the bracket is secured to the pole.
  • Page 19: Cable Routing

    4. CPE Mounting Precautions • Place the CPE at the highest point possible and ensure that there aren’t any surrounding obstructions. • In order to avoid communication interference, ensure that the CPE is placed at least 0.5m away from other antennas and metal objects.
  • Page 20 Note: The water drip loop is for preventing water from running down from the CPE along the cable into the house and possibly the PC. 6. Safety • If you are installing the CPE for the first time or unsure about how to install your CPE, obtain the help of a professional installer.
  • Page 21 3. Wear shoes with rubber soles and heels, protective clothing (long sleeve shirt or jacket) and rubber gloves. 4. Avoid installation while under the influence drugs, alcohol medication. 5. Make sure that any loose-fitting jewellery or clothing is secured and tie back long hair as they can get caught moving...
  • Page 22: Basic Troubleshooting

    European Waste Electronic Equipment Directive 2002/96/EC Please ensure that waste electricals and electronics are recycled. Directive 2011/65/EU (RoHS 2) This product is fully compliant with the RoHS 2 directive. 7. Basic Troubleshooting 1. The CPE does not power ON. • Make sure that the PoE adapter is fully plugged into the electrical socket and that the PoE power light is ON.
