Part Names - Frigidaire CGLMV169 Use & Care Manual

Over-the-range microwave oven
Hide thumbs

Advertisement

Table of Contents

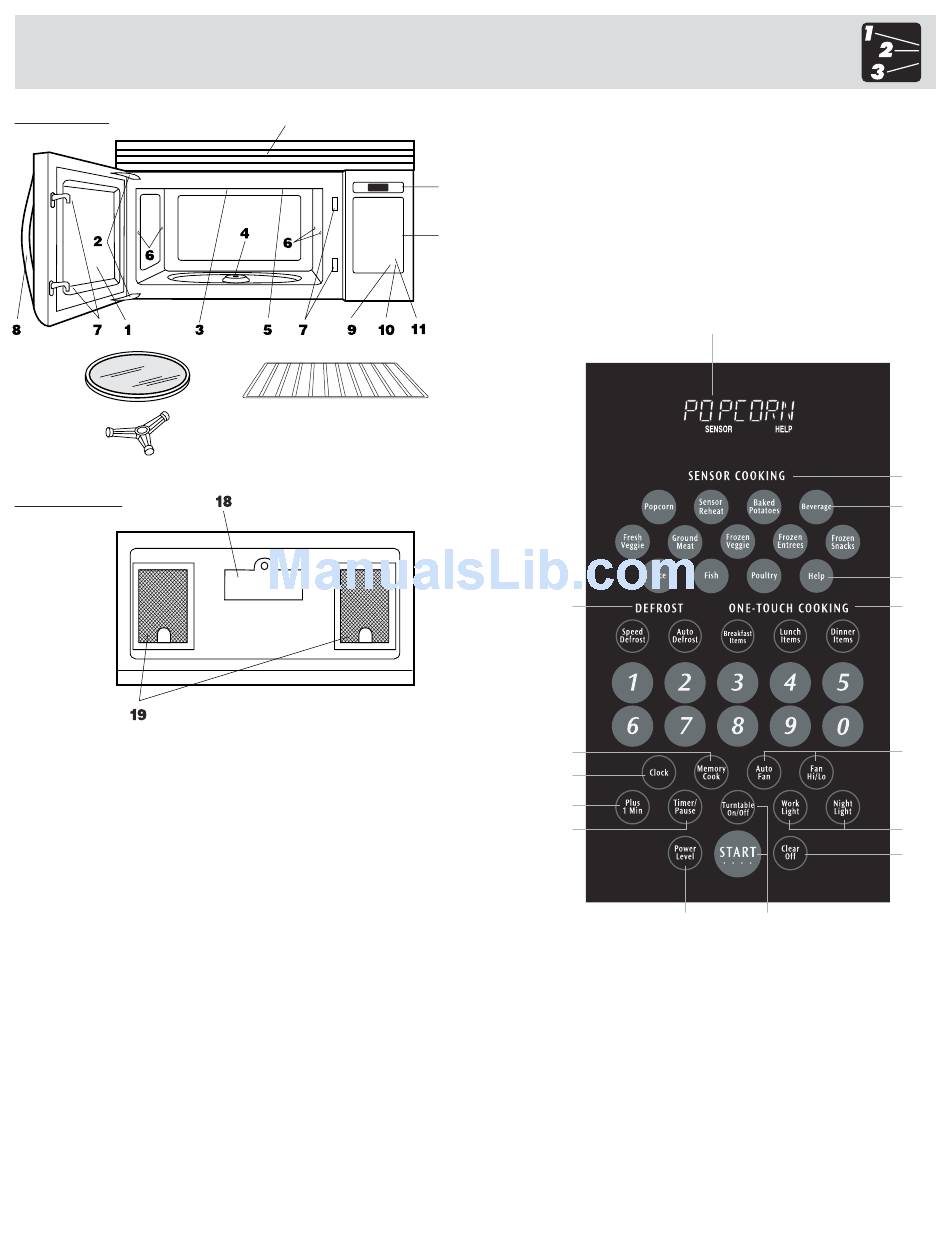

FRONT VIEW
16
BOTTOM VIEW
1 Microwave oven door with
see-through window
2 Door hinges
3 Waveguide cover:
DO NOT REMOVE.
4 Turntable motor shaft
5 Microwave oven light
It will light when microwave
oven is operating or door is
open.
6 Rack holders
7 Safety door latches
The microwave oven will not
operate unless the door is
securely closed.
8 Handle
9 Work light pad
Press the Work Light pad to
turn light on or off.
10 Night light pad
Press the Night light pad to
turn light on or off.
14
15
17
(Front of microwave oven)
(Rear of microwave oven)
11 Fan Hi/Lo pad
Press the Fan Hi/Lo pad to turn
on the fan. Press again for low
speed. Press a third time to turn
the fan off.
12 Auto-Touch control panel
13 Time display: Digital display,
99 minutes, 99 seconds
14 Ventilation openings
15 Removable turntable
The turntable will rotate clock-
wise or counterclockwise. Only
remove for cleaning.
16 Removable turntable support
First, carefully place the turntable
support in the motor shaft in the
center of the microwave oven
floor. Then, place the turntable
on the turntable support securely.
17 Rack for 2-level cooking/
reheating
18 Light cover
19 Grease filters

Part Names

13
12
15
16
8
16
17
7
The 7-digit Interactive Display spells out
operating steps and shows cooking hints.
When HELP is lighted in the display, touch
the Help pad to read a specific hint which
may assist you.
8
17
Number next to the control panel illustration
indicates page on which there are a feature
description and usage information.
9-11
11
16
11-14
17
17
8
