Installation
Instructions

BEFORE YOU BEGIN

IMPORTANT
inspector's use.
IMPORTANT
and coordinates.
Note to Installer
instructions with the Consumer.
Note to Consumer
tions for future reference.
Skill Level
– Installation of this appliance
requires basic mechanical and electrical skills.

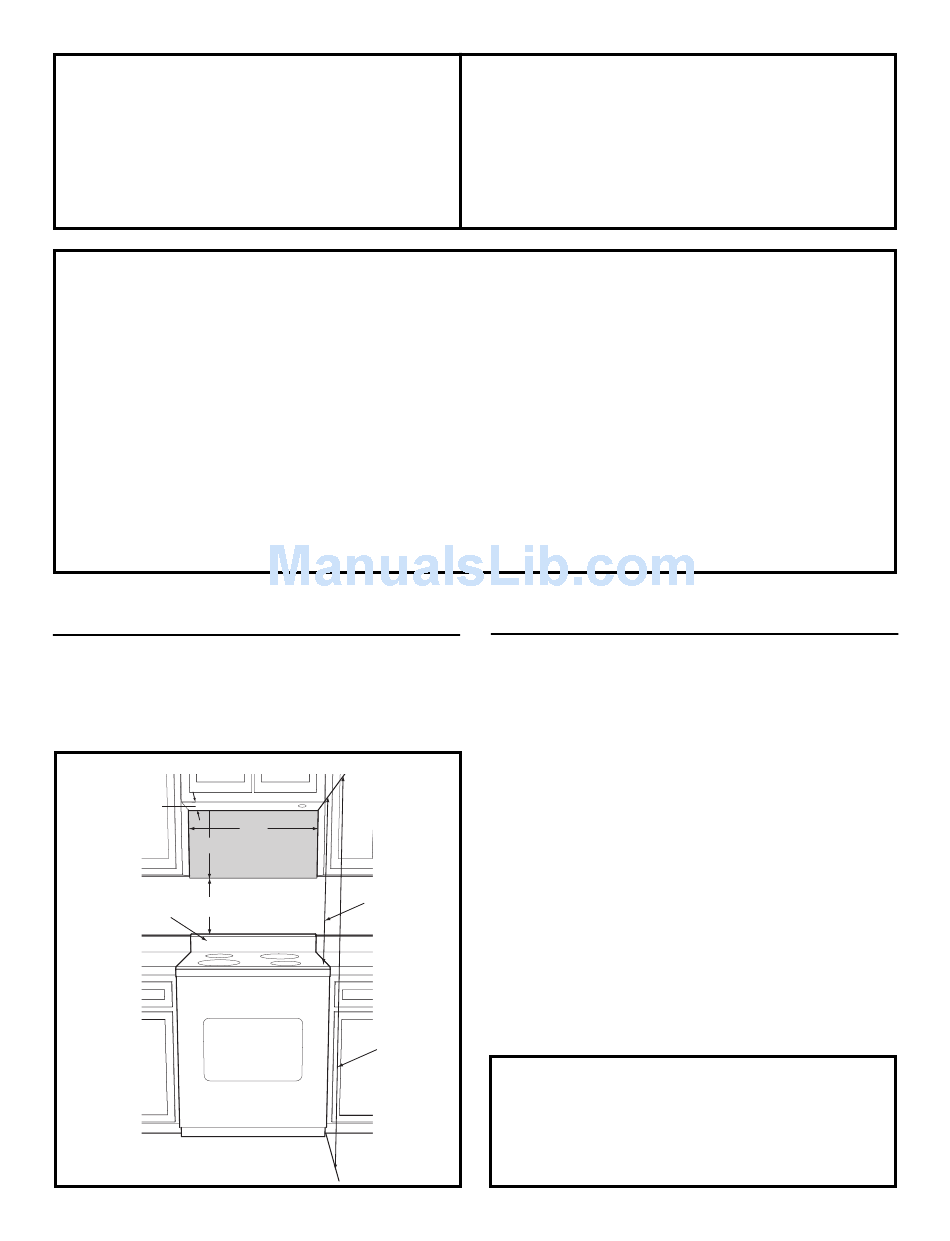

1 MOUNTING SPACE

This Microwave Oven/Hood requires a mounting space on a
wall as shown in Figure 1. It is designed to be used with stan-
dard 12-inch wall cabinets.
12"
15.5"
At least 2"
Backsplash
Figure 1
– Save these instructions for local
– Observe all governing codes
– Be sure to leave these
– Keep these instruc-
30"
30" or more from
cooking surface
66" or more
from floor
Over the Range

Microwave Oven

Read these instructions completely and carefully.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not cov-
ered under the Warranty.
• Please read all instructions thoroughly before installing
the Over the Range Microwave Oven. Two people are
recommended to install this product.
• If a new electrical outlet is required, its installation
should be completed by a qualified electrician before the
Microwave Oven is installed. See 3 ELECTRICAL
GROUNDING INSTRUCTIONS on page 2.

2 WALL CONSTRUCTION

This Microwave Oven/Hood should be mounted against and
supported by a flat vertical wall. The wall must be flat for prop-
er installation. If the wall is not flat, use spacers to fill in the
gaps. Wall construction should be a minimum of 2" x 4" wood
studding and 3/8" or more thick dry wall or plaster/lath. The
mounting surfaces must be capable of supporting weight of 110
pounds—the oven and contents—AND the weight of all items
which would normally be stored in the top cabinet above the
unit.
The unit should be attached to a minimum of one 2" x 4"
wall stud or two 2" x 3" wall studs.
To find the location of the studs, one of the following methods
may be used:
A. Use a stud finder, a magnetic device which locates the nails
in the stud.
B. Use a hammer to tap lightly across the mounting surface to
find a solid sound. This will indicate stud location.
The center of the stud can be located by probing the wall with a
small nail to find the edges of the stud and then placing a mark
halfway between the edges. The center of any adjacent studs
will normally be 16" or 24" to either side of this mark.
NEED HELP?
For customers in the United States, call: 1-800-944-9044
For customers in Canada, call: 1-800-213-9397 (English)
1-800-668-4606 ext.8199 (French)
READ CAREFULLY. KEEP THESE INSTRUCTIONS.
1
p/n 316137234
TINSEB385MRR0
