Part Names - Frigidaire Fpbm307Ntfa Use & Care Manual

2
6
17
7
8
1
11
10

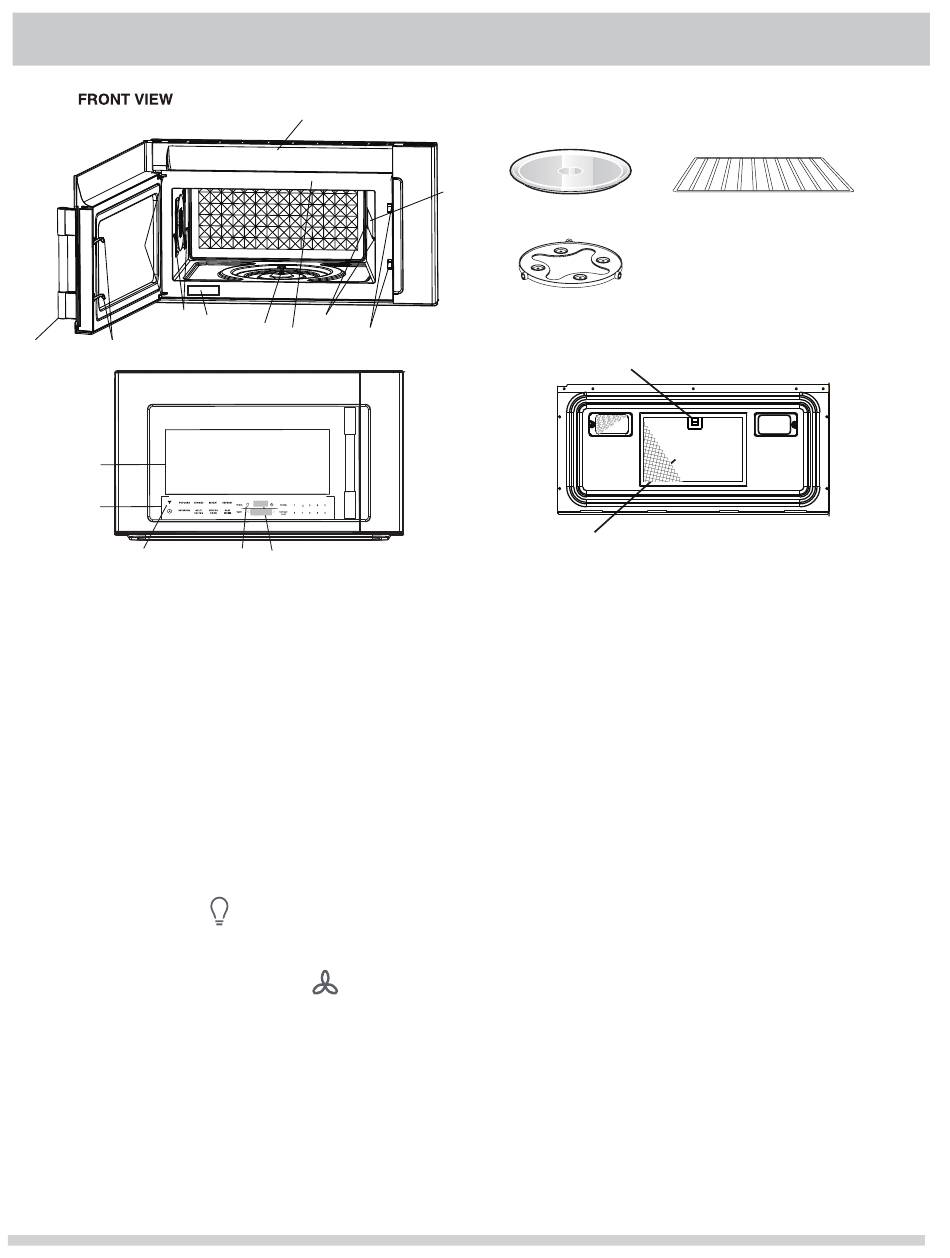

1 Microwave oven door with see-through window
2 Door hinges
3 Waveguide cover:
DO NOT REMOVE.
4 Turntable motor shaft
5 Microwave oven light
It will light when microwave oven is operating or
door is open.
6 Metal rack holders
7 Safety door latches
The microwave oven will not operate unless the
door is securely closed.
8 Handle
9 Light hi lo pad
P e r s s light once for high, twice for low,
three times for light off.
Vent turbo/hi/med/lo/off pad
10
P r e ss fan
once for fan speed turbo, twice
for fan speed high, three times for fan speed
medium,four times for fan speed low,five times
for fan speed off.
11 Auto-Touch control panel
12 Time display: Digital display, 99 minutes, 99
seconds
8
13
6
4
5
7
9 12
3
BOTTOM VIEW
Tab
Grease filter
13 Ventilation openings
14 Removable turntable glass
Position glass tray on turntable motor shaft
coupling.
15 Removable turntable support
Install the turntable support on the microwave
oven bottom, centering the turntable support
around the turntable coupling. Then place the
turntable glass tray unto the turntable motor
coupling.
16 Wire metal tr ay for co oking multi ple levels of food.
1 7 Rating label (model and serial number)

PART NAMES

14
(Do not keep metal rack in microwave
oven when not cooking 2 levels of food
15
(Front of microwave oven)
(Rear of microwave oven)
16
)
E
