ASSEMBLY INSTRUCTIONS

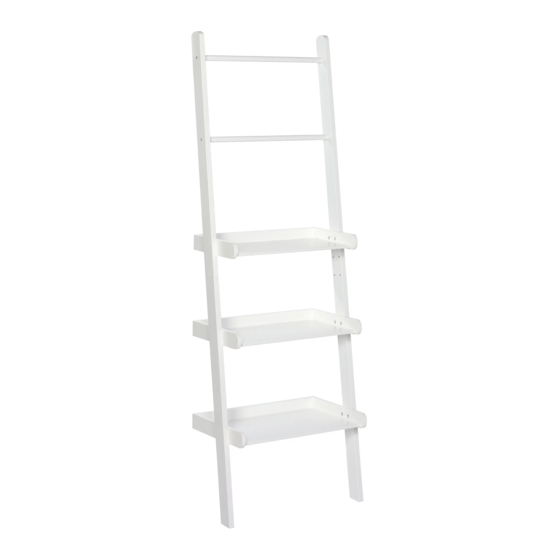

LADDER SHELF
ITEM#:06-035 White
ITEM#:06-036 Espresso
ADULT ASSEMBLY REQUIRED
Caution
:
This Ladder Shelf requires assembly by an adult because of small
parts, care should be taken in unpacking and assembly of this item
SEND REQUESTS FOR MISSING OR DAMAGED PARTS REPLACEMENTS BY EMAIL TO :
customer.service@ssi-rr.com
Advertisement
Table of Contents
Related Manuals for RiverRidge 06-035 White
Summary of Contents for RiverRidge 06-035 White
- Page 1 ASSEMBLY INSTRUCTIONS LADDER SHELF ITEM#:06-035 White ITEM#:06-036 Espresso ADULT ASSEMBLY REQUIRED Caution This Ladder Shelf requires assembly by an adult because of small parts, care should be taken in unpacking and assembly of this item SEND REQUESTS FOR MISSING OR DAMAGED PARTS REPLACEMENTS BY EMAIL TO :...
- Page 2 Young children can be killed when furniture tips over. Do not use as a TV stand. Use angle-braces or anchors to secure furniture to wall. THIS SHELF UNIT WILL HOLD TO 12 POUNDS PER SHELF FOR A TOTAL OF 36 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 12 POUNDS.
- Page 3 PARTS LIST TOP SHELF SECOND SHELF THIRD SHELF LEFT UPPER SIDE PANEL LEFT LOWER SIDE PANEL RIGHT UPPER SIDE PANEL RIGHT LOWER SIDE PANEL 2PCS CROSS BAR 4PCS METAL CONNECTION BAR 12PCS MACHINE SCREW 4PCS LONG SCREW 8PCS SMALL SCREW 2PCS SCREW FOR ANCHOR 2PCS...
- Page 4 STEP 1 STEP-1: 1. Insert 2pc Metal Connection Bar (A) into the holes on the end of Left upper side panel (4), make sure the hole on the Metal Connection Bar (A) is towards the hole on the Left upper side panel (4). 2.
- Page 5 STEP 3 STEP-3: 1. Attach 2pc Wooden Cross Bar (8) to Pre-Assembled Right side panel (6,7) by inserting 2pc Long screw (C) through the holes on the Right side panel then tighten to Wooden Cross bar (8). 2. Attach Top Shelf (1) to Right side panel by inserting 2pc Machine screw (B) through the holes on the Top Shelf (1) then tighten to the Right side panel.
- Page 6 Thank you for purchasing these RiverRidge® Home items. We hope you enjoy them. You can contact us at customer.service@ssi-rr.com with any questions or comments. RiverRidge® is a registered trademark of Sourcing Solutions ,Inc. Hudson,WI 54016...
