Installing the New Motherboard Tray Assembly

Slide the motherboard tray assembly back into the server.
1
Tighten the 2 thumbscrews on the motherboard tray assembly.
2

Reattaching the Power Cords and Ethernet Connector

Make sure the switch on each power
1
module is in the off position.
Reconnect the AC power cords and
2
Ethernet connector to the back of the
server.
Turn on the power modules.
3

Restarting the Server

Once you have completed the replacement procedure, you must restart the system.
At this point, the server has lost its static IP address, administrator name and
Note
password, and server name. For assistance in recovering the customer's
configuration and settings, contact Overland Storage Technical Support.
Field Service Documentation
Copyright © 2009, Overland Storage, Inc. All rights reserved. Information in this document is subject to change without notice and does
not represent a commitment on the part of Overland Storage or any of its subsidiaries.
The Snap Server® 12000 Motherboard Tray Assembly

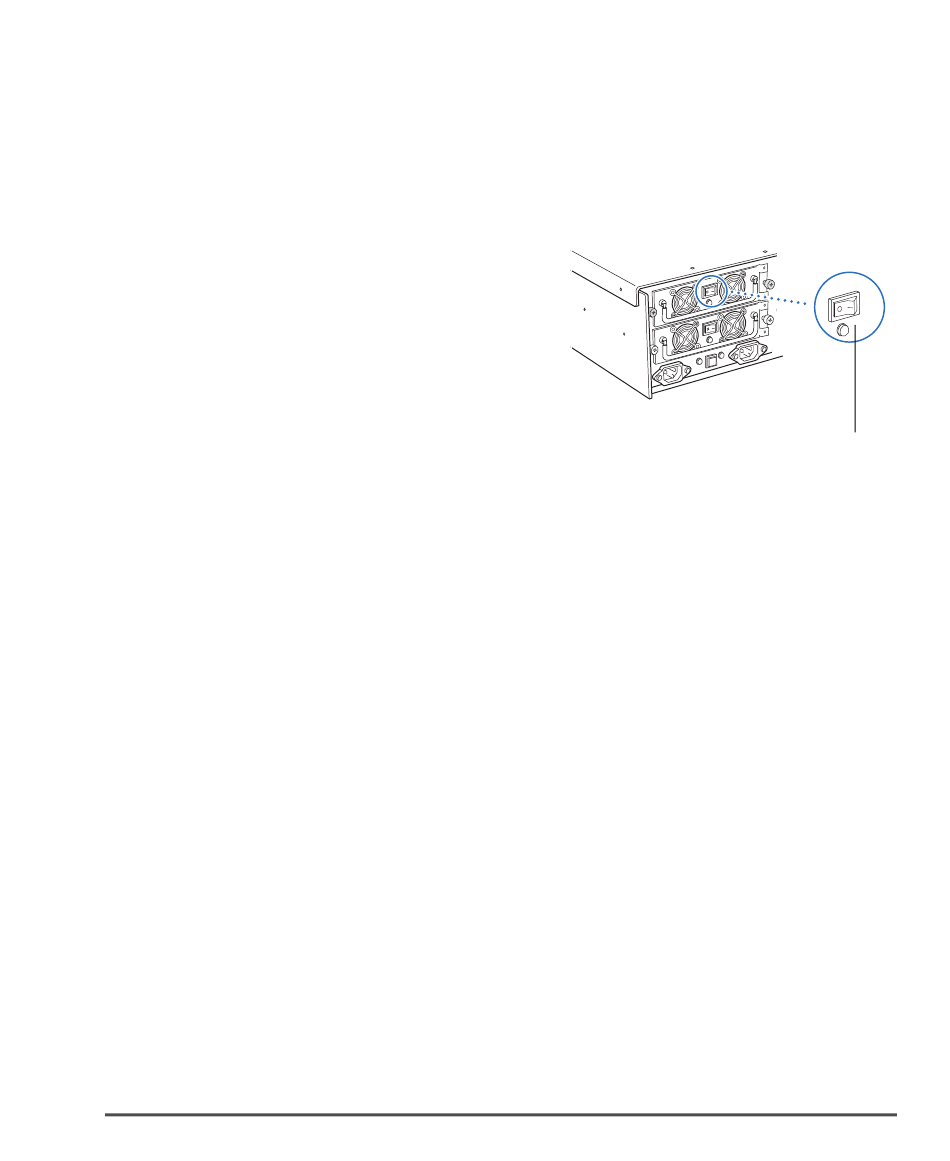

Power module on/off
