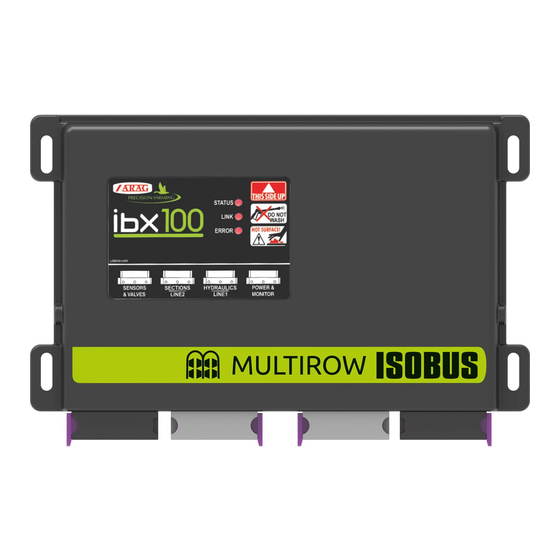

IBX100 ELECTRONIC CONTROL UNIT
4679004
46790042
Object Pool rel. 3.2.X
INSTALLATION, USE AND MAINTENANCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IBX100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARAG IBX100

Summary of Contents for ARAG IBX100

  • Page 1 IBX100 ELECTRONIC CONTROL UNIT 4679004 46790042 Object Pool rel. 3.2.X INSTALLATION, USE AND MAINTENANCE...
  • Page 2 This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for any future reference; ARAG reserves the right to modify product specifications and instructions at any moment and without notice.

  • Page 3: Table Of Contents

    11.9.3 Home > data and settings > implement settings > Device 18 Technical data .................71 calibration > Tank profile calibration ......... 28 18.1 Pin-out of IBX100............72 11.9.4 Home > data and settings > implement settings > Device 19 End-of-life disposal ..............74 calibration > Save tank profile .......... 29 11.9.5 Home >...

  • Page 4: Risks And Protections Before Assembly

    • RESPONSIBILITY The installer must carry out "workmanlike" installations and ensure to the end user the perfect operation of the whole system both with ARAG components only and other brands' components. ARAG always recommends using its components to install control systems.

  • Page 5: Position On Farming Machine

    11 Connection cable extension - length 3 m / 6 m 12 Sensor extension cable - length 3 m / 5 m 13 Pressure sensor 14 RPM sensor 15 Filling flowmeter 16 Level sensor 17 IBX100 Hydraulic ISOBUS control unit 18 Connection cable for hydraulic valves 7 / 9 oil functions - length 3 m 19 Connection cable for IBX100 control unit (hydraulic function) - length 1 m 20 Hydraulic control unit 21 Seletron for Fence / Buffer end nozzles 22 Boom lighting / flashing light Without Battery Booster, correct operation cannot be ensured, because the features of the power source to the ISOBUS socket are unknown.
  • Page 6 PLUG AUXILIARY INPUT PLUG 10 m 0,2 m FENCE Fig. 3 Legend: Standard ISOBUS connector (ISOBUS PLUG) - length 3 m / 6 m / 10 m / 14 m Switch boxes with cable - length 0.8 m Joystick Explorer with cable - length 0.8 m IBX100 Sprayer ISOBUS control unit Inductive speed sensor with cable - length 5 m Sensor cable 3 m long + main valve + control valve Water valve connection cable - length 3 m Control unit with flowmeter Control unit (section valves) 10 Connection cable for hydraulic valves 7 / 9 oil functions - length 3 m 11 Connection cable extension - length 3 m / 6 m 12 Connection cable extension - length 3 m / 6 m 13 Sensor extension cable - length 3 m / 5 m 14 Hydraulic control unit 15 Pressure sensor...

  • Page 7: Control Unit Fixing

    INSTALLATION Control unit fixing Secure the control units on the back of the machine, close to the control unit and the hydraulic unit. Consider all necessary connections of the device (par. 5.3), the cable length, and make sure there is enough space for connectors and cables.

  • Page 8: Wiring Harness Connection

    Control unit (section valves) SYSTEM WITH SECTION VALVES Hydraulic unit Seletron - Line 2 SYSTEM WITH SELETRON Seletron - Line 1 Standard ISOBUS connector (ISOBUS PLUG) Fig. 6 IBX100 HYDRAULIC (FOR SELETRON SYSTEM, ONLY) CONNECTION POINTS Hydraulic unit ECU IBX100 Sprayer Fig. 7...

  • Page 9: Wiring Connections

    • Use of unsuitable cables not provided by ARAG automatically voids the warranty. • ARAG is not liable for any damage to the equipment, persons or animals caused by failure to observe the above instructions. General precautions for a correct harness position •...

  • Page 10: Securing The Seletron Cables

    Never use an extension for any other components unless you have so agreed with the ARAG Assistance Center. Choose and install the cables so that they retain some freedom of movement at boom joints.
  • Page 11 SELETRON (BODY, HARNESSES, ETC.) COME INTO CONTACT WITH MOVING PARTS AT ANY TIME WHEN THE SYSTEM IS IN USE (INSTALLATION, COMMISSIONING, USE AND SHUTDOWN OF THE FARMING MACHINE). Arag will not be held responsible for any damage to the system, people, animals or objects caused by failure to follow the guidelines outlined above.

  • Page 12: Control Unit Valve Connection

    • Use ARAG valves: use of unsuitable valves not provided by ARAG automatically voids the warranty. ARAG is not liable for damage to the equipment, persons or animals caused by failure to observe the above instructions. • All valve connectors must be provided with seals before being connected (Fig. 20).

  • Page 13: Fence Nozzle Connection - Installation With Section Valves - Fig. 3

    INSTALLATION FENCE NOZZLE CONNECTION - Installation with section valves - Fig. 3 The system allows two Seletron type valves to be connected to handle "Fence" type nozzles. The valves must be connected by means of an adapter cable. FENCE / BUFFER NOZZLE connection - Installation with Seletron system - Fig. 2 The system allows two supplementary Seletron type valves to be connected to handle "Fence"...

  • Page 14: Sensor Connection

    • level sensor; • filling flowmeter; • RPM sensor. All ARAG sensors use the same type of connector. Connect the sensor connector to the relevant harness; make sure it is correctly fitted and push it until locking it. Fig. 24...

  • Page 15: Isobus System Cable Connection

    Connection: Fit the connectors (in-cab connection in Fig. 26), ensure they are correctly in place and turn the ring nut clockwise until blocking them. *ARAG Auxiliary Input control system is not compulsory on all systems, and must thus be ordered separately.

  • Page 16: Foreword

    "OBJECT POOL of the second Sprayer machine" loading The OP, labelled with number 2, for the second control unit IBX100 Sprayer is going to be installed. This icon will allow to manage the OP and thus the second Sprayer control unit, independently from the first one.

  • Page 17: Setting

    SETTING SETTING Tests and checks before setting Before setup, check: • that all components are correctly installed; • the correct connection to the power source; • the component connection. Failure to correctly connect system components or to use specified components might damage the device or its components. Control layout MENU / DATA SELECTION Goes back to main screen...

  • Page 18: Implement Settings > Basic Settings

    BASIC SETTINGS IMPLEMENT SETTINGS > BASIC SETTINGS Upon first switching on, enter the device basic settings. For a correct use of the keys during setting, refer to par. 9.2. Fig. 30 Fig. 31 Fig. 32 BASIC SETTING PROCEDURE START - VT will guide you during the configuration: follow the steps and select the desired options.

  • Page 19: Implement Settings > Advanced Setup

    IMPLEMENT SETTINGS IMPLEMENT SETTINGS > ADVANCED SETUP The computer can be set-up with all the data required to ensure a correct distribution of the treatment product. THE BASIC SETTINGS (CHAP. 10) AFFECT WHICH AND HOW MENU ITEMS ARE DISPLAYED, HENCE WHICH ADVANCED SETTING IT IS POSSIBLE TO CONTROL.

  • Page 20: Home > Data And Settings > Implement Settings > Boom

    IMPLEMENT SETTINGS Home > data and settings > implement settings > Boom 11.1 Indicate the number of boom sections. Indicate the distance between spraying points (nozzle holders). Indicate the number of spraying points (nozzle holders) installed on each boom section. Repeat the setup for each section (Fig.

  • Page 21: Home > Data And Settings > Implement Settings > Flowmeters

    IMPLEMENT SETTINGS Home > data and settings > implement settings > Flowmeters 11.2 This menu allows setting both flowmeter and filling flowmeter (if set). Set installed flowmeter by selecting it from the list in Fig. 40 (use keys to scroll items, and key to confirm).

  • Page 22: Home > Data And Settings > Implement Settings > Pressure Sensor

    When the flowmeter operates outside the limits the pressure measured by the sensor is used to calculate the spray rate. The table below indicates the values that are automatically set selecting the sensor code. USER If the installed sensor is not displayed, select and enter the relevant values. ARAG PRESSURE SENSOR Maximum pressure Type 466113.200 20.0 466113.500...

  • Page 23: Home > Data And Settings > Implement Settings > Valves

    IMPLEMENT SETTINGS Home > data and settings > implement settings > Valves 11.4 It allows configuring the main valve, the pressure control valve and the section valves: Fig. 44 Fig. 45 Main Valve > Type None 2 ways 3 ways Main control valve installed.

  • Page 24: Home > Data And Settings > Implement Settings > Nozzle Data

    If necessary, repeat the setup for each nozzle. Set the reference flowrate and pressure for the selected nozzle. 3 - 4 The flowrate of the nozzle being used allows IBX100 to calculate the pressure without a pressure sensor. Flowrate Pressure The values for can be modified for “User”...

  • Page 25: Home > Data And Settings > Implement Settings > Speed

    Tractor-ECU according to the rotation speed of the wheel or a mechanical part of the tractor. NOTE: Tractor-ECU can be a standard ECU in the ISOBUS tractor, installed by after-sales service (ARAG IBX20 TECU) or emulated by the VT in the cabin.

  • Page 26: Home > Data And Settings > Implement Settings > Tank

    File server ( par. 11.9.4 allows loading on IBX100 the calibration curve of the tank profile on the File server ( par. 11.9.5 to view the curve just loaded, it is necessary to restart the IBX100 as described in the paragraph 12.7.

  • Page 27: Home > Data And Settings > Implement Settings > Device Calibration > Press. Sensor Zero Value

    IMPLEMENT SETTINGS Home > Data and settings > Implement settings > Device calibration > Press. sensor zero value 11.9.1 In case a pressure value other than zero is displayed despite the absence of pressure inside the circuit, it is necessary to perform zero calibration of the sensor.

  • Page 28: Home > Data And Settings > Implement Settings > Device Calibration > Tank Profile Calibration

    IMPLEMENT SETTINGS Home > data and settings > implement settings > Device calibration > Tank profile calibration 11.9.3 The calibration of the tank profile is ONLY possible if a flowmeter is installed on the system. Before starting the procedure carry out the following operations: Make sure the main control is in OFF position Fill the tank with clean water WITHOUT ADDING CHEMICAL SUBSTANCES.

  • Page 29: Home > Data And Settings > Implement Settings > Device Calibration > Save Tank Profile

    Current folder path. MCMC0258 is the initial folder automatically created by the client file server and refers to ARAG because 0258 is the code that identifies ARAG as the ISOBUS component manufacturer. BACK. Goes back to the previous folder.

  • Page 30: Home > Data And Settings > Implement Settings > Device Calibration > Load Tank Profile

    List of files contained within the current folder. In order to be loaded, the backup file must have the extension .pro and must be inside the folder MCMC0258. This folder refers to ARAG because 0258 is the code that identifies ARAG as the ISOBUS component manufacturer.

  • Page 31: Home > Data And Settings > Implement Settings > Implement Geometry

    IMPLEMENT SETTINGS Home > data and settings > implement settings > Implement geometry 11.10 Select the type of implement connection. Enter the selected implement dimensions. 2 - 3 - 4 Enable / disable the option, for booms with center section offset from the rest of the boom; enter the measurement. Check Virtual Terminal settings: if a specific menu is available (varying based on your VT) to program machine geometry, it has the priority over the ECU menu.

  • Page 32: Home > Data And Settings > Implement Settings > System Configurations

    15.3.2 Home > Automatic functions > Nozzles selection. SPRAYING REMOTE CONTROL 3 Select the type of spraying remote control connected to the VT. None (DEFAULT) Spraying disabled (ECU) Allows managing the external general control connected to the IBX100. - MAIN CONTROL ON: Open contact - MAIN CONTROL OFF: Closed contact Spraying enabled (ECU) Fig. 66 Allows managing the external general control connected to the IBX100.
  • Page 33 11 Enable / disable the use of prescription maps for treatments with variable application. TIMING The correct management of valve timing, set on implement OP (IBX100), may vary based on the connected VT. 12 Indicate the time between the moment when the command is sent to the valves and the actual moment in which product output starts.

  • Page 34: Home > Data And Settings > Implement Settings > "Fence

    IMPLEMENT SETTINGS Home > data and settings > implement settings > “Fence” 11.13 Allows setting the characteristic data of the "Fence" nozzle. Set the reference flowrate and pressure for the “Fence” nozzle. 1 - 2 These data allow the correct adjustment of the application rate when "Fence"...

  • Page 35: Data And Settings

    DATA AND SETTINGS DATA AND SETTINGS Data and settings > Manage presets 12.1 From this menu: - Set 8 different spraying configurations: PRESET SETTING, Fig. - Set 2 different nozzle configurations depending on the type of valves installed: • VALVES WITH GEARMOTOR (SINGLE BOOM) OR SINGLE SELETRON, Fig. 74. •...
  • Page 36 DATA AND SETTINGS > > > Data and settings > Manage presets Data and settings > Manage presets > Setup > Nozzles configuration VALVES WITH DUAL OR SINGLE BOOM GEARMOTOR WITH TWIN OR FOURFOLD SELETRON VALVES Fig. 76 Fig. 77 Fig.
  • Page 37 DATA AND SETTINGS > > > Data and settings > Manage presets PRESET ACTIVATION Fig. 80 CONSULTATION OF JOB DATA OF THE SELECTED PRESET Preset - Select the - Use key to scroll pages and key to delete the job data; WARNING: total counters and average values are simultaneously deleted.

  • Page 38: Data And Settings > Working Parameters

    12.2 Set the farming machine job limits. SPEED 1 To configure the items on this menu, you must enable the speed limit. Set the minimum working speed: The IBX100 Sprayer closes the main valve when the tractor speed is lower than the set value. CHANGE TARGET RATE 2 Set the target rate mode and increment value.

  • Page 39: Data And Settings > Info And Alarms

    DATA AND SETTINGS Data and settings > Info and alarms 12.3 From this menu you can enable alarm visual and acoustic notifications when the related event occurs. Alarm enabled / Alarm disabled. For the procedure to be followed when an alarm occurs, please refer to par.

  • Page 40: Data And Settings > Implement Settings

    DATA AND SETTINGS Data and settings > implement settings 12.4 Consult chap. 11 Implement settings > Advanced Setup. Data and settings > Job data 12.5 Allows consulting the spraying total data relating to applied area and job time Fig. 89 Data and settings >...

  • Page 41: Data And Settings > System Status

    Displayed items are READ-ONLY. par. 12.7.1 par. 12.7.2 par. 12.7.3 par. 12.7.4 Restart ECU Press button to restart IBX100 and confirm. par. 12.7.5 par. 12.7.6 Fig. 91 Data and settings > System status > Devices status 12.7.1 Displays system information.

  • Page 42: Data And Settings > System Status > Isobus

    : IBX100 will use the data contained in the relevant messages, regardless of the Accept all source they come from. : IBX100 will only use the message coming from the Tractor ECU present in the system. TECU : IBX100 will only use the message coming from the Virtual Terminal present in the system.

  • Page 43: Data And Settings > System Status > Auxiliary Input Status

    DATA AND SETTINGS Data and settings > System status > Auxiliary input status 12.7.3 Checks the connection of the Auxiliary Input. Hardware working correctly Hardware malfunction Hardware not installed Not all hydraulic functions have been assigned. Fig. 96 Goes back to previous menu, Cancel Quits without confirming the Goes back to main screen...

  • Page 44: Data And Settings > System Status > System Settings

    Press to create a backup file of the settings in use and save it to the internal memory of IBX100. The internal memory of IBX100 CANNOT contain more than one backup file. Save active config [ECU] Press TO OVERWRITE THE PREVIOUSLY SAVED FILE WHICH WILL BE PERMANENTLY DELETED.
  • Page 45 File server feature. Current folder path. MCMC0258 is the initial folder automatically created by the client file server and refers to ARAG because 0258 is the code that identifies ARAG as the ISOBUS component manufacturer. BACK. Goes back to the previous folder.
  • Page 46 List of files contained within the current folder. In order to be loaded, the backup file must have the extension .bak and must be inside the folder MCMC0258. This folder refers to ARAG because 0258 is the code that identifies ARAG as the ISOBUS component manufacturer.
  • Page 47 DATA AND SETTINGS Data and settings > System status > System settings > Settings manager > Reset to Arag factory defaults Allows resetting the factory settings in the IBX100 menu. Reset to Arag factory defaults Press to reset the IBX100 configuration to factory settings. All settings in the application menu at the time of reset WILL BE PERMANENTLY LOST.

  • Page 48: Data And Settings > System Status > Registration

    DATA AND SETTINGS Data and settings > System status > Registration 12.7.5 Should it be necessary to re-enter the registration code supplied with the ECU, proceed as follows. REGISTRATION Press to enter registration code. Type in the code and confirm with key Fig.

  • Page 49: Data And Settings > User Preferences

    : the use at this level allows the configuration of both machine features and treatment. You can set an access PIN code. Arag-Tech • : for ARAG staff, only. “HOME” SCREEN COUNTERS Set speed range end-value ("HOME" screen, par. 14.1). Set pressure range end-value (“HOME” screen, par. 14.1).

  • Page 50: Seletron Connection

    SELETRON CONNECTION SELETRON CONNECTION PLEASE CAREFULLY FOLLOW THE INSTRUCTIONS PROVIDED IN THIS CHAPTER. ANY MISTAKE DURING SELETRON PAIRING/REPLACEMENT MAY LEAD TO SYSTEM OPERATION FAILURE. BEFORE PROCEEDING, MAKE SURE YOU ARE ABLE TO HEAR THE ACOUSTIC SIGNALS COMING FROM THE MONITOR LOCATED IN THE CABIN (DOORS OPEN, ETC.).

  • Page 51: Id Reset

    SELETRON CONNECTION The products are supplied with valve installation instructions. Make sure the device is correctly fitted and push it until locking it. When the cable is inserted in the connector, the Seletron is sealed. To avoid damaging the internal components, make sure that when using or cleaning the system the connectors are not bare or inserted incorrectly.

  • Page 52: Seletron Replacement

    SELETRON CONNECTION 13.2 SELETRON REPLACEMENT 13.2.1 Preliminary Operations TO AVOID ACCIDENTS, EMPTY THE TANK AND MAKE SURE THAT THE ENTIRE SYSTEM IS COMPLETELY FREE FROM CHEMICALS. IMPORTANT Operate main valve and section controls (ON position) and carry out the indicated settings: General control ON Open sections Active nozzles...
  • Page 53 Alternatively, if you do not have a torque wrench, tighten the Seletron devices by hand and make sure there are no leaks. ARAG IS NOT LIABLE FOR ANY DAMAGE OR MALFUNCTION CAUSED BY THE USE OF TOOLS DIFFERENT FROM THE ONES INDICATED ABOVE.

  • Page 54: Use

    JOB FUNCTIONS 14.1 “HOME” main screen MENU SELECTION BUTTONS * Change of target rate (par. 15.1) Data and settings (chap. Displays job information / alarms (par. 15.2) Automatic functions (par. 15.3) Tank filling management (par. 15.4) Main control ON/OFF (par. 15.5) *Management of Syncro ISOBUS functions (par.

  • Page 55: Job Functions

    JOB FUNCTIONS JOB FUNCTIONS Home page > Change target rate 15.1 Output temporary increase and decrease - From “Home” screen, press WARNING! This button is NOT present if the Syncro function is enabled. Change the target rate value for the job. “HOME”...

  • Page 56: Home > Automatic Functions

    Enables / disables automatic output adjustment (DEFAULT: ON). “HOME” SCREEN “HOME” SCREEN Automatic adjustment ON Automatic adjustment OFF AUTOMATIC ADJUSTMENT ON IBX100 keeps the set spray rate constant regardless from the changes in speed and boom section status. In this case the application rate can be set with the proper functions Manage presets Change target rate (par.

  • Page 57: Home > Automatic Functions > Nozzles Selection

    JOB FUNCTIONS 15.3.2 Home > Automatic functions > Nozzles selection Enables / disables automatic nozzle selection on all spraying points (DEFAULT: ON). AUTOMATIC NOZZLE SELECTION MANUAL NOZZLE SELECTION Allows to select manually nozzles in use on the spraying points. When spraying starts (general command ON), VT automatically checks the The number of nozzles displayed will vary according to the spraying point setting flowrates: if the necessary conditions are not met, VT signals this with the (par.

  • Page 58: Home > Automatic Functions > Simulated Speed

    JOB FUNCTIONS 15.3.3 Home > Automatic functions > Simulated speed Allows enabling / disabling speed simulation (DEFAULT: OFF). The simulation allows carrying out regulation tests with stopped machine (default presetting at 6 km/h - 3.7 MPh). “HOME” SCREEN “HOME” SCREEN Simulation speed modification: with active simulation press the indicated keys Increase...

  • Page 59: Home > Tank

    JOB FUNCTIONS 15.4 Home > Tank Manages tank filling. The management mode will change according to the device set for the tank level reading (chap. 10). From “Home” screen, press Press to reset the tank level Press to set the quantity of liquid filled in the tank Range Press to set the quantity of liquid present in the tank Press to set tank level to the maximum value...
  • Page 60 JOB FUNCTIONS TANK LEVEL MANUAL SETTING 1 Press to set the quantity of liquid in the tank. 2 - 3 Set the value and confirm. The display will show the tank level. It is not possible to set values higher than tank total capacity.

  • Page 61: Main Control And Section Management

    Auxiliary Input ON ARAG Auxiliary Input control system is not compulsory on all systems, and must thus be ordered separately. Some VTs allow controlling section valves directly from monitor touch- screen panel.
  • Page 62 JOB FUNCTIONS SECTION DIRECT CONTROL FROM TOUCH-SCREEN PANEL Section switches Press button to display the page - Press to open/close the relevant section Section ON Main control ON Section ON Main control OFF Section OFF - Press to open/close the relevant end nozzle End nozzle ON Main control ON End nozzle ON...
  • Page 63 JOB FUNCTIONS SECTION SEQUENTIAL CONTROL FROM TOUCH-SCREEN PANEL Press button to open sections to the left, starting from the first available Press button to open sections to the right, starting from the first available on the right. on the left. Press button to close sections to the right, starting from the first available Press button to close sections to the left, starting from the first available on the left.
  • Page 64 JOB FUNCTIONS JOYSTICK: ARAG DEFAULT FUNCTIONS The functions described below are illustrative. Press keys O = opens the hydraulic valve The following contents may NOT be updated and may differ from the to scroll C = closes the hydraulic valve product in your possession.

  • Page 65: End Nozzles

    JOB FUNCTIONS 16.1 End nozzles "BUFFER ZONE" FUNCTION ENABLED - ONLY FOR SELETRON SYSTEM Some spraying modes entail special areas called "Buffer zones", where spraying must be reduced or absent. Besides the normally used nozzles, special nozzles must be installed (e.g.: ASJ AOC), which reduce the jet or the drift effect at boom end sides. To connect the "Buffer"...
  • Page 66 JOB FUNCTIONS "FENCE NOZZLE" function enabled This function entails the assembly of specific nozzles at boom end; these nozzles allow spraying areas that cannot be reached by the traditional nozzles due to the boom size (i.e. fences). The enabling of such nozzles does not stop the output from the other boom nozzles. The connection and pairing procedure of seletron devices and "Fence"...

  • Page 67: Home > Syncro Control

    JOB FUNCTIONS 16.2 Home > Syncro control The user can access the functions of the connected Syncro ISOBUS: execute available commands, view info and alarms. The user CANNOT program the Syncro. From “Home” screen, press Please, refer to the relevant instruction manual (download area of the site "www.aragnet.com").

  • Page 68: Maintenance / Diagnostics / Repairs

    MAINTENANCE / DIAGNOSTICS / REPAIRS MAINTENANCE / DIAGNOSTICS / REPAIRS 17.1 Cleaning rules - Clean only with a soft wet cloth. - DO NOT use aggressive detergents or products. - DO NOT aim water jets directly at control unit. Fig. 138 17.2 LED status key COLOR...

  • Page 69: Error Messages

    MAINTENANCE / DIAGNOSTICS / REPAIRS 17.3 Error messages OPERATING MESSAGE ON DISPLAY CAUSE SOLUTION MODE Disable main valve switch Main switch ON upon switching on • Disable main control (OFF) Master ON Regulation • Start the machine. Move forward! The machine is stopped Main control ON with machine stopped AUTO ON •...

  • Page 70: Troubleshooting

    • Perform setting. Pressure sensor wrong installation • Check connections to pressure sensor. Wrong setup • Check pressure sensor setting. IBX100 does not receive signals from pressure Instantaneous pressure is not displayed • Check connections to pressure sensor. sensor Pressure sensor wrong installation • Check connections to pressure sensor.

  • Page 71: Technical Data

    TECHNICAL DATA TECHNICAL DATA DESCRIPTION IBX100 Power supply voltage 9 ÷ 16 Vdc -40 °C ÷ +60 °C Operating temperature -40 °F ÷ +140 °F -40 °C ÷ +85 °C Storage temperature -40 °F ÷ +185 °F Weight (without cables) 1213 g For Open Collector sensors: Digital inputs Max frequency 2000 Hz Analog inputs 4-20 mA...

  • Page 72: Pin-Out Of Ibx100

    TECHNICAL DATA 18.1 Pin-out of IBX100 VALVE sprayer technology Fig. 139 H2O VALVES ISOBUS CABLE SENSOR CABLE HYD VALVES (7/14 sections) Tractor / Self-propelled IBX100 signal IBX100 signal IBX100 signal IBX100 signal 12V sensor power supply GND power supply AC valve Pressure sensor (M)
  • Page 73 TECHNICAL DATA SELETRON sprayer technology Fig. 140 SELETRON SELETRON ISOBUS CABLE SENSOR CABLE Line 2 Line 1 Tractor / Self-propelled IBX100 signal IBX100 signal IBX100 signal IBX100 signal 12V sensor power supply Pressure sensor (M) Level sensor (L) GND sensor power supply VBAS VBAS...

  • Page 74: End-Of-Life Disposal

    Dispose of the system in compliance with the established legislation in the country of use. GUARANTEE TERMS 1. ARAG s.r.l. guarantees this apparatus for a period of 360 days (1 year) from the date of sale to the client user (date of the goods delivery note).
  • Page 75 Notes...
  • Page 76 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to the Internet address www.aragnet.com 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 http://www.aragnet.com...

This manual is also suitable for:

467900446790042

Table of Contents
