SG & EG 600-700-780-900-1100

Installation Instructions into Wood or Block Alcoves

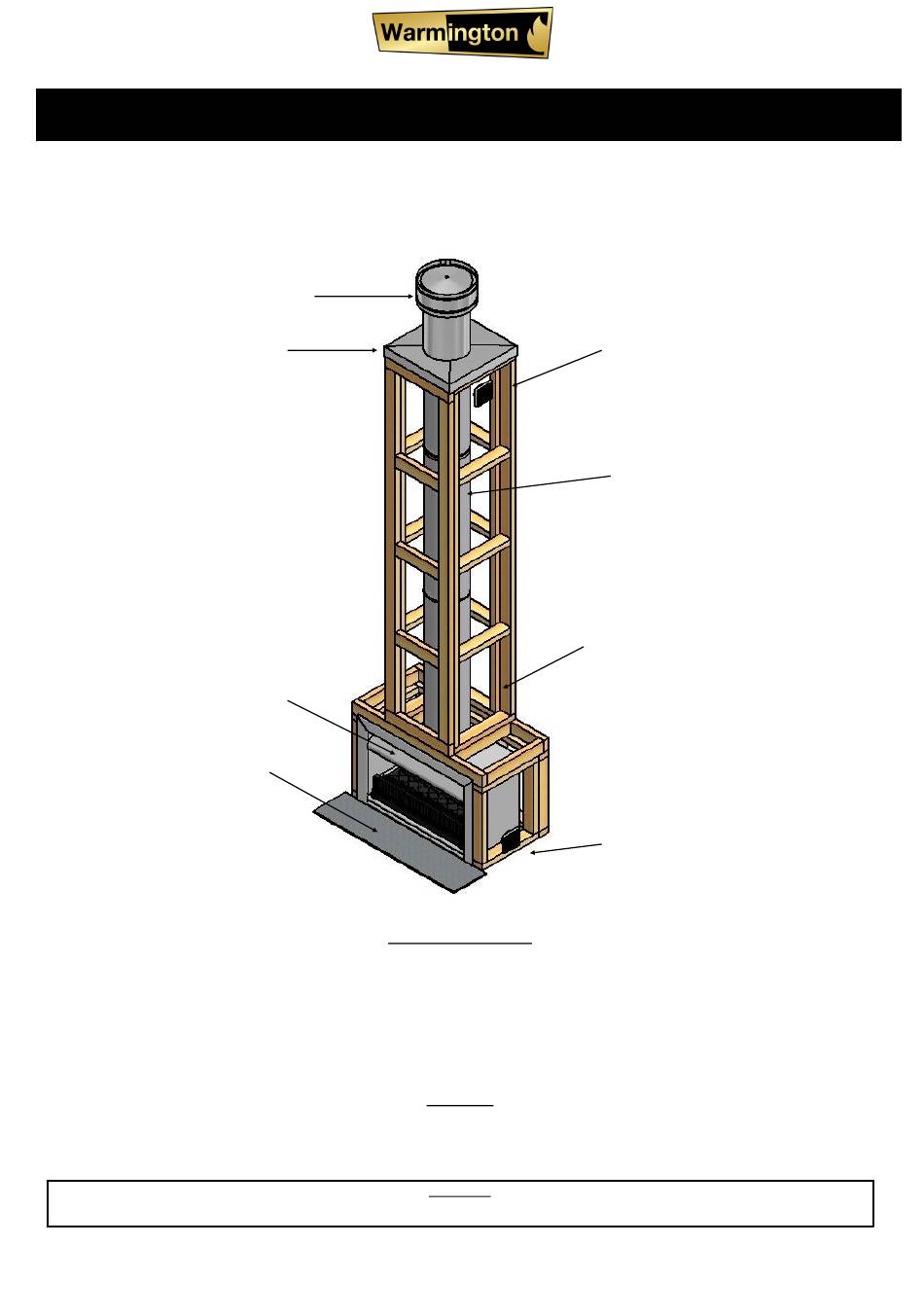

Warmington Gas Cowl

S/S Flashing

(Top venting can also be

through S/S flashing.

See flashing detail in spec)

Warmington Gas Firebox

Fire and flue system installation, and instructions to comply with NZS 5601.1:2013,

3645.1(Int):2010, 3645.2(Int):2010, 5266:2014, 2918:2001.

The fireplace is constructed and tested to comply with NZS 4558(int):2013 "Decorative gas log and other fuel effect appliances".

Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace.

The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.

A licenced certified gas fitter and licenced electrician are required to run power and gas supplies as required to the unit and any commissioning as part of the

installation process.The heater must be installed according to these instructions and in compliance with all relevant building, gas fitting, electrical and other

Read all the instructions carefully before commencing the Installation. Failure to follow these instructions may result in a fire hazard and void the warranty

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

GAS OPEN FIRES

Hearth

See www.homeheat.co.nz/members for a certified NZHHA SFAIT Installer in your area.

Need help?

Do you have a question about the SG 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Warmington SG 600

Page 1 The fireplace is constructed and tested to comply with NZS 4558(int):2013 “Decorative gas log and other fuel effect appliances”. Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace. Installation The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.
Page 2 This will ensure that the draft in the flue system is always to the outside. “CAITEC AIR” the limits and requirements. See details in these Spec’s, on www.warmington.co.nz or contact your local Agent. Wind Noise: You may encounter wind noise in some installations.
Page 3 Measured From Top of Firebox B + 3600 Seismic Restraint Secure Firebox through anchor positions provided, (Through Base of Fire). Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 4: Important Notes
Solid Plaster cracking. (See your Solid Plasterer for correct materials and applications). Visit the Warmington Web Site for “Hebel” instruction (PDF Download).. www.warmington.co.nz Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 5 Centre Line of Flue is `NOT’ in Centre of Alcove Note: All Framing Dimensions are Internal Only Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 6 Hearth Projection Centre of Flue Note: Centre Line of Flue is `NOT’ in Centre of Alcove Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 7 Block modules may vary to the drawing. (See Blocklayer) Cool Air exter- nal Intake Vent 2x 100mm Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 8 25mm gap around the Liner with a “Venting Flashing Cone-Spider” can be used. Ref : to Figures ……in this specification. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 9 Test Report Number Date of Report 04/1039 July 2004 04/1040 July 2004 04/1041 July 2004 Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 10 No Insulation Insulation under under flashing VENTING THROUGH FLASHING flashing Note: 2x 100mm vents in chase Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 11 FRAME OUT AND TRIM OUT DETAILS FOR CHIMNEY CHASE Option X – Single Lined Flue System Option Y – Double Lined Flue System Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 12 Note: For Combustible Floors Minimum Hearth of 300mm (A) must be maintained at any given height. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 13 It is recommended the gas feed be through the RH Side looking at the fire Plinth Gas connection through the plinth Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 14 The appliance and flue system must be tested in accordance with the relevant and current standards and the appropriate building codes. FLUED GAS APPLIANCES All gas fires requiring Warmington flue systems shall be Installed to the requirements of the current standards and shall be appropriately designed and constructed to permit safe and effective use.
Page 15: Bottom Row
SG / EG 700 SG / EG 780 SG / EG 900 SG / EG 1100 Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 16: To Shut Down
Pilot light may be left on and the pilot flame will still burn. • To fully extinguish, turn to the ‘OFF’ position before closing the cover. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 17 Tube causing the fire to shut down. 3 Flame Pilot in assembled state Correct operation of 3 Flame Pilot Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 18 POINTS OF SAFTEY - To the Customer /Home-Owner Your Warmington Gas decorative fire operates on the principle of dual radiant and convected heat. Therefore it is important to observe the following precautions associated with any heating appliance or open fire.
Page 19 SG units or EG units without remote controlled electronics (eg. units with on/off, hi/low switches on the wall). Not supplied Supplied Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 20: Adjustment Screw
During the initial burn period, some smoke and smell may be experienced. Because of this, run the appliance on the high • position in a well ventilated room until these dissipate. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 21 7 October 2021 EG ON/OFF ONLY (SIT840 valve) - WIRING DIAGRAM Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 22 During the initial burn period, some smoke and smell may be experienced. Because of this, run the appliance on the high po- sition in a well ventilated room until fumes dissipate. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 23 7 October 2021 GAS STARTER SCHEMATIC DIAGRAM (SIT 843 valve) Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 24: Remote Control Features
1, 2, 3 Off and back to 1. Note, that the fan speed will not change automati- cally, but remain at the last selected speed. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 25: Restore Factory Default Settings
OFF state display. During this time a special code will be transmitted by the RF Remote to the Control Unit, causing the Control Unit to learn its ID. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 26: App Operation
Or search for “Intelligy Thermostat MKII” in your smart phone app store For instructions on how to push the appliance to your Wi-Fi, please go to the Warmington website and find details located under the ‘Downloads’ tab for your fireplace model.
Page 27 This controller can not adjust flame height or fan speed, hence is supplied for emergency use, if remote and phone App is not able to be used. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 28 WARNING: To ensure the correct operation of the modulator it is necessary that the plastic cap is returned to its original location. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 29 • pliance on the high position in a well ventilated room until the fumes dissipate . Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 30 7 October 2021 FULLY MODULATING (SIT 845) - WIRING DIAGRAM Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 31: General Notes
NOTE: Keep a copy of these instructions for operating and maintenance guidelines. Industries 1994 LTD PO Box 58652, Botany 2163, Auckland www.warmington.co.nz Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
