Warmington SG 700 Installation Instructions Manual

Freestanding square - open gas fire

Hide thumbs Also See for SG 700:

Installation instructions manual (29 pages)

Installation insrtuctions (21 pages)

Installation manual (11 pages)

Table of Contents

Quick Links

Download this manual

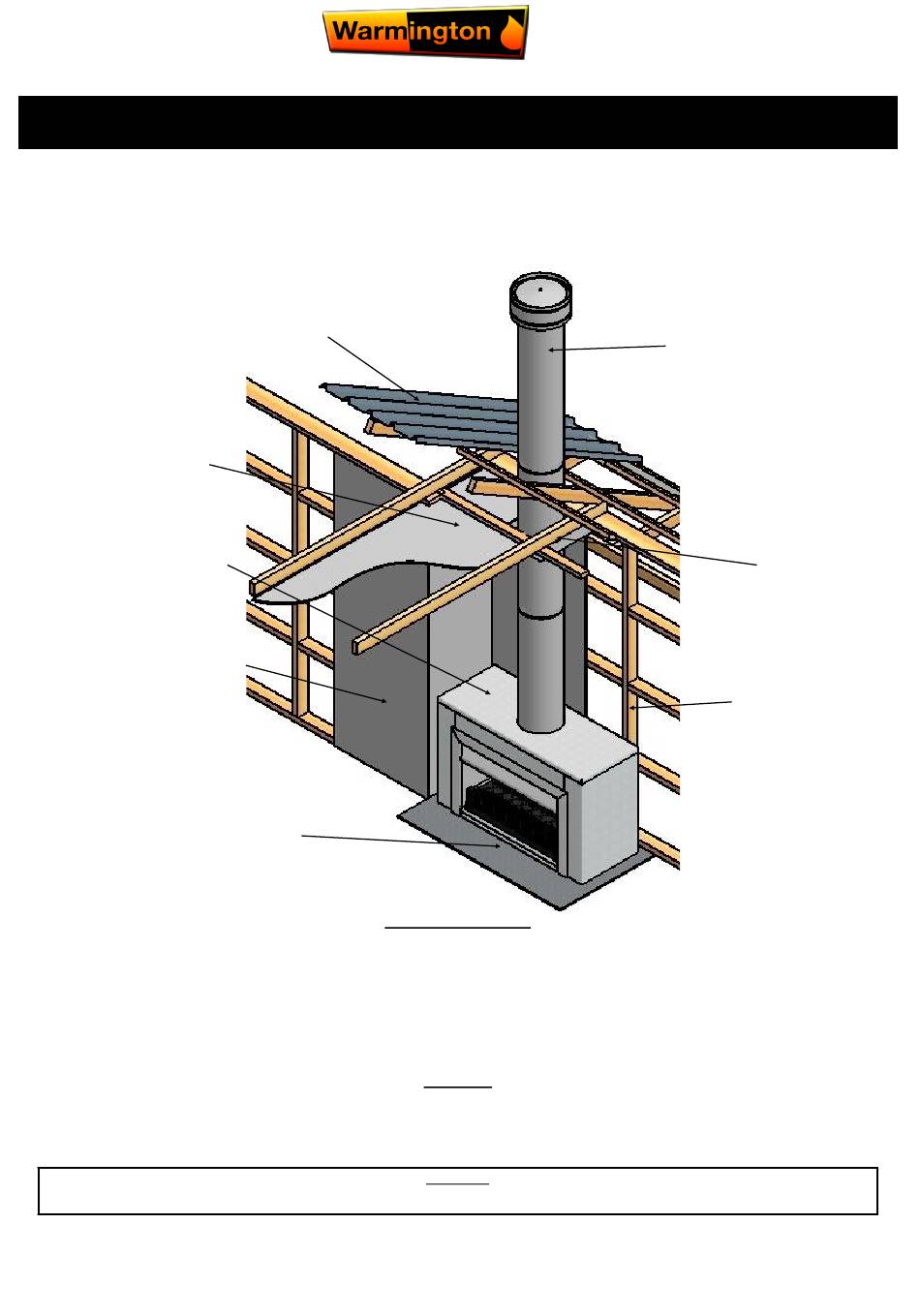

SG & EG 700-780-900-1100 FSS

FREESTANDING SQUARE - Open Gas Fire

Gib Ceiling

Freestanding

Square Cabinet

Gib Walls

Freestanding

Plinth & Hearth

Fire and flue system installation, and instructions to comply with NZS 5601.1:2013,

3645.1(Int):2010, 3645.2(Int):2010, 5266:2014, 2918:2001.

The fireplace is constructed and tested to comply with NZS 4558(int):2013 "Decorative gas log and other fuel effect appliances".

Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace.

The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.

A licenced certified gas fitter and licenced electrician are required to run power and gas supplies as required to the unit and any commissioning as part of the

installation process.The heater must be installed according to these instructions and in compliance with all relevant building, gas fitting, electrical and other

Read all the instructions carefully before commencing the Installation. Failure to follow these instructions may result in a fire hazard and void the warranty

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

Installation Instructions

Roof

See www.homeheat.co.nz/members for a certified NZHHA SFAIT Installer in your area.

Summary of Contents for Warmington SG 700

Page 1 The fireplace is constructed and tested to comply with NZS 4558(int):2013 “Decorative gas log and other fuel effect appliances”. Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace. Installation The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.
Page 2 This will ensure that the draft in the flue system is always to the outside. “CAITEC AIR” the limits and requirements. See details in these Spec’s, on www.warmington.co.nz or contact your local Agent. Wind Noise: You may encounter wind noise in some installations.
Page 3 Measured From top of Firebox B + 3600 Seismic Restraint Secure Firebox through anchor positions provided (through base of fire). Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 4: Gas Specifications
Solid Plaster cracking. (See your Solid Plasterer for correct materials and applications). Visit the Warmington Web Site for “Hebel” instruction (PDF Download).. www.warmington.co.nz Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 5 Plinth under Firebox can be constructed of framing Ensure Hearth finishing is completed prior to installation Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 6: Important Note
Important Note: For optimum performance place ‘Caitec’ weir vent system as close to fireplace as possible. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 7 25mm gap around the Liner with a “Venting Flashing Cone-Spider” can be used. Ref: to Figures in this specification. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 8 Vermin and Rodent proof. Test Report Number Date of Report 04/1039 July 2004 04/1040 July 2004 04/1041 July 2004 Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 9 “Insulation under under flashing” VENTING THROUGH FLASHING flashing” Note : 2 X 100MM VENTS in chase. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 10 Option X – Singled Lined Flue System Option Y – Double Lined Flue System 50 mm Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 11 Note: For Combustible Floors Minimum Hearth of 300mm (A) must be maintained at any given height. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 12 FLUED GAS APPLIANCES All Gas Fires requiring Warmington Flue Systems shall be Installed to the requirements of the current standards and shall be appropriately designed and constructed to permit safe and effective use. This Appliance must be flued to the outside atmosphere. All Warmington Fires must be Installed with a minimum of 3.6m of Approved Warmington Gas Flue and Liners.
Page 13: Bottom Row
SG / EG 700 SG / EG 780 SG / EG 900 SG / EG 1100 Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 14: To Shut Down
Pilot light may be left on and the pilot flame will still burn.  To fully extinguish, turn to the ‘OFF’ position before closing the cover. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 15 Replace the Base screw and check for leaks. down. 3 Flame Pilot in assembled state Correct operation of 3 Flame Pilot Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 16: Maintenance
POINTS OF SAFTEY - To the Customer /Home-Owner Your Warmington Gas decorative fire operates on the principle of dual radiant and convected heat. Therefore it is important to observe the following precautions associated with any heating appliance or open fire.
Page 17 SG units or EG units without remote controlled electronics (eg. units with on/off, hi/low switches on the wall). Not supplied Supplied Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 18 During the initial burn period, some smoke and smell may be experienced. Because of this, run the appliance on the high position in a well ventilated room until these dissipate. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 19 During the initial burn period, some smoke and smell may be experienced. Because of this, run the appliance on the high position in a well ventilated room until these dissipate. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 20 During the initial burn period, some smoke and smell may be experienced. Because of this, run the appliance on the high po- sition in a well ventilated room until fumes dissipate. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 21 6 October 2016 EG HI/LOW (SIT 843 valve) - WIRING DIAGRAM Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 22: Flame Operation
By holding the + or - Flame Button for up to 10-15 seconds, this will increase or decrease the main burner flame to it’s max or min. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 23: Fan Operation
FAN OPERATION The Warmington decorative gas fire has a 3 Speed Fan and its operated independent from the main burner. This is done by pressing and releasing the fan + or – button will increase or decrease the fan speed. The LED on the front panel will indicate the fan settings at low, medium, or high speed.
Page 24 WARNING: To ensure the correct operation of the modulator it is necessary that the plastic cap is re- turned to its original location. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 25 It may take approximately 2 hours of operation for the coals/logs or river rocks to achieve their full flame  pattern and glow. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 26 It may take approximately 2 hours of operation for the coals/logs or river rocks to achieve their full flame  pattern and glow. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 27: General Notes
NOTE: Keep a copy of these instructions for operating and maintenance guidelines. Industries 1994 LTD PO Box 58652, Botany 2163, Auckland www.warmington.co.nz Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
Page 28 6 October 2016 Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
