Warmington SG-EG 600 Installation Instructions Manual

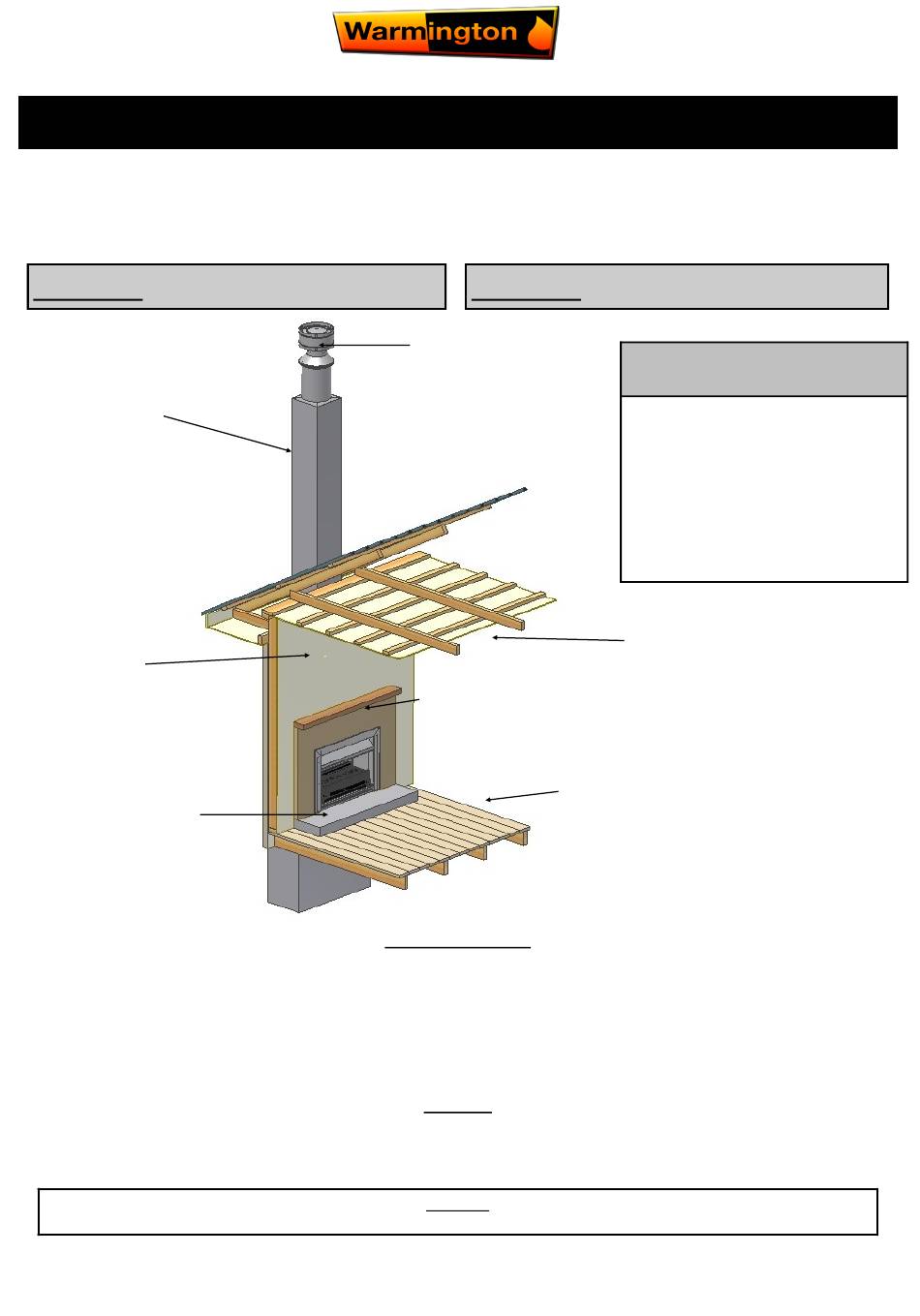

Installation Instructions into Existing Brick / Pre Cast Chimney.
Option 1: Use existing chimney
Existing brick or
pre-cast chimney
Gib board wall
Existing or new floor
protector over com-
bustible floor. See de-
tails for dimensions
Fire and flue system installation, and instructions to comply with NZS 5601.1:2013,
3645.1(Int):2010, 3645.2(Int):2010, 5266:2014, 2918:2001.
The fireplace is constructed and tested to comply with NZS 4558(int):2013 "Decorative gas log and other fuel effect appliances".
Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace.
The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.
A licenced certified gas fitter and licenced electrician are required to run power and gas supplies as required to the unit and any commissioning as part of the
installation process.The heater must be installed according to these instructions and in compliance with all relevant building, gas fitting, electrical and other
Read all the instructions carefully before commencing the Installation. Failure to follow these instructions may result in a fire hazard and void the warranty
Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.
1
SG EG 600-700-780-900-1100
Retro Fitted Gas Open Fire
See www.homeheat.co.nz/members for a certified NZHHA SFAIT Installer in your area.
All Dimension are in mm.............Copyright ©
Option 2: Use a flue-kit
Gas cowl, cone, liner,
spider & spigot plate
Ceiling cavity & roof
Existing or new mantle
Related documents
Installation
statutory regulations.
IMPORTANT
29 March 2021
When using an existing chimney as
the flue system:
Ensure that the existing chimney comply to the
appropriate standards & building codes.
If the Chimney is not sound or needs repair then
a insert flue system may be required through the
existing masonry chimney. See specifications in
the later pages.
The integrity of the chimney needs to be con-
firmed by the installer or gas fitter at the time of
installation.
Timber framing
Combustible floor
