Install Battery Pack(s)

Make sure you have connected the battery leads inside of the battery pack before installing it in the
BatteryPack Option (see
1: Hold the battery pack so that the LED indicators are on the top.
2: Insert the flanges on the bottom of the battery pack into the slots in the BatteryPack Option (see
Figure 6 below). If you are only installing one battery pack, use the "A" (left) side of the BatteryPack
Option.
3: Raise the battery pack until it is upright inside of the BatteryPack Option, making sure that the
connector on the rear of the pack is firmly seated on the mount behind it.
4: Secure the battery pack in place using the provided thumbscrew (see Figure 7 below).

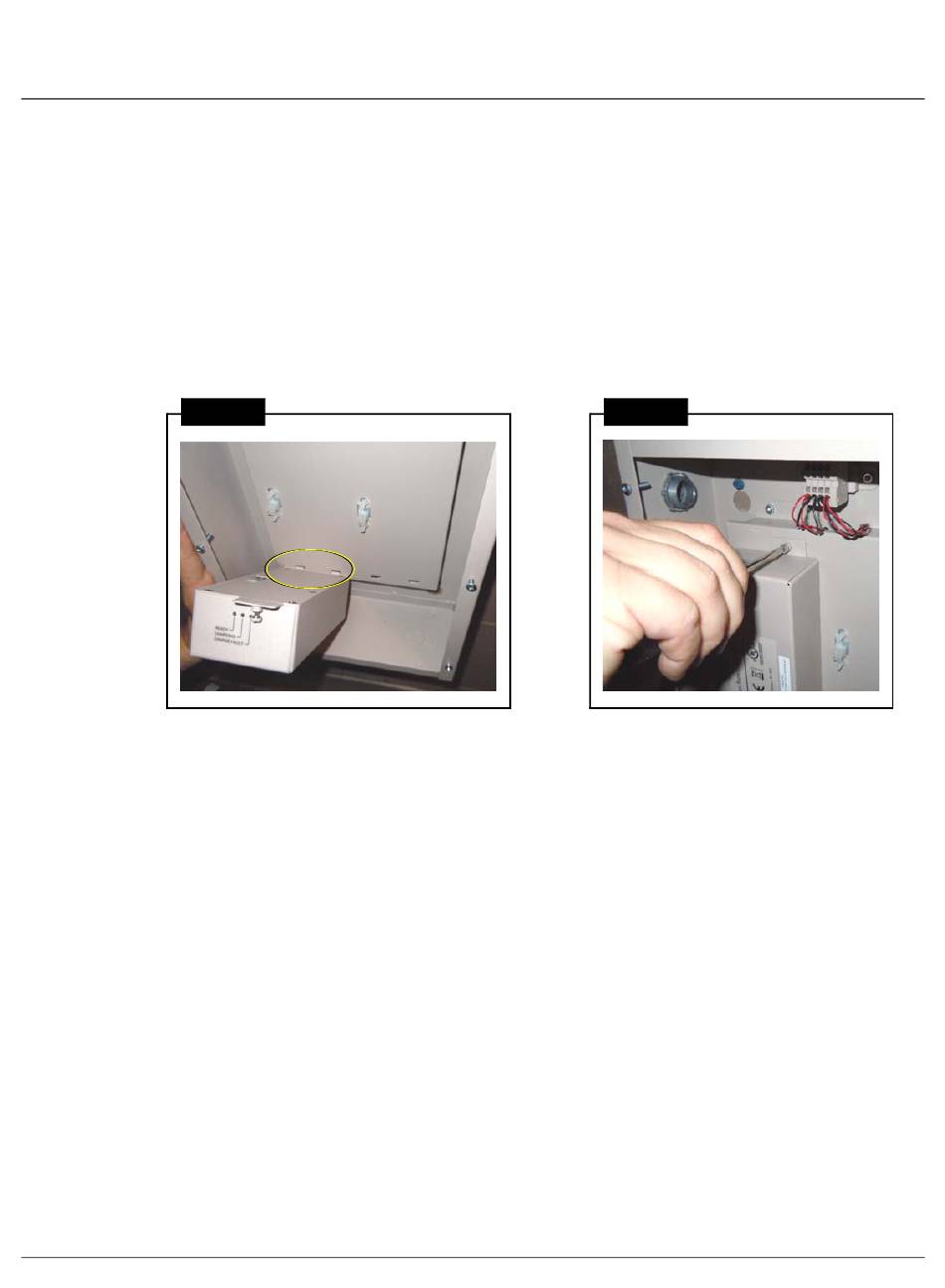

Figure 6
5: Repeat this procedure for the "B" (right) side if a second battery pack is being used.
BatteryPack Option
Connect the Battery Leads
