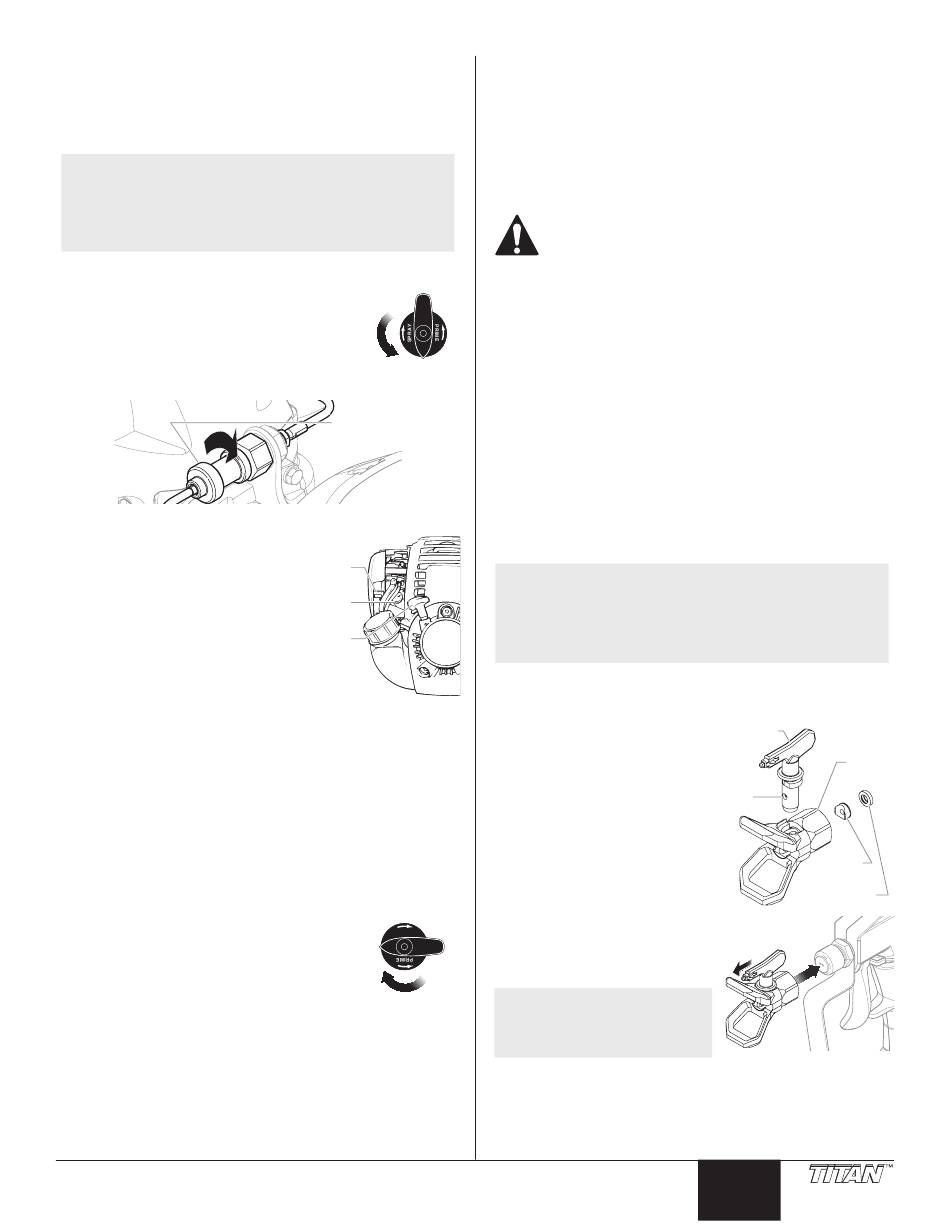

1. Place a five gallon bucket of material between the bucket
holders on the cart. Make sure the bucket holders hold
the five gallon bucket securely. Adjust the bucket holders
using the thumb screw located underneath each holder, if
necessary.
NOTE: When using this line striper for first time, it may
be helpful to use water in place of paint to gain
familiarity with the operation of the line striper.
After changing from water to paint, test spray
several lines on cardboard, roofing felt, or rosin
paper before striping to ensure correct line width.
2. Place the siphon tube into the bucket of material.
3. Place the return hose into a metal waste container.
4. Turn the PRIME/SPRAY knob to the PRIME
position.
5. Fully depress the pusher stem to make sure
the inlet ball is free.
6. Turn the DirectLink pressure control knob
fully clockwise to minimum.
7. Start the engine:
a. Move the choke lever up to the full
choke position.
b. Push the rubber prime button 7-10
times.
c. Pull the starter rope rapidly and
firmly. Continue to hold the rope as
you let it return. Pull and return the
rope until the engine starts.
d. Once the engine is running, slowly
move the choke lever down to the
closed position.
8. Slowly turn the DirectLink
pressure control knob
counterclockwise to increase the pressure until fluid starts to
come out of the return hose. Use only enough pressure to
keep the fluid coming out.
9. Allow the sprayer to run for 15–30 seconds to flush the
test fluid out through the return hose and into the waste
container.
10. Turn the DirectLink pressure control knob fully clockwise to
minimum.
11. Turn off the sprayer by pressing and holding the engine
shutoff switch until the motor shuts off.
12. Remove the return hose from the waste container and place it
in its operating position above the bucket of material.
13. Start the engine.
14. Turn the PRIME/SPRAY knob to the SPRAY
position.
15. Unlock the gun by turning the gun trigger
lock to the unlocked position.
16. Turn the DirectLink pressure control knob
slowly counterclockwise to increase the
pressure.
17. Fully pull the spray lever on the cart handle. Fluid will begin
flowing through the spray hose and out of the gun.
18. Continue to pull the spray lever on the cart handle until
material is coming out of the gun.
19. Release the spray lever.
20. Lock the gun by turning the gun trigger lock to the locked
position. If necessary, loosen the gun holder clamp knob and
© Titan Tool Inc. All rights reserved.
Clockwise
Choke
lever
Prime
bulb
Starter
rope
Attaching the Tip Guard and Tip
Use the following procedure to install
the tip guard and tip to the spray gun.
SPRAY
7
then engage the spray gun trigger lock. Move the spray gun
to its original position and tighten the clamp knob.
21. Turn the DirectLink pressure control knob fully clockwise to
minimum.
22. Turn the PRIME/SPRAY knob to PRIME.
23. Turn off the sprayer by pressing and holding the engine
shutoff switch until the motor shuts off.
24. Attach tip guard and tip to the spray gun. Refer to the
instructions later in this section.
POSSIBLE INjEcTION HAZARD. Do not spray without
the tip guard in place. Never trigger the gun unless
the tip is in either the spray or the unclog position.
Always engage the gun trigger lock before removing,
replacing or cleaning tip.
25. Start the engine.
26. Turn the PRIME/SPRAY knob to SPRAY.
27. Fully pull the spray lever on the cart handle to trigger the
spray gun. Test the spray pattern and line position on a long
piece of roofing felt or cardboard. Check for proper line width
and position. If adjustment to the position of the spray gun is
required, refer to the "Setup" procedure earlier in this section.
28. Make sure that the spray gun shuts off completely when the
gun trigger is released. If adjustment to the trigger tension
is required, refer to the "Adjusting the Trigger Tension"
procedure in the Maintenance section of this manual.
29. Begin striping.
a. Position the line striper slightly in front of the striping path.
b. Start walking with the line striper and trigger the gun at the
beginning of the striping path.
c. At the end of striping path, release the trigger and continue
walking a short distance, if possible.
NOTE: Triggering the gun after the line striper is moving
and releasing the trigger before the line striper
stops produces an evenly painted line from start
to finish. If the striping path ends at an obstacle,
release the trigger at the same moment that the line
striper stops moving.
1. Perform the "Pressure Relief
Procedure" described in this
manual.
2. Using the arrow head on the tip
handle, insert the tip seal and
tip seal retainer into the back of
the tip guard. Press in for final
adjustment.
3. Insert the tip into the slot on
the tip guard.
4. Thread the tip guard onto the
gun. Position the tip guard in
the desired spraying position
and tighten securely.
NOTE: The arrow on the tip
handle should be
pointing in the forward
direction for spraying.
Tip
handle
Tip
guard
Tip
Tip seal
retainer
Tip seal
English
